ZKTeco LH7000 Manuel utilisateur

Installation Guide

Version: 1.0

Date: Jan. 2019

LH7000

1

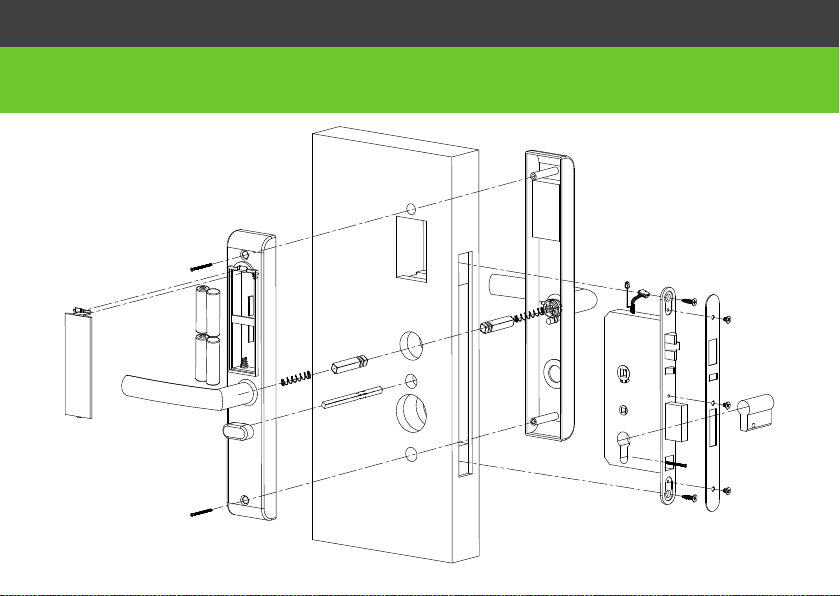

Lock Diagram

Before Installation

A

BD

G

C

H

O

M

E

I

J

N

F

P

2

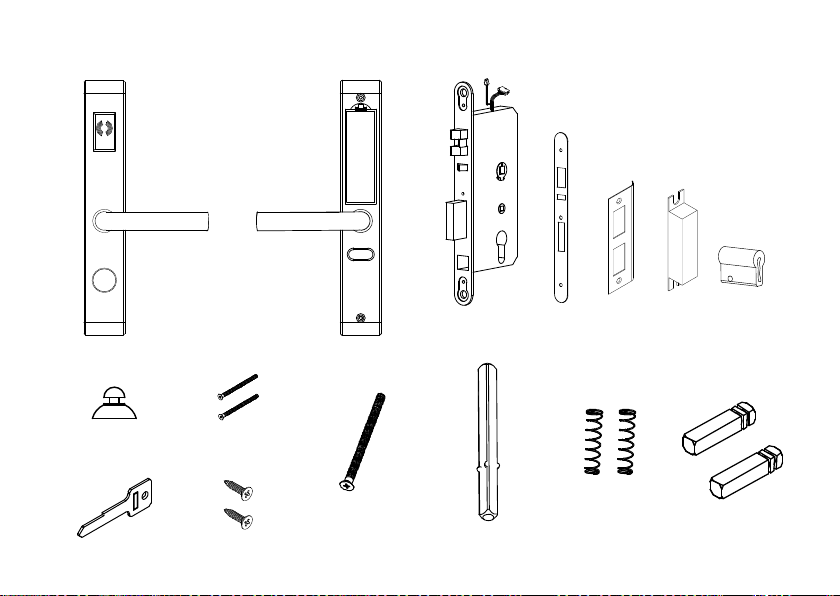

Packing List

A N

E JL K G

S

TO

F

CD

B

H

3

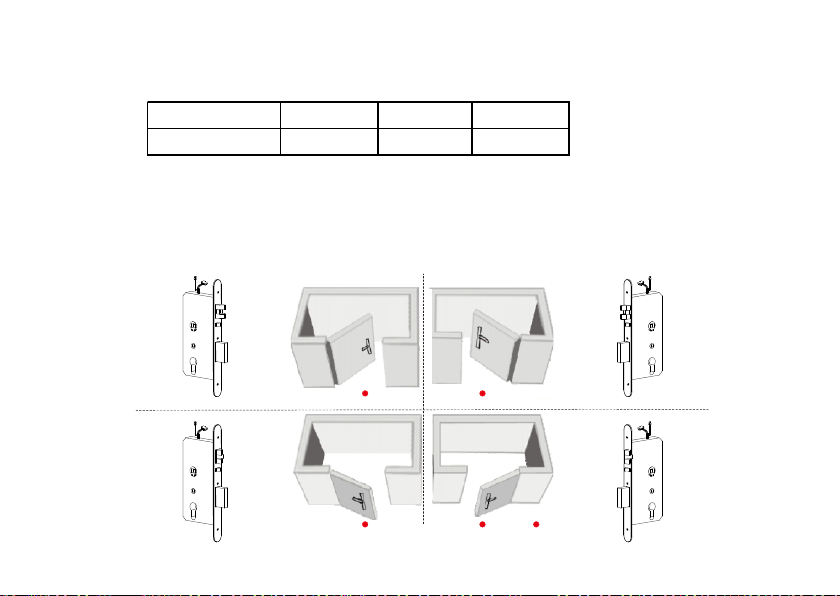

Preparing Door

1. Check door thickness; prepare proper screws and spindles.

Note: Please install the mortise (E) according to the above pictures.

EE

EE

Left hand, open inward Right hand, open inward

2. Determining Handing.

Door Thickness D Spindles C Spindle F Screws

38 - 48 mm 40 mm 75 mm 25 mm

Note: If the door is thicker than 38-48 mm, this lock will not be available.

Standpoint

Left hand, open outward Right hand, open outward

The hand of a door is determined from the secure side of the door. The term "secure" means the side from

which you unlock and enter.

4

Cautions

1. New lock is defined as always open mode until it was unlocked once by mifare card.

2. Please swipe authorised card, time sync card, room card at first for the new lock.

3. The lock is equipped with mechanical keys for manual unlocking. Remove the

mechanical keys from the package and keep them in a safe place.

4. To power on the lock, four alkaline AA batteries (not included) are required.

Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.

5. Do not remove batteries when the lock is in working state.

6. When battery power is low, the lock will beep to remind user to renew the batteries.

Please do not mix up positive and negative while replacing battery.

7. Avoid contacting with corrosive substances, and do not hang objects on the handle.

8. The software within the lock manages the RFID cards, for more details refer to the

software user manual.

9. If there are any questions, please do not hesitate to contact the seller.

5

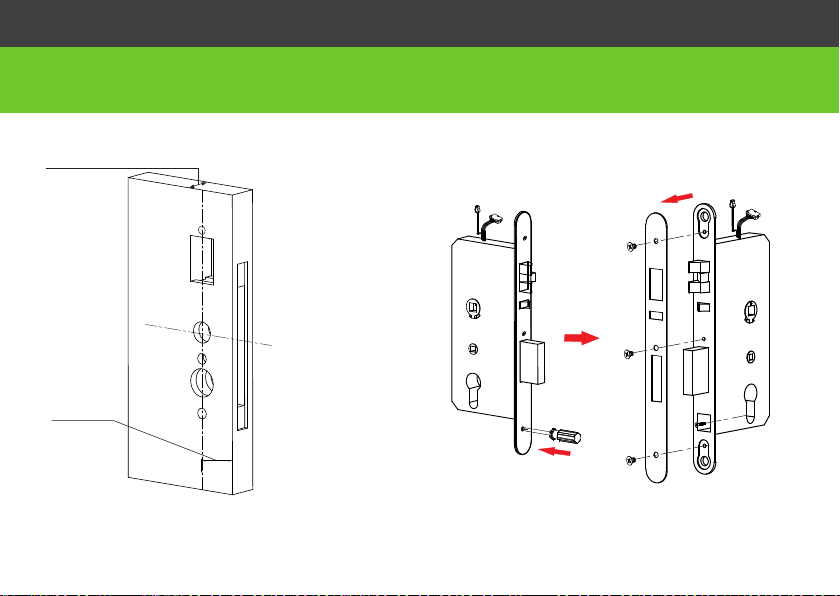

Installation

desired handle

height

center line of

the handle

door thickness

38~48 mm

backset

54 mm

2. Remove the mortise latch plate (J)

1. Drill holes on the door

Note 1: Align the template along the vertical

center line of the mortise (E) at the desired

handle height, and tape it to door.

Note 2: Mark the holes first, then start drilling.

E

J

I

6

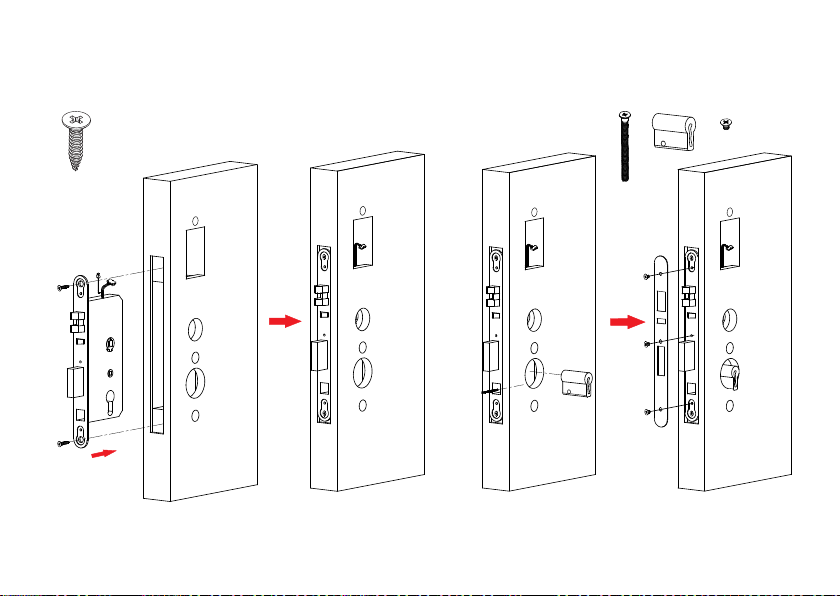

3. Install mortise(E)

F

F

4.Install cylinder(G) and fix

the mortise(E)

G

HI

I

G

H

J

7

5. Install coil spring(B)

B

exterior panel A interior panel N

B

8

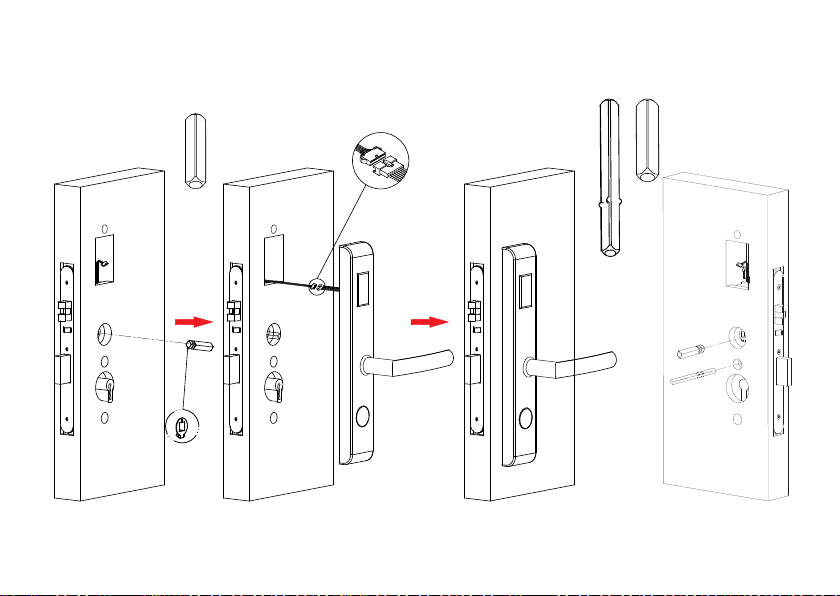

6.Install spindle (D) and

exterior panel (A)

D

A

D

7.Install spindle (C) and (D)

D

C

C

D

9

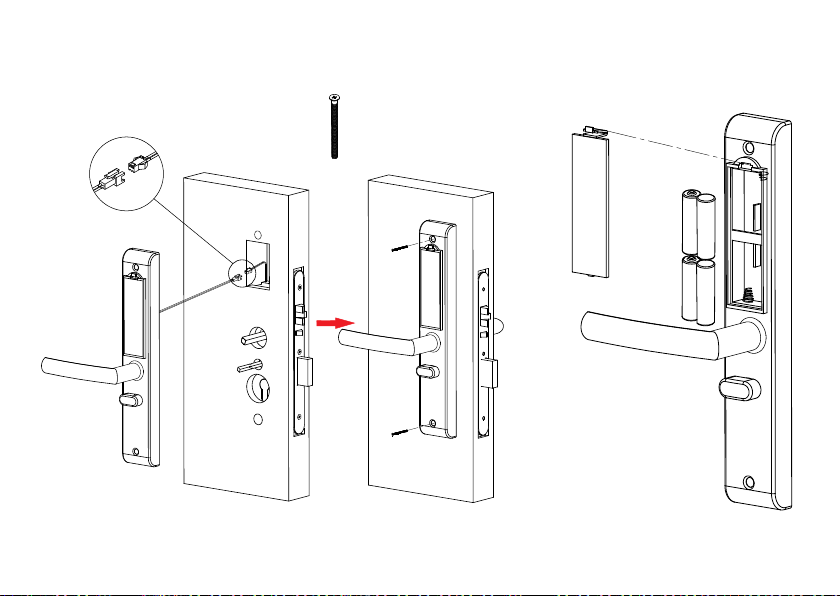

8.Install (N)interior panel

NO

O

9.Install the battery (P)

and plastic cover (M)

P

M
