Zippity ZP19022 Manuel utilisateur
701 Lawton Rd. , Charlotte NC USA 28216
Toll Free Phone: 1 877 234 6196 Fax: 704 631 4685
www.zippity-outdoor.com

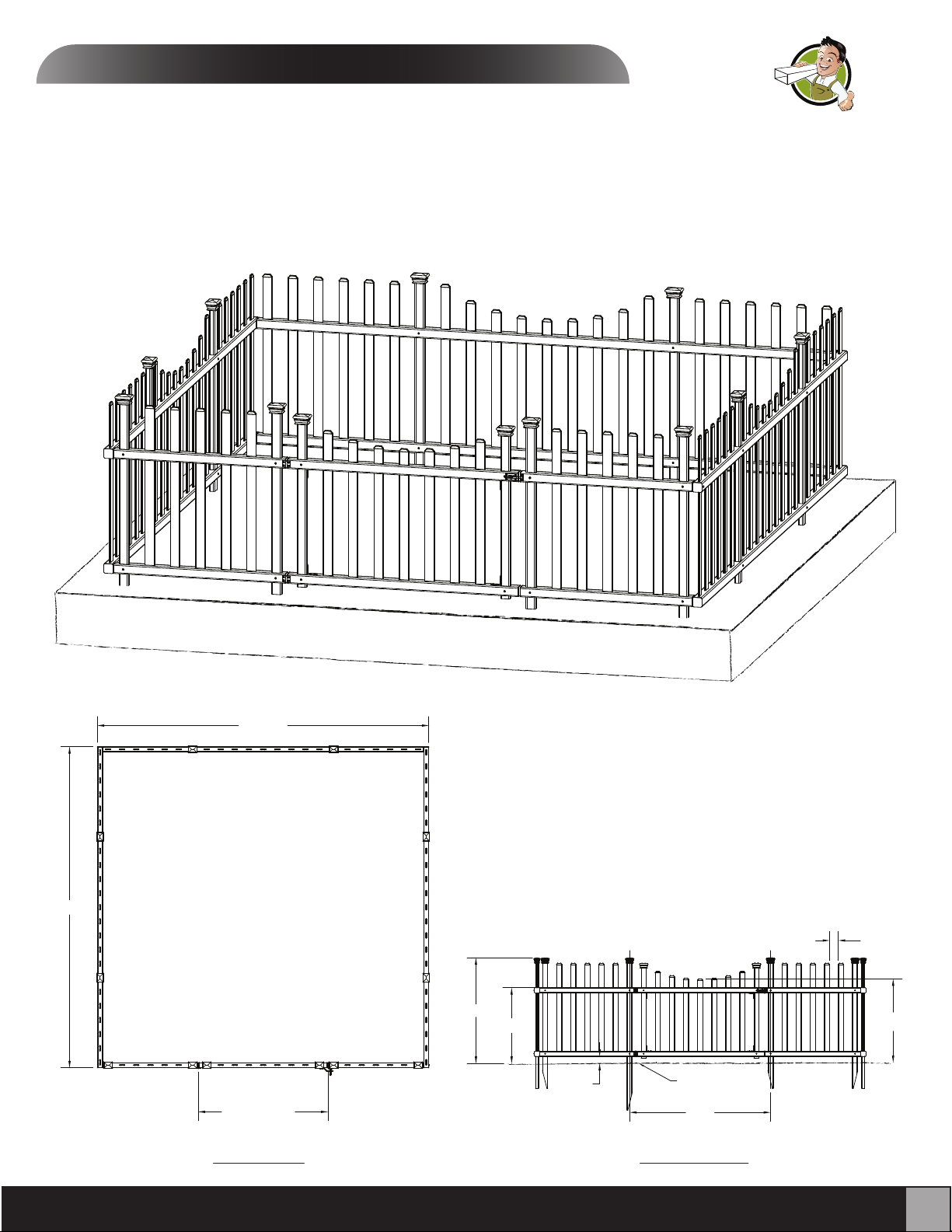

Zippity Pet or Garden Enclosure Kit
(8’ x 8’ x 30”H)
ASSEMBLY INSTRUCTIONS
1
Ver 1.1/070116
NO DIG GARDEN FENCE & SCREENS
Zippity
91 1/8 in
94 1/8 in
36 7/8 in
Gate Opening
Ground
2 1/2 in
2 in
30 in
21 1/2 in
40 in
24 in
Top View Front View
Assembly Time ... 3 to 4 Hours Installation Time ... 2 to 3 Hours
2Zippity Pet or Garden Enclosure Kit Instructions

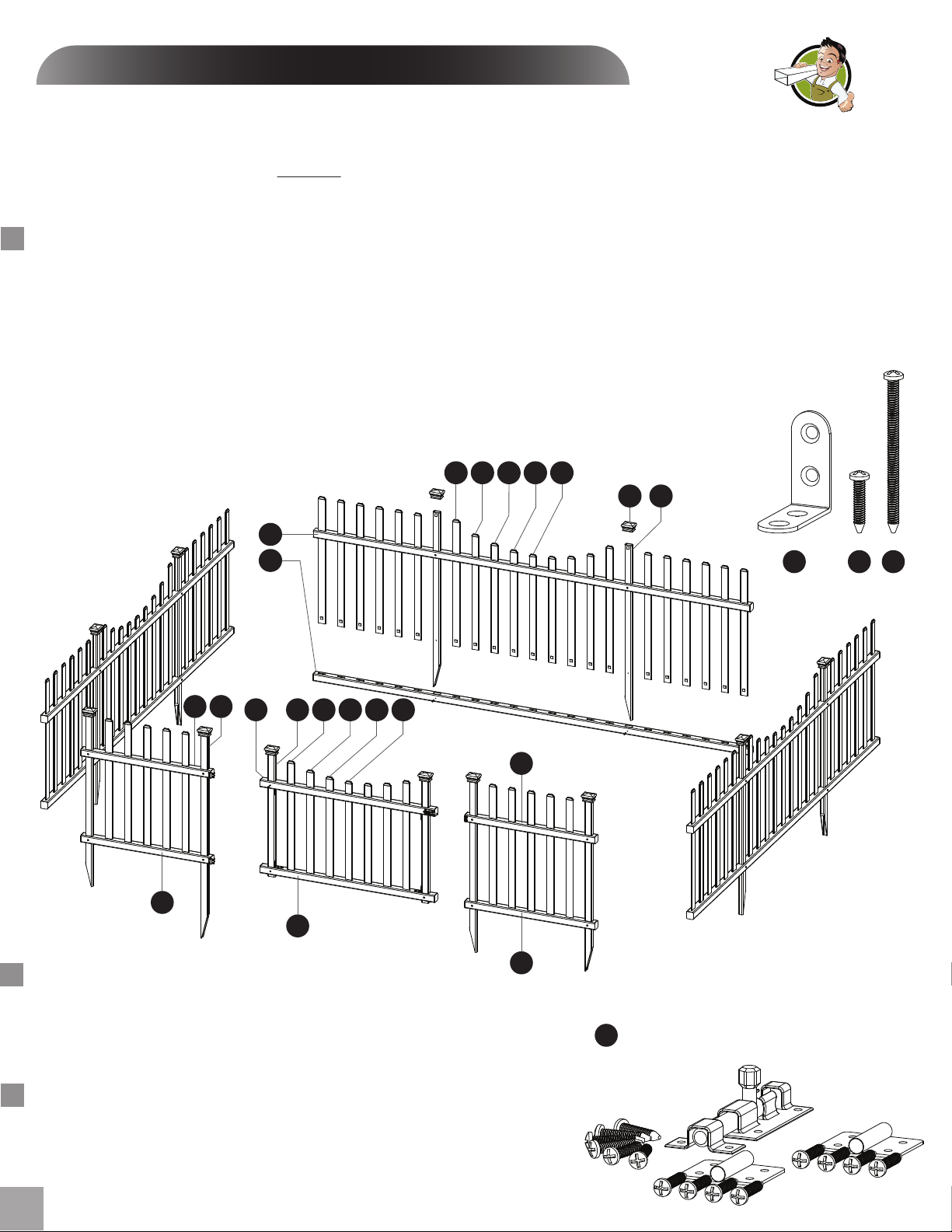

Check Box for These Contents
In the event of missing or defective parts please call our customer service department at
1 877 234 6196
(Mon. to Fri.8:00 AM to 4:00 PM EST).
Tools You Will Need
• Cordless Drill
• Level
• Hammer
• 1/16” Drill Bit
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e.shipping box) to avoid scratching.
• We recommend an area approx 5’x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
Please read through before starting assembly.
ASSEMBLY INSTRUCTIONS
IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS
PACKED INSIDE.
NO DIG GARDEN FENCE & SCREENS
Zippity
1.
Post Caps
(12)
2. Posts
(
9) - 1 1/2” x 7/8“ x 36 1/2”
3.
Gate - Top Rail
(1) - 1 1/2“ x 1½” x 36 1/4“
4. Gate - Posts (2) - 7/8” x 1 1/2“ x 26 1/2”
5. Gate - Bottom Rail
(1) - 1 1/2” x 1 1/2“ x 36 1/4”
6.
Gate Wing - Top Rails
(2) - 1 1/2” x 1 1/2“ x 27”
7. Gate Wing - Bottom Rails
(
2) - 1 1/2” x 1 1/2“ x 27”
8.
Gate Wing Post with Wood Insert
(1) - 7/8” x 1 1/2” x 43 1/2”
9. Gate Hardware Kit (1)
10.
Fence - Top Rails
(3) - 1 1/2” x 1 1/2“ x 91”
11.
Fence - Bottom Rails
(3) - 1 1/2” x 1 1/2“ x 91”
12.
Pickets
- 1 - (52) 1 1/2” x 1/4“ x 26 3/8“
13.
Pickets
- 2 - (8) 1 1/2” x 1/4“ x 24 1/8”
14.
Pickets
- 3 - (8) 1 1/2” x 1/4“ x 22 7/8”
15.
Pickets
- 4 - (8) 1 1/2” x 1/4“ x 22 1/8”
16.
Pickets
- 5 - (4) 1 1/2” x 1/4“ x 21 7/8”
17. Corner Brackets (4)
18.
3/4” Self-Auguring Stainless Steel Screw
(63)
19.
2” Self-Auguring Stainless Steel Screw
(8)
1
3
6
5
2
4
7
7
6
8
15141312 16
151413 16
10
11
Not to Scale
18 19
17
9
Not to Scale
3

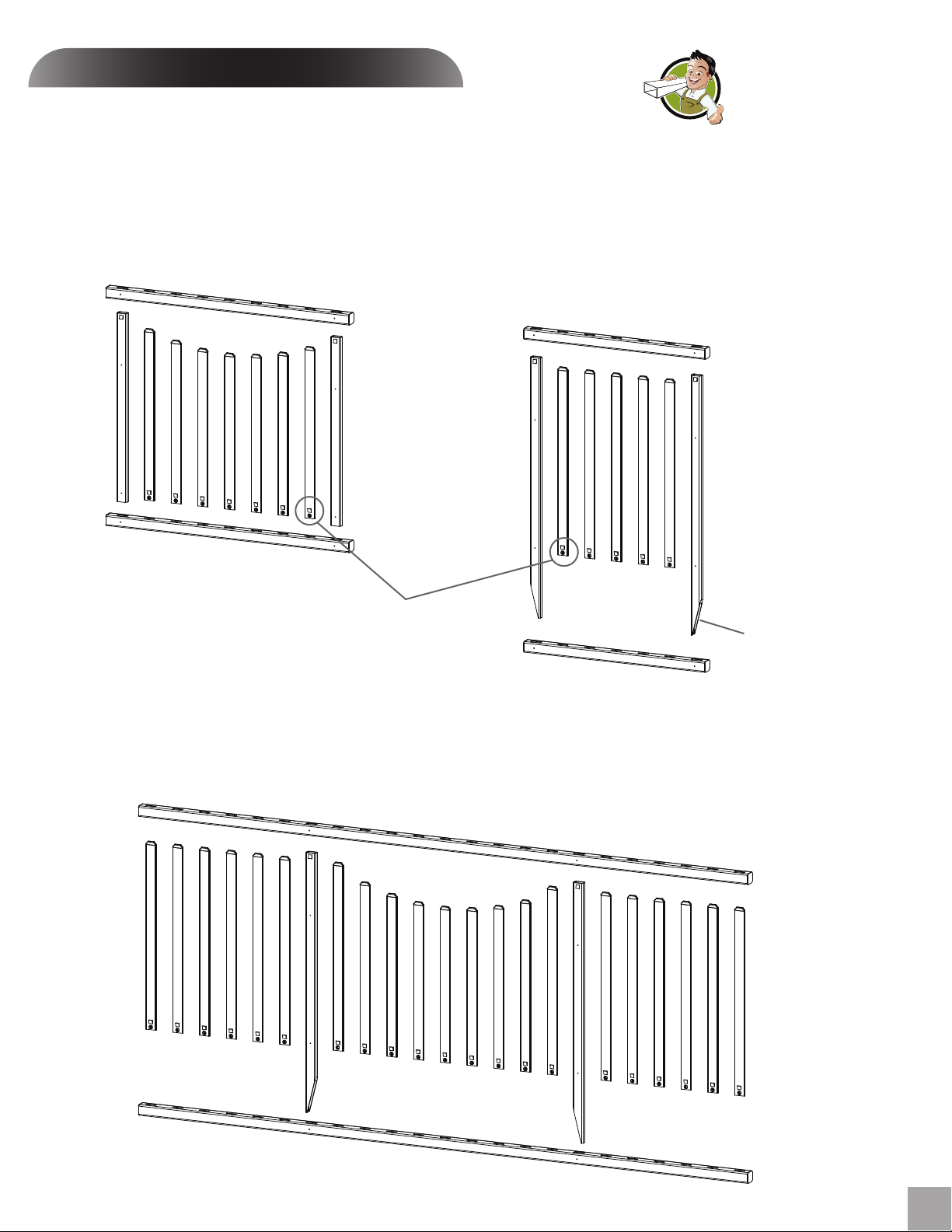

STEP ONE
Zippity Pet or Garden Enclosure Kit Instructions
Unboxing
When unboxing, please refer to page 2 to identify and separate
all your parts and pieces into three different groups.
Note: The pickets will have numbered
stickers at the bottom.
x 3
x 2
NO DIG GARDEN FENCE & SCREENS
Zippity
Picket Count:
14 @ #1
2 @ #2
2 @ #3
2 @ #4
1 @ #5
Picket Count:
5 @ #1
Picket Count:
2 @ #2
2 @ #3
2 @ #4
1 @ #5
Gate Gate Wings
Back & Side Panels
Note: One of the Gate Wing
Post is longer and
includes wood.
See Page 9 for more
Details.
Zippity Pet or Garden Enclosure Kit Instructions
4
1
2
Gate Assembly
Identify the gate top and bottom rail.
Insert the gate posts into the routered holes as shown.
Note that the tab is at the top.
Align the pre-drilled holes on the rails with the pre-drilled
holes on the post and fasten each intersection with two
short screws (one from the front and one from the back)
except for the front right on the top rail - this is where the
latch will eventually go.
STEP TWO
1
Gate Top Rail
Gate Bottom Rail
Top
Bottom
Top
Bottom
3
2
Note: Post Tabs
3
Align Holes
NO DIG GARDEN FENCE & SCREENS
Zippity
Tip!
Shine an LED light from your smart phone or flashlight
down the end of the posts to help identify alignment of
pre-drilled holes if necessary.
Small holes routed through the top and bottom of the rail.
Small holes only routed through the top of the rail.
Note: No Pre-drilled Hole
Latch will eventually be
installed here.
Zippity Pet or Garden Enclosure Kit Instructions 5
4
5

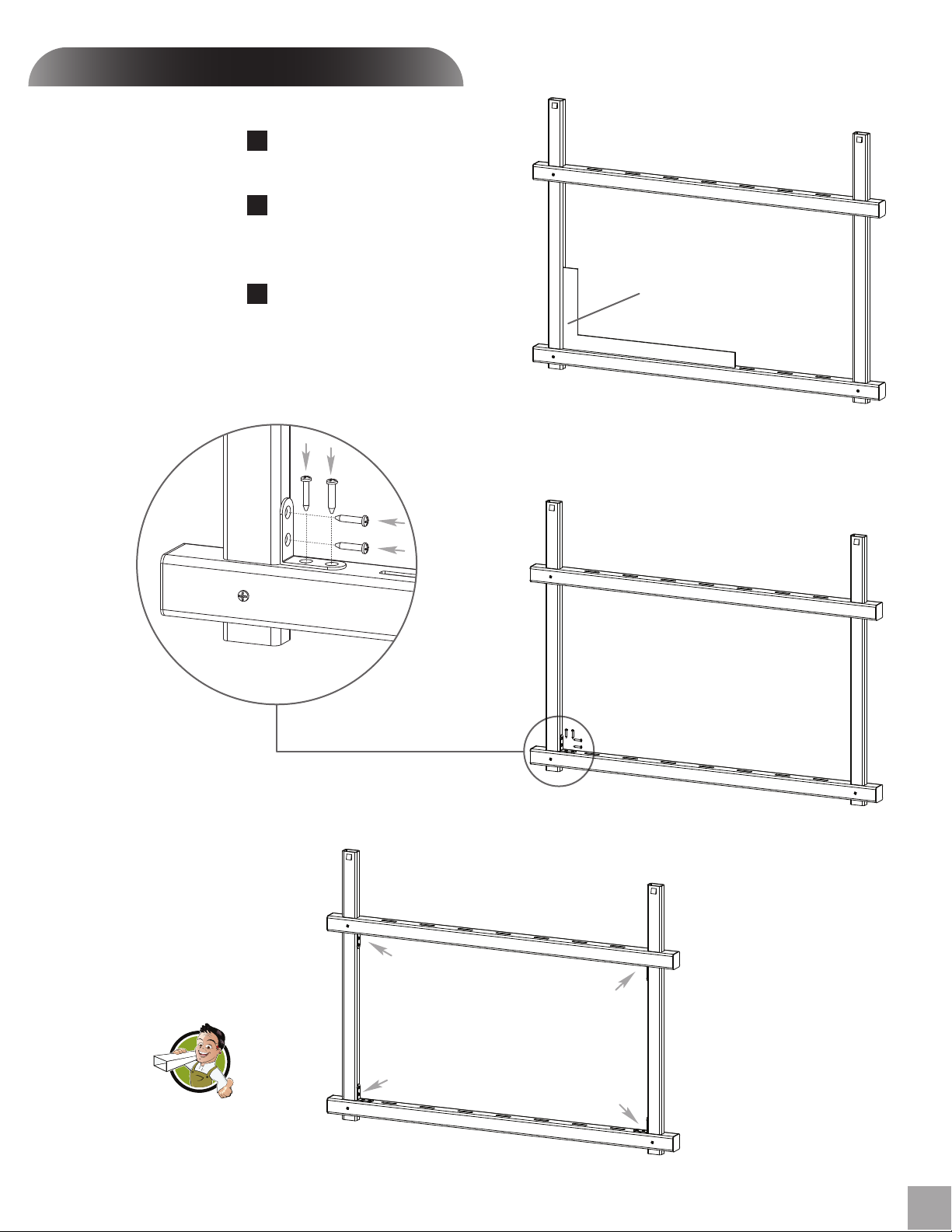

Gate Assembly
Square the gate frame together as shown.
Lock the corner together using one of the corner brackets
followed by four short screws as shown.
Repeat for all 4 inside corners of gate frame as illustrated.
STEP TWO
6
4
5
Square
6
NO DIG GARDEN FENCE & SCREENS
Zippity
Zippity Pet or Garden Enclosure Kit Instructions
6
7
8

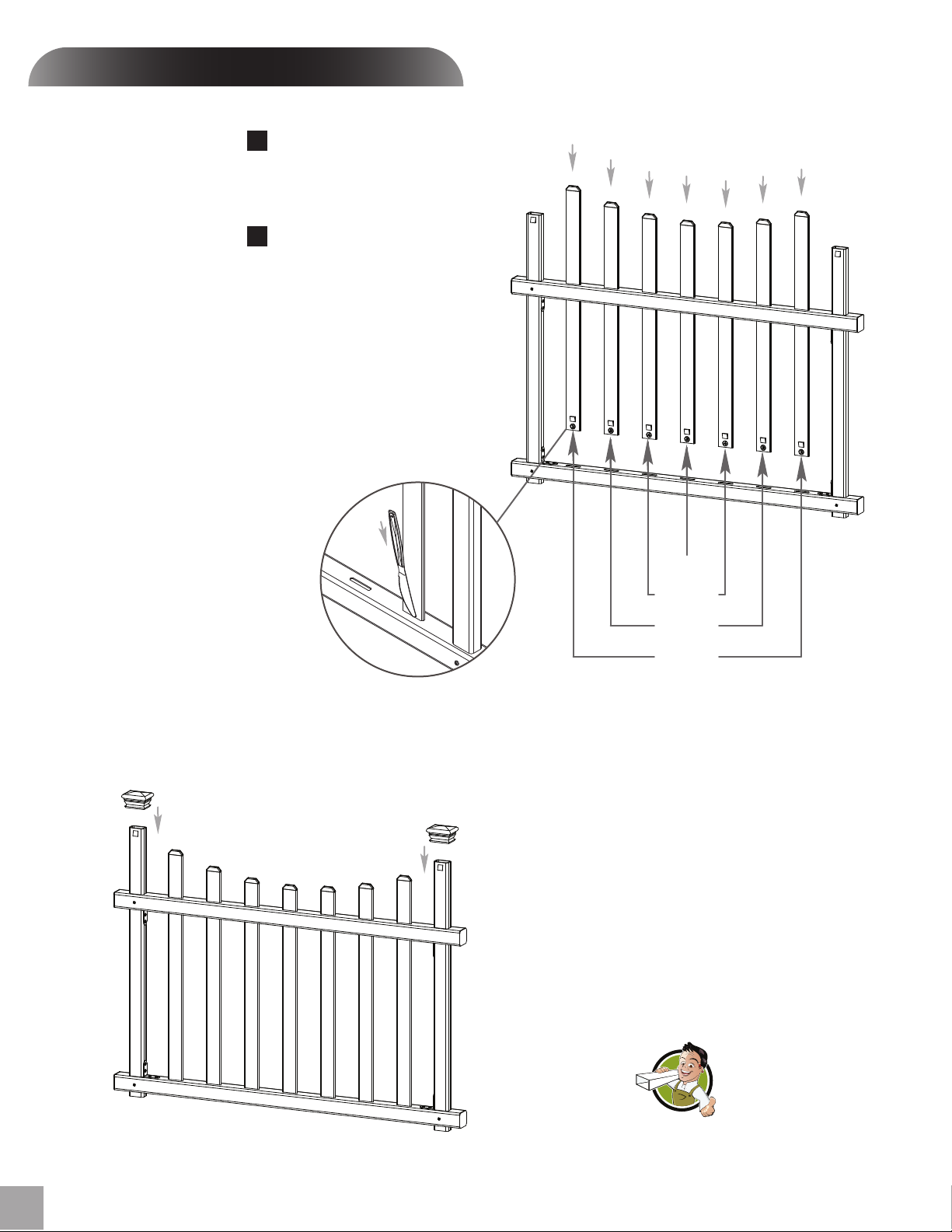

Gate Assembly
One by one, slide the pickets through the routered holes
as shown.
Note the different lengths of pickets.
Install top post caps.
Push down on caps to lock it to vinyl post.
STEP TWO
7
8
Picket #5
Picket #4
Picket #3
Picket #2
NO DIG GARDEN FENCE & SCREENS
Zippity
Note: Once inserted, the
pickets will lock into place.
To remove the picket(s),
gently insert a butter knife
along the picket direction
as shown and slowly pull up
the picket(s).
Zippity Pet or Garden Enclosure Kit Instructions 7
1
2

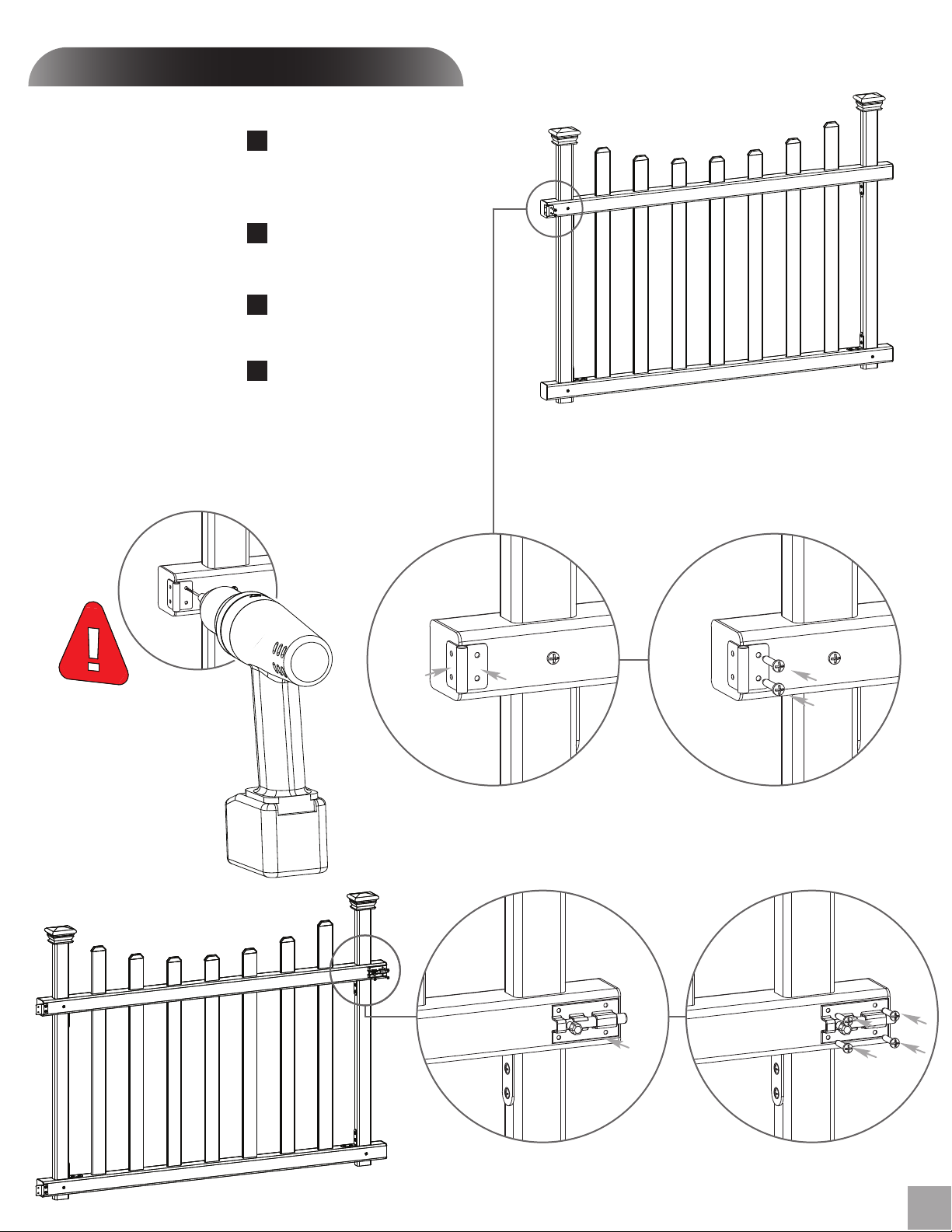

Gate Hardware Installation
Center and align a hinge around the top rail as shown.
To ensure a proper fit and function, firmly wrap the hinge
around the front face and end of the rail as shown.
Fasten the hinge to the gate rail using two of the screws
Repeat for second hinge on gate bottom rail.
To install finger latch, center and align the finger latch as
shown.
Fasten finger latch into the top rail using four of the screws
from the hardware kit.
STEP THREE
21
3
4
34
ALL HOLES FOR GATE HARDWARE MUST
BE PRE-DRILLED USING A 1/16” DRILL BIT
Zippity Pet or Garden Enclosure Kit Instructions
Gate Wing Bottom Rail
Top
Bottom
8
1
2

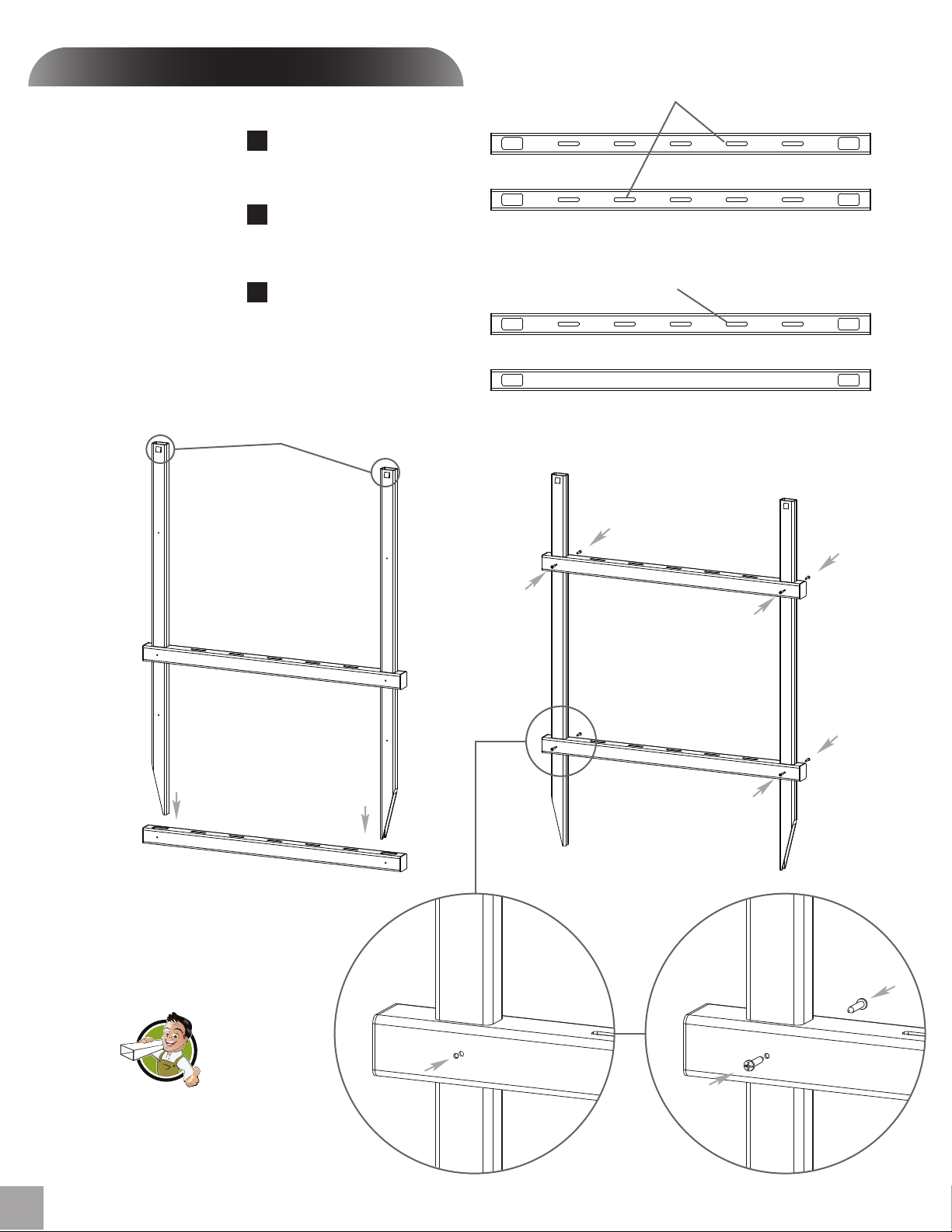

Gate Wings Assembly
Identify the gate wing top and bottom rails.
Insert the gate wing posts into the routered holes as shown.
Note that the tab is at the top.
Align the pre-drilled holes on the rails with the pre-drilled
holes on the post and fasten each intersection with two
short screws (one from the front and one from the back)
STEP FOUR
1
Gate Wing Top Rail
Top
Bottom
3
2
Note: Post Tabs
3
Align Holes
NO DIG GARDEN FENCE & SCREENS
Zippity
Small holes routed through the top and bottom of the rail.
Small holes only routed through the top of the rail.
Zippity Pet or Garden Enclosure Kit Instructions 9
4
5
Gate Wings Assembly
One by one, slide the pickets through the routered holes
as shown. Note: Use pickets labeled “1”
Repeat for second gate wing.
STEP FOUR
4
Picket #1
NO DIG GARDEN FENCE & SCREENS
Zippity
5
One of the longer gate wing post will have a wood insert.
This post will be used to support the gate hinge as shown.
Zippity Pet or Garden Enclosure Kit Instructions
10
1
2

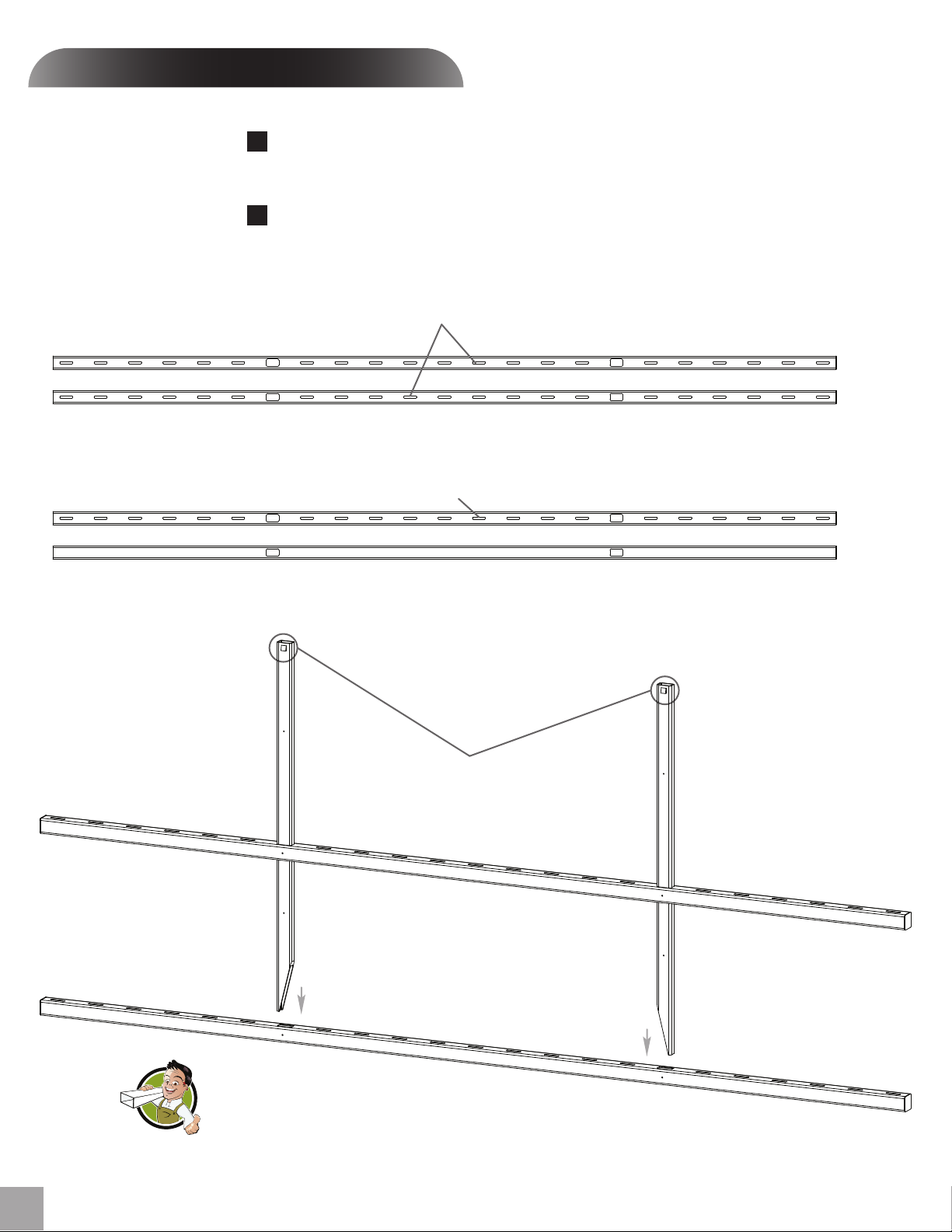

Fence Panels Assembly
Identify the fence panel top and bottom rails.
Insert the fence panel posts into the routered holes as shown.
Note that the tab is at the top.
STEP FIVE
1
Fence Panel Top Rail
Top
Bottom
2
Note: Post Tabs
NO DIG GARDEN FENCE & SCREENS
Zippity
Fence Panel Bottom Rail
Top
Bottom
Small holes routed through the top and bottom of the rail.
Small holes only routed through the top of the rail.
