CRANE - M2 S
User Guide
ZHIYUN-EN-v1.00
Contents
■Product List
Product List ······················ 1
■Get to Know CRANE-M2 S
Get to Know CRANE-M2 S ················ 3
■Battery and Charging
Battery and Charging ·················· 4
■Mounting and Balancing
Mounting the Tripod ·················· 5
Mounting the Camera ················· 5
Mounting the Phone ·················· 9
Mounting the Action Camera ·············· 10
Balancing ······················· 10
■How to Use CRANE-M2 S
Buttons Description ·················· 13
Display Screen Description ··············· 14
Icon Description ···················· 15
Menu Option Description ················ 16
Motor Torque Adjustment ··············· 17
Gimbal Modes Description ··············· 19
Manual Reposition ··················· 22
Changing Fill Light Filters ················ 23
■How to Use the App
Download the App ··················· 24
How to Connect ···················· 24
ZY Play Feature Description ··············· 25
■Firmware Upgrade and Calibration
Firmware Upgrade ··················· 26
Six-side Calibration ·················· 27
■Product Specifications
■Disclaimer and Warning
Reading Tips ····················· 31
Warnings ······················· 31
Safe Operation Guidelines ··············· 32
■Warranty Terms
Warranty Period ···················· 34
Warranty Exclusions ·················· 34
Warranty Claim Procedure ··············· 34
■Contact Card
1
Product List
Product List
Before using this product, please check carefully that all the following items are
included in the product package. In case that any item is found missing, please
contact ZHIYUN or your local selling agent.

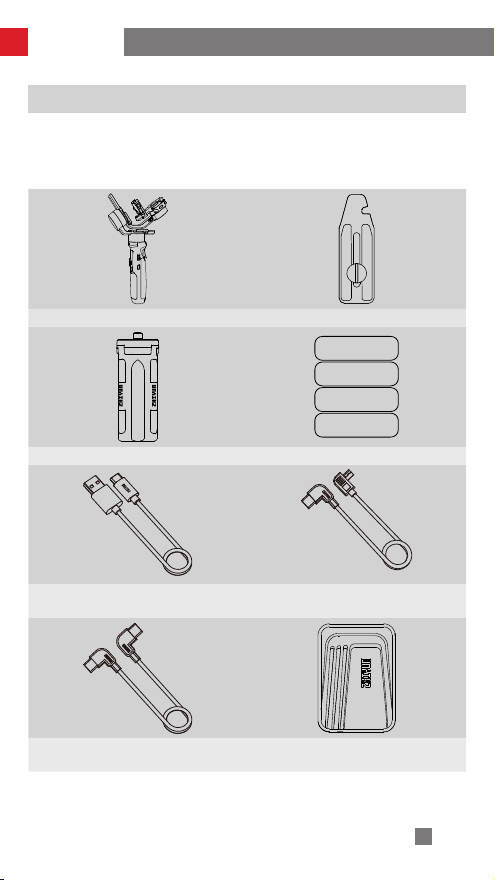

Main Device x1 Quick Release Plate x1
Tripod x1 Fill Light Filters x4
USB Type-C Cable x1 Type-C to Micro USB LN-UCMA-D02
Camera Control Cable x1
Type-C to Type-C LN-UCMC-D06
Camera Control Cable x1 EPP Storage Box* x1
2
Phone Clamp** x1 TransMount EasyGo Backpack** x1
Quick Start Guide x1
Item marked “*” is included in CRANE-M2 S.
Items marked “**” are included in CRANE-M2 S COMBO.
Product List
3
Get to Know CRANE-M2 S
Get to Know CRANE-M2 S

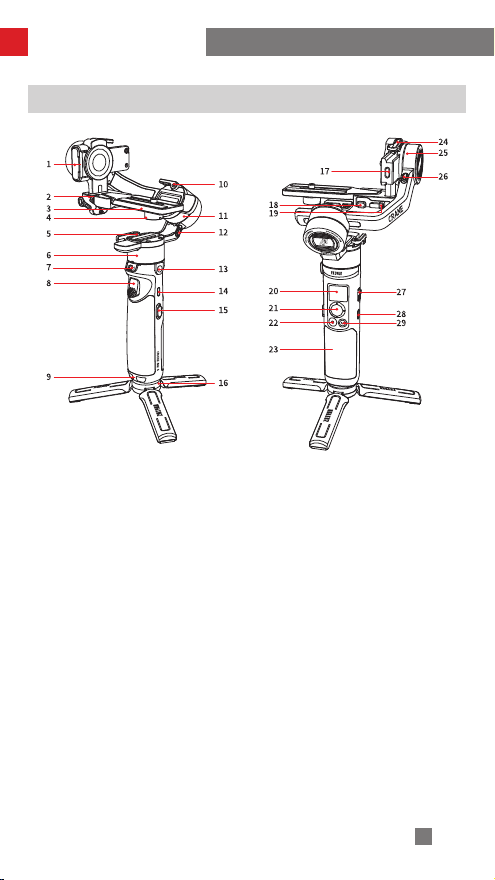

1. Fill Light
2. Level Mount Lock Screw
3. Quick Release Plate
4. 1/4" Camera Lock Screw
5. Pan Axis Latch
6. Pan Axis Motor
7. Pan Axis Lock Switch
8. Trigger Button
9. Wrist Strap Hole
10. Roll Axis Latch
11. Roll Axis Motor
12. Roll Axis Lock Switch
13. 1/4 Expansion Port
14. Type-C Charging/Firmware
Upgrade Port
15. Fill Light Switch
16. Tripod
17. Camera Control Port
18. Quick Release Plate Release
Button
19. Quick Release Plate Safety Lock
20. Display Screen
21. Joystick
22. Video Filming Button
23. Handle
24. Tilt Axis Latch
25. Tilt Axis Motor
26. Tilt Axis Lock Switch
27. Power Button
28. Menu Button
29. M Button
4
Battery and Charging
CRANE-M2 S is equipped with built-in battery. When using CRANE-M2 S for the
first time, please fully charge the battery to activate and to ensure the proper
function of the gimbal.

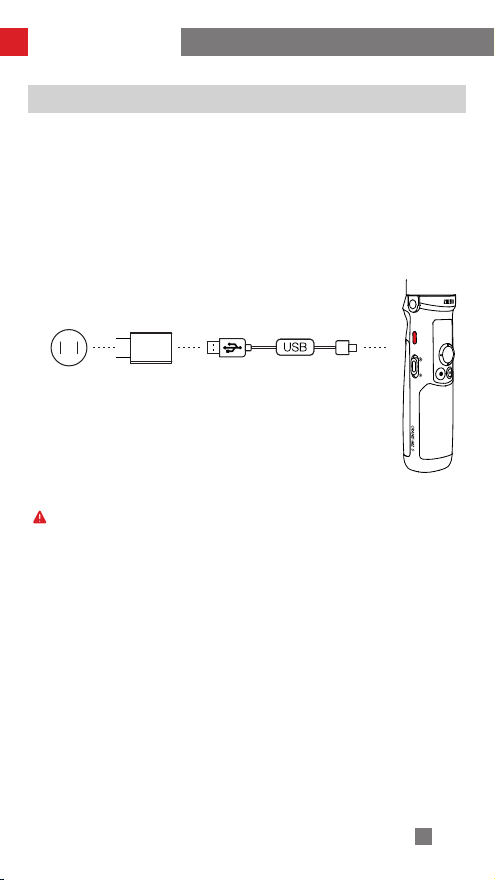

Charging method: Use provided USB Type-C cable to connect the USB charger
(not provided, recommend chargers that meet the USB Power Delivery
Specication, supports 12W at most) to the charging port of CRANE-M2 S.
Battery and Charging
CRANE-M2 S
AC Power
（100-240V)
USB Charger
USB Type-C Cable
The gimbal is equipped with high-energy-density battery, which may cause
fire, economic loss, or personal injury when not properly used and stored.
Please read the disclaimer and warning herein as well as the description on
the battery label carefully before using the battery.
5
Mount the tripod to the
bottom of the CRANE-M2 S
handle, then unfold the tripod
and place the CRANE-M2 S on
a flat surface.
Mounting the Tripod
Mounting the Camera

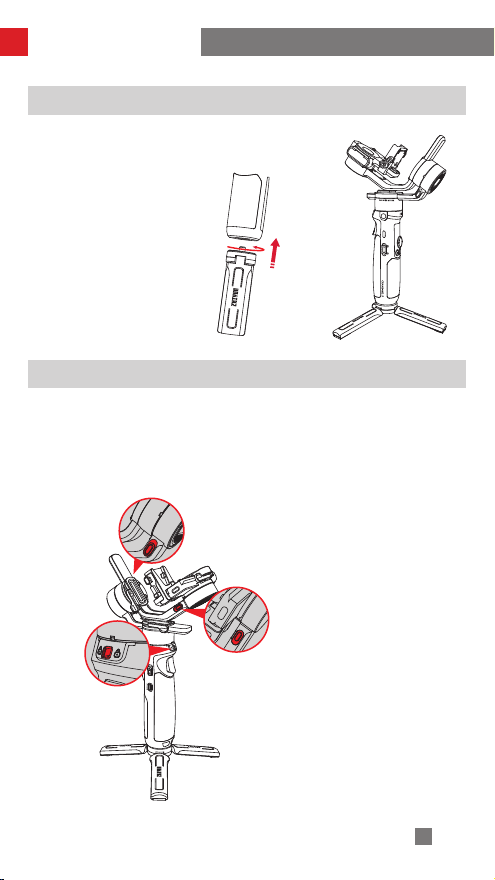

1. Each axis of the gimbal is equipped with a lock switch. You can use these lock
switches to lock the axis for convenient installation and storage. The storage
state is the default state. Please toggle the lock switch to unlock the three
axes, expand the gimbal as shown in the image, and lock the axes again for
convenient camera installation.
Lock state for storage
Mounting and Balancing
6
Mounting and Balancing
Lock state for installation

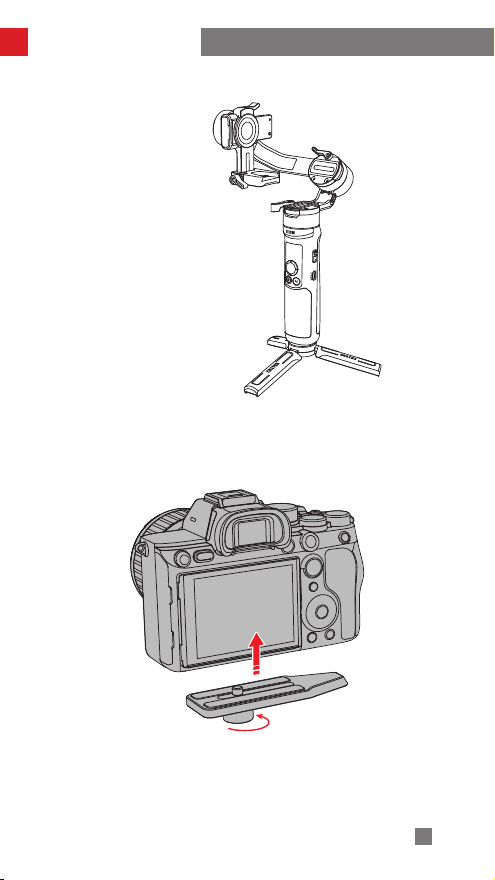

2. Mount the camera on the quick release plate. Tighten the screw.
