Zero Z03 Series Guide rapide
zero
HOME AUTOMATION
Z03 - SWING GATE
PG1
USER MANUAL AND CONFIGURATION
Z03.REV01.2018
IT | EN | FR
zero
HOME AUTOMATION Z03 - SWING GATE MOTOR
SUPPLY 230-24V
zero
HOME AUTOMATION Z03 - SWING GATE
PG2
zero
HOME AUTOMATION
zero
HOME AUTOMATION
Z03 - SWING GATE
PG3
INDEX
01. SAFETY INSTRUCTIONS
02. OPERATOR
TECHNICAL SPECIFICATIONS
DIMENSIONS
03. INSTALLATION
INSTALLATION DIMENSIONS
INSTALLATION STEPS
TYPICAL INSTALLATION
04. MAINTENANCE
MANUEL RELEASE
05. TROUBLESHOOTING
01. SAFETY INSTRUCTIONS
ATTENTION:
•To ensure the safety of people, it is important that you read all the following instrucons.
Incorrect installaon or incorrect use of the product can cause physical injury and material
damage.
•Keep these instrucons in a safe place for future reference.
•This product was designed and produced strictly for the use indicated in this manual. Any
other use, not expressly indicated here, could compromise the good condion/ operaon of
the product and/or be a source of danger.
•ZERO SRLS. is not responsible for the improper use of the product, or other use than that
for which it was designed.
•ZERO SRLS. is not responsible if safety standards were not taken into account when instal-
ling the equipment, or for any deformaon that may occur to it.
•ZERO SRLS. is not responsible for the safety and proper operaon when using components
not sold by them.
•Do not make any modicaons to the operator components and / or their accessories.
•Before installaon unplug the automasm from the source of power.
•The installer must inform the client how to handle the product in case of emergency and
provide this manual to user.
•Keep remote controls away from children, to prevent the automated system from being
acvated involuntarily.
•The customer shall not, under any circumstances, aempt to repair or tune the operator
.Must call qualied technician only.
•Connect the automasm to a 230V plug with ground wire.
•Operator for outdoor and indoor use.
zero
HOME AUTOMATION Z03 - SWING GATE
PG4
02. OPERATOR
TECHNICAL SPECIFIATIONS
Z02 specicaons are as follow:
DIMENSIONS
Z02 300 || 400 || 600 dimensions are the following:
Z03 Z02.24
Power Supply 230Vac 50/60Hz 24Vdc
Power 300W 80W
Current 1,4 A 3 A
Capacitor 12,5µF -
RPM 1400 1650
Noise level LpA <= 50 dB (A)
Force 2800 N
Operang temperatures -25°C to 65°C
Thermal protecon 120°C -
Protecon class IP23
Working frequence 25% INTENSIVE
Opening me 13-18 seconds
zero
HOME AUTOMATION
Z03 - SWING GATE
PG5
03. INSTALLATION
INSTALLATION DIMENSIONS
Z03 specicaons are as follow: The operator Z03 must be installed with a small inclinaon , to
prevent water inltraon through the extension arm.
For this, the front support must be xed to the gate with a height lower than the height of the
rear support. See example below:
Dimension A • Vercal distance from the oor to the top of the rear support .
Dimension B • Vercal distance from the oor to the top of the front support.
Example:
• Set dimension A (this can be any size of your choice).
• Aer you set dimension A, subtract 56mm to nd dimension B.
• If the height of the rear bracket (dimension A) is set at 600 mm, then the height of the front
bracket (dimension B) will be 544 mm (600mm-56mm).
It is very important that these dimensions are respected! Only this way can be
as- sured the correct funconing and durability of the operators!
It is also very important to have a levelled ground/terrain!
zero
HOME AUTOMATION Z03 - SWING GATE
PG6
On the Illustrated diagrams below and are the dimensions for the installaon of the automated
system.
Legend:
Dimension X - Horizontal distance between hinge axis of the door and the rear axle of the
motor.
Dimension Y - Vercal distance between hinge axis of the door and the rear axle of the motor.
Dimension W - Distance between axis of the motor brackets (770mm).
zero
HOME AUTOMATION
Z03 - SWING GATE
PG7
It is very important that these dimensions are respected! Only this way can be
assured the correct funconing and durability of the operators!
Legend:
Dimension X - Horizontal distance between hinge axis of the door and the rear axle of the
motor.
Dimension Y - Vercal distance between hinge axis of the door and the rear axle of the motor.
Dimension W - Distance between axis of the motor brackets (770mm).
During the installaon process, it is required to
respect the dimensions that are within the hi-
ghlighted area: (ex: y=190; x=180)
zero
HOME AUTOMATION Z03 - SWING GATE
PG8

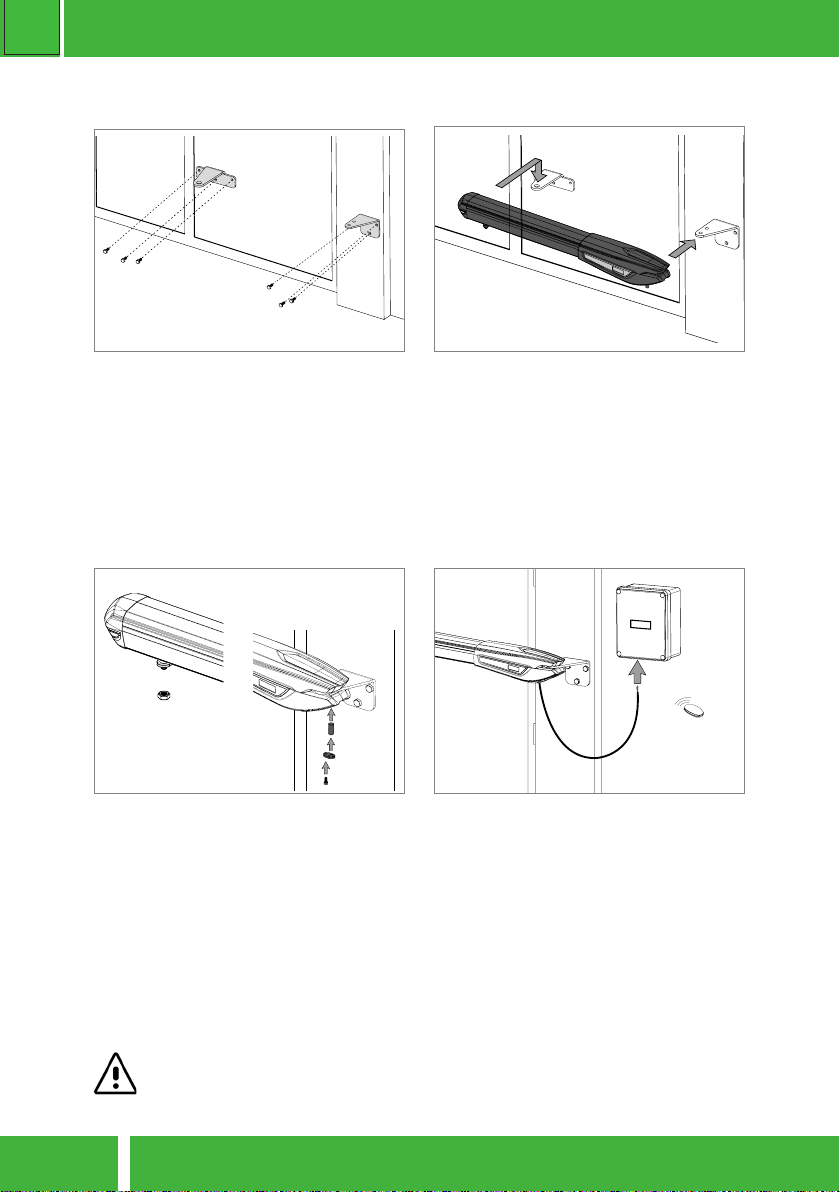

01. Fix the supports.
The rear support must be xed on the pillar
or wall. The front support must be xed on
the gate. Respect the height and distance
measures between the front and rear sup-
ports. It can be xed by using screws with
mechanical bushing or chemical welding
process, because both provide an appro-
priate support
02. Install the operator on the supports
The operator must be placed on both sup-
ports the same me to avoid leaving the
operator suspended by only one of the
supports. To make the task easier, you
should unlock the operator in order to be
able to stretch/retract arm easily,to get the
correct posion for supports.
03. Install the pins removed earlier on each
side with a small amount of lubricant for
lessfricon. Unlock the motor and move
the door manually to see if the door opens
and closes uniformly and correctly, wi-
thout any irregular fricon during its enre
movement. This will ensure that the motor
is not subjected to problems during ope-
raon.
04. Connecng operator to control board
and conguring control devices. With the
operator installed, connect it to control
board for system conguraon (see con-
trol board user manual). Must also con-
gure the desired control devices (transmit-
ters, wall switch, etc.) and other addional
components such as antenna, warning
light, key selector, among others.
It is important to respect this installaon order!
Otherwise, it is not possible to ensure correct installaon and operators may not
work properly!
INSTALLATION STEPS
zero
HOME AUTOMATION
Z03 - SWING GATE
PG9
TIPICAL INSTALLATION
It is important to use mechanical stoppers in the opening and closing posion of
the gate. If not respected, components of the automaon may suer eorts for
which they were not prepared, and as a result will be damaged.
It is important to use juncon boxes for connecons between motors, components
and control unit. All cables must enter and exit on the boom of the juncon and
control board box.
01. Connect the 3 automaon wires in the terminal.
02. Connect the two automaon white wires with the capacitator wires.
03. Connect the power supply wires in the opening the motor will rotate one way and
during the closing, the motor will rotate the opposite way.
MOTOR WIRE CONNECTIONS
zero
HOME AUTOMATION Z03 - SWING GATE
PG10

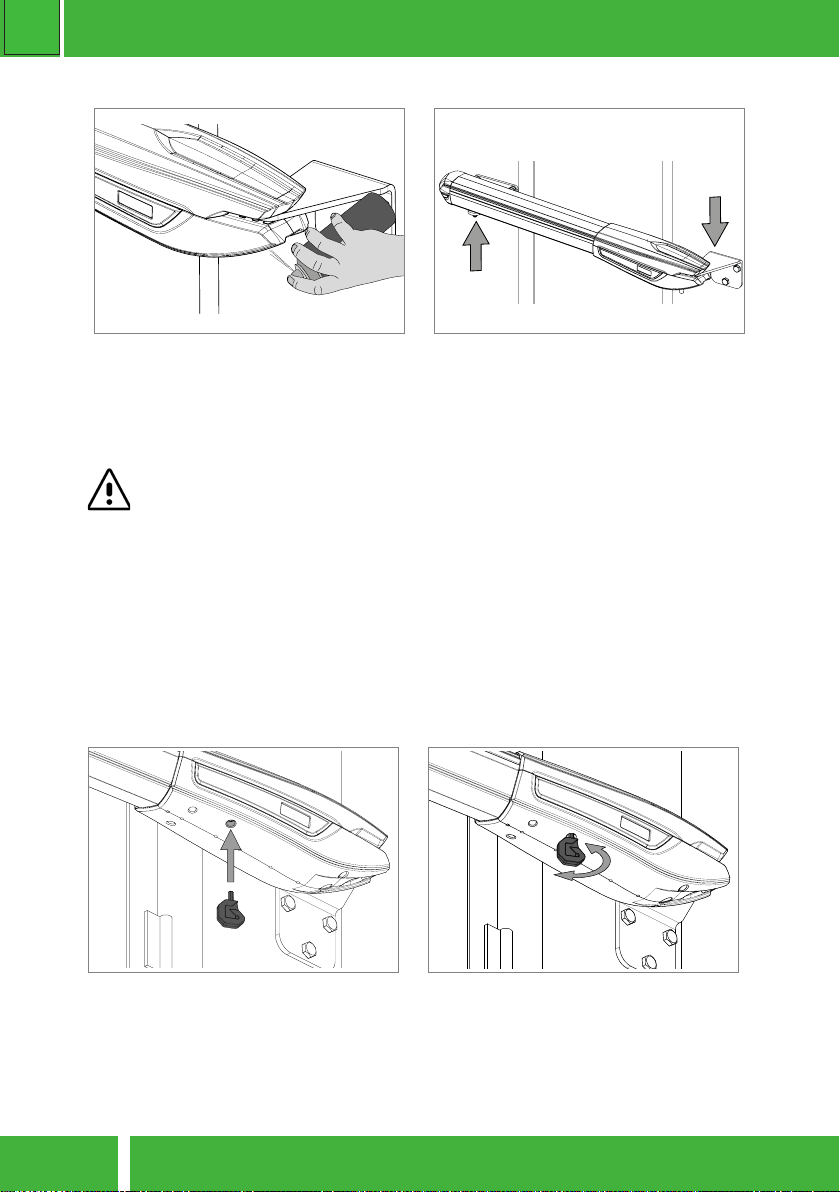

Place the unlocking key in the slot signed
on image 05 (motor installed on the le) or
06 (motor installed on the right).
Turn the key to lock or unlock the motor.
NOTE : To lock operator so it can work au-
tomacally, must do it by turning the key
anclockwise.
Make sure that supports remain well xed
on the pillars and gate to ensure proper
funconing of the equipment.
Lubricate pins. Place a small amount of lu-
bricant on the holes that contains support
pins.
04. MAINTENANCE
Check motor supports: Make sure that supports remain well xed on the pillars and
gate to ensure proper funconing of the equipment.
These maintenance measures must be applied every year in order to insure proper
funconing of the automated system.
MANUAL RELEASE
To open manually the gate in case of electric power failure or in case of damage, follow the
below steps:
