Zephyr Edge Wall AED - M90ASX Manuel utilisateur

www.zephyronline.com

Layers Wall

ALA - M90ABX

ALA - M90AWX

ALA - E42ABX

ALA - E42AWX

Edge Wall

AED - M90ASX

Surface Wall

ASU - M90ASX

ASU - E42ASX

Duo Wall

ADU - M90ASX

RANGE HOOD - Installation instructions

www.zephyronline.com

HOTTE PER CUISINE - Notice d’utilisation...Pag. 27

CAMPANA EXTRACTORA - Manual de utilización...Pag. 53

CAPPA ASPIRANTE - istruzioni per l’uso...Pag. 79

- 2 -

Contents

SAFETY INSTRUCTIONS..................................................................................................pag. 4

LIST OF MATERIALS...........................................................................................................pag. 7

DUCTING CALCULATION SHEETS.............................................................................pag. 11

HOOD SPECIFICATION..................................................................................................pag. 12

INSTALLATION

- INTERNAL BLOWER.....................................................................................pag. 16

- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 18

- DUCTING OPTIONS.....................................................................................pag. 20

- MOUNTING THE RANGE HOOD.............................................................pag. 21

- POWER SUPPLY CONNECTION..............................................................pag. 22

- MOUNTING THE DUCT COVER...............................................................pag. 23

MAINTENANCE.................................................................................................................pag. 25

LIST OF PARTS AND ACCESSORIES..........................................................................pag. 26

- 3 -

www.zephyronline.com

IMPORTANT SAFETY INSTRUCTIONS

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.

INSTALLER: Please leave these Instructions with this unit for the owner.

OWNER: Please retain these instructions for future reference.

Take care when using cleaning agents or detergents.

Suitable for use in household cooking area

WARNING - To reduce the risk of re or electric shock, do not use this fan

with any Solid-State Speed Control Device.

CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct

air outside – Do not vent exhaust air into spaces within walls or ceilings or into

attics, crawl spaces, or garages.

CAUTION - For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

CAUTION - To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. o power unit.

CAUTION - Please read specication label on product for further information

and requirements.

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have

ques tions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power o at service panel and lock

the service disconnecting means to prevent power from being switched on ac-

cidentally. When the service disconnecting means cannot be locked, securely

fasten a prominent warning device, such as a tag, to the service panel.

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smo-

king and greasy spillovers that may ignite. Heat oils slowly on low or medium

Safety instructions

- 4 -

settings.

B. Always turn hood ON when cooking at high heat or when ambeing foods

( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate

on fan or lter.

D. Use proper pan size. Always use cookware appropriate for the size of the

surface element.

E. Keep fan, lters and grease laden surface clean.

F. Use high range setting on range only when necessary.Heat oil slowly on

low to medium setting.

G. Don’ t leave range unattended when cooking.

H. Always use cookware and utensils appropriate for the type and amount o

food being prepared.

WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF

A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

A. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then

turn o the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go

out mmediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

B. NEVER PICK UP A FLAMING PAN – You may be burned.

C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam

explosion will result.

D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how

to perate it.

2. The re is small and contained in the area where it started.

3. The re department is being called.

4. You can ght the re with your back to an exit.

aBased on “kitchen resafety tips” published by NFPA

Proper maintenance of the Range Hood will assure proper performance

of the unit.

INSTALLATION INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualied person(s)

in accordance with all applicable codes and standards, including re-rated

construction.

B. Sucient air is needed for proper combustion and exhausting of gases

Safety instructions

- 5 -

www.zephyronline.com

through the ue (chimney) of fuel burning equipment to prevent back drafting.

Follow the heating equipment manufacturer’s guideline and safety standards

such as those published by the National Fire Protection Association (NFPA), and

the American Society for Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring

and other hidden utilities.

D. Ducted fans must always be vented to the outdoors.

E. This unit must be grounded.

WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY

BE DANGEROUS.

A. Do not check lters with hood working.

B. Do not touch the lamps after a prolonged use of the appliance.

C. No food must be cooked ambè underneath the hood.

D. The use of an unprotected ame is dangerous for the lters and could cause

res.

E. Watch constantly the fried food in order to avoid the cooking oil ares up.

F. before performing any mainteinance operation, disconnect the hood from

the electrical service.

WARNING! For models AED-M90ASX and ADU-M90ASX never lean on the hood's

body any object weighing more than 33,1lb (15kg), although evenly spread over

the whole surface.

The manufacturers will not to accept any responsability for eventual damages,

because of failure to observe the above instructions.

Safety instructions

- 6 -

Models: ALA-M90ABX / ALA-M90AWX / ALA-E42ABX / ALA-E42AWX

Duct Covers

Electrical

Junction Box

Duct Cover Bracket

Glass

Light Bulbs

Decorative Mesh Filters

Range Hood

Body

List of Materials

TYPE DESCRIPTION N°

AM4 1 + 1

B1/8" x 1/4" 12

C1/8" x 2/4" 4

D1/4" x 2-3/4" 6

Blower Housing

- 7 -

www.zephyronline.com

Models: ASU-M90ASX / ASU-E42ASX

Duct Cover Bracket

Control

Duct Covers

Blower Housing

Range Hood

Body

Glass

Electrical

Junction Box

Light Bulbs

Decorative Mesh Filters

List of Materials

TYPE DESCRIPTION N°

AM4 1 + 1

B1/8" x 1/4" 12

C1/8" x 2/4" 4

D1/4" x 2-3/4" 6

- 8 -

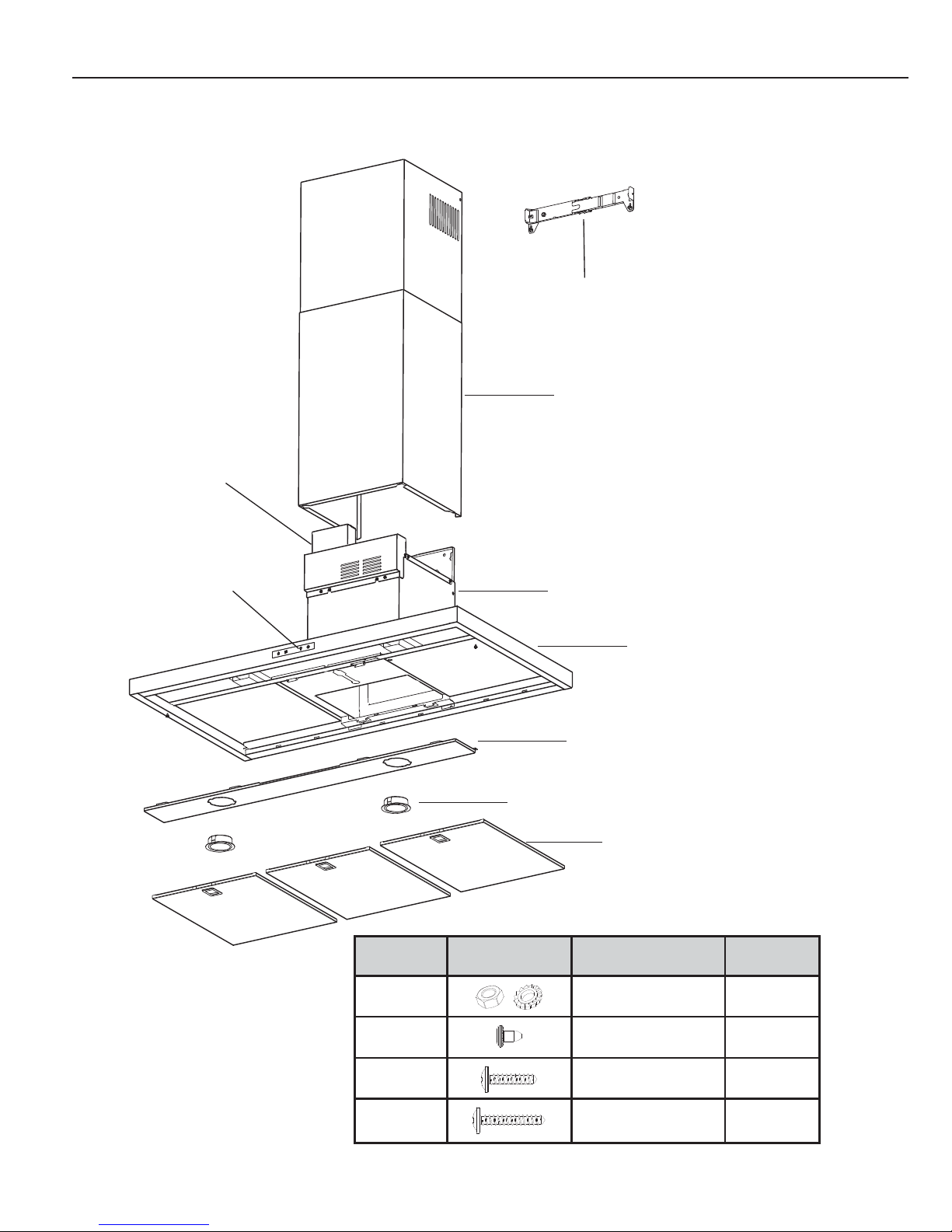

Models: AED M90ASX

Duct Cover Bracket

Control

Duct Covers

Light Panel

Light Bulbs

Decorative Mesh Filters

List of Materials

Range Hood

Body

TYPE DESCRIPTION N°

AM4 1 + 1

B1/8" x 1/4" 12

C1/8" x 2/4" 4

D1/4" x 2-3/4" 6

- 9 -

www.zephyronline.com

Model: ADU-M90ASX

Light Bulbs

Control

Decorative Mesh Filters

Range Hood

Body

Light Panel

Blower Housing

Electrical

Junction Box

Duct Cover Bracket

Duct Covers

List of Materials

TYPE DESCRIPTION N°

AM4 1 + 1

B1/8" x 1/4" 12

C1/8" x 2/4" 4

D1/4" x 2-3/4" 6

- 10 -
