(844) 200-1945 | [email protected] Page 4of 31 Copyright © Zenty AV
This HDMI over IP Extender use the advanced H.264 as the compression type, which makes it
occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single
cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The
over IP solution is widely used in various locations, like meeting room, class room, metro, airport,
home, mall advertisement etc.
•Using H.264 compression encoding, support resolution up to 1080p@60hz
•Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
•With IR Remote to choose the source, with LED to show the Group ID
•Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
•Supports LPCM audio format
•Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
•Wide-band IR pass through to control the source (38khz to 56khz)
•By pass 2-way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud
rate
•Supports one to one, one to many, many to one, many to many modes, with large cascade
•HDCP Compliant
•Support PC tool control
•DC 5V 1A power supply
Performance
Protocol
H.264 over TCP/IP
Video Format
Up to 1080P 60Hz
Audio Format
LPCM, Audio sampling rate 48kHz
Streaming Bit-rate
15Mbps
HDCP
1.4 Compliant
IR Frequency
38 ~ 56kHz
RS232 Baud Rate
Default 2400bps, 8 optional
(844) 200-1945 | [email protected] Page 5of 31 Copyright © Zenty AV
IP Setting & Group ID Setting
Default IP
Transmitter: 192.168.1.11
Receiver: 192.168.1.12
Group ID
Group 00 ~ Group 63
Request for Switch/Router
Supports IGMP, DHCP
Transmitter Connectors
Input
1 x HDMI Female Port
Output
1 x RJ45 Output | 1 x HDMI Looping Output
RS232
Phoenix RS232 Port
IR
IR TX Port (Supports 38 ~ 56kHz)
IR Ext Port (Supports 38kHz)
Receiver Connectors
Input
1 x RJ45 Input
Output
1 x HDMI Female Port Looping Output
RS232
Phoenix RS232 Port
IR
IR RX Port (Supports 38 ~ 56kHz)
IR Ext Port (Supports 38kHz)
Environmental & Power Requirements
Operating Temperature
-5° ~ 35°C (23°F ~ 95°)
Operating Humidity Range
5 –90% RH (No Condensation)
Power Supply
DC 5V/1A
Power Consumption
3W (Max)
Physical
Dimensions
Transmitter:
119mm x 79.5mm x 28mm
4.68” x 3.13” x 1.10”
Receiver:
119mm x 79.5mm x 28mm
4.68” x 3.13” x 1.10”
Net Weight
Transmitter: 0.62lbs
Receiver: 0.62lbs
(844) 200-1945 | [email protected] Page 6of 31 Copyright © Zenty AV
Frequency
Resolution
50Hz
576i
576P
720P
1080P
1080i
60Hz / 59.94Hz
480i
480P
720P
1080P
30Hz / 29.97Hz
1080P
24Hz
1080P
25Hz
1080P
VESA Resolutions
Frequency
Resolution
50Hz
576i
576P
720P
1080P
1080i
60Hz / 59.94Hz
480i
480P
720P
1080P
30Hz / 29.97Hz
1080P
24Hz
1080P
25Hz
1080P
•1 x Transmitter
•1 x Receiver
•1 x IR-TX cable
•1 x IR-RX cable
•2 x IR Ext Cable
•1 x Manual
•4 x screws
•4 x detachable mounting ears
•2 x Phoenix plugs for RS232 cable termination
•2 x Remote controller
•2 x Power adapter 5V 1A
(844) 200-1945 | [email protected] Page 9of 31 Copyright © Zenty AV

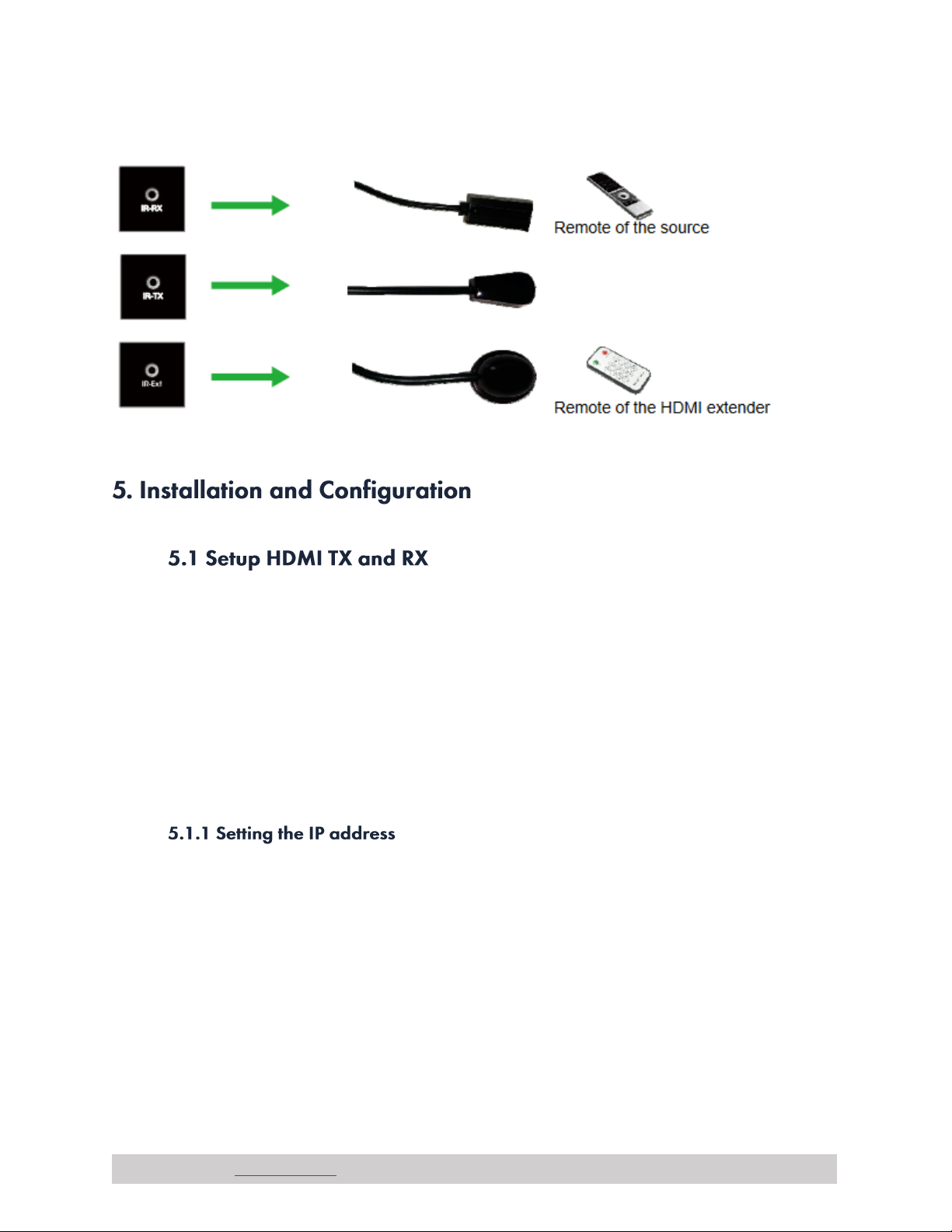

3). How to connect the IR Cable
When connecting point to point, no need to configure TX and RX.
When connecting point to many, many to point and many to many, please make sure every TX and
RX has unique IP and MAC address, every TX has unique group ID.
This over IP Extender has been assigned unique default MAC address for every TX and RX, so you
don’t have to set the MAC for the units.
You just need to set the IP address and Group ID following bellowing steps.
A). DHCP (Dynamic host configuration protocol)
If you are using a Switch that supports DHCP, please enable DHCP so that the Switch will assign a
unique IP for TX and RX, and you don’t need to change the IP for the unit’s manual.
(844) 200-1945 | [email protected] Page 10 of 31 Copyright © Zenty AV

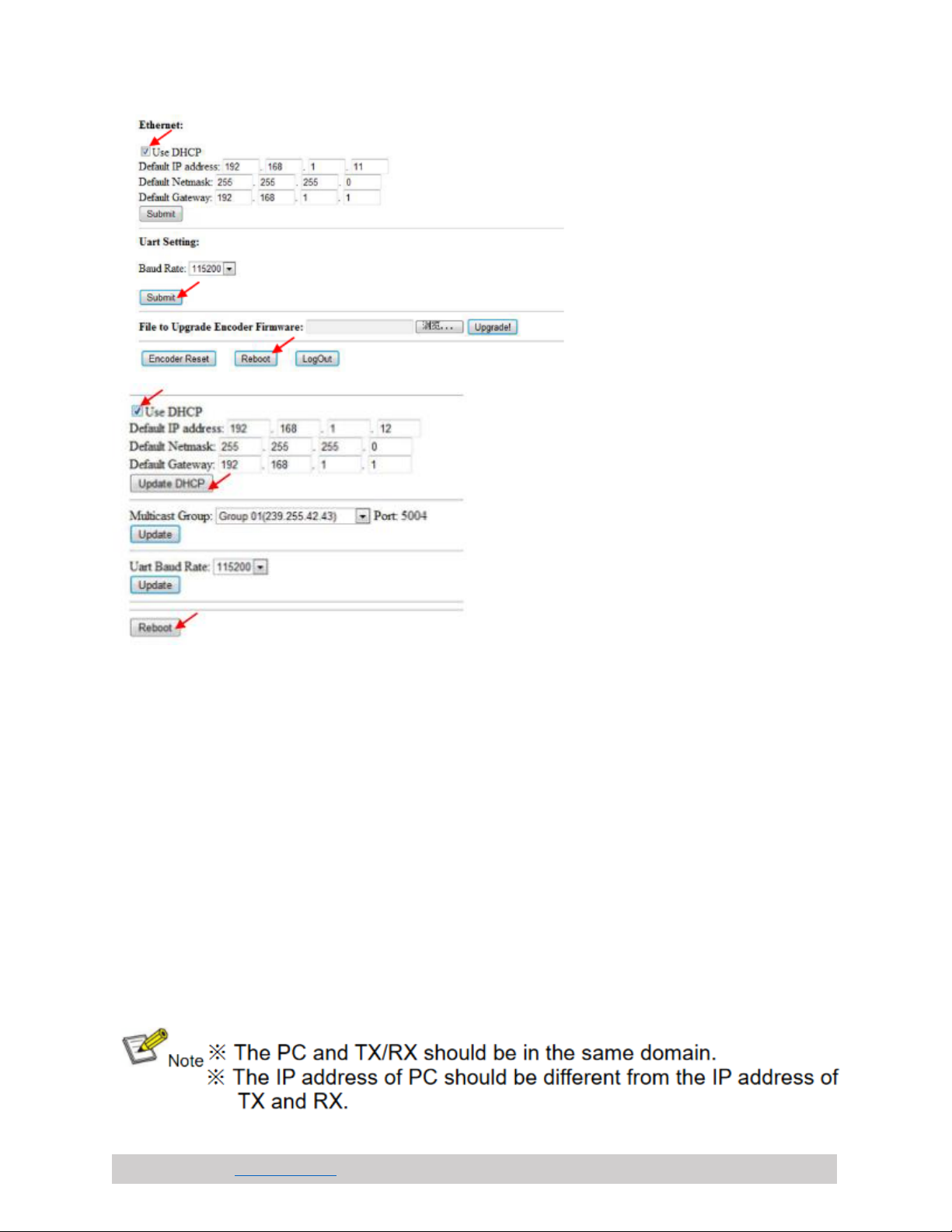

B). Set the IP via web browser
If you are using a Switch that doesn’t support DHCP, please change the default IP for TX
(192.168.1.11) and RX (192.168.1.12) manually.
A HTTP server is embedded in each TX and RX. You can set up IP address for HDMI Extender via web
browser The default IP address of the TX is 192.168.1.11, user name: admin, password: admin.
The default IP address of the RX is 192.168.1.12
Step 1: Make sure the Transmitter and PC are in the same domain.
Access the Network Setting Control Panel in Windows and locate your Lan connection. Under
Windows 7, this can be done by clicking Start > Control Panel >Network Sharing center>Change
adapter settings > Properties >Internet Protocol Version4 (TCP/IPv4). Change the IP address field to
192.168.1.1 (0-255). After that press "OK" to save the configuration.
