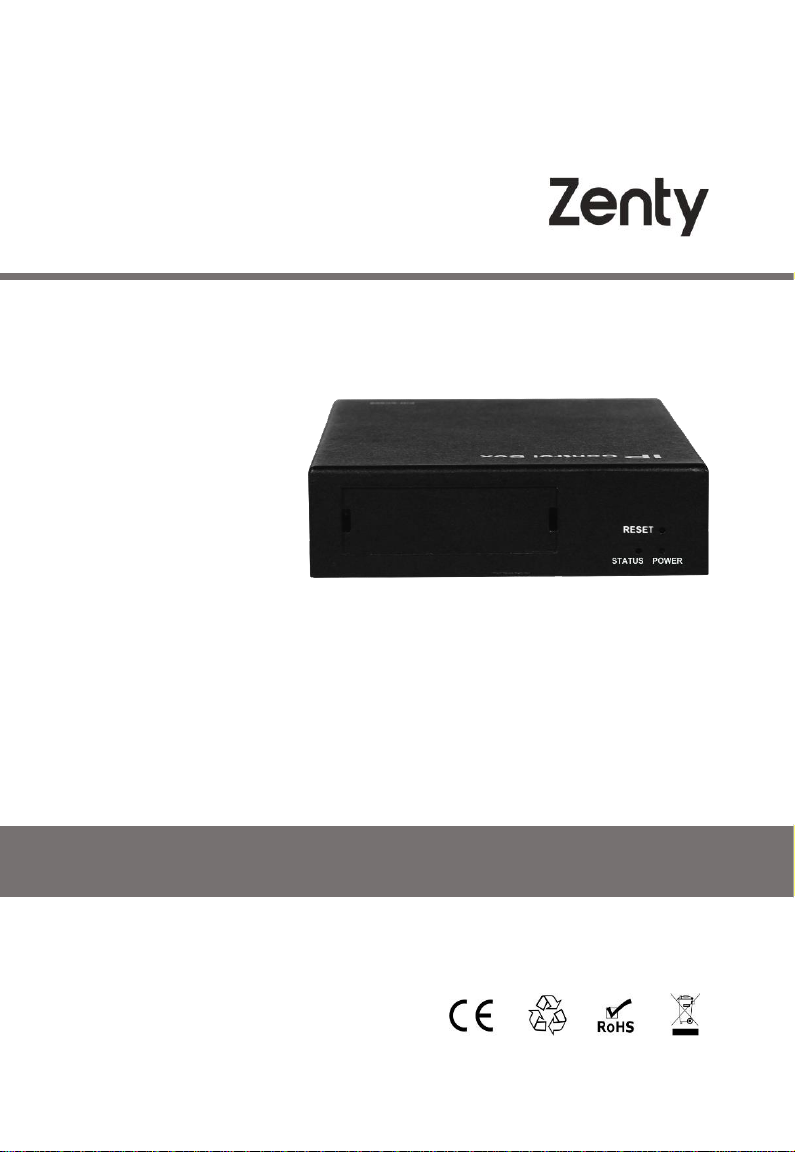

Zenty ZT-IP100C Manuel utilisateur
Version: V1.0.1
IP Controller
ZT-IP100C
User Manual

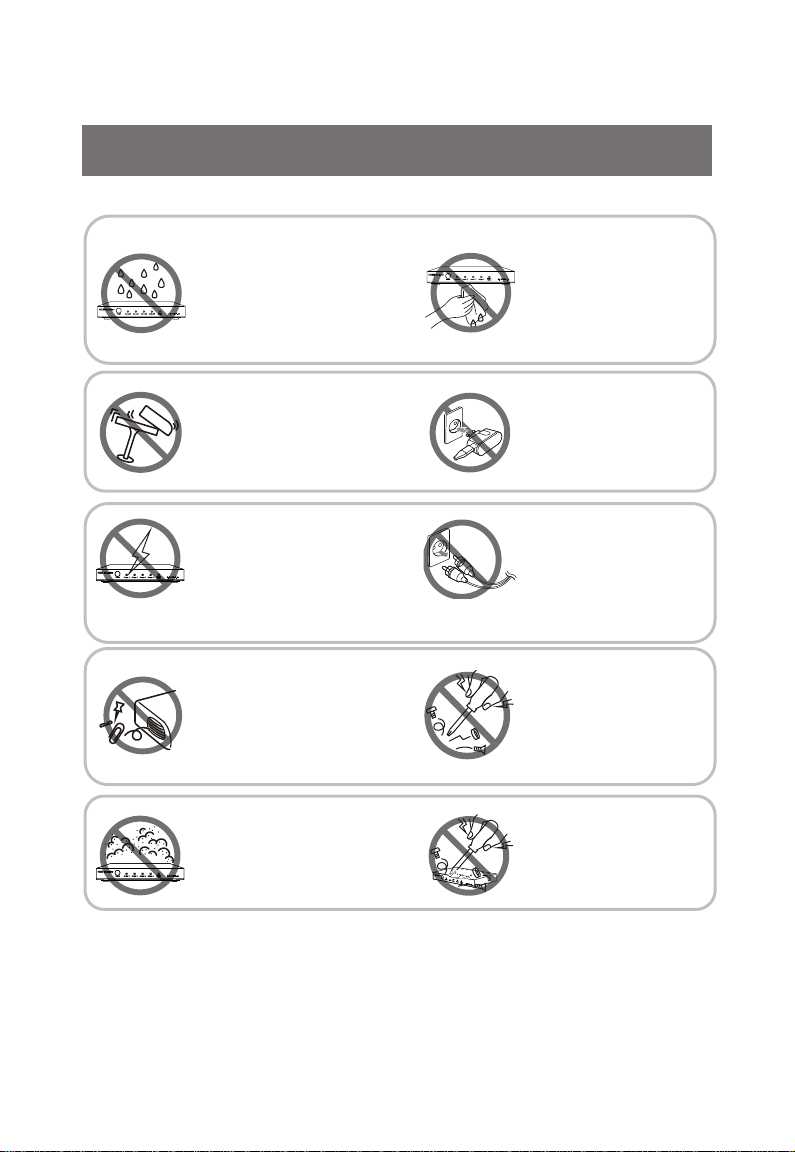

Important Safety Instructions
1. Do not expose this apparatus to
rain, moisture, dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit in
a bookcase, built-in cabinet or in
another confined space. Ensure the
unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
5. Do not place sources of naked
flames, such as lighted candles, on
the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service personnel.
1-888-610-2818
1
zenty.com
Table of Contents
Introduction............................................................................................................ 2
Overview......................................................................................................... 2
Features.......................................................................................................... 3
Package Contents ........................................................................................... 4
Specifications.................................................................................................. 5
Panel Description ............................................................................................ 7
Front Panel.............................................................................................. 7
Rear Panel ............................................................................................... 8
Warranty Terms and Conditions ............................................................................ 12
1-888-610-2818
2
zenty.com
Introduction
Overview
ZT-IP100C (hereinafter referred to as IP controller) is an IP control box
that is used as an A/V control device for controlling, configuring and
managing encoders and decoders on the local area network. It integrates
two Ethernet ports and two RS232 ports, offering integration-friendly
control features——LAN (Web GUI & Telnet). It also can be used with a
third-party controller to provide a simple, flexible control and
management options. IP controller can automatically search and display
encoders and decoders. It is designed to be compatible with the
configuration file from PC configurator (HDMI over IP Console) and use
the imported configuration file to perform operations on encoders and
decoders such as matrix and video wall.
1-888-610-2818
3
zenty.com
Features
IP control via LAN (Web GUI & Telnet) and a third-party controller
Features two Ethernet ports and two RS232 ports
Discover encoders and decoders automatically
Supports matrix switching between encoders and decoders
Compatible with the configuration file from PC configurator to
quickly perform operations on encoders and decoders, such as
matrix and video wall
Web configuration page
1-888-610-2818
4
zenty.com
Package Contents
1 x IP Controller
1 x Power Supply (12 V 1A DC)
1 x Detachable Plug
1 x Phoenix Connector (Male, 3.5 mm, 6 pins)
2 x Mounting Ear
5 x Label Card (49 mm x 15 mm)
1-888-610-2818
5
zenty.com
Specifications
Technical
I/O Connections
1 x LAN1 (AV/POE) (10/100 Mbps)
1 x LAN2 (C) (10/100 Mbps)
2 x RS232
LED
1 x STATUS LED
1 x POWER LED
Button
1 x RESET Button
Control Method
LAN (Web GUI & Telnet), RS232 and a third
party controller
General
Power Supply
12 VDC 1 A
Power Consumption
⚫4.5 W Max. (without outputting 12 V 0.5
A using RS232 port)
⚫10.5 W Max. (with outputting 12 V 0.5 A
using RS232 port)
Operating
Temperature
32°F ~ 113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage Temperature
-4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Surge Protection
Voltage: ±1000 V
(Tested ten times respectively for the
positive and negative voltages)
ESD Protection
Human body model:
1-888-610-2818
6
zenty.com
General
⚫±8kV (air-gap discharge)
⚫±4kV (contact discharge)
Product Dimension
(W x H x D)
⚫93.2 mm x 26 mm x 138.7 mm
⚫3.67'' x 1.02'' x 5.46''
Case Dimension
(W x H x D)
⚫170 mm x 80 mm x 250 mm
⚫6.69'' x 3.15'' x 9.84''
Weight
0.38 kg / 0.84 lbs (without accessories)
Certification
CE, FCC, RoHS compliant
1-888-610-2818
7
zenty.com
Panel Description
Front Panel
No.
Name
Description
1
Label Card
Location
Inserts a supplied label card intended for writing
short notes such as an IP address.
2
STATUS
LED
⚫Blue: when IP controller is working properly.
⚫Off: when IP controller is powered off or is
booting.
3
POWER
LED
⚫Red: when IP controller is powered on.
⚫Off: when IP controller is powered off.
4
RESET
When IP controller is powered on, use a pointed
stylus to hold down RESET button for five or
more seconds, and then release it. It will reboot
and restore to its default settings.
Note: When the default settings are restored,
your custom data is lost.Therefore, exercise
caution when using the RESET button.
21 43
1-888-610-2818
8
zenty.com

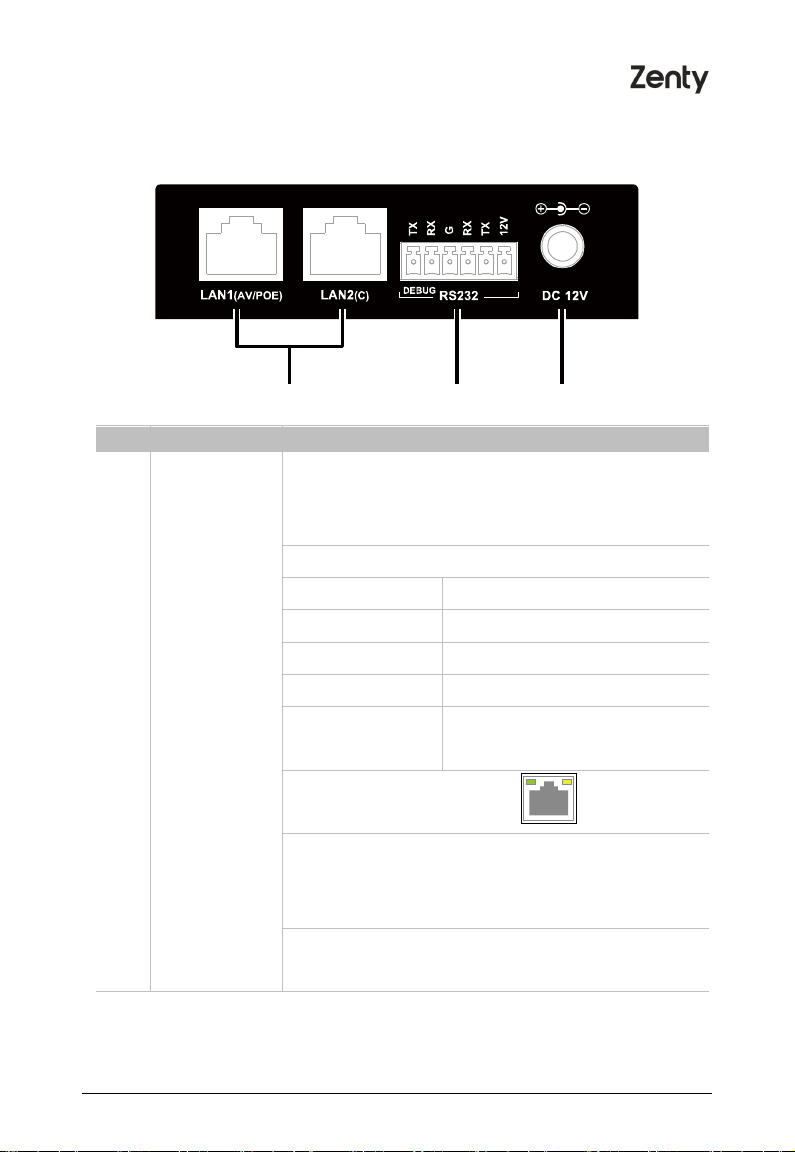

Rear Panel
No.
Name
Description
1
RJ45 ports
1 x LAN1 (AV/POE):
Connects to a switch for communication with
encoders and decoders on the same network.
Default protocol:
IP Address
169.254.1.1
Subnet Mask
255.255.0.0
Gateway
169.254.1.254
DHCP
Off
Link speed and
duplex level
Autodetected
Ethernet port indicators :
Green Link LED: this green colored LED lights
when IP controller actively communicates with
a network.
Amber Activity LED: this amber colored LED
flickers as IP controller is connected to a
21 3
