Zebex Z-2130 Manuel utilisateur

Portable CCD Data Collector

Z-2130 ( Version 1.1)

User’s Manual

ZEBEX INDUSTRIES INC.

WWW.ZEBEX.COM

ZEBEXINDUSTRIESINC.

Data Collector Series User’s Manual Version 1.0 04/07/2011

Revision History

Changes to the original manual are listed below:

Version Date Description of Version

1.0 April. 07, 2011 Initial release

1.1 January. 15, 2013 Added USB connection section

1.2 August 3, 2017 Added battery information

Z-2130

Important Notice

No warranty of any kind is made in regard to this material, including, but not limited to,

implied warranties of merchantability or fitness for a particular purpose. We are not

liable for any errors contained herein or incidental or consequential damages in

connection with furnishing, performance or use of this material.

No part of this document may be reproduced, transmitted, stored in a retrieval system,

transcribed, or translated into any language or computer language in any form or by any

means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

express written consent and authorization.

We reserve the right to make changes in product design without reservation and without

notification. The material in this guide is for information only and is subject to change

without notice.

All trademarks mentioned herein, registered or otherwise, are the properties of their

various respective owners.

Guidance for Printing

This manual is in A5 size. Please double check your printer setting before printing it.

Z-2130 ii

Battery Information

Use only a ZEBEX approved batteries.

Using any other type of battery and charging equipment may damage the

device and invalidate the warranty.

Store batteries at half of full charge in a dry, cool place, removed from the

equipment to prevent loss of capacity, rusting of metallic parts and

electrolyte leakage.

When batteries are stored over six (6) months, some irreversible

deterioration in overall battery quality may occur.

When storing batteries for over a year, the charge level should be verified at

least once every 6 months and charged to half of full charge.

Batty Safety

The area in which the units are charged should be clear of debris and

combustible materials or chemicals. Particular care should be taken where

the device is charged in a non -commercial environment.

Follow battery usage, storage, and charging guidelines found in the user

guide.

Improper battery use may result in a fire, explosion, or other hazard.

To charge the device battery, the battery and charger temperature must be

between 0℃~+45℃

Do not use incompatible batteries and chargers. Use of an incompatible

battery or charger may present a risk of fire, explosion, leakage, or the

hazard.

Do not disassemble or open, crush, bend or deform, puncture, or shred.

Severe impact from dropping any battery-operated device on a hard surface

could cause the battery to overheat.

Do not short circuit a battery or allow metallic or conductive objects to

contact the battery terminals.

Do not modify or remanufacture, attempt to insert foreign objects into the

battery, immerse or expose to water or other liquids, or expose to fire,

explosion, or other hazard.

Do not leave or store the equipment in or near areas that might get very hot,

such as in a parked vehicle or near a radiator or other heat source. Do not

place battery into a microwave oven or dryer.

Battery usage by children should be supervised.

Please follow local regulations to promptly dispose of used re-chargeable

batteries.

Do not dispose of batteries in fire.

Seek medical advice immediately if a battery has been swallowed. In the

Z-2130

iii

event of a battery leak, do not allow the liquid to come in contact with the

skin or eyes. If contact has been made, wash the affected area with large

amounts of water and seek medical advice.

Do not short the battery terminals. The battery could overheat.

Do not attempt to split or peel the outer casing.

Battery Maintenance

These are recommendations to extend the life of the battery pack:

When charging the battery for the first time, charge for at least 12 hours prior

to use.

Remove the battery if the device is not going to be used for a long time. If the

battery is left unused for more than 3 months, you need to charge the

battery before use.

If the battery is not installed, recharge the battery every 6 months to prevent

damage to the battery cells.

The battery capacity is reduced at temperature extremes, high and low.

Z-2130 iv

Table of Contents

IMPORTANT NOTICE................................................................................................. I

INTRODUCTION....................................................................................................... 1

Features ........................................................................................................... 1

PC SYSTEM REQUIREMENT ........................................................................................ 1

PACKAGE CONTENTS................................................................................................. 1

OVERVIEW.............................................................................................................. 2

GETTING STARTED................................................................................................... 3

INSERTING BATTERY ................................................................................................. 3

CHARGING THE BATTERY ........................................................................................... 4

POWER ON THE DEVICE ............................................................................................ 4

CONNECTING TO PC ................................................................................................. 5

Connecting via RS-232 ..................................................................................... 5

Connecting via Cradle...................................................................................... 5

Running the Device on PC ............................................................................... 5

Setting the Device on PC.................................................................................. 6

USING THE DATA COLLECTOR.................................................................................. 7

SCAN AND KEYING IN DATA (VIA KEYPAD) ..................................................................... 7

Scanning the Barcode Data.............................................................................. 7

Keying in Data via keypad ................................................................................ 8

PROGRAM INSTRUCTIONS.......................................................................................... 9

Working with Menus ....................................................................................... 9

Menu Description ............................................................................................ 9

Run Task......................................................................................................... 10

Task Utility ..................................................................................................... 11

Setup.............................................................................................................. 13

Upload............................................................................................................ 20

Z-2130

USER’S MANUAL

Introduction

Upgraded for better performance, Z-2130 now includes a 32-bit CPU and a new scan

engine. Built for mobility and durability, Z-2130 is the most smartly designed device for

all data collecting applications.

Features

Convenient on-handed operation.

Ergonomic and modern cellular phone styling.

PC System Requirement

Windows XP Service Pack 2 or above.

Microsoft Internet Explorer 5.01 or later.

Microsoft Framework 2.0.

Disk Space Requirements: 280 MB (x86), 610 MB (x64).

Package Contents

Items contain in the package may vary depending on the model of the data collector.

Portable CCD Collector RS-232/USB Docking Cradle Rechargeable Batteries

RS-232 DB9 (F) Cable AC Adapter

Z-2130 2

USER’S MANUAL

Overview

Refer to the following illustrations to familiarize yourself with the data collector.

Description Function

LCD Screen Display various data when a program is being run

Scan Button The trigger of barcode reading

LED Indicator Indicates the status of battery charge :

Red for battery just on charging and Green for full

Keypad A total of 26 keys are provided to the power and

other function keys

Communication Port Connect to communicate with PC

Scan Window Emits a red beam for barcode reading

Battery Lock Secures the battery compartment

Battery Compartment Batteries are stored here

LED

Indicator

LCD

Screen

Keypad

Communication Port

Scan

Button

Scan

Window

Battery

Lock

Battery

Compartment

Z-2130

USER’S MANUAL

Getting Started

Refer to the following illustrations to learn the basics of the data collector in this section.

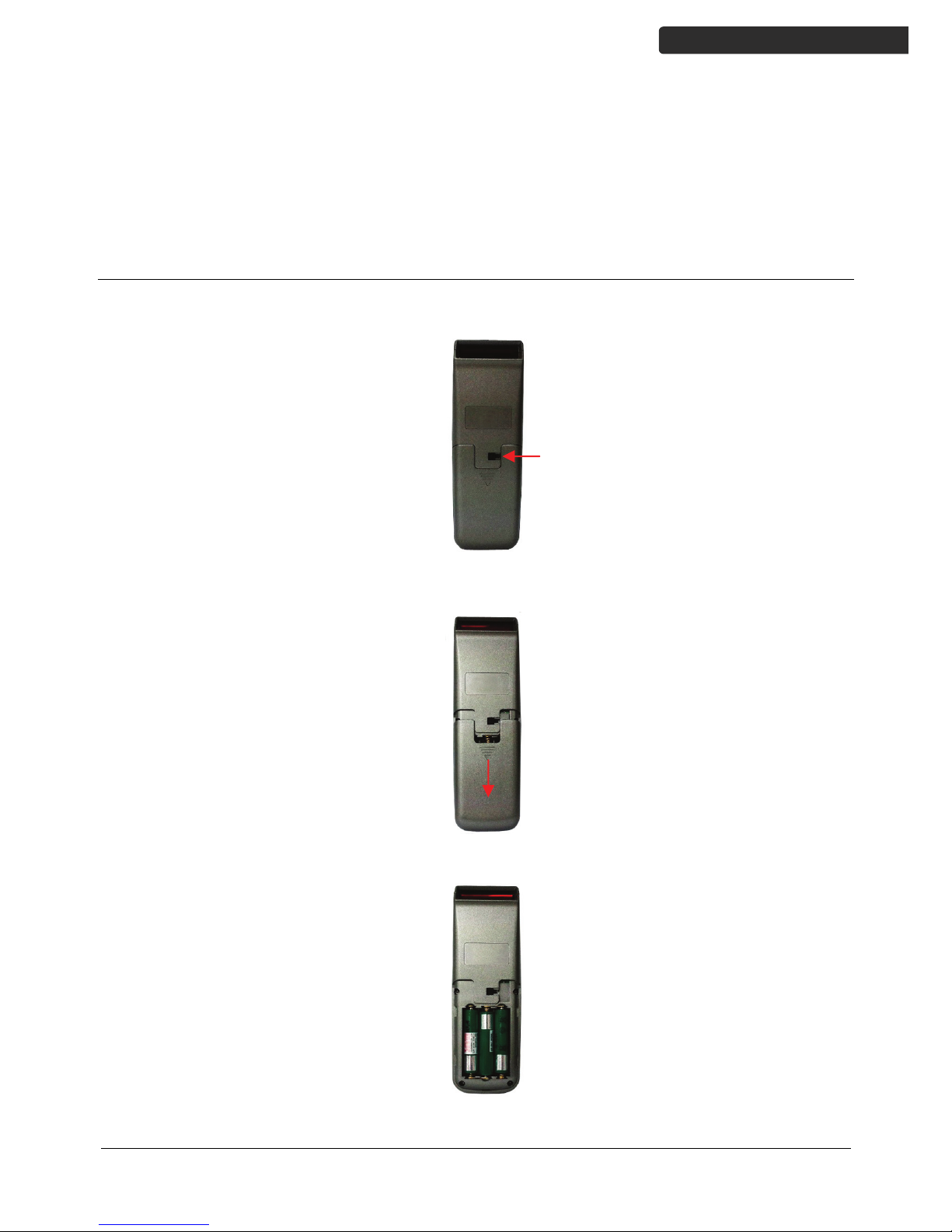

Inserting Battery

1. Slide the lock lever to unlock the battery lock as shown.

2. Remove the battery cover from the data collector.

3. Make sure the polarity is correct and insert the 3 rechargeable batteries.

4. Put the battery cover back on and slide the lock lever back to secure it.

Z-2130 4

USER’S MANUAL

Charging the Battery

1. Place the Z-2130 on the cradle. LED on the data collector indicates the status of

battery charge: Red for charging and Green for full.

2. Connect the power adapter to the DB-9 (female) connector.

3. Connect the power adapter to a wall outlet.

4. Charge the batteries until the LED indicator turns green.

Power on the Device

Press the PW button to turn the power on or off.
