Zcorporation ZScanner Manuel utilisateur
iii
Table of Contents
Laser Warning...........................................................................................................................1
User License...............................................................................................................................1
What’s New in ZScan v.2.........................................................................................................3
System Overview..........................................................................................................................5
Minimal System Requirements ...............................................................................................5
System Specifications..............................................................................................................5
Scanner General Care............................................................................................................5
Software Presentation.............................................................................................................6
Getting Started.............................................................................................................................9
Software installation.................................................................................................................9
Connecting the scanner ......................................................................................................12
Starting ZScan for the first time.............................................................................................13
ZScan............................................................................................................................................14
General Interface ..................................................................................................................14
Main Interface Description...................................................................................................15
Configure ZScan.....................................................................................................................26
Add Reference.......................................................................................................................27
Sensor Calibration..................................................................................................................28
Sensor Configuration.............................................................................................................29
Sensor Manager.....................................................................................................................30
Software Uninstallation..........................................................................................................31
Help..........................................................................................................................................32
Scanning Techniques.................................................................................................................33
Object Preparation................................................................................................................33
Importing Positioning Features.............................................................................................34
Using Sensor Configuration...................................................................................................34
Calibrate Scanner..................................................................................................................35
Proper Scanning Distance....................................................................................................36
Editing the Scan .....................................................................................................................37
Miscellaneous..............................................................................................................................41
Troubleshooting......................................................................................................................41
1
Laser Warning
WARNING: Class II Laser product. Avoid long-term viewing of
direct laser radiation. Prolonged staring into the beam (direct or
reflected) can damage the retina.
This system uses a class II laser which is considered eye and skin safe but can cause eye
damage if exposed directly for a extended time. Natural human reflexes will normally
make the subject blink or look away before any damage is inflicted to the eyes. Any use
other than those specified in this document could result in hazardous laser radiation
exposure.
Use the following usage precautions:
•Never stare into the beam, neither directly nor from a mirror-like surface. Human
skin is not considered as a reflective surface.
•MEDICAL USAGE: warn subjects not to stare into the beam. Subjects under
effect of any medication and young children could possibly have their
natural aversion reflex affected and it may be advised to wear a
blindfold.
•The ZScanner 800 should NEVER be opened for any reason as there are no
internal adjustments. In case of a malfunction, contact the manufacturer or
distributor.
CAUTION NOTES
PLEASE READ THE COMPLETE MANUAL BEFORE USE. OPERATING YOUR ZScanner 800 LASER
SCANNER USING PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EYE CONTACT WITH THE LASER BEAM.
ELECTROSTATIC DISCHARGES COULD DISCONNECT THE DEVICE.
DISREGARDING ANY OF THE RULES AND CARE RECOMMENDATION INCLUDED IN THIS
MANUAL MAY VOID THE SYSTEM WARRANTY.
Please read and follow all WARNING statements throughout this manual
User License
ZScan Manual
2
The ZScanner 800 system and the ZScan software are provided according to a license
agreement. Any partial or complete copying of this software without proper
authorization is prohibited. Distribution of the software without a written authorization
from ZCorp is forbidden. The Purchaser shall not reproduce or duplicate, dissemble,
decompile, reverse engineer, sell, transfer or assign, in any manner the Scanner, the
Software and the System. ZScanner 800 is a trademark of ZCorp
Copyright 2002 - 2008 ZCorp All rights reserved.
ZScan User Guide
3
What’s New in ZScan v.2
Support for all ZCorp scanners
•ZScan v.2 remains the unique platform for the complete ZScanner line-up of
scanners
Automatic Multiresolution
•The new Decimate Triangles slider makes it possible to keep a higher resolution
when needed, while keeping larger triangles on flat surfaces
•Produces lighter STL files
Delete Facets Permanently
•It is now possible to delete facets permanently, not just send them in the recycle
bin
•Faster load times, as ZScan won't have to process the deleted facets
Improvements to the 3D Viewer
•New Lock Zoom function lets you zoom on particular details while scanning
•Redesigned live surface rendering
•Enhanced lighting and shading
•Quick dynamic rendering mode
Customize your ZScan experience
•5 different 3D viewer control modes
•Save scan parameters and keep them as default
•Change ZScan's colors to your will
Enhanced Surface Reconstruction
•Improved manual multiresolution
•Improved surface boundaries recognition and reconstruction
•Optimized surface reconstruction (quicker Stop Scan and Load Session)
•Redesigned spike filter to improve details/noise differentiation
•Volume position can now be defined manually (position and angle)
•Redesigned Optimize Surface algorithm for more efficiency
Improved Positioning
•Improved positioning model optimization
•New high accuracy positioning targets
Edition Mode Enhancements
ZScan Manual
4
•Immediate on-selection activation for selection tools
•Confirmations required when exiting with active selection
New Powerful Scanner Manager
•Update, add or delete a scanner safely in seconds
•Access scanners information within ZScan
New Powerful Installer
•No need to uninstall ZScan when upgrading
•Automatic Geomagic detection (to install plug-in)
•Now possible to keep scanner files when uninstalling
Improved Compatibility
•Compatible with all major operating systems
•Windows XP 32 bits
•Windows Vista 32 bits
•Windows Vista 64 bits
•In 64 bits, no more memory limit and improved performance (compared to similar
hardware running in 32 bits)
ZScan User Guide
5
System Overview
Minimal System Requirements
Technical specifications
•Intel Dual Core Processor
•Dedicated graphic card with a minimum of 128 Mb on-board memory
•1 GB RAM (2 GB recommended)
•CD-Rom drive (to install from CD)
•PCMCIA slot
•Access to a user account with Administrator’s privileges during installation only
Supported Operating Systems
•Windows Vista Business 32 bits
•Windows Vista Business 64 bits
•Windows XP Professional SP2 32 bits
System Specifications
The ZScanner 800 system includes the following components:
•ZScanner 800 scanner
•Ergonomic stand
•Reflective targets
•Calibration verification plate
•Carry-on case
•Firewire PCMCIA card
•Firewire cable
•Firewire power supply
•ZScan software
•Instruction manual (pdf)
•Laptop computer (optional)
Scanner General Care
The ZScanner 800 contains optical precision parts and must be handled with care to
avoid damage to the components or the calibration system. For transportation, the
system must be placed in the carry-on case provided with the kit. The system must be
stored in a dry, dust-free place and kept at room temperature.
The scanner must be kept on its support or in its carrying case when not used.
ZScan Manual
6
Clean the interference filters with a clean and dry cloth. The ideal is a lens or glasses
cleaning-cloth.

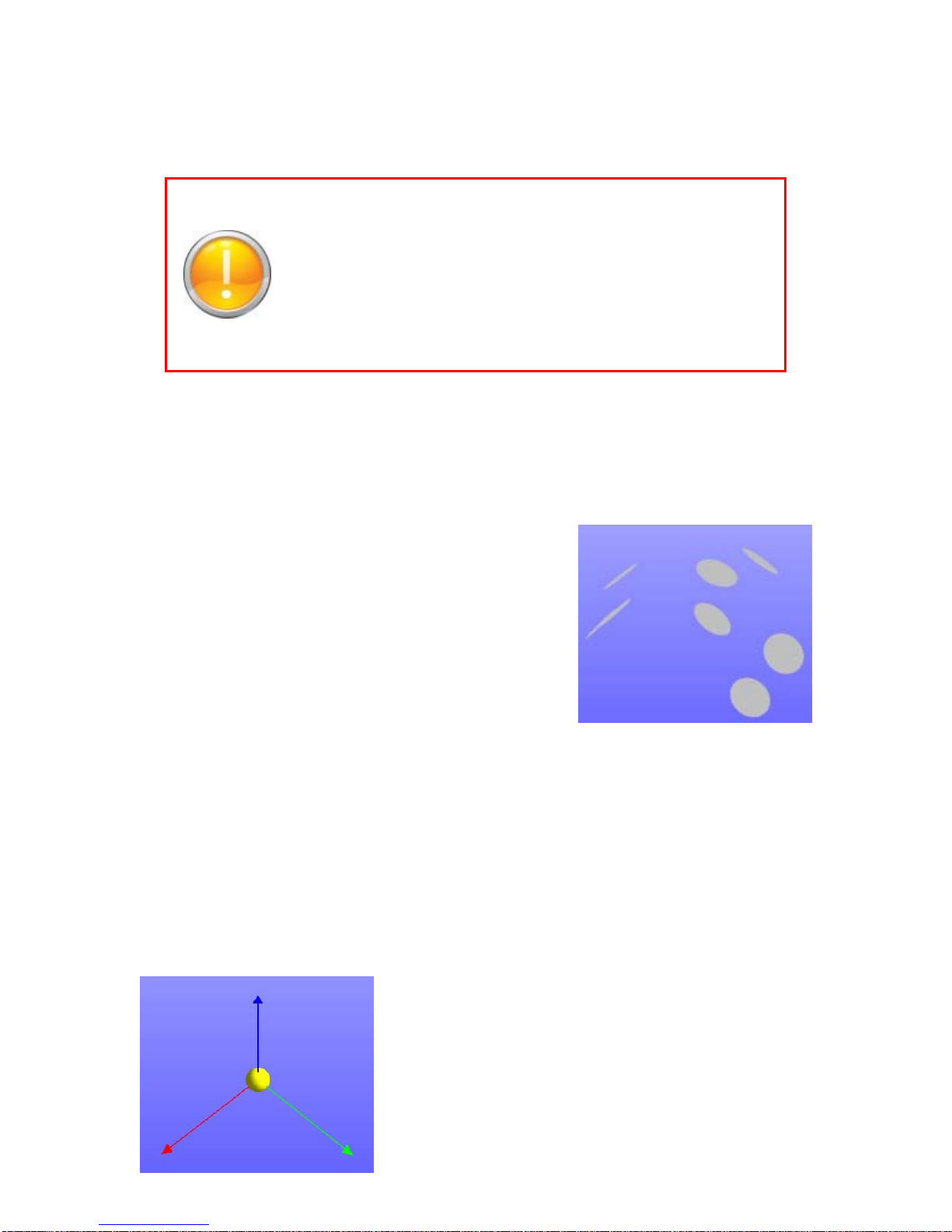

Never open any of the system’s components. By doing so, the
user may inadvertently damage the system and the ZScanner
800 will have to be recalibrated. Only ZCorp staff or authorized
technicians are qualified to work on the scanner. No
maintenance is required by the end user. If the system shows
any troubles or malfunctions, it must be sent back to ZCorp or to
an authorized reseller.
Unauthorized manipulations on the scanner will void the
warranty.
Software Presentation
Positioning Features
In order to position itself in space, the ZScanner 800
creates a positioning model from the positioning targets.
At all times, the scanner needs to be able to see at least 4
positioning features. These features are the positioning
targets that were placed either on or around the object
before scanning.
There are two different ways to acquire these targets:
either by using the Scan Features mode or by detecting
features interactively in the Scan Surface mode. The
former enables the acquisition of the targets only, while
the latter concurrently acquires the targets and the surface of the object. The resulting
model, whether it has been acquired in Scan Surface or Scan Features mode, can then
be exported for later use.
During scanning, if a target is detected more than once, the ZScanner 800 will update
the position of the target with the new detected position, therefore increasing the
precision of the positioning model during the scan. The user can also choose to activate
or deactivate the use of a positioning feature in the positioning model in order to
exclude that target from the calculation of the sensor's position or orientation.
References
To represent the space in which the object is positioned,
the scanner needs a 3D coordinate system. By default, 3D
data is represented in the "Sensor Reference Frame",
whose origin is set to be the scanner's position when the
user starts to scan.
