N6130 User Manual
0
N6130 User Manual

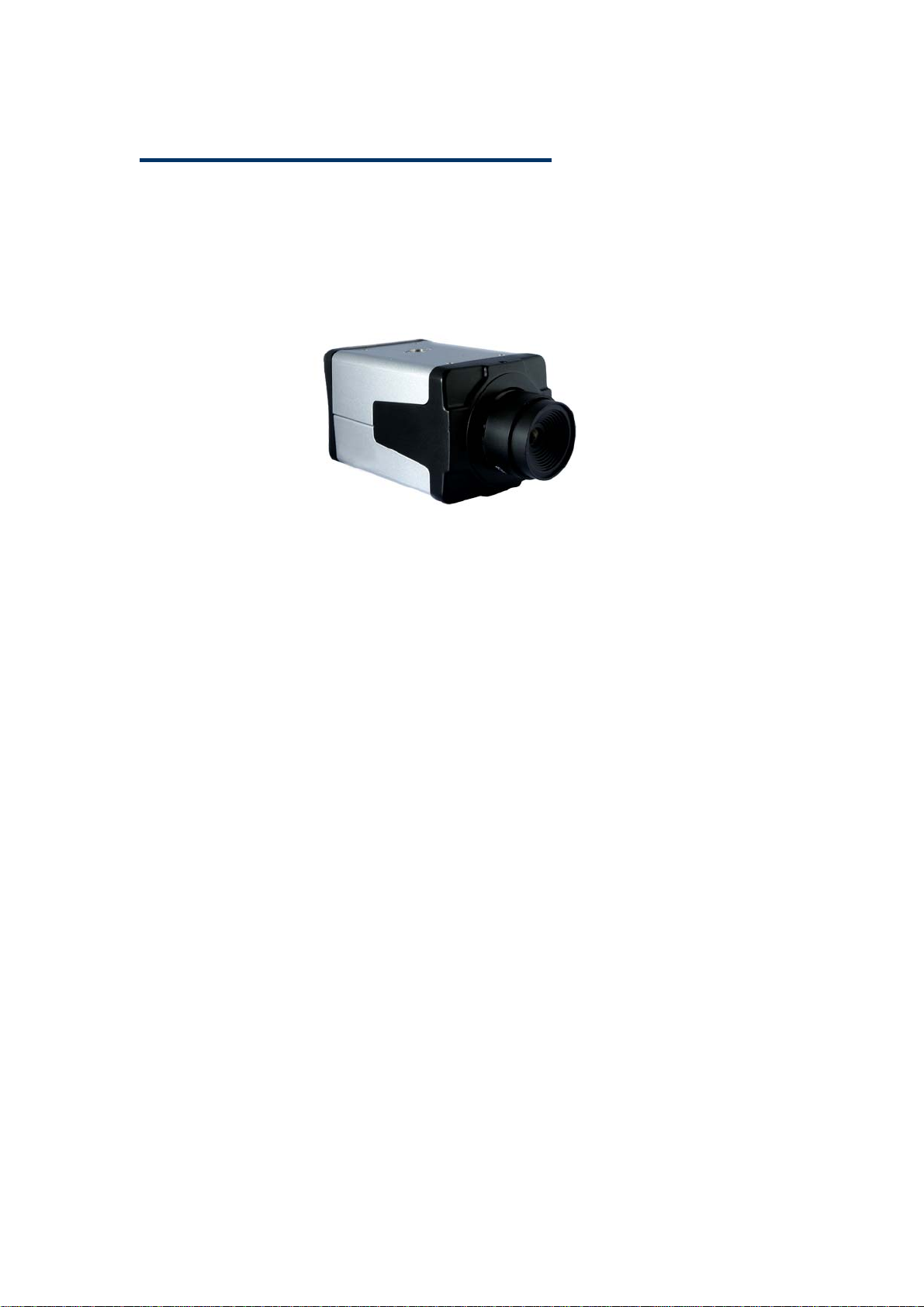

N6130 CCD Box IP Camera
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY INSTRUCTION..................................................................2
CHAPTER 2. INTRODUCTION...............................................................................4
CHAPTER 3. PACKAGE CONTENTS ....................................................................5
CHAPTER 4. PHYSICAL DESCRIPTION..............................................................6
CHAPTER 5. BASIC CONNECTION......................................................................9
5.1 POWER OVER ETHERNET (POE) CONNECTION............................................................................9
5.2WITHOUT POECONNECTION .......................................................................................................9
CHAPTER 6. APPLICATION .................................................................................10
1
N6130 User Manual
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products
can cause fires which may lead to serious body injury if not used properly. To avoid
such accidents, be sure to heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to
country. Check the laws in your local region before using this product for surveillance
purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to
dangerous voltage or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g.,
near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV
transmitters
Locations subject to strong vibration or shock
2
N6130 User Manual
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the cable and the
connecting cables. 2 Contact your authorized dealer or the store where you
purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in
materials of equal quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains
can be removed using a soft cloth dampened with a small quantity of detergent
solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may
damage the surface.
3
N6130 User Manual
Chapter 2. Introduction
The N6130 is the world’s smallest and high-performance Box IP Camera equipped
with a Sony Super high-resolution CCD sensor. N6130 also adds Power over Ethernet
as well as digital input / output for external alarm or sensor.
Key Features:
1/3” Sony Super HAD High Resolution 520 TVL CCD Sensor
Improve Quality with De-interlace Filter
Support AGC, AES, AWB, Anti Color-Rolling
Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via
the network
Digital Input / Output Port for External Alarm & Sensor
Simultaneous MPEG-4 and Motion JPEG video stream
Excellent Image Quality with up to flexible 30 fps in Full D1 Resolution
Synchronized Two-way Audio
Optimal Synchronization of Audio and Video
Support Mac OS with Safari Browser
Support iPhone through Safari Browser
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
Mobile Phone Live Image through 2.5 WAP
Multi-level Password Protection for Restricting Camera Access
Built-In Multi-Window Motion Detection (3 detection areas)
Video Buffer makes the Streaming Smoother
UPnP and Bonjour for Fast and Easy Installation
DDNS Supported
Bundled 16 Channel Surveillance Software
User-friendly & Multi-lingual UI
4
N6130 User Manual
Chapter 3. Package Contents
Camera – N6130 CCD Box IP Camera
Lens -CCTV LENS 6mm 1/3”
Quick Installation Guide -To provide brief product information and quick
installation and wireless setting
Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User
Manuals, and Language Packs
Mounting Bracket – There are three components including lock ring, brace, and
base plate to compose a bracket and applied screws for fixed base plate to a flat
surface.
Adaptor - 12V DC, max 6W
Component Pack – Hex Wrench and Cable connector
5
N6130 User Manual
Chapter 4. Physical Description
Overview
Lens - CCTV LENS 6mm 1/3”
Video out (BNC) -To support one channel video output for easy use
Audio Out - To support audio out with earphones or speakers for two way
audio
Audio In- To support audio in with microphone for two way audio
I / O Terminal Connector - 1Input / 1Output to support External Alarm and
Sensor used for motion detection, event triggering and alarm
notification…etc.
Network Connector - For connection to the Ethernet via RJ-45 standard
with PoE
6
N6130 User Manual
Network Indicator (Green Light) - Green light will light up after
the IP Camera connected with network and IP Camera completed the
boot process
Network Transmit Indicator (Yellow Light) - Yellow light will
light up while transmitting data via internet
Reset - When the device is empowered, press the Reset Button to reboot the
device, or hold the Reset Button for 10 seconds to set the device settings
back to factory default.
Power LED indicator - Power LED will light up after the IP Camera
completed the boot process.
Power Connector - For connection of 12V DC input.
7
N6130 User Manual
DI / DO Terminal connector diagram
Please refer the following illustration below for connection
method.
NO COM D- D+
Ground
Ground
12V
Max. 30W
Switch
Alarm out device
12V
8
N6130 User Manual
Chapter 5. Basic Connection
N6130 offers Power over Ethernet (PoE) connection. However, you still can use
N6130 with PoE or without PoE connection. You can follow the procedure below to
connect the IP Camera for both applications.
5.1 Power over Ethernet (PoE) Connection
1. Connect IP Camera’ Ethernet port to your Hub / Switch / Router supporting PoE
5.2 Without PoE Connection
1. Connect the power adaptor to IP Camera.
2. Connect IP Camera’ Ethernet port to your Hub / Switch / Router
9
