Zanussi Professional Master 642145 Manuel utilisateur

ZANUSSI

P R O F E S S I O N A L

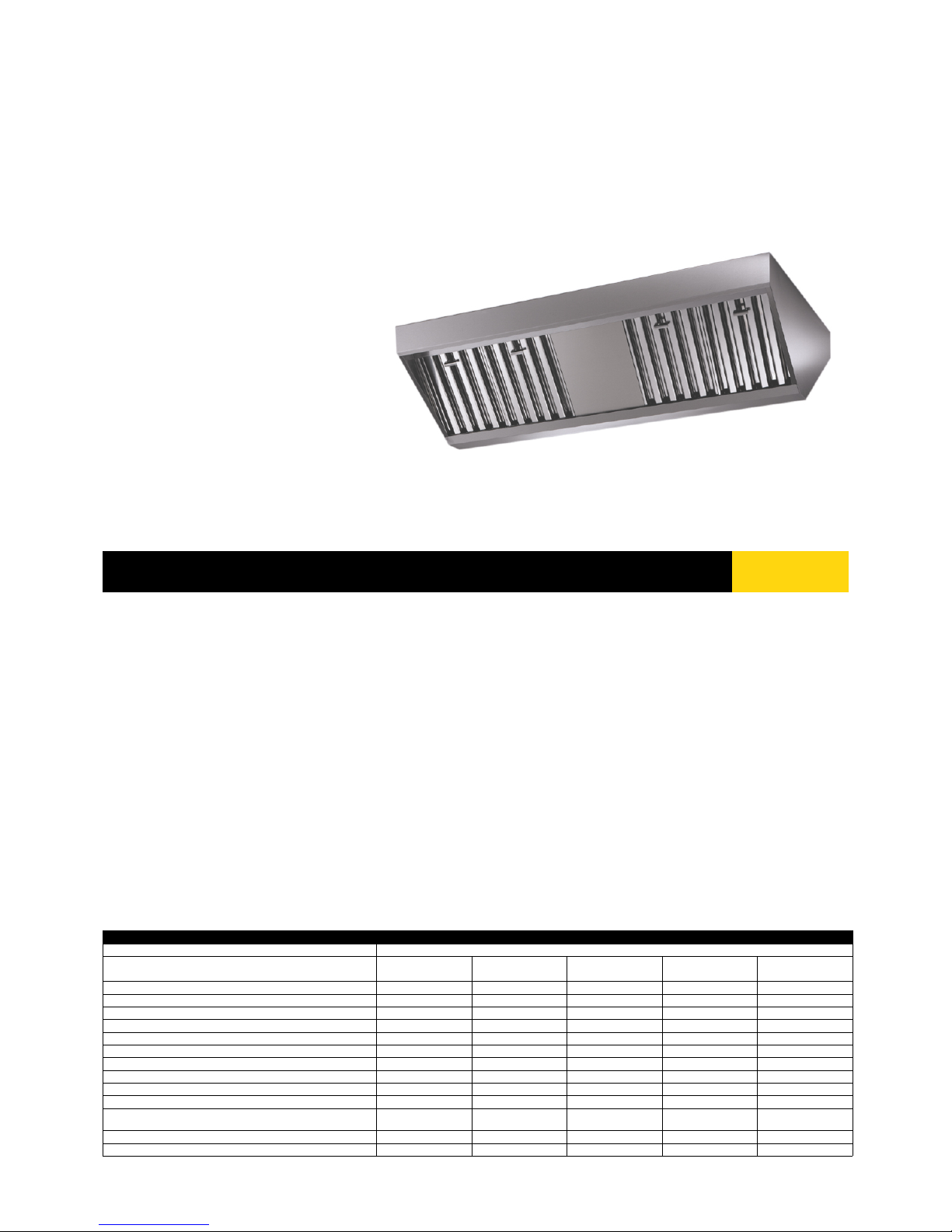

304 AISI CENTRAL TYPE HOODS

MASTER - MV line - 1400 mm

642145

304 S/S LABYRINTH FILTER H=500 MM 4 6 6 8 10

304 S/S BLIND PANEL 400X500H MM 2 2

INCLUDED ACCESSORIES

Supply voltage 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60

Net weight - kg. 39 45 52 69 76

installed-electric 0.55 0.55 1.1 1.1 1.1

Power - kW

Built-in fan - power W 550 550 550 550 550

Air Capacity - mc/h 3800 3800 7600 7600 7600

height 500 500 500 500 500

depth 1400 1400 1400 1400 1400

width 1200 1600 2000 2400 2800

External dimensions - mm

MCV1412DT

642145

MCV1416DT

642146

MCV1420DT

642147

MCV1424DT

642148

MCV1428DT

642149

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods used for

snack applications and on the N700

and N900 Series cooking units. Their

particular profile and the limited

installation height makes them

suitable for use in places with low

ceilings. The range consists of

hoods with 5 different lengths (1200,

1600, 2000, 2400, 2800 mm) and a

depth of 1400 mm.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Powerful internal fan(s) 550 W.

� Central drain pipe with drain hole

to transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HBBB3 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

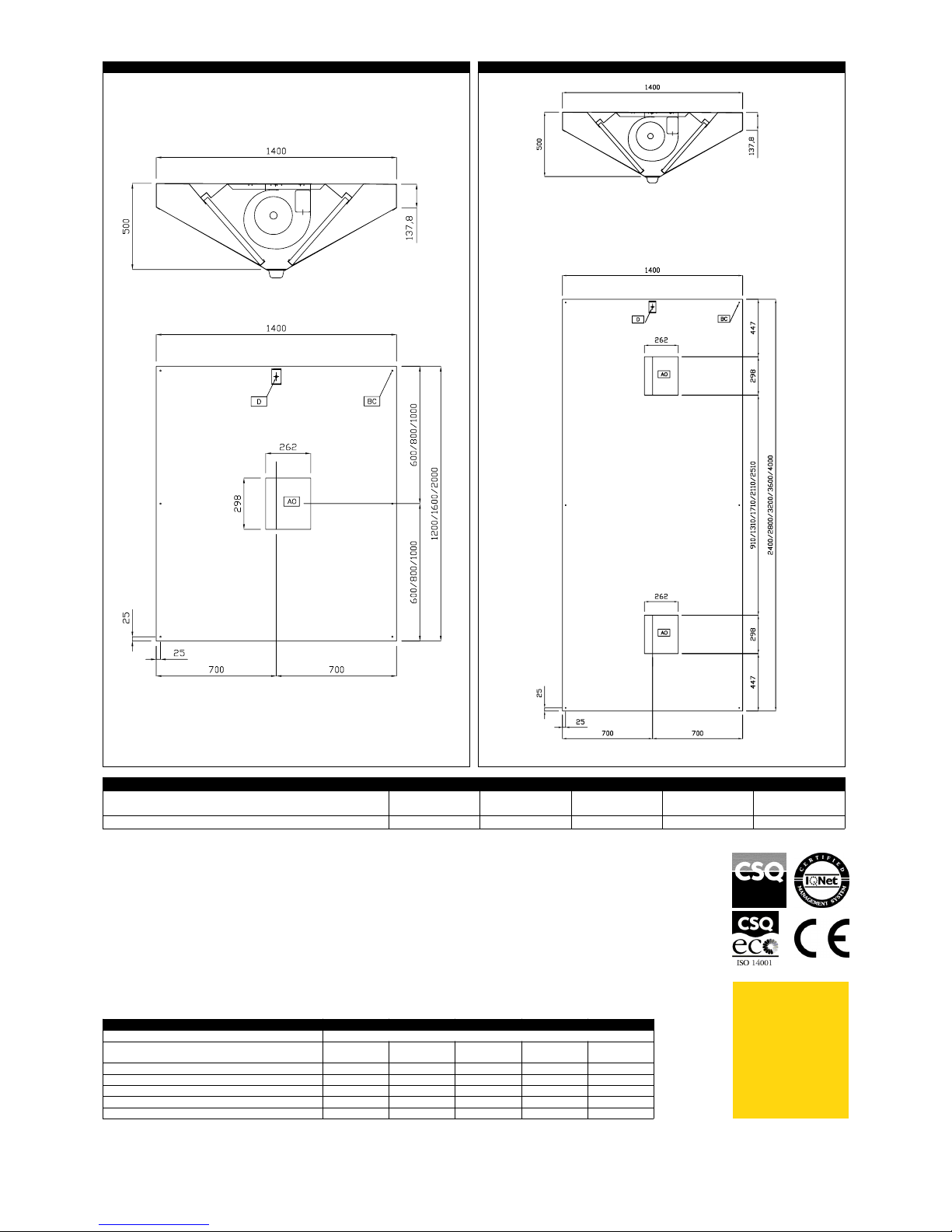

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686 640686 640686

SPEED VARIATOR FOR MOTORS UP TO 1.17 KW 640076 640076

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804

MCV1412DT

642145

MCV1416DT

642146

MCV1420DT

642147

MCV1424DT

642148

MCV1428DT

642149

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60

MCV1412DT

642145

MCV1416DT

642146

MCV1420DT

642147

MCV1424DT

642148

MCV1428DT

642149

LEGEND

642145, 642147, 642146 642148, 642149
