304 AISI CENTRAL TYPE HOODS

BLOCK - BV line - 1400 mm

304 S/S LABYRINTH FILTER H=500 MM 4 4 8 8 10 12 12 14

304 S/S BLIND PANEL 400X500H MM 2 2 2 2 2

INCLUDED ACCESSORIES

Net weight - kg. 51 59 57 74 82 90 97 105

Air Capacity - mc/h 3800 3800 7600 7600 7600 7600 7600 7600

height 500 500 500 500 500 500 500 500

depth 1400 1400 1400 1400 1400 1400 1400 1400

width 1200 1600 2000 2400 2800 3200 3600 4000

External dimensions - mm

BCV1412DT

642213

BCV1416DT

642214

BCV1420DT

642215

BCV1424DT

642216

BCV1428DT

642217

BCV1432DT

642218

BCV1436DT

642219

BCV1440DT

642220

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods

guaranteeing a rational and versatile

solution to extraction problems over

most cooking appliances. The

sloped front gives them a neat

appearance while taking up less

space, making them particularly

suitable for small kitchens. The

range consists of hoods with 8

different lengths (1200, 1600, 2000,

2400, 2800, 3200, 3600 and 4000

mm) and 1400 mm deep.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Powerful internal fan(s) 550 W.

� Lead hole for electric cable on top.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HCBB4 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR

FOR MOTORS UP

TO 1.7 KW

640686 640686 640686 640686 640686 640686

SPEED VARIATOR

FOR MOTORS UP

TO 1.17 KW

640076 640076

DRAIN FOR HOODS

DIAM.1/2"(M) WITH

PLUG

640409 640409 640409 640409 640409 640409 640409 640409

36-WATT LIGHTING

FIXTURE W/1

LAMP-IP 65

680805 680805 680805 680805 680805

27-WATT LIGHTING

FIXTURE W/1

LAMP-IP 65

680804 680804 680804 680804 680804

BCV1412DT

642213

BCV1416DT

642214

BCV1420DT

642215

BCV1424DT

642216

BCV1428DT

642217

BCV1432DT

642218

BCV1436DT

642219

BCV1440DT

642220

ACCESSORIES MODELS

OPTIONAL

ACCESSORIES

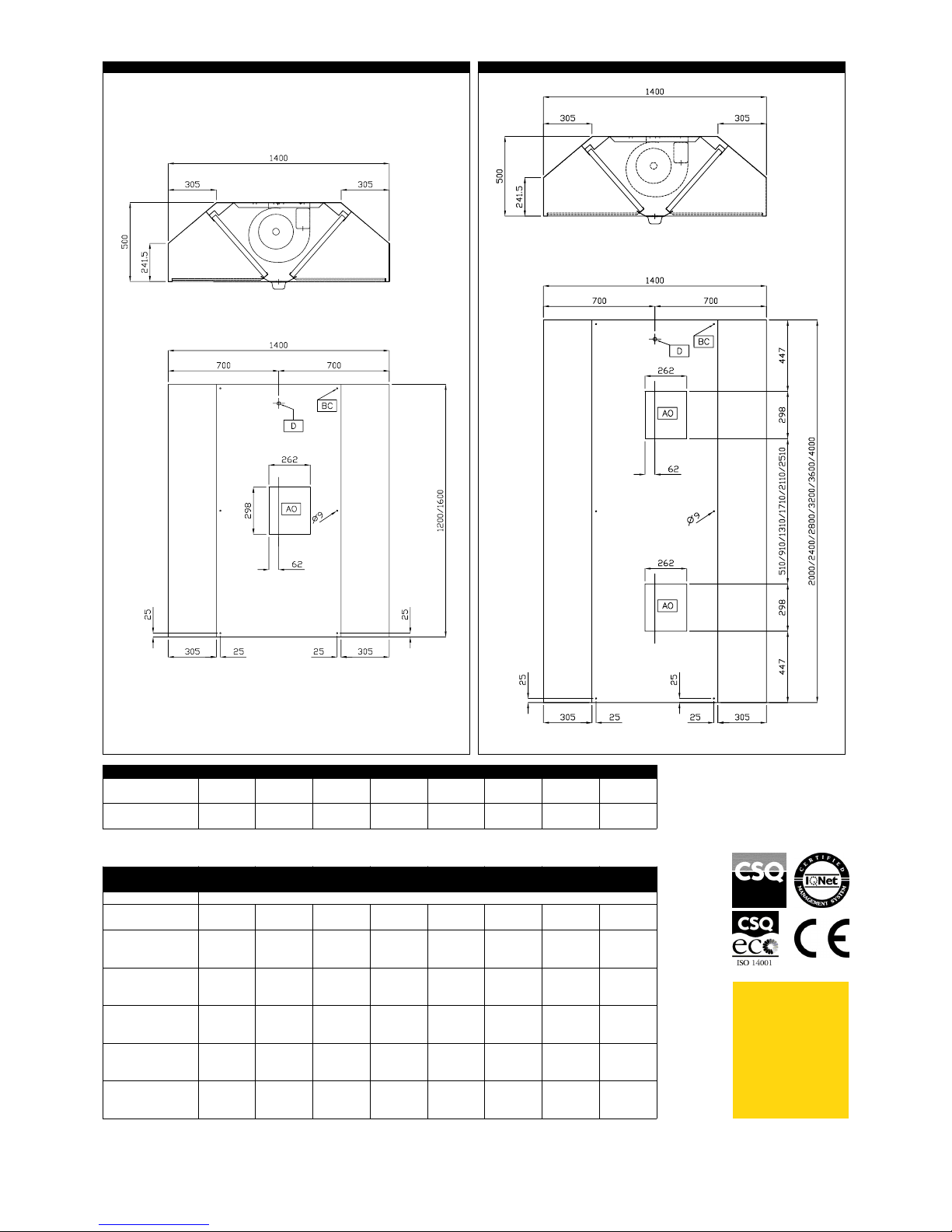

EI - Electrical

connection

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

BCV1412DT

642213

BCV1416DT

642214

BCV1420DT

642215

BCV1424DT

642216

BCV1428DT

642217

BCV1432DT

642218

BCV1436DT

642219

BCV1440DT

642220

LEGEND

642213, 642214 642215, 642220, 642219, 642218, 642217, 642216
