User Manual

ZDC8203WR

EN User Manual

Tumble Dryer

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the

supplied instructions. The manufacturer is not responsible if an

incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future

reference.

GENERAL SAFETY

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine, use the

stacking kit. The stacking kit, available from your authorized

vendor, can be used only with the appliance specified in the

instructions, supplied with the accessory. Read it carefully

before installation (Refer to the Installation leaflet).

•The appliance can be installed as freestanding or below the

kitchen counter with correct space (Refer to the Installation

leaflet).

•Do not install the appliance behind a lockable door, a sliding

door or a door with a hinge on the opposite side, where the

appliance door can not be fully opened.

•The ventilation openings in the base (if applicable) must not be

obstructed by a carpet.

•Connect the mains plug to the mains socket only at the end of

the installation. Make sure that there is access to the mains

plug after the installation.

•Ensure you have good ventilation in the installation room to

avoid the back flow of gases into the room from appliances

burning other fuels, including open fires.

•Exhaust air must not be discharged into a flue which is used for

exhausting fumes from appliances burning gas or other fuels. (if

applicable)

•If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons in order to avoid a hazard.

•Obey the maximum load volume of 8kg (refer to the

“Programme chart” chapter).

•Do not use the appliance if industrial chemicals have been used

for cleaning.

•Wipe away lint that has accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint filter

before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as cooking

oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot

water with an extra amount of detergent before being dried in

the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in the

tumble dryer.

•Fabric softeners, or similar products, should be used as

specified by the fabric softener instructions.

•Remove all objects from pockets such as lighters and matches.

•Never stop a tumble dryer before the end of the drying cycle

unless all items are quickly removed and spread out so that the

heat is dissipated.

•The final part of a tumble dryer cycle occurs without heat (cool

down cycle) to ensure that the items are left at a temperature

that ensures that the items will not be damaged.

•Before maintenance, deactivate the appliance and disconnect

the mains plug from the mains socket.

CHILDREN AND VULNERABLE PEOPLE SAFETY

WARNING!

Risk of suffocation, injury or permanent disability.

•This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Children of less than 3 years should be kept away unless

continuously supervised.

•Keep all packaging away from children.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door when it is

open.

•If the appliance has a child safety device, we recommend you

activate it.

•Cleaning and user maintenance shall not be made by children

without supervision.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied with

the appliance.

• Always be careful when you move the appliance

because it is heavy. Always wear safety gloves.

• Do not install or use the appliance where the

temperature is less than 5°C or higher than

35°C.

• Make sure that the floor where you install the

appliance is flat, stable, heat resistant and clean.

• Make sure that there is air circulation between

the appliance and the floor.

• Always move the appliance vertically.

• The rear surface of the appliance must be put

against the wall.

• When the appliance is put in its permanent

position, check if it is fully level with the aid of a

spirit level. If it is not, adjust the feet until it is.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical information on the

rating plate agrees with the power supply. If not,

contact an electrician.

• Always use a correctly installed shockproof

socket.

• Do not use multi-plug adapters and extension

cables.

• Do not pull the mains cable to disconnect the

appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug

with wet hands.

• Only for UK and Ireland. The appliance has a 13

amp mains plug. If it is necessary to change the

fuse in the mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

USE

WARNING! Risk of injury, electrical

shock, fire, burns or damage to the

appliance.

• Use this appliance in a household only.

• Do not dry the damaged items which contain

padding or fillings.

• Only dry fabrics which are applicable to dry in

the tumble dryer. Follow the instructions on the

fabric label.

• If you have washed your laundry with a stain

remover start an extra rinse cycle before you

start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can cause

health problems to people and pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the tumble

dryer.

CARE AND CLEANING

WARNING! Risk of injury or damage

to the appliance.

• Do not use water spray and steam to clean the

appliance.

• Clean the appliance with a moist soft cloth. Only

use neutral detergents. Do not use abrasive

products, abrasive cleaning pads, solvents or

metal objects.

DISPOSAL

WARNING! Risk of injury or

suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and

pets to get closed in the appliance.

EASY START

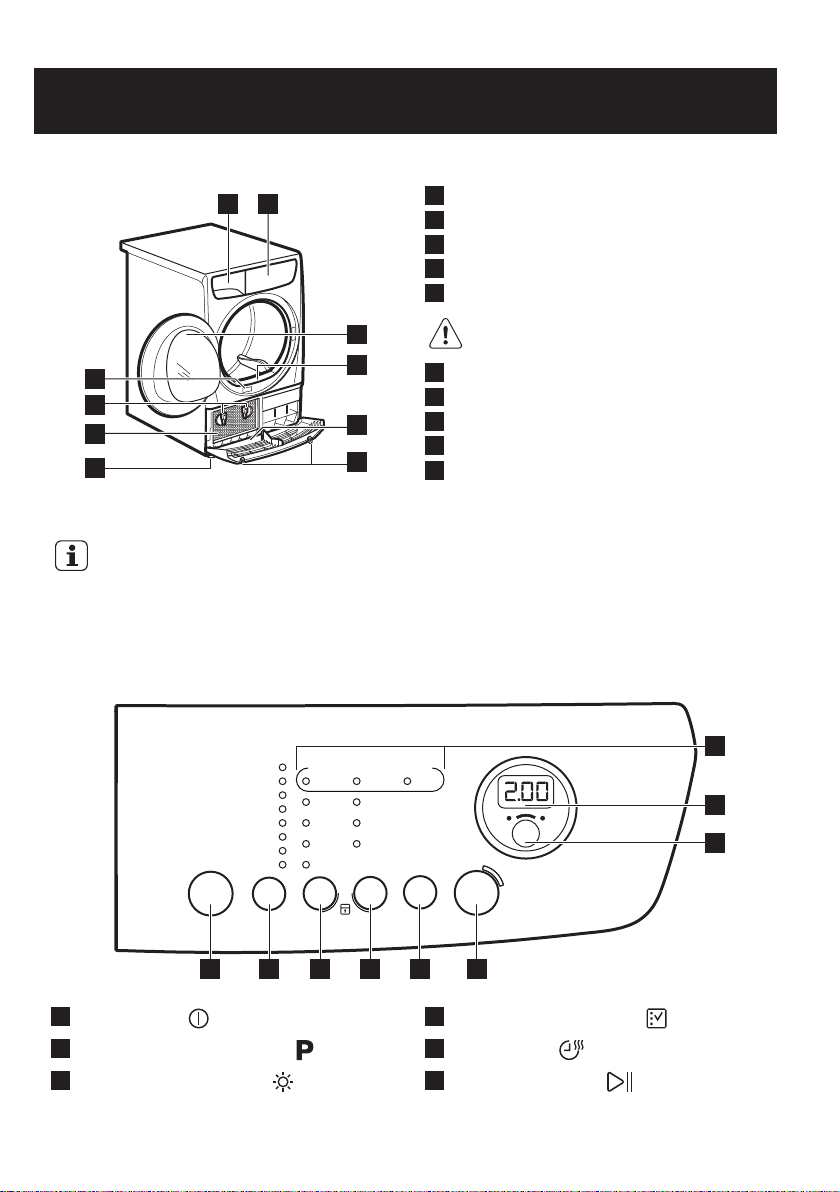

PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Primary Filter

5Bottom cover with the airflow slots

WARNING! Do not put any object

on the bottom cover

6Buttons to open the bottom cover

7Adjustable feet

8Condenser door

9Locks for condenser door

10 Rating plate

The load door can be installed by the

user in the opposite side. It can help to

easily put and remove the laundry or if

there is a limit to install the appliance

(see separate leaflet).

CONTROL PANEL

1 2 3 4 65

1On / Off button

2Programme selection touchpad

3Dryness selection touchpad

4Options selection touchpad

5Time touchpad

6Start/Pause touchpad

7Delay touchpad

8Display

9Indicators

Touch the touchpads with your finger

in the area with the symbol or name of

the option. Do not wear gloves when

you operate with the control panel.

Make sure that the control panel is

always clean and dry.

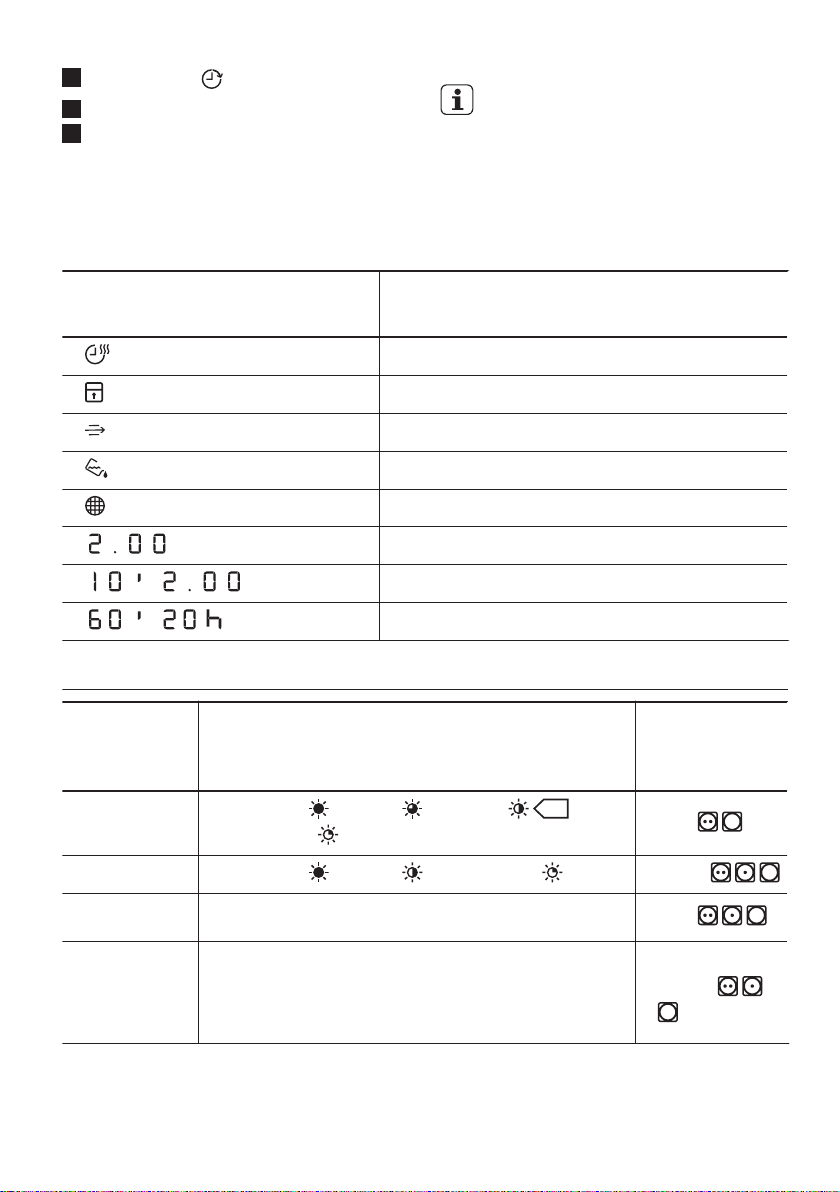

Indicators

Indicators Description

Time Drying

Child lock

Condenser

Water container

Filter

Programme duration

- Time Drying duration

- Delay start duration

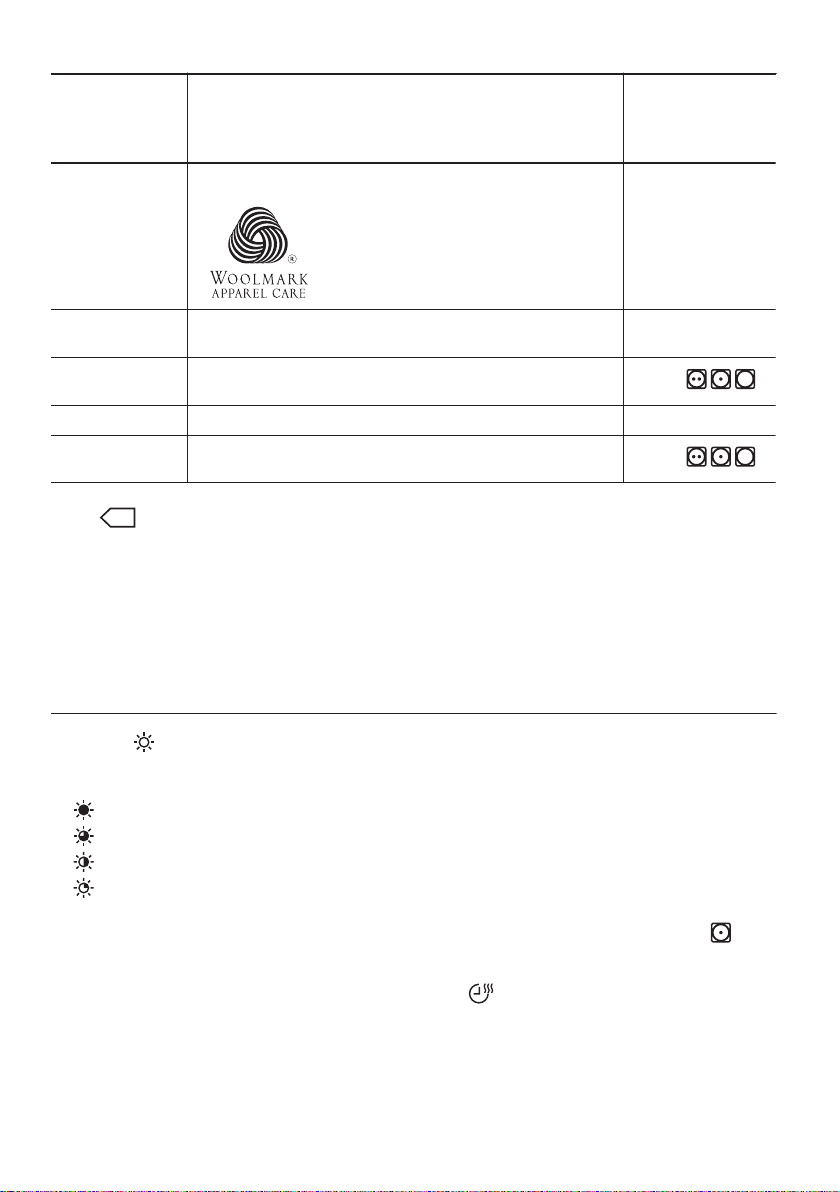

PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Cottons Drying level: Extra Dry, Strong Dry, Cup-

board Dry2)3), Iron Dry 3) 8kg/

Synthetics Drying level: Extra Dry, Cupboard Dry3), Iron Dry 3,5kg/

Mix Cotton and synthetic fabrics. Low temperature programme.

Delicate programme with warm air. 3kg/

Easy Iron

Easy care fabrics for which a minimum of ironing is neces-

sary. The drying results can be different from one type of

fabric to the other. Shake the items before you put them in

the appliance. When the programme is completed, Immedi-

ately remove the items and put them on a hanger.

1kg (or 5

shirts)/

Programmes Type of load Load (max.)1) /

Fabric mark

Wool 4)

Wool fabrics. Gentle drying washable woollens. Remove

immediately the items when the programme is completed.

1kg

For drying sport shoes only with Drying Rack (see separate

user manual provided with Drying Rack). 1 pair of sport

shoes

Duvet To dry one or two duvet and pillows (with feather, down or

synthetic fillings). 3kg/

Refresh Refreshing a textiles that were in storage. 1kg

Time With this programme you can use the option Time and set

the programme duration. 8kg/

1) The maximum weight refers to dry items.

2) The Cottons Cupboard Dry programme is the “Standard cotton programme” and it is suitable to

dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for

drying wet cotton laundry.

3) For test institutes only: Standard programmes for tests are specified in the EN 61121 document.

4) The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of

machine washable wool products provided that the products are washed and dried according to the in-

structions on the garment label and those issued by the manufacturer of this machine. M1221. In UK, Eire,

Hong Kong and India the Woolmark symbol is a certification trademark.

OPTIONS

DRYNESS

This function helps to get the laundry more dried.

There are 4 possible selections:

• Extra Dry

• Strong Dry (for Cotton only)

•Cupboard Dry

• Iron Dry

ANTICREASE 90 MIN

Extends of 60 minutes the standard anticrease

phase (30 minutes) at the end of the drying cycle.

This function prevents the laundry from creases.

The laundry can be removed during the anticrease

phase.

ANTICREASE 60 MIN

Extends of 30 minutes the standard anticrease

phase (30 minutes) at the end of the drying cycle.

This function prevents the laundry from creases.

The laundry can be removed during the anticrease

phase.

DELICATE

With this option you can set a delicate drying

programme that has a low temperature. Use this

option with a fabrics that have the symbol on

the fabric label (e.g. acrylic, viscose).

TIME

This option is applicable only to the Time Drying

programme. You can set the programme duration,

from a minimum of 10 minutes to a maximum of 2

hours. The setting of the duration is related to the

quantity of laundry in the appliance.

We recommend that you set a short

duration for small quantities of laundry

or for only one item.

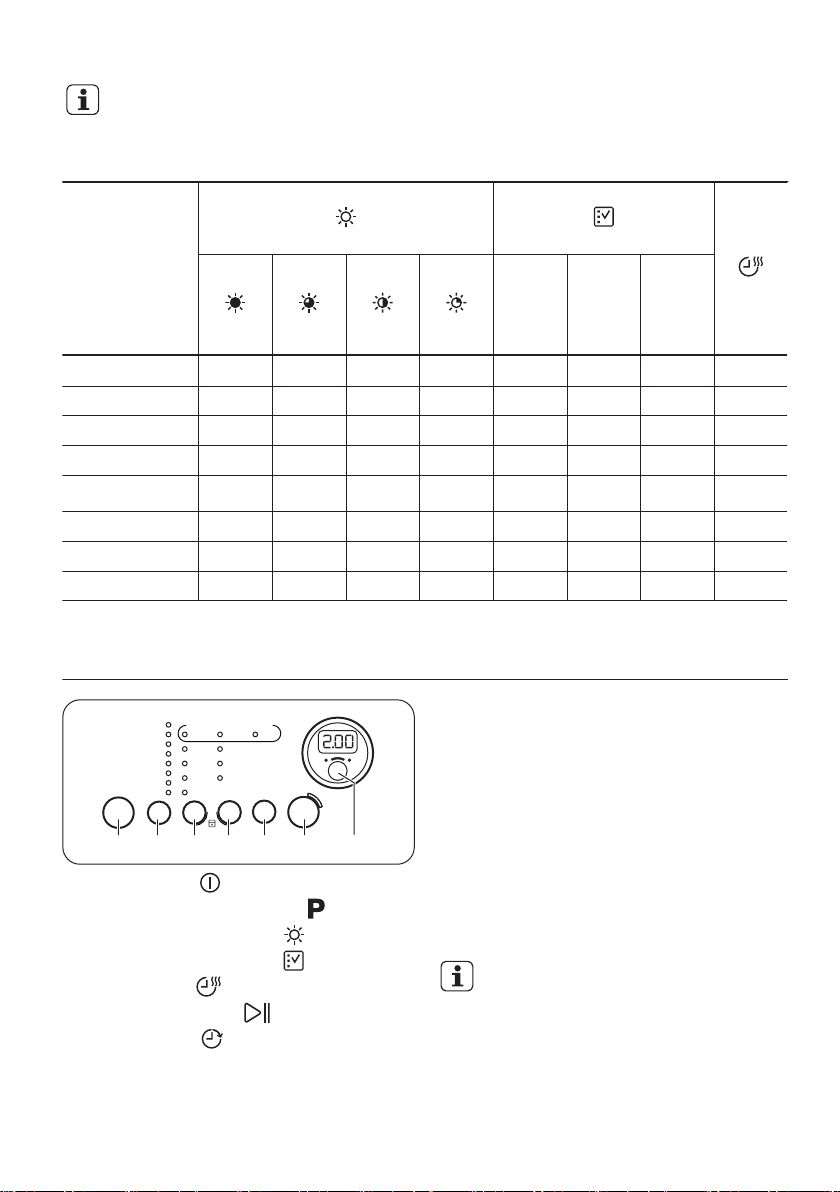

OPTIONS TABLE

Programmes Anti-

crease

90 min

Anti-

crease

60 min Delicate

Cottons ■ ■ ■ ■ ■ ■ ■

Synthetics ■■ ■ ■ ■ ■

Mix ■■ ■

Easy Iron ■■

Wool ■■■ 1)

Duvet ■■

Refresh ■ ■

Time Drying ■ ■ ■

1) Only with the Drying Rack (standard accessory or optional, depending on model).

SETTINGS

A B C D GE F

A) On / Off button

B) Programme selection touchpad

C) Dryness selection touchpad

D) Options selection touchpad

E) Time touchpad

F) Start/Pause touchpad

G) Delay touchpad

CHILD LOCK FUNCTION

This option prevents children to play with the

appliance while a programme operates. The

programme knob and the touchpads are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the

appliance.

2. Wait approximately 8 seconds.

3. Press and hold touchpads (C) and (D) at the

same time. The child lock indicator comes on.

The child lock indicator comes on.

It is possible to deactivate the child

lock option while a programme

operates. Press and hold the same

touchpads until the child lock indicator

goes off.

BUZZER ON/OFF

To deactivate or activate the acoustic signals, press

and hold for approximately 2 seconds touchpads

(B) and (C) at the same time.

ADJUSTMENT OF THE REMAINING LAUNDRY

MOISTURE DEGREE

To change the default degree of the remaining

moisture of the laundry:

1. Press the on/off button to activate the

appliance.

2. Wait approximately 8 seconds.

3. Press and hold buttons (B) and (D) at the same

time.

One of the these indicators comes on:

• the maximum dry laundry

• the more dry laundry

• the standard dry laundry

4. Press the button (F) again and again until the

indicator of the correct level comes on.

5. To confirm the adjustment, press and hold

buttons (B) and (D) at the same time for

approximately 2 seconds.

BEFORE FIRST USE

Before you use the appliance for the first time do

these operations:

• Clean the tumble dryer drum with a moist cloth.

• Start a short programme (e.g. 30 minutes) with

moist laundry.

DAILY USE

START A PROGRAMME WITHOUT DELAY

START

1. Prepare the laundry and load the appliance.

CAUTION! Make sure that when

you close the door, the laundry

does not catch between the

appliance door and the rubber

seal.

2. Press the on/off button to activate the

appliance.

3. Set the correct programme and options for the

type of load.

The display shows the programme duration.

4. Press the Start/Pause touchpad.

The programme starts.

STARTING THE PROGRAMME WITH DELAY

START

1. Set the correct programme and options for the

type of load.

2. Press the delay start button again and again

until the display shows the delay time you want

to set.

You can delay the start of a

programme from a minimum of 60

minutes to a maximum of 20

hours.

3. Press the Start/Pause touchpad.

The display shows the countdown of the delay

start.

When the countdown is completed, the programme

starts.

CHANGE A PROGRAMME

1. Press the on/off button to deactivate appliance

2. Press the on/off button to activate the

appliance.

3. Set the programme.

AT THE END OF THE PROGRAMME

When the programme is completed:

• An intermittent acoustic signal operates.

• The indicator flashes.

• The indicators Filter and Tank comes on.

• The Start/Pause indicator is on.

The appliance continues to operate with the crease

guard phase for approximately other 30 minutes.

The crease guard phase removes creases from

your laundry.

You can remove the laundry before the crease

guard phase is completed. We recommend, for

better results, that you remove the laundry when the

phase is almost completed or completed.

When the crease guard phase is completed:

• The indicator is on but does not flash.

• The indicators Filter and Tank comes on.

Table des matières

Autres manuels Zanussi Séchoir

Zanussi

Zanussi ZDP7203PZ Manuel utilisateur

Zanussi

Zanussi TC 60 Manuel utilisateur

Zanussi

Zanussi ZDH7332P Manuel utilisateur

Zanussi

Zanussi ZDC47100G Manuel utilisateur

Zanussi

Zanussi TD 524 Manuel utilisateur

Zanussi

Zanussi ZTE7100PZ Manuel utilisateur

Zanussi

Zanussi TD530 Manuel utilisateur

Zanussi

Zanussi ZTH485 Manuel utilisateur

Zanussi

Zanussi TD250 Manuel utilisateur

Zanussi

Zanussi ZDH87A2DG Manuel utilisateur

Zanussi

Zanussi ZDC72B4PW Manuel utilisateur

Zanussi

Zanussi ZDC67560W Manuel utilisateur

Zanussi

Zanussi Z930 Instructions d'utilisation et de sécurité

Zanussi

Zanussi TCE 7276 W Manuel utilisateur

Zanussi

Zanussi TD30 Instructions d'utilisation et de sécurité

Zanussi

Zanussi TD 513 Manuel utilisateur

Zanussi

Zanussi TC 7114 S Manuel utilisateur

Zanussi

Zanussi TC 450 Manuel utilisateur

Zanussi

Zanussi TC 491 D Manuel utilisateur

Zanussi

Zanussi TCS 605 E Manuel utilisateur

Zanussi

Zanussi ED 207 Instructions d'utilisation et de sécurité

Zanussi

Zanussi ZTK123 Manuel utilisateur

Zanussi

Zanussi ZDH8903PZ Manuel utilisateur

Zanussi

Zanussi ZTE 171 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
