Zanussi Electrolux ZDF 511 Manuel utilisateur

User manual

Dishwasher

ZDF 511

Thank you for selecting our

appliance

We wish you lots of enjoyment with your new

appliance and we hope that you will consider

our brand again when purchasing household

appliances.

Please read this user manual carefully and

keep it throughout the product life cycle as a

reference document. The user manual should

be passed on to any future owner of the

appliance.

Contents

Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ 3

Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4

Washing programmes _ _ _ _ _ _ _ _ _ _ _ 9

First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10

Set the water softener _ _ _ _ _ _ _ _ _ _ 10

Filling with dishwasher salt _ _ _ _ _ _ _ 12

Filling with rinse aid _ _ _ _ _ _ _ _ _ _ _ 13

Adjusting the dosage of rinse aid _ _ _ _ 13

Loading cutlery and dishes _ _ _ _ _ _ _ 14

Use of detergent _ _ _ _ _ _ _ _ _ _ _ _ _ 17

"3 in 1 function" _ _ _ _ _ _ _ _ _ _ _ _ _ 18

Unloading the dishwasher _ _ _ _ _ _ _ _ 19

Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ 19

Environmental concerns _ _ _ _ _ _ _ _ _ 21

Something not working _ _ _ _ _ _ _ _ _ 22

Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24

Consumption values _ _ _ _ _ _ _ _ _ _ _ 25

Hints for test institutes _ _ _ _ _ _ _ _ _ _ 25

Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 26

Guarantee conditions _ _ _ _ _ _ _ _ _ _ 28

Safety information

In the interest of your safety and to ensure the

correct use, before installing and first using the

appliance, read this user manual carefully, in-

cluding its hints and warnings. To avoid unnec-

essary mistakes and accidents, it is important

to ensure that all people using the appliance

are thoroughly familiar with its operation and

safety features. Save these instructions and

make sure that they remain with the appliance

if it is moved or sold, so that everyone using it

through its life will be properly informed on ap-

pliance use and safety.

Correct use

• Thisdishwasher is only intended for washing

household utensils suitable for machine

washing.

• Do not put any solvents in the dishwasher.

This could cause an explosion.

• Knives and other items with sharp points

must be loaded in the cutlery basket with

their points down or placed in a horizontal

position in the upper basket.

• Only use products (detergent, salt and rinse

aid) suitable for dishwashers.

• Avoid opening the door whilst the appliance

is in operation, hot steam may escape.

• Do not take any dishes out of the dishwasher

before the end of the dishwashing cycle.

• After use, isolate the appliance from the

power supply and turn off the water supply.

• This product should be serviced only by an

authorised service engineer, and only gen-

uine spare parts should be used.

• Under no circumstances should you attempt

to repair the machine yourself. Repairs car-

ried out by inexperienced persons will cause

injury or serious malfunctioning. Contact

your local Service Force Centre. Always in-

sist on genuine spare parts.

General safety

• Dishwasher detergents can cause chemical

burns to eyes, mouth and throat. Could en-

danger life! Comply with the safety instruc-

tions of the dishwasher detergent manufac-

turer.

• The water in your dishwasher is not for drink-

ing. Detergent residues may still be present

in your machine.

• Ensure that the door of the dishwasher is

always closed when it is not being loaded or

unloaded. In this way you will avoid anybody

tripping over the open door and hurting

themselves.

• Do not sit or stand on the open door.

Child safety

• This appliance is designed to be operated

by adults. Don’t allow children to use the

dishwasher unsupervised.

• Keep all packaging well away from children.

There is risk of suffocation.

• Keep all detergents in a safe place out of

children’s reach.

• Keep children well away from the dishwash-

er when the door is open.

Installation

• Check your dishwasher for any transport

damage. Never connect a damaged ma-

chine. If your dishwasher is damaged con-

tact your supplier.

• All packaging must be removed before use.

• Any electrical and plumbing work required to

install this appliance must be carried out by

a qualified and competent person.

• For safety reasons it is dangerous to alter

the specifications or attempt to modify this

product in any way.

• Never use the dishwasher if the electrical

supply cable and water hoses are damaged;

or if the control panel, work top or plinth area

are damaged such that the inside of the ap-

pliance is freely accessible. Contact your

local Service Force centre, in order to avoid

hazard.

• All sides of the dishwasher must never be

drilled to prevent damage to hydraulic and

electric components.

CAUTION!

For electrical and water connection carefully

follow the instructions given in specific para-

graphs.

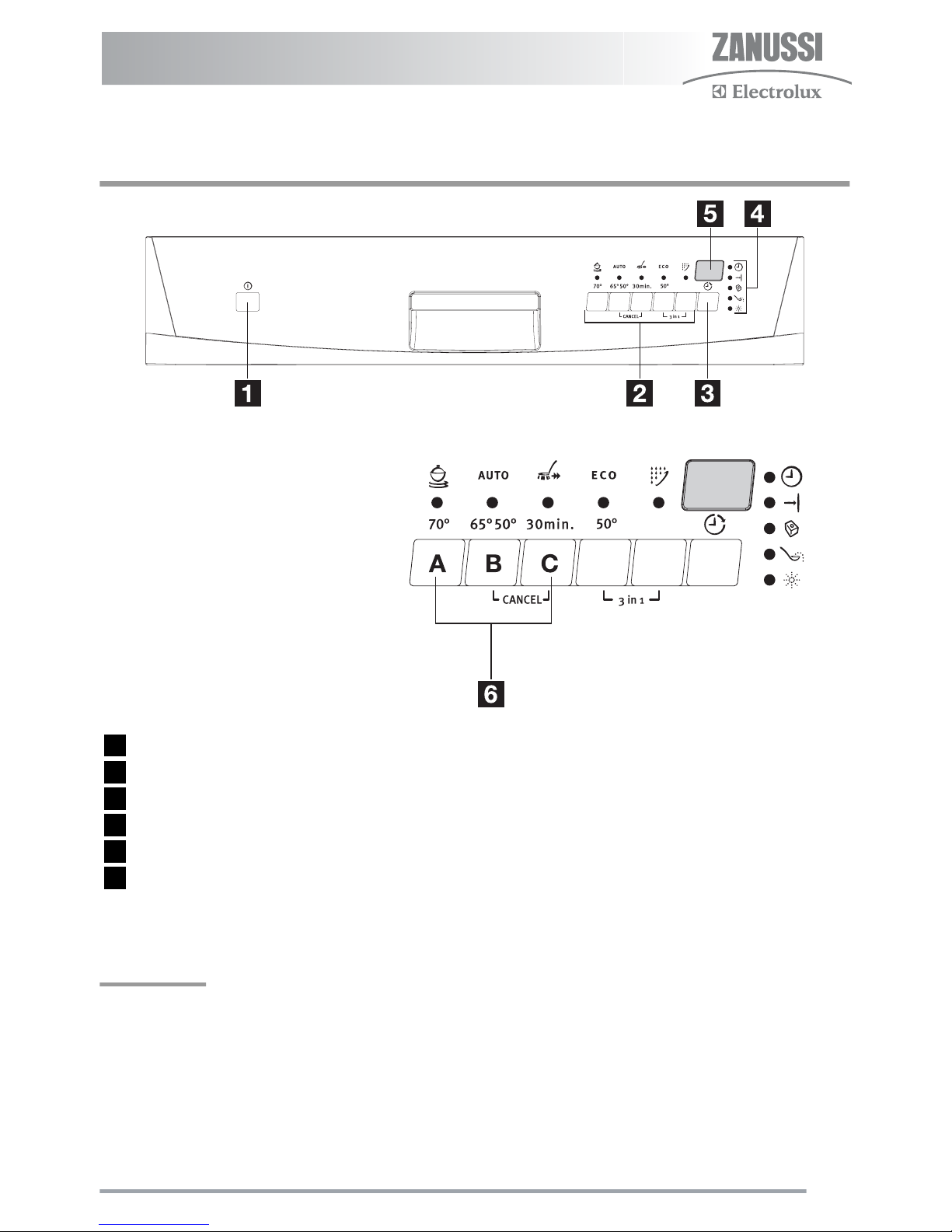

Control panel

1On/Off button

2Programme selection buttons

3Delay start button

4Indicator lights

5Digital display

6Function buttons

Setting mode

IMPORTANT!

Always remember that when performing oper-

ations as:

– selecting a washing programme,

– setting the water softener,

– activating/deactivatingtherinseaid dispens-

the appliance MUST be in setting mode:

• Press On/Off button, ALL programme selec-

tion button lights are illuminated =appliance

in setting mode.

•Press On/Off button, ONLY a programme

button light is illuminated = last performed

programme still set.

In this case the programme has to be cancelled

(see instructions “Cancel a washing pro-

gramme in progress”).

Function buttons In addition to the dishwashing programme selection,

the following functions can also be set with the help of

these buttons.

– the setting of the water softener,

– the cancelling of a programme in progress.

– the activation/deactivation of the rinse aid dispenser

Digital display In the digital display is indicated:

– the level of hardness to which the water softener is

set,

– the approximate remaining time of the running pro-

gramme,

– activation/deactivation of the rinse aid dispenser,

– the end of the programme (a zero is visible),

– the countdown of the delay start,

– faultcodesconcerningmalfunctionoftheappliance.

IMPORTANT!

Select the washing programme and the delay

start with the door slightly opened. The start of

the programme or the countdown of the delay

start will occur only after the closure of the door.

Until that moment it is possible to modify the set

made.

Programme selection buttons •Starting the washing programme:

1. Press the On/Off button.

2. Press the button corresponding to the required

programme, the corresponding light remains illu-

minated while the other programme lights turn off.

In the digital display will appear, flashing, the run-

ning time of the programme (in minutes).

3. The programme in progress light illuminates.

4. Close the dishwasher’s door, the programme will

start automatically. In the digital display the run-

ning time of the programme is no longer flashing

and the programme in progress light remains il-

luminated.

IMPORTANT!

Once the programme has started, if you want to

change the selection made you must cancel the wash-

ing programme in progress.

•Cancel the washing programme in progress:

1. Press and hold simultaneously function buttons

Band Cuntil ALL programme button lights will

illuminate.

2. Release function buttons Band C.

3. Switch off the machine by pressing the On/Off

button or select a new washing programme (check

that there is detergent in the detergent dispenser.

Delay start button This option allows the start of the programme to be

delayed from 1 to 19 hours. After having selected the

washing programme press the delay start button until

the flashing number of the hours for the delay start will

appear in the digital display.

Close the dishwasher’s door, the countdown starts au-

tomatically. Once the countdown has elapsed the

washing programme will start automatically.

•Cancel the delay start in progress:

To cancel a delay start in progress you have to reset

the dishwasher; follow the same instructions given in

"Cancel the washing programme in progress".

IMPORTANT!

Cancelling a delay start involves also the cancelling of

the washing programme set. In this case you have to

select the washing programme again.

IMPORTANT!

The selection of the washing programme and

delay start can occur also with the door closed.

Keep in mind that in this way, once a washing

programame button is pressed you have ONLY

3 seconds in which you can choose another

programme or select a delay start, after which

the selected programme will start automatical-

ly.

Indicator lights

Programme in progress light Illuminates when the washing programme has been

set.

When the delay start has been set, this light turns off

and will come on again once the countdown has

elapsed and the washing programme has started.

End of programme light Illuminates when the washing programme has ended.

3 in 1 light Indicates the activation/deactivation of the "3 in 1

function" (see "3 in 1 function" ).

Salt refilling light Illuminates when special salt needs to be filled.

It can remain illuminated several hours after the salt

has been filled.

Rinse aid refilling light Illuminates when rinse aid needs to be filled.

Washing programmes

Programme Degree of soil Type of load Programmedescription

Intensive 70° Heavy soil Crockery, cutlery, pots

and pans

Prewash

Main wash

2 intermediate rinses

Final rinse

Drying

AUTO 65° 50° Normal / Light soil. Crockery and cutlery Prewash

Main wash

1 or 2 intermediate rinses

Final rinse

Drying

Eat-Load-Run

30 min.

Light soil Crockery and cutlery Main wash

Final rinse

50°

Normal soil Crockery and cutlery Prewash

Main wash

1 intermediate rinse

Final rinse

Drying

Rinse and Hold Any.

Partial load (to be completed later in the day).

1 cold rinse (to avoid food

scraps from sticking to-

gether).

This programme does not

require the use of deter-

gent.

1) Ideal for washing a partially loaded dishwasher. This is perfect daily programme, made to meet the needs of a family of 4

persons who only wish to load breakfast and dinner crockery and cutlery.

2) Test programme for test institutes.

"Auto" washing programme

During the "Auto" washing programme the

amount of soil on the dishes is determined by

how cloudy the water is.

If the appliance is partially loaded and the

dishes lightly soiled, the "prewash", "main

wash", and "rinse" phases of the programme

are shorter and the water consumption level is

lower.

If the appliance is fully loaded and the dishes

heavily soiled, the "prewash", "main wash", and

"rinse" phases of the programme are longer

and the water consumption level is higher.

For this reason the programme duration, water

and energy consumption levels can vary within

the stated range for "Auto" programme (see

"Washing programmes chart").

During the "Auto" programme the temperature

of the main wash water is also automatically

adjusted between 50°C and 65°C depending

on the amount of soil on the dishes.

First use

Before using your dishwasher for the first time:

• Ensure that the electrical and water connec-

tions comply with the installation instructions

• Remove all packaging from inside the appli-

ance

• Set the water softener

• Pour 1 litre of water inside the salt container

and then fill with dishwasher salt

• Fill the rinse aid dispenser

If you want to use combi detergent tablets such

as: "3 in 1", "4 in 1", "5 in 1" etc... set the 3 in 1

function (see "3 in 1 function").

Set the water softener

The dishwasher is equipped with a water soft-

ener designed to remove minerals and salts

from the water supply, which would have a det-

rimental or adverse effect on the operation of

the appliance.

The higher the content of these minerals and

salts, the harder your water is.

Water hardness is measured in equivalent

scales, Clarke degrees, French degrees (°TH)

and mmol/l (millimol per litre - international unit

for the hardness of water).

The softener should be adjusted according to

the hardness of the water in your area. Your

local Water Authority can advise you on the

hardness of the water in your area.

Water hardness Adjusting the water hardness

setting Use of salt

Clarke °TH mmol/l manually electronically

64 - 88 91 - 125 9,0- 12,5 2level 10 yes

53 - 63 76 - 90 7,6 - 8,9 2level 9 yes

46 - 52 65 - 75 6,51 - 7,5 2level 8 yes

36 - 45 51 - 64 5,1 - 6,4 2level 7 yes

28 - 35 40 - 50 4,0 - 5,0 2level 6 yes

Table des matières

Autres manuels Zanussi Electrolux Lave-vaisselle

Zanussi Electrolux

Zanussi Electrolux DCS 12 W Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DE6444 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 6161 S Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 6171 Manuel d'utilisation

Zanussi Electrolux

Zanussi Electrolux ZDF 121 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDF 501 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DX 6452 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DE 6955 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 2400 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 2420 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 4126 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DE 6954 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDF 601 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDF 411 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDF 221 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DE 4855 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DE 540 X Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDT 6053 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DA 6142 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZDF 501 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux DX 6453 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 6152 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 4111 Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZSF 6160 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
