Z12 Series
1) Please read this manual thoroughly prior to installation.
2) Before installing, check the components and condition of the product,
and if any problem is found, contact the retailer.
3) Avoid inserting objects or hands into the system while it is in operation
to prevent product damage and injuries.
4) Check the manual when connecting cables. Incorrect connections
PD\FDXVHVKRUWFLUFXLWVOHDGLQJWR¿UHKD]DUGV
5) Do not block the front intake vent or the rear exhaust vent.
6) Keep this unit away from heat sources, direct sunlight, water, oil, and
KXPLGHQYLURQPHQWVDQGSODFHWKHXQLWRQDÀDWVWDEOHYLEUDWLRQIUHH
DQGZHOOYHQWLODWHGDUHD
7) Do not clean the product surface with chemicals or wet cloth.
FKHPLFDOVLQGXVWULDOEULJKWHQHUZD[EHQ]HQHDOFRKROSDLQWWKLQQHU
mosquito repellent, aromatics, lubricant, detergent etc.)
8) Please wear gloves while handling this product to prevent injuries.
3URGXFWGHVLJQDQGVSHFL¿FDWLRQVPD\EHUHYLVHGWRLPSURYHTXDOLW\
and performance.
&DXWLRQDU\1RWH
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages
due to external causes, including but not limited to, improper
use, problems with electrical power, accident, neglect,
alteration, repair, improper installation, or improper testing.
(1*
2
Z12 Series
6SHFLᚏFDWLRQV
Product Details
Model Name Z12 Z12 Plus
Type ATX Mid Tower
Dimensions (W x H x D) 215(W) x 470(H) x 480(D) mm
8.4(W) x 18.5(H )x 18.8(D) inch
Weight 7 kg / 15.43 lb
Materials Plastic(ABS) / Steel
Color Black
0RWKHUERDUG&RPSDWLELOLW\ Standard ATX / Micro ATX
3RZHU6XSSO\&RPSDWLELOLW\ Standard ATX / ATX 12V
3&,$*3&RPSDWLELOLW\ )XOO6L]HPPLQFK
'ULYH%D\V
5.25" External Bay x 4
3.5" Internal Bay x 5
2.5" Internal Bay x 1
Common
(3in1) ,QWHUQDO%D\[LQ
&RROLQJ
&RPSRQHQWV
Front 1 x 120mm Fan (1 Blue LED Fan Included)
Rear 1 x 120mm Fan (1 Fan Included)
Top 2 x 120mm Fan
(2 Optional) 2 x 120mm Blue LED Fan
(1 LED Fan Included , 1 Optional)
Bottom 1 x 120mm Fan (1 Optional)
Fan Controller 2 channel
Front I/O Port Panel Headphones x 1, Mic x 1, USB 2.0 x 2, USB 3.0 x 2
Expasion Card Slots 7
3
ೠӖ
Z12 Series
3DUWV
[ Z12 ] [ Z12 Plus ]
Cable Tie × 5CPU 12V Extension Cable × 1
6WDQG2IIî Bolt A
PPî
[PSU, PCI]
Bolt E
PPî
[3.5” HDD]
Bolt B
0PPî
[M/B, FDD, SSD]
Bolt D
PPî
[3.5” Bay HDD]
User manual
PCI Slot × 2
Bolt C
0PPî
[5.25”Bay ODD]
HDD
$QWLYLEUDWLRQUXEEHUî
[3.5” Bay HDD]
(1*
4
Z12 Series
,QVWDOODWLRQ

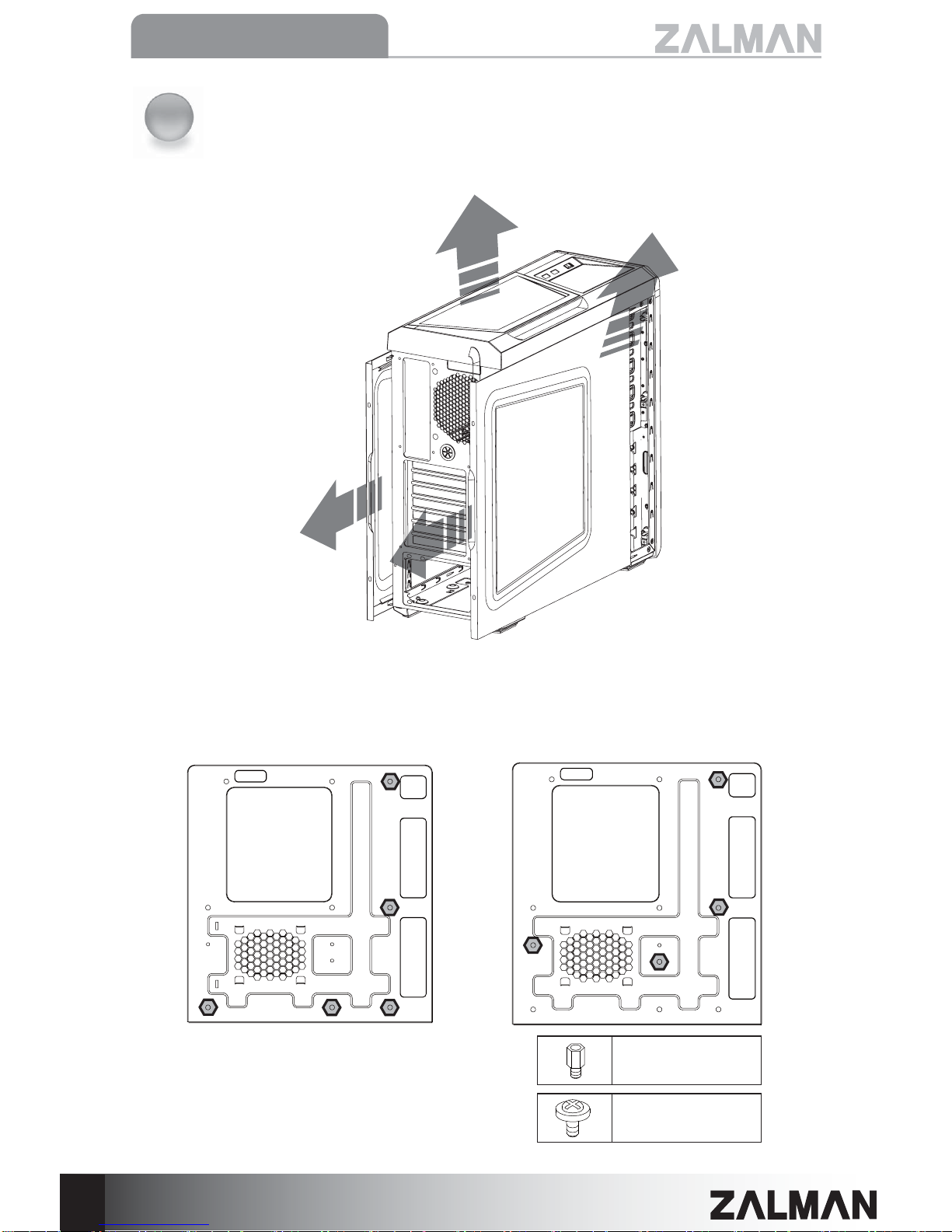

(1) Side Panel Removal
(2) Motherboard Installation
ATX Board
or
P$7;%RDUG
There are 4 Stand Offs preinstalled. Please refer to the diagrams below for
additional Stand Off positions (based on motherboard type).
6WDQG2II
B Bolt
˝
˞
5
ೠӖ
Z12 Series
(3) 5.25” and 3.5” Drive Installation
1) Front Cover Removal
2) ODD Installation
Bolt C
3) 2.5” / 3.5” Tray Installation
Tray removal
Bolt C
PULL
(1*
6
Z12 Series
ཱAttach Drive to Tray
A. 3.5” FDD Installation
3.5” FDD
Bolt B
C. 2.5” SSD Installation
SSD
Bolt B
B. 3.5” HDD Installation
3.5” HDD
Bolt A
(4) Front Cover Installation
When removing the front cover, the power switch and extension
cable are separated to prevent disconnection. Be sure to connect
the cables with matching colors before installing the front cover.
7
ೠӖ
Z12 Series
(5) 3.5” HDD Installation
HDD
+''$QWL
vibration rubber
Bolt D
Bolt E
When transporting an assembled
system, please secure the HDD with
Bolt E as shown above.
(6) Cable Connection
When removing HDD, pull the fastening
lever outwards and then remove it.
Power LED Power
0RWKHU%RDUG
3RZHU%XWWRQ
or
)DQ&RQQHFWLRQ
3683RZHU )DQ )DQ
(1*
8
Z12 Series
(7) 2.5” HDD / SSD Optional
2.5" HDD and SSDs can be installed on the right side of case as shown in the
diagram below.
Bolt B
Top Panel Fan (120/140 mm) Installation
When installing fan, press the Top Panel’s eight Hook’s towards each other
to remove and install as shown in diagram below. The Z12 comes with one
PP)DQSUHLQVWDOOHG
(8) Optional Fan Installation and Replacement
ೈ䋸Please refer to your motherboard manual for information regarding power and I/O port pinouts.
Front Panel I/O Port
MotherBoard
HD Audio
Audio
USB 2.0 X 2 USB 3.0 X 2 Reset HDD LED
