ZALMAN GS1000 SE Manuel utilisateur
www.zalman.com
English version
◈ Please read this manual thoroughly before installation.
◈ Please visit the GS1000 web page at Zalman’s website to view the GS1000
installation video.
E-mail: [email protected]
GS1000
GS1000
2
1. Cautionary Notes 3
2. Specifications
3. Parts List 5
. Installation 8
5. Options 15
6. Quality Assurance and Warranty Information 16
▣Contents
3
English
GS1000
1) Please thoroughly read and understand the contents of this User Manual prior
to installation.
2) Check the components list and condition of the product before installation. If
any problem is found, contact the retailer to obtain a replacement.
) Refrain from touching any moving parts to prevent injuries.
4) Please refer to the manual for cable setup/installation. Incorrect installation can
lead to short-circuiting and/or damage(s).
5) Do not block the front and rear air vents.
6) Place on a flat, stable surface with good ventilation, and avoid areas with direct
sunlight, oil, water or excessive moisture.
7) Do not cleanse any surface with chemical cleaners or solvents.(chemicals
including but not limited to: industrial brightener, wax, benzene, alcohol, paint
thinner, mosquito repellent, aromatics, lubricant, detergent etc.)
8) Please wear gloves during the installation process to prevent injuries.
9) The specifications of any product may change without prior notice to improve
performance
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due
to extemal causes, including but not limited to, improper use,
problems with electrical power, accident, neglect, alternation,
repair, improper installation, or improper testing.
1
Cautionary Notes
GS1000
Type Full Tower
Dimensions 640mm x 260mm x 570mm (including feet)
(D x W x H) (25.2 x 10.2 x 22.4 )
Weight 14.4kg (27.5lb)
Material(s)
Aluminum / ABS / Steel
Color Options Black / Titanium
Motherboard Compatibility E-ATX / Standard ATX / microATX
PSU Compatibility Standard ATX / ATX12V
PC /AGP card Compatibility Full Size
5.25" Bays x 4 (2 can serve as .5")
3.5" Bays x 6 ( support Hot Swap, are optional)
Cooling Components
Top Vent: 120mm Fan Vent x 2
(1 Fan included, 1 optional)
Rear Vent: 120mm Fan Vent x 1
(1 Fan included)
Bottom Vent: 120mm Fan Vent x 2
(Fans optional)
Expansion Slots
(Tool Free Bolts provided) x 7 slots
Front /O port
USB x 2
IEEE1 94(Firewire) x 1
Headphone x 1
Mic x1
Supports Hot Swap SATA I, SATA II
2
Specifications
5
English
GS1000
1) GS1000
3
Parts List
Headphones
POWER
Mic IEEE 1 94
USB 2.0
Front View Rear View Top View
Side View
GS1000
6
2) GS1000 Blow-Up Diagram
Part No. Part Name Qty
HDD Cover 2
HDD Tray 6
“2 in 1”Bracket 2
5.25"Bay Cover 2
Chassis 1
Top Cover 1
Part No. Part Name Qty
Side Panel 2
PSU Bracket 1
PSU Fan Bracket 1
Rear Foot 1
Front Foot 1
④
⑤
⑦
⑧
⑨
⑩
⑪
③
②
①
7
English
GS1000
3) GS1000 Parts
Diagram Part Name Qty Role
Foot (Front/Rear)
CPU 12V
Extension Cable
M/B Stand Off
HDD Screws
PSU Screws
Foot Fixing Screws
FDD Cover
CPU Power Extension
Cable
microATX M/B Installation
(silver)
HDD Installation (black)
PSU, Motherboard
Installation (black)
Feet Assembly (black)
FDD Installation
Support1
1
20
12
24
4
1
Cable Tie Cable Management
10
GS1000
8
1) Feet Assembly
2) Side Panel Removal
4
Installation
Front Foot
Rear Foot
Foot Fixing Screw
1 2
9
English
GS1000
3) PSU nstallation
(1) PSU Bracket Removal
(2) PSU Bracket Assembly
B TypeA Type
B TypeA Type
▶A Type : Please position the PSU’s intake facing downwards to optimize PSU
cooling.
▶B Type : Please position the PSU’s intake facing upwards to optimize system
cooling.
※If the system is in a dusty environment, please use the B Type configuration.
Tip
PSU Screw
GS1000
10

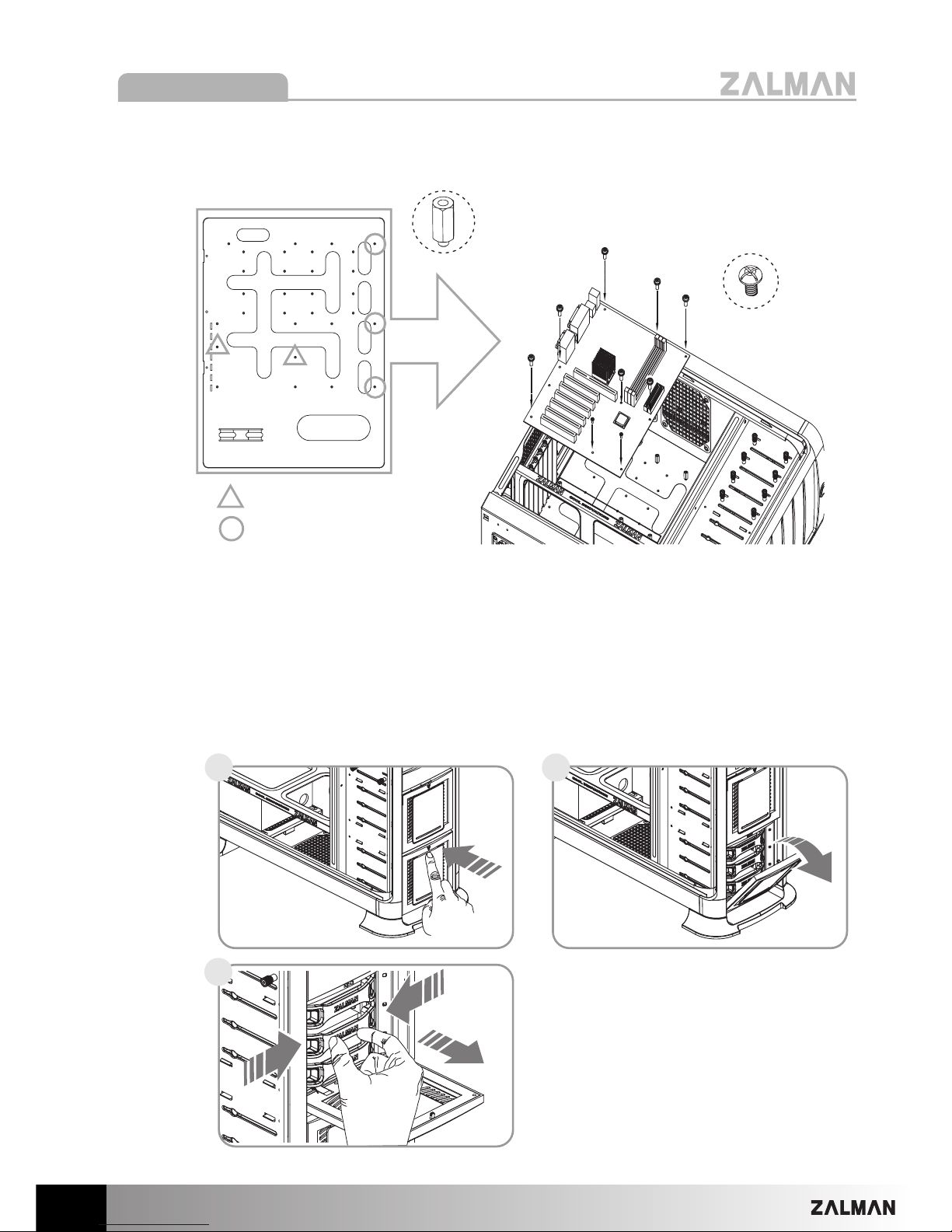

4) Motherboard nstallation
micro ATX motherboard
Server motherboard
5) Hot Swap HDD nstallation
(1) 3.5
""HDD Removal
Press the corners of the Hot Swap
Tray towards the center and pull out
as shown in the diagram.
1
3
2
M/B Stand Off
PSU Screw
※When installing a micro ATX or server motherboard, please install the
M/B Stand Offs as shown in the diagram.
