PID parameters (cont’d)
oLLC Min. control output for cooling.(0.0%- ouLC). Inactive in Heating/Cooling mode.
ouLC Maximum control output for cooling. (oLLC - 100.0%).
oLtC Minimum output time for cooling. (0.0 to Ct-C or 50 miliseconds if value is 0.0)
ArAnti-Reset Windup (0% to 100% of FS). During PID operation if PSEt -
Ar#PSEt#PSEt+Ar then an integral value is calculated otherwise the last

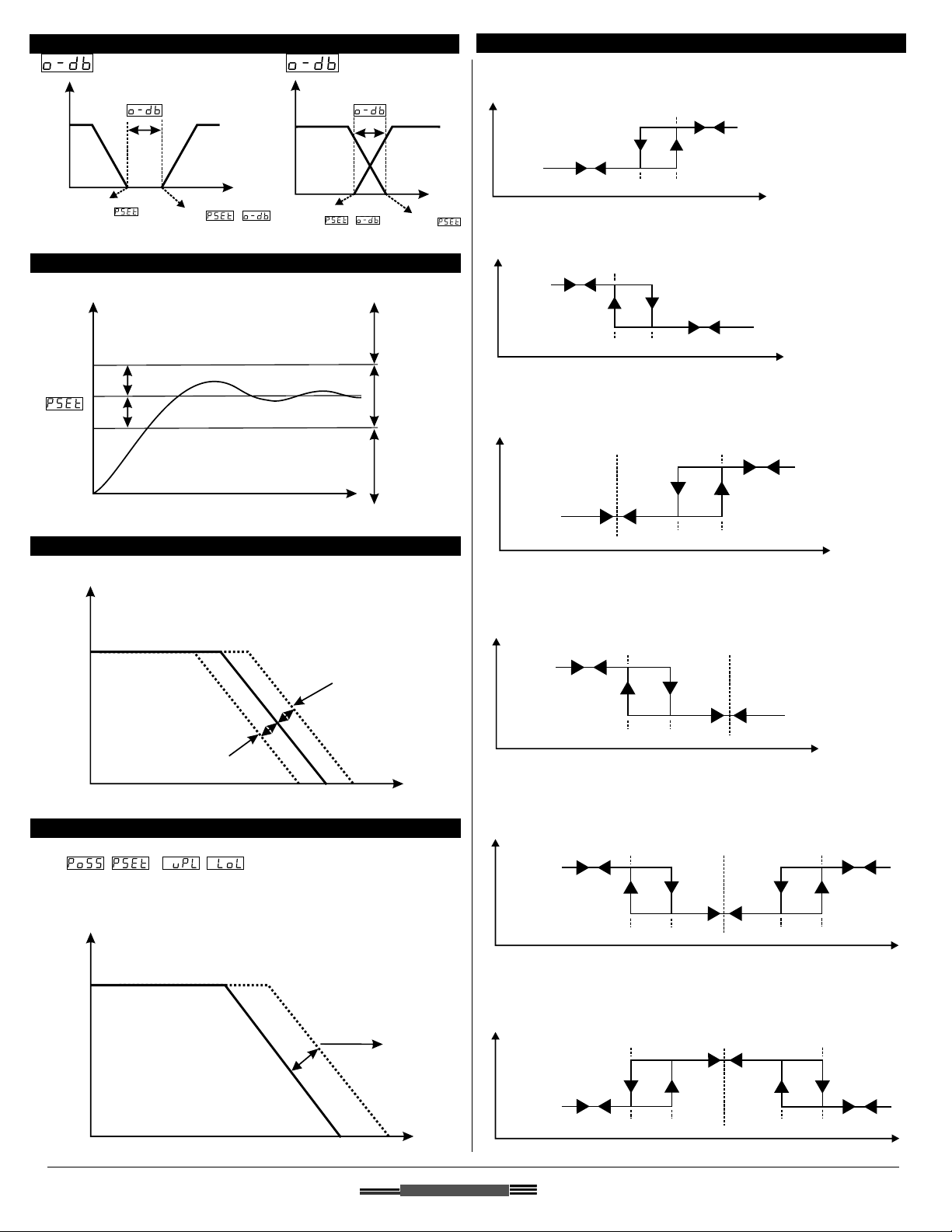

calculated integral value is used. See p6 for graphic example.
If ot.Ar is selected, then proportional band is used in PID process instead of Ar
value.
SuoF Offsets the proportional band from the SV in the PID calculations ("50% of FS)
PoFS PID output offset. Added to PID output. -100.0 to 0 for cooling PID
0.0 to 100.0 for heating PID
-100.0 to 100.0 for heating/cooling PID.
Strn Stability value. Adjustable from 1 to max scale. If tunn=no or Stun, oscillation might
occur. PSEt-Strn#PSEt#PSEt+Strn
O-dbProportional band shifting. Adjustable from +50.0% of FS. This value is added to
PSET value for cooling. If SV for heating =PSEt+SuoF then SV for
cooling=PSEt+SuoF+o-db
Sbou Control output value for duration of Sensor break error
-100.0 to 0 for cooling PID
0.0 to 100.0 for heating PID
-100.0 to 100.0 for heating/cooling PID
To continue controlling the process if sensor breaks, enter a value. Inactive if 0.0
Parameters
Parameters
SV offset for PID. A ed to PID output (PoSS * PSET / FS)
-100.0 to 0 for cooling PID
0.0 to 100.0 for heating PID
-100.0 to 100.0 for heating/cooling PID.
dd
PoSS
Technician’s parameters (PınP)
Decimal point position on the displays
0=0000 1=000.0 2=00.00 3=0.000
dPnt
Dual or multi-point calibration 0=Lol is -1999 & Upl is 9999)
1=Dual point (adjust Lol & Upl to suit)
2=Multi-point (up to 16 points P000 to P016)
UCAL
Calibratiton points for multi-point configuration
Used for non-linear calibration
P000
to
P016
Configuration for unit of measure
°C=Centigrade °F=Fahrenheit U=other - =none
unıt
Minimum value of operating scale
Lol
Maximum value of operating scale
Upl
Process offset ±10% of FS. Added to process value & expressed in degrees.
Puof
Input signal filtering time (display refresh rate 0.0 to 900.0 seconds) .
ıFLt
D C V o t a / e i s l = 2 )l g e C u r r n ( s
UASL Input type selection for voltage and current (Table-1)
ıSSL Configuration for process input type.
0=TC, 1=RTD, 2=DC Voltage/Current
I is
TC nput ( sl=0)
R p ( s 1TD In ut is l= )
P-Ht Proportional band for heating (0.0% to 999.9% of FS.)
I-Ht Integral time for heating (0 to 3600 seconds)
D-Ht Derivative time for heating (0.0 to 999.9 seconds)
Ct-H Control period for heating (1 to 150 seconds)
For Relay module: 30 seconds
For SSR driver module: 1 or 2 seconds.
oLLH Min. control output for heating.(0.0 to ouLH).Inactive ın Heating/Cooling mode.
oULH Maximum control output for heating. (oLLH to 100%).
oLtH Min. output time for heating. (0.0 to Ct-H or 50 miliseconds when = 0.0)
CCoE Cooling proportional band coefficient. (0.0% to 100.0%). If heating and cooling
PID are used, tunning is performed by the heating output. Therefore (P-CL=P-
HT * CCoE/100) eg. If P-Ht=10.0% and CCoE=50 then P-CL=
10.0*50/100=5.0%. If value is 0.0, coefficient is inactive.
Recommendation: CCoE=100 when cooling with air; 80 with oil; 40 with water
P-CL Cooling proportional band. (0.0% to 999.9% of FS.) eg. If uPL= 1000EC,
LoL=0EC and P-CL=50% then in temperature P-CL=(1000-0)*50/100=500EC
I-CL Integral time for cooling. (0 to 3600 seconds)
d-CL Derivative time for cooling. (0.0 to 999.9 seconds)
Ct-C Cooling control period. (1 to 150 second)
Recommendation: Use an SSR output for control periods shorter than 30s.
These are much better suited for frequent on/off operation than relay outputs.
PID parameters
Input/Output Modules Configuration (MODULE-1/MODULE-2) ıoP1 & ıoP2
out1 / out2 Output configuration (heat, cool, Lout)
Con1 / Con2 Control type (ON/OFF or PID)
HYS1 / HYS2 Hysteresis value 0% to 50% of FS (expressed in degrees)
HYn1 / HYn2Mode of Hysteresis [0=SV+(HYS/2) and SV-(HYS/2)]
[1=SV and SV+HYS or SV and SV-HYS]
tm1 / tm2 Minimum OFF time (0.0 to 100.0 Seconds)
oAt1 / oAt2 Output scale 0= 0...20mA (connect parallel 500 ohm for 0-10VDC)
1= 4...20mA
0=Alarm output 1=Manual/Automatic 2=Sensor break alarm
3=PV is out-of-range 4=Ramp/Soak finished
5=Sensor break alarm for analogue input module
6=PV is out-of-range for analogue input module
Lou1 / Lou2
(Loutputs)
0=Process high alarm 1=Process low alarm
2=Deviation high alarm 3=Deviation low alarm
4=Deviation band alarm 5=Deviation range alarm
6=Heater failure alarm (CT input module must be installed)
ALt1 / ALt2
(alarm types)
Alarm hysteresis 0% to 50% of FS (expressed in degrees)
ALH1 / ALH2
Output type: Heat / Cool / Retransmission
oua1 / oua2
Rt.pr=Retransmission of PV Rt.er=Retransmission of error
Rt.pu=Retransmission of SV
ret1 / ret2
If Module 1 or 2 is EMO-430
If Module 1 or 2 is EMI-400
LIN1 / LIN20=Manual / Automatic when logic input closed, changes AUTO program
parameter, if MAN changes to AUTO, if AUTO changes to MAN
1=Start Stop the AT when logic input closed, changes ATTN program
parameter, if NO changes to YES, if YES changes to NO
2=Run / off Ramp/Soak RSSL program parameter,when logic input is closed,
changes RUN or HOLD to OFF, if OFF changes to RUN)
3=Run / hold Ramp/Soak RSSL program parameter when logic input is closed,
changes RSSL program parameter, if RUN changes to HOLD, if HOLD
changes to RUN)
4=Cancel Alarm Latching when logic input is triggered, unless the alarm
condition still exists.
If Module 1 or 2 is EMI-410, EMI-430, EMI-440 or EMI-450
ISL1 / ISL2 Configuration for second sensor input type: 0=TC 1=RTD 2=DC volt/current
L = 0If IS 1 or ISL2=
tSL1/2 TC input type selection for thermocouple and scale (ref. Table-1)
UNT1/2 °C=Centigrade °F=Fahrenheit
LoL1/2 Minimum value of second sensor input range
uPL1/2 Maximum value of second sensor input range
IPu1/2 Module’s display offset value ±10% of Fs1. Added to process value in degrees.
iFL1/2 Module’s input signal filtering time. (From 0,0 to 900,0 seconds)
CJn1/2 Analogue input Module’s cold junction compensation setting
NO = cold junction compensation is inactive YES = active
rES1/2 Analogue input remote selection. Determines whether the measured value is the
result of the input on terminals 1,2, 3 or from the input module. Visible only when
decimal point and unit parameters are the same for both inputs.
ALS1 / ALS2 Alarm sensor selection 0 = Process input sensor (on terminals 1,2,3)
1 = Analogue module (1 or 2) sensor
CoEF Input coefficient. Used to scale input. eg. If sensor input = 40mV, a coefficient
of 1.25 (50mV÷40mV) is used to get a Full Scale deflection (Upl).
Alarm delay from fault 0.0 to 9999 seconds
Aon1/ Aon2
Alarm reset from fault 0.0 to 9998 seconds. For high limit with manual reset
only, select 9999. Display will read LtCH to indicate latch feature selected.
AoF1/ AoF2
Current transformer ratio can be adjusted from 0 to 100.
eg. For a 100:5A CT this parameter would read 0020 (100/5)
Ctr1 / 2
Heater break alarm set value = (Amps without failure + amps with heater failure)/2
For correct measurements, heating output must be active for at least 0.2 sec.
Hb1 / 2
If Module 1 or 2 is EMI-420
tCSL TC input type selection for thermocouple and scale (ref. Table-1)
unıt Configuration for unit of measure (°C, °F)
LPAd Low point adjustment used together with uPAd to correct sensor error.
eg. reading is 26 (low) and 320 (high) but should read 25 and 325
LPAd = -1 and uPAd=5
uPAd Upper point adjustment
LOL Minimum value of operation scale
UPL Maximum value of operation scale
PUOF Process offset ±10% of FS. Added to process value & expressed in degrees.
ıFLt Input signal filtering time. (0.0 to 900.0 seconds)
CjnC NO = cold junction compensation is inactive. YES = active.
rtdS
unıt Configuration for unit of measure (°C, °F)
LPAd Low point adjustment used together with uPAd to correct sensor error.
eg. reading is 26 (low) and 320 (high) but should read 25 and 325
LPAd = -1 and uPAd=5
uPAd Upper point adjustment
LOL Minimum value of operation scale
UPL Maximum value of operation scale
PUOF Process offset ±10% of FS. Added to process value & expressed in degrees.
ıFLt Input signal filtering time. (0.0 to 900.0 seconds)
RTD input type selection for thermoresistance and scale (Ref. Table-1)
(connect parallel 500 ohm for 2-10VDC)
