Product General Description

The E20Tvx with Thermography sensor for the H520E Hexacopter is a stabilized 3-axis gimbal,

thermal imaging and residual light camera all-in-one. The E20Tvx is available with a 640*512-pixel

thermal imaging resolution. The E20Tvx takes high-quality pictures and detects more details in

the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream,

you can stream the thermal and residual light image simultaneously to the remote control and

then look at the image as an overlay or picture-in-picture.

Highlights of the E20Tvx camera system:

Thermal imaging camera and 1080p low-light camera combinable and recordable (picture in

picture or overlay).

Te mpe rat ure m ea sureme nt a nd d isplay.

Heat sources are well visualized thanks to the different color spectrums available.

Dual-stream recording allows for separate editing of thermal and RGB video or photo

information.

Overview:

SPEC

Items

E20Tvx

Weight

364g

Angular Vibration Range

±0.03°

Controllable Range

Tilt:：-110°~ 30°

Pan: ±165°

Max Angular Velocity

Tilt: 30°/s

Pan: 120°/s

Operating Temperature

-10°C to 50°C

Thermal Sensor Data

Sensitivity

<50mk @F1.0/25°C

Pixel Pitch

12μm

Infrared Wavelength Range

8-14μm

Frequency

25Hz

Photo Formats

JPEG

Video Formats

MP4

Thermal Video Resolution

640x512

Lens

13mm f/1.0, HFOV32°

8.8mm f/1.1, HFOV50.8°

Temperature Measurement

Range

High Gain:-20℃~150℃

Low Gain:100℃~550℃

Visible light Camera Data

Sensor

1/2.8" 2MP

Aperture

F 2.8

Equivalent Focal Length

23mm

Diagonal Fov

89.6°

ISO Range

100~3200

Shutter

1/30s ~ 1/8000s

Video Resolution

1920X1080 60 fps

Photo Formats

JPEG

Video Formats

MP4

Gimbal Installation

Assembly and Disassembly the X connector gimbals

Assembling

Step 1.

Find the Unlocked Mark etched on the Gimbal

Yaw Motor and align the Mark Line with the

front of the damping plate.

Step 2.

Insert the Gimbal Yaw Motor into the

damping plate and rotate it counterclockwise

until the Mark Line of the Locked Mark aligns

with the front of the damping plate to secure

the gimbal.

Step 3.

Remove the lens protector

Disassembling

Step 1.

Hold the gimbal release button and rotate the

Gimbal Yaw Motor clockwise until the Mark

Line of the Unlocked Mark aligns with the

front of the damping plate.

Step 2.

Pull the gimbal out from the damping plate.

Notice: The X-connector series gimbal needn't

bind separately. If the re-binding is needed

please refer to the corresponding section in

the Drone Quick Start Guide.

User interface introduction

1． Temperature Bar

2． Thermography Video

3． Measuring area and Temperature indication

4． Gimbal attitude indicator (Tilt and Pan)

5． Digital Zoom ratio indicator for Thermography

6． Camera quick-access menu

7． Gimbal type and SD card storage space

8． Video/Photo mode switch button

9． Shutter or Start/Stop recording button

10. Counter in photo mode/ Timer in video mode

11. Camera setting menu button

12. Temperature Measurement Range Setting Bar Switch

13. FFC ( Flat Field Correction) Button

Separate introduction of the USER interface

1. Temperature Bar

Show the color separation of different Temperature, which according to the

different Palette selection, the upper the higher temperature is.

The following table shows all palette options

White Hot Fulgurite Iron Red Hot Iron Medical Artic Rainbow1

Rainbow2 Tint Black Hot

2. Thermography Video

The Real time video from the E20Tvx displayed on the screen.

3. Measuring area and Temperature indication

The Temperature measure area or spot sight bead, the number in the red rectangle

show the measure result.

The following shows the different sight bead in different ROI mode

ROI mode: Area ROI mode: Spot

In Spot ROI mode, users can measure the temperature of a specified point by

tapping on the thermography area directly.

4. Gimbal attitude indicator (Tilt and Pan)

The Position of the Yellow dot in the gimbal tilt indicator bar shows the gimbal

tilt attitude. The red marks in the bar shows the gimbal is tilted up meanwhile the

green marks shows the gimbal is tilted down. For further accuracy, we can read the

gimbal tilt angle in the rectangle under the Vertical bar.

Also there is a black arrow in the Yellow dot it shows which direction of the gimbal

lens is point to. When the arrow is straight up it shows the gimbal lens is point to

the front of the drone.

5. Digital Zoom ratio indicator

The Logo shows the Thermography video zoom ratio you can use the

right trim button on the ST16E.

Right trim button : Up = zoom in (Step 0.5)

Down= zoom out (Step 0.5)

Right= zoom in (Step 0.2)

Left= zoom out (Step 0.2)

6. Camera quick-access menu

This function can view and change the most important camera parameter settings

in the main interface. To change the setting in quick-access menu, just tap on the

item you want to change, it will pop up a menu for selection.

For example: Change the White balance via the quick-access menu. Tap the WB

Item then select the option your prefer.

Note: the left trim on the ST16E is the Hot key for visible light camera parameter

settings.

Left trim: UP & Down = adjust the EV in the Auto exposure Mode (Step 0.5)

Left & Left = adjust the White balance Mode

7. Gimbal Type and SD card storage space

The H520E can be matched with different gimbal payload. This Indicator shows

which one the drone is carrying, also the SD card storage space.

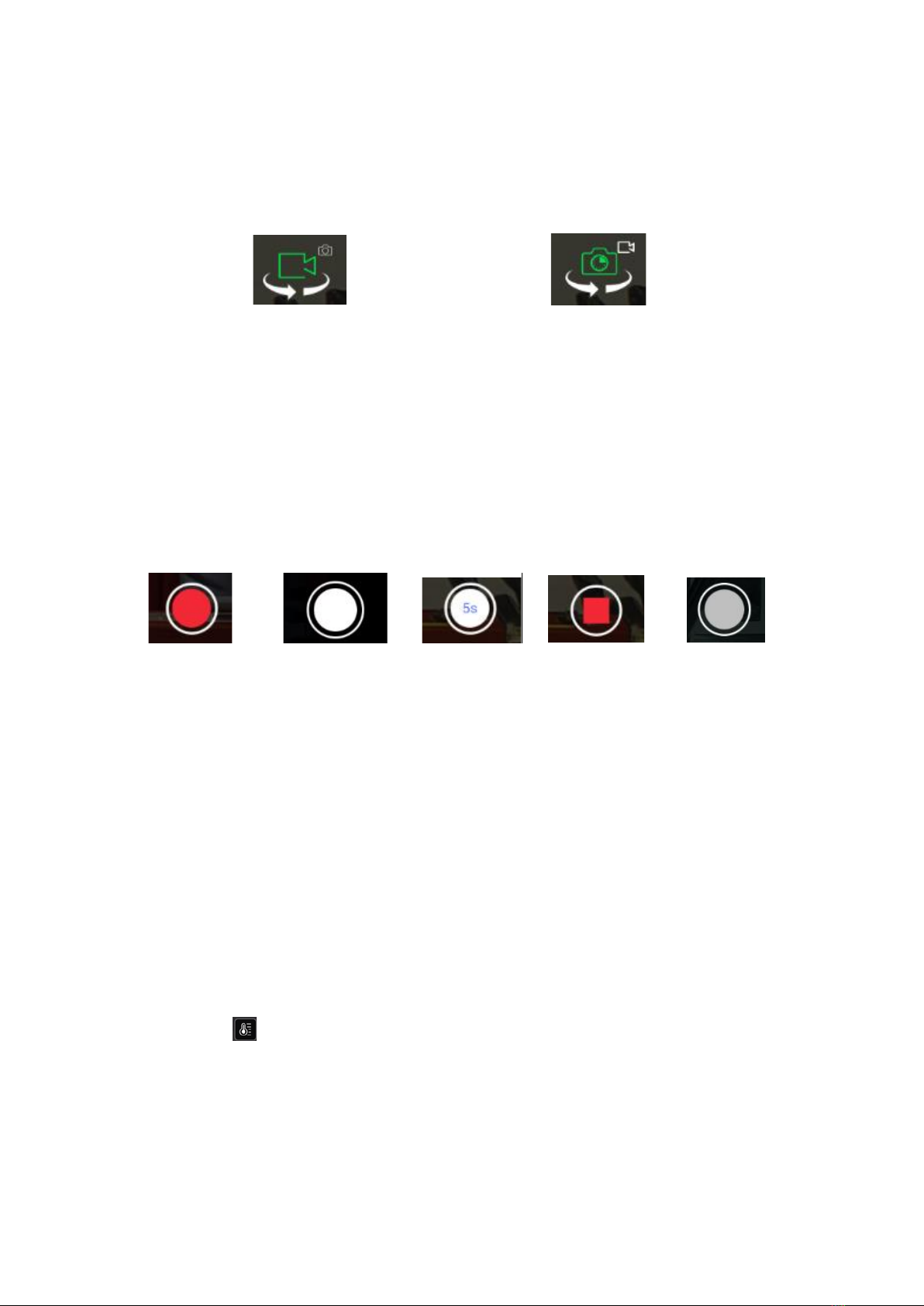

8. Video/Photo mode switch button

Switch the Camera mode between the Photo mode with the Video recording mode.

Just tap the Icon to switch the Camera work mode

Camera in video mode Camera in Photo mode

9. Shutter or Start/Stop recording soft button

In the Video Recording mode the icon is a red dot. Tap it to start recording the

video and tap again to stop recording.

In the Single Photo mode the icon is a white dot. Tap it to capture a photo

In the Time Lapse Photo mode the icon is a white dot with time interval shown in

the center. Tap it to start the time interval shooting and tap again to stop.

If the SD card is full or the camera without insert the SD card the icon is a gray dot

that means you cannot record anything.

Five different status of the Shutter or Start/Stop recording soft button

Tap to start Tap to record Tap to start Tap to stop No SD card

Recording video one photo time interval Video recording or SD card

Shooting or time interval full

Shooting

10. Counter in photo mode/ Timer in video mode

In the photo mode the counter shows how many photos you have recorder within

one Electrified time .Once you have powered off the drone the number will be reset.

In the video mode the timer shows the time you have recorded in each single video.

11. Camera setting menu button

Tap on this button to switch on the camera setting menu for advance settings

12. Temperature Measurement Range Setting Bar Switch

Tap the button to open the Temperature Measurement Range Setting Bar

Then enable the setting function by switching on the switch on the lower right

corner of the screen.
