York EVHC 09 DSAAAR Manuel utilisateur

121

High Wall

EVHC 09 to 12 DSAAAR

SERVICE MANUAL

SM-EVHC-D-09-12GB 05-10

EVHC-09 / EVHC-12

122

CONTENTS

Safety Cautions ................................................................................................................................1

Emergency operation ........................................................................................................................9

Product Specifications .....................................................................................................................10

Part name ........................................................................................................................................12

Dimensions ......................................................................................................................................13

Appending data ...............................................................................................................................

Refrigerant sysem diagram .............................................................................................................

Installation .......................................................................................................................................

Troubleshooting Guide ....................................................................................................................

Disassembly ....................................................................................................................................

Exploded View .................................................................................................................................

Replacement Parts List ....................................................................................................................

Appendix ..........................................................................................................................................

Schematic Diagram .........................................................................................................................15

PCB function manual and operation method ...................................................................................2

Operation of wireless remote control .................................................................................................4

123

!"#$%&'!($)*+,

Safety Cautions

To prevent injury to the user or other people and property damage, the following instructions must

be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

■Meanings of symbols used in this manual are as shown below.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

Be sure not to do.

Be sure to follow the instruction.

ƾƾ

Be sure to pull out the power

plug when not

Earth: The ground be connected!

If not, please ask the qualified personnel to install. Furthermore,

don't connect each wire to the gas pipe, water pipe, drainage

pipe, drainage pipe or any other improper places.

using the air conditioner for a long time.

Otherwise, the accumulated dust may cause fire or electric

shock.

Select the most appropriate tem

perature.

Keep room coo-

er than outside

about 5 degree.

It can preclude the electricity wasted. ƾ

Don't leave windows and doors open for a

long time while operating the air conditioner.

It can decrease the air conditioning capacity.

124

!"#$%& !"#$%&'

Do not install the product on a defective

installation stand.

Be sure the installation area does not

deteriorate with age.

•It may cause injury, accident, or damage to the

product.

•If the base collapses, the air conditioner could fall

with it, causing property damage, product failure,

and personal injury.

Sharp edges could cause injury. Be especially care-

ful of the case edges and the fins on the condenser

and evaporator.

There is risk of fire, electric shock, explosion, or injury.

Be cautious when unpacking and installing

the product.

For installation, always contact the

dealer or an Authorized service center.

For re-installation of the installed product,

always contact a dealer or an authorized

service center.

Do not install, remove, or re-install the

unit by yourself.

There is risk of fire, electric shock, explosion, or

injury.

There is risk of fire, electric shock, explosion, or

injury.

125

!"#$%& !"#$%&'

ƾƾƾƾƾƾƾƾ

Don't place a space heater near the air

conditioner.

Or CO toxicosis may occur for imcomplete

burning.

Keep combustible spray away from

the units more than 1m.

It can cause afire or explosion.

The airflow direction can be adjusted

appropriately.At operating, adjust the

vertical airflow direction by adjusting the

louvers of upward/downward direction.

And then, hold two ends of left and right

louver to adjust the horizontal airflow.

Louver of left/right direction Louver of upward/

downward direction.

Don't insert your hands or stick into the air

intake or outlet vents.

Otherwise it will cause accident.

Don't blow the wind to animals and plants

directly. It can cause a bad influence to

them.

Don't apply the cold wind to the body for

a long time.

It can cause the health problems.

Don't use the air conditioner for other pur-

poses, such as drying clothes, preserving

foods, etc.

Splashing water on the air conditioner

can cause an electric shock and

malfunction.

126

!"#$%&'()'*)+&#","--)#".'%")/'(%#',

Operation of wireless remote control

Note: There is no fan display shown on the front

panel of the indoor unit

127

Operation of wireless remote control

This function only operates when unit is

in DRY or Cooling mode and should be

on when used in high humidity indoor

environment to dry indoor coil to prevent

mould growing on the coil.

To set this function press Below button,

an Icon will be displayed on LCD remote

controller. When this function is on and unit

is turned off at the remote controller the

indoor fan will continue to operate for period

of time then will turn off.If you press the

Below button whilst the unit is turned off and

fan is running

128

Operation of wireless remote control

OFF

This is an universal use remote controller. If

remote controller sends the following three

kinds of status that the swing status of main

unit will be:

When the guide louver start to swing up and

down, if turn off the Swing, the air guide louver

will stop at current position.

which indicates the guide louver swings up

and down between that all five positions.

●

Press this button, to set up swing angle,

which circularly changes as below:

SWING UP AND DOWN BUTTON

TIMER ON TIMER ON BUTTON

Timer On setting: Signal ìONî will blink

and display, signal will conceal, the

numerical section will become the timer

on setting status. During 5 seconds blink,

by pressing

＋

－

button to adjust the

time value of numerical section, every

press of that button, the value will be

increased or decreased 1 minute. Hold

pressing

＋

－

button, 2 seconds later,

it quickly change, the way of change is:

During the initial 2.5 seconds, ten numbers

change in the one place of minute, then

the one place is constant, ten numbers

change in the tens place of minute at 2.5

seconds speed and carry. During 5s blink,

press the Timer button, the timer setting

succeeds. The Timer On has been set up,

repress the timer On button, the Timer

On will be canceled. Before setting the

Timer, please adjust the Clock to the

current actual time.

TIMER OFF BUTTON

Once press this key to enter into

TIMER OFF setup, in which case

the TIMER OFF icon will blink.

The method of setting is the same

as for TIMER ON.

TIMER OFF

●

Remote control

●

To turn the display panel(indoor

unit) on or off press the light

button on the remote controller.

If the light function is on a

which is be displayed on the LCD

panel of the remote controller

When pressing - and + together the

remote controller will be locked.to

release lock function press - and +

together again.

When press MODE and -

button

unit isoff,

simultaneously to switch

between

and

ć7R

129

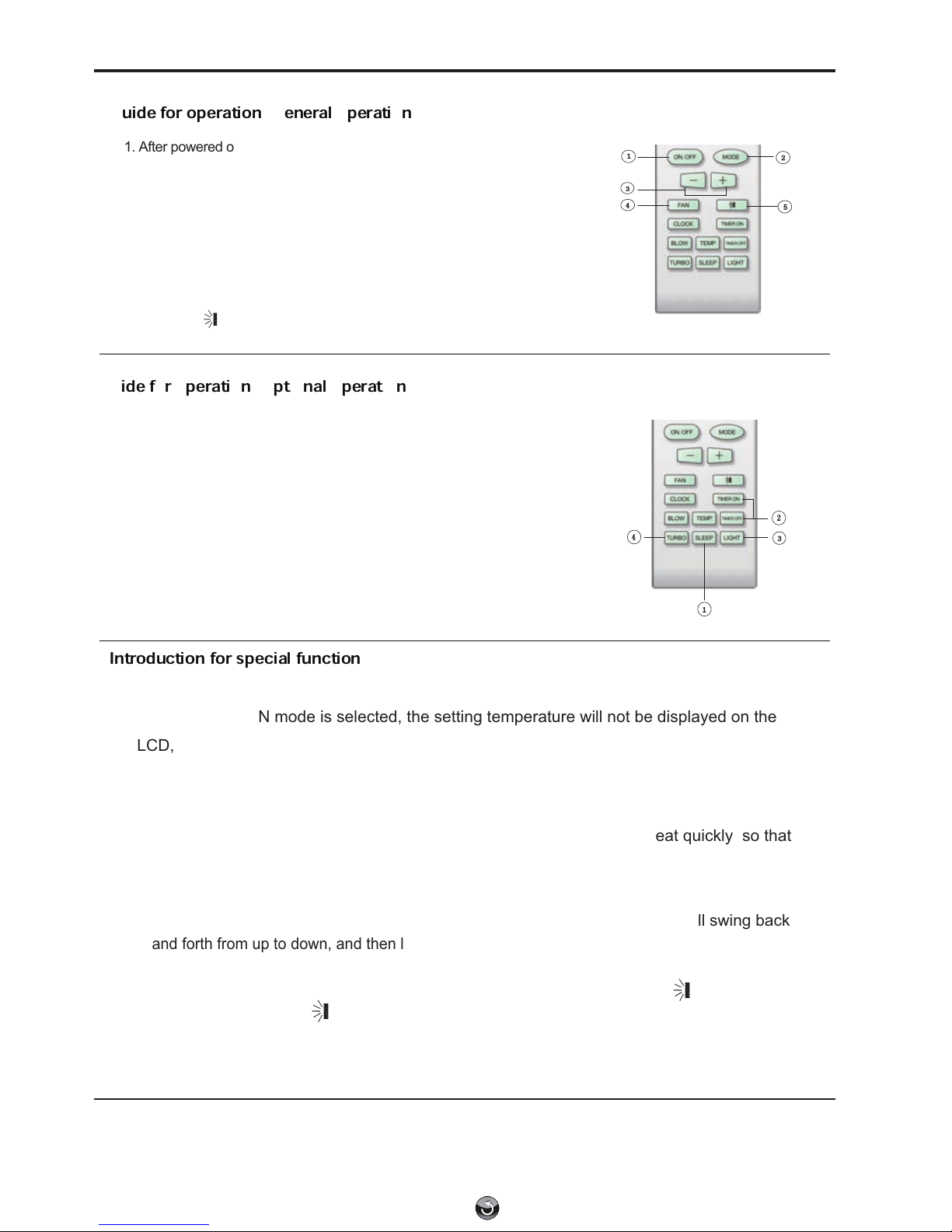

Introduction for special function

1. After powered on, press ON/OFF button, the unit will start to run.(Note: When

it is powered off, the guide louver of main unit will close automatically.)

2. Press MODE button, select desired running mode, or press COOL or HEAT

mode to enter into the corresponding operation directly.

3. Pressing +or - button, to set the desired temperature. (It is unnecessary

to set the temp. at AUTO mode.)

4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID

and HIGH.

5. Pressing button, to select the swing.

1. Press SLEEP button, to set sleep.

2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on

3. Press LIGHT button, to control the on and off of the displaying part of the

unit (This function may be not available for some units).

4. Press TURBO button, can realize the ON and OFF of TURBO function.

or timer off.

Guide for operation- General operation

Guide for operation- Optional operation

When AUTO RUN mode is selected, the setting temperature will not be displayed on the

LCD, the unit will be in accordance with the room temp. automatically to select the suitable

running method and to make ambient comfortable.

About turbo function

If start this function, the unit will run at super-high fan speed to cool or heat quickly so that

the ambient temp. approachs the preset temp. as soon as possible.

ƾƾ

About AUTO RUN

Operation of wireless remote control

1. Press swing up and down button continuously more than 2s,the main unit will swing back

and forth from up to down, and then loosen the button, the unit will stop swinging and present

position of guide louver will be kept immediately.

2. Under swing up and down mode, when the status is switched from off to , if press this

button again 2s later, status will switch to off status directly; if press this button again

within 2s,the change of swing status will also depend on the circulation sequence stated above.

About swing up and down

130

It indicates: after starting this function by remote controller and the unit has been under

defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until

it is finished; if change setting mode by remote controller, the function ,which is set last

time, won't be carried out until defrosting finished.

Operation of this function on or off: If remote controller is under off status, press mode button

rednusitinuehtfI.noitcnufwensihtlecnacroretneotredroniylsuoenatlumisnottubwolbdna

defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,

the position will display H1, which flickers for 5s, in which case, press +/- button, H1 will

disappear and setting temp. be displayed.

After remote controller is powered on, the new defrost function will be defaulted to be closed.

About new function of defrosting

1

Changing batteries and notices

42

3ƾƽƽƽƽƽSlightly to press the place with , along the arrowhead direction to push the back cover of wireless

remote control. (As show in figure)

Take out the old batteries. (As show in figure)

Insert two new AAA1.5V dry batteries, and pay attention to the polarity.

(As show in figure)

Attach the back cover of wireless remote control. (As show in figure)

When changing the batteries, do not use the old or different batteries,

If the wireless remote control will not be used for a long time, please

otherwise, it can cause the malfunction of the wireless remote control.

take them out, and don't let the leakage liquid damage the wireless

remote control.

The operation should be in its receiving range.

It should be placed at where is 1m away from the TV set or stereo sound sets.

If the wireless remote control can not operate normally, please take them out,

after 30s later and reinsert, if they cannot normally run, please change them. Sketch map for

changing batteries

NOTE:

Fi g.1

Fig.2

Operation of wireless remote control

Autres manuels pour EVHC 09 DSAAAR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels York Climatiseur

York

York PREDATOR 102 Guide de démarrage rapide

York

York PCG6B36 Guide de démarrage rapide

York

York SPLIT-SYSTEM YHJD18 THRU 60 Guide de démarrage rapide

York

York SWAE3612 Instructions d'utilisation

York

York PREDATORTM MAGNUM DJ 150 Guide de démarrage rapide

York

York ZE Series Manuel utilisateur

York

York DW-15 Manuel utilisateur

York

York H5CE150A50 Manuel utilisateur

York

York SUNLINE 2000 H4CE120 Manuel utilisateur

York

York PREDATOR DM 120 Guide de démarrage rapide

York

York Alaska Y9USC05-5A-F Manuel utilisateur

York

York MILLENNIUM Y22 Manuel utilisateur

York

York IDH072B21S Series Manuel

York

York E2FB090 Guide de configuration rapide

York

York CHAMPION D2EB Manuel utilisateur

York

York H4TS024 Guide de démarrage rapide

York

York YCHBC Mode d’emploi

York

York PCC 112 Manuel utilisateur

York

York DRCS0181BE Guide de démarrage rapide

York

York HTCA Manuel utilisateur

York

York PCE6 SERIES Manuel utilisateur

York

York HIC4008B21S Manuel

York

York ZH Series Manuel utilisateur

York

York YCHD Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
