Yetter 5000-022B Manuel utilisateur

5000 SERIES

STALK

DEVASTATOR

CORN STALK ROLLER

*PATENTED*

5000-022B Lexion C512-30 / Capello

5000-033A Lexion C508-30 / Capello

OPERATOR’S MANUAL

PART IDENTIFICATION

2565-783_REV_C – 09/2019

YETTER MANUFACTURING CO.

FOUNDED 1930

Colchester, IL 62326-0358

Toll free: 800/447-5777

309/776-3222 (Fax)

Website: www.yetterco.com

E-mail: info@yetterco.com

FOREWORD

You’ve just joined an exclusive but rapidly

growing club.

For our part, we want to welcome you to the

group and thank you for buying a Yetter product.

We hope your new Yetter products will help you

achieve both goals-increase your productivity and

increase your efficiency so that you may generate

more profit.

This operator’s manual has been designed into

four major sections: Foreword, Safety

Precautions, Installation Instructions and Parts

Breakdown.

This SAFETY ALERT SYMBOL

indicates important safety messages in

the manual. When you see this

symbol, be alert to the possibility of

PERSONAL INJURY and carefully

read the message that follows.

The word NOTE is used to convey information

that is out of context with the manual text. It

contains special information such as

specifications, techniques and reference

information of a supplementary nature.

The word IMPORTANT is used in the text when

immediate damage will occur to the machine due

to improper technique or operation. Important will

apply to the same information as specified by

note only of an immediate and urgent nature.

It is the responsibility of the user to read the

operator’s manual and comply with the safe and

correct operating procedure and to lubricate and

maintain the product according to the

maintenance schedule in the operator’s manual.

The user is responsible for inspecting his

machine and for having parts repaired or

replaced when continued use of the product

would cause damage or excessive wear to the

other parts.

It is the user’s responsibility to deliver his

machine to the Yetter dealer who sold him the

product for service or replacement of defective

parts, which are covered by the warranty policy.

If you are unable to understand or follow the

instructions provided in this publication, consult

your local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111

800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: info@yetterco.com

WARRANTY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This

warranty being expressly limited to replacement at the factory of such parts or products as shall appear to

be defective after inspection. This warranty does not obligate the Company to bear cost of labor in

replacement of parts. It is the policy of the Company to make improvements without incurring obligations to

add them to any unit already sold. No warranty is made or authorized to be made, other than herein set

forth. This warranty is in effect for one year after purchase.

DEALER: ________________________________________

Yetter Manufacturing warrants its own products only and cannot be responsible for damages to

equipment on which mounted.

BE ALERT!

YOUR SAFETY IS INVOLVED.

WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY

PRECAUTIONS. IT MEANS “ATTENTION---BECOME ALERT!”

It is your responsibility as an owner, operator, or supervisor to know and instruct everyone using this

machine at the time of initial assignment and at least annually thereafter, of the proper operation,

precautions, and work hazards which exist in the operation of the machine in accordance with OSHA

regulations.

Safety Is No Accident

The following safety instructions, combined with common sense, will save your equipment from

needless damage and the operator from unnecessary exposure to personal hazard. Pay special

attention to the caution notes in the text. Review this manual at least once each year with new

and/or experienced operators.

1. Read and understand the operator’s manual before operating this machine. Failure to do

so is considered a misuse of the equipment.

2. Make sure equipment is secure before operating.

3. Always keep children away from equipment when operating.

4. Make sure everyone that is not directly involved with the operation is out of the work area

before beginning the operation.

5. Make sure all safety devices, shields, and guards are in place and are functional before

beginning the operation.

6. Shut off power to adjust, service, or clean.

7. Keep hands, feet, and clothing away from moving parts. It is a good idea to remove all

jewelry before starting the operation.

Visually inspect the machine periodically during operation for signs of excessive vibration,

loose fasteners, and unusual noises.

PLEASE READ, VERY IMPORTANT

SECURE CORN HEADER AGAINST

UNWANTED LOWERING BY APPLYING

THE LOCKING MECHANISM ON THE

HYDRAULIC CYLINDERS!

1. ATTACH HEAD TO COMBINE, LOCK HEAD TO COMBINE

2. RAISE THE HEAD OFF THE GROUND AND ENGAGE THE SAFETY

STOP ON THE FEEDER HOUSE CYLINDER.

3. TURN OFF COMBINE ENGINE AND REMOVE KEY.

FOLLOW THE INSTRUCTIONS OF THE COMBINE

MANUFACTURER.

PLEASE READ, VERY IMPORTANT

Subject to the size and weight of the corn header, one or two additional

hydraulic cylinders may be required.

The combine manufacturer generally keeps the corresponding kits readily

available for the dealer.

Subject to the design of the corn header and carrying capacity of the

different combines, the steering axle may require the fitting of additional

weights and the rear tires might need to be filled with ballast.

FOLLOW THE INSTRUCTIONS OF THE COMBINE

MANUFACTURER.

TABLE OF CONTENTS

INTRODUCTION ….…………………………………….............2

WARRANTY ……………………….………………………….....2

SAFETY INFORMATION ...….....…………………...…......3 – 5

TABLE OF CONTENTS / TORQUE / TOOLS NEEDED........6

PART PICTORIAL LIST / BILL OF MATERIALS...........

7 – 9

ASSEMBLY INSTRUCTIONS

5000-022A ..………………….........……..................10 – 14

5000-033A .....…………..........................................15 – 19

OPERATION / STORAGE / LOCK UP.……......…………….20

PARTS IDENTIFICATON

5000-022A ..……………………………....……..…..........21 – 22

5000-033A .....…………………………....………...…......23 – 24

TROUBLESHOOTING..........................................................25

BOLT TORQUE

Important: Over-tightening hardware can cause just as much damage as under-tightening.

Tightening hardware beyond the recommended range can reduce its shock load capacity.

All hardware on the 5000 Devastator is either Grade 5 or Grade 8, unless otherwise noted. Grade 5 cap screws are marked

with three radial lines on the head. Grade 8 cap screws are marked with six radial lines on the head. If hardware must be

replaced, be sure to replace it with hardware of equal size, strength & thread type. Refer to the torque values chart when

tightening hardware.

The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in the manual.

Torque is the force applied to the end of the handle or cheater bar, times the length of the handle or bar.

Use a torque wrench wherever possible

The following table shows torque in ft.-lbs. for coarse thread hardware.

INSTALLATION TOOLS REQUIRED:

- Pneumatic or electric impact driver

- ¾ & 15/16 size sockets

- 10” impact driver extension

- Ratchet

- ¾, 15/16, & 1 1/8 size wrenches

- 5/16 Allen Wrench

- Torque Wrench

PICTORIAL PART LIST

BEFORE INSTALLATION BEGINS, PLEASE CHECK THAT ALL PARTS WERE

RECEIVED BY GOING THROUGH THE CRATE AND SORTING THE PARTS!!!

5000-022B for Lexion C512-30 / Capello Parts List 8) 5000-136, 8) 5000-137, 8) 5000-138, 1) 5000-177,

4) 5000-211B, 8) 5000-250, 4) 5000-254, 4) 5000-256, 4) 5000-259, 8) 5000-355

5000-033A for Lexion C508-30 / Capello Parts List – 6) 5000-136, 6) 5000-137, 6) 5000-138, 1) 5000-177,

1) 5000-203B, 2) 5000-211B, 6) 5000-250, 2) 5000-254, 1) 5000-255, 3) 5000-256, 3) 5000-259, 6) 5000-355

5000-080 5” Extension Kit Parts List (Optional) – 2) 2502-363 – ½” X 4 ½” GR 5 Bolts, 2) 2502-365 – ½”-

13 X 3 ¾” GR 5 Bolts, 6) 2520-357 – ½” Lock Nuts, 2) 5000-378 Spacer Bushings, 2) 5000-393 5” Extension

Plates, & 2) 5000-394 Short Spacers, 1) 2565-961 Manual

5000

203A

48”

5000

76”

5000

254

–

80”

5000

255

52”

5000

256 (LH)

5000

259 (RH)

5000

355

5000

136

2550

059

5000

500

138

5000

080

OPTIONAL

PICTORIAL PART LIST

5000-136 Hardware Bag



2502

325

5/8

11 X 3 HHCS GR 5 ZP

–

QTY 1

2502

353

–

13 x 2 , HHCS, GR8, ZP

–

QTY 3





2510

121

5/8 DIA. SHLDR, 2

1/4 L SHLDR,

QTY 1

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 3





2520

364

1/2

13 HEX LOCKNUT, JAM, GR 2

–

QTY 1

2520

459

5/8

11 LOCK HEX NUT, GR 5, ZP

–

QTY 1





2520

515

3/4

10 LOCK HEX NUT, GR A, ZP

–

QTY 1

2526

449

5/8FLATWASHER1/4+

.010 THK, ZP

–

QTY 2





2550

709

1/2 WIRE 2

1/2 OD X 1

1/2 ID X 7

1/4 COMP SP

RING

–

QTY 1

2570

126

3/4 X 10 EYEBOLT, ZP

–

QTY 1





2975

302

2975 SPRING BUSHING, PAINTED

–

QTY 1

5000

318

PIVOT BUSHING

–

QTY 1





5000

322

SHIM WASHER ZP

–

QTY 1

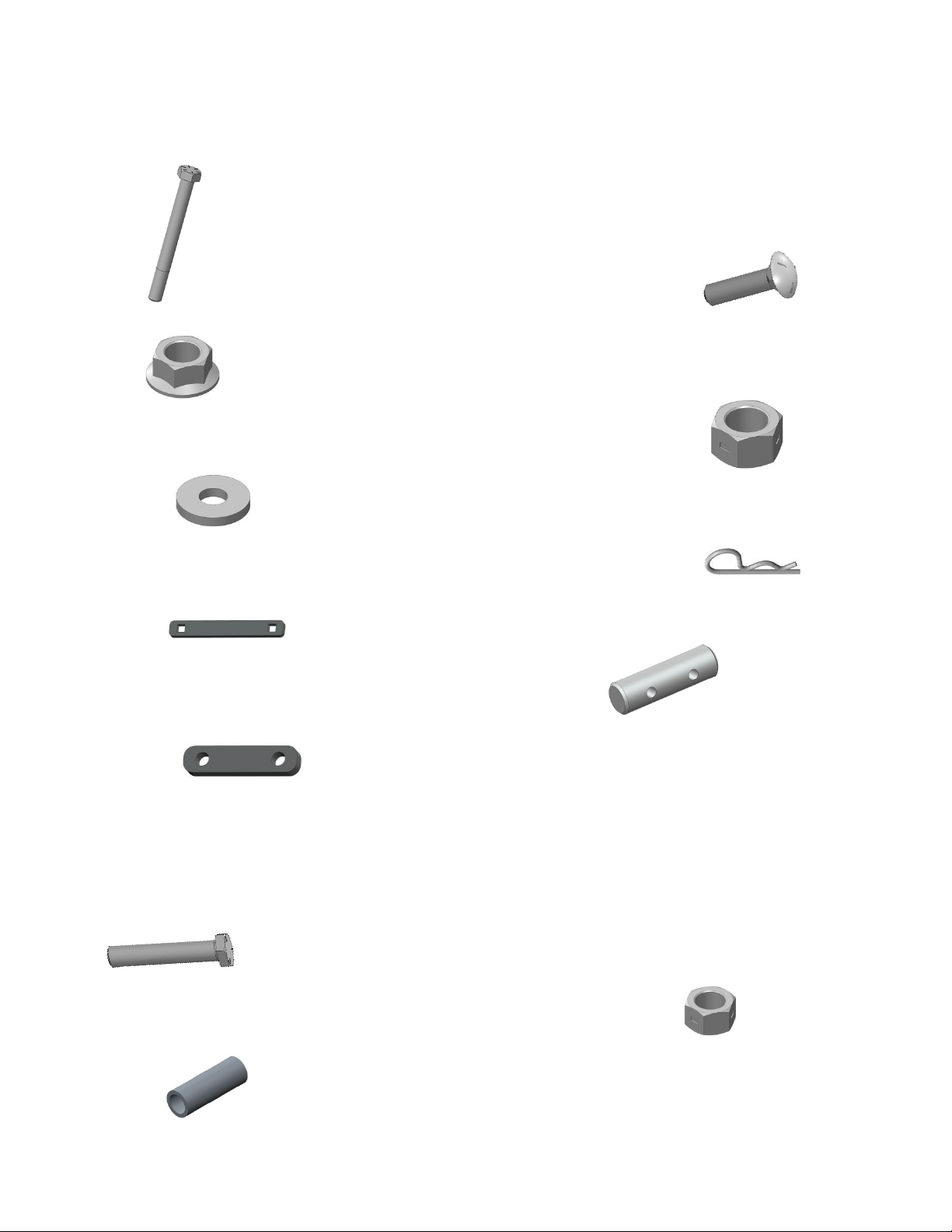

PICTORIAL PART LIST

5000-137 Hardware Bag

5000-138 Hardware Bag



2502

396

5/8

11 X 7

HHCS GRADE 8 ZP

–

QTY 4

2505

345

1/2

13 X 2 CAR BLT GR5 ZP

–

QTY 2





2520

361

1/2

13FLAN

GE WHZLCK HXNT, GR 5, ZP

QTY 2

2570

465

7 GA. HAIRPIN COTTER ZP

–

QTY 2



2520

459

5/8

11 LOCK HEX NUT, GR A, ZP

–

QTY 4





5000

309

SUPPORT STRAP

–

QTY 2



5000

MOUNT STRAP 3“

–

QTY 2

5000

323

LOCK UP PIN ZP

–

QTY 1





2502

365

1/2

13 X 3

3/4 HHCS GR5 YD

–

QTY 2

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 2





5000

378

SPACER BUSHING

–

QTY 2



252

5/8

STD FLAT WASHER ZP

–

QTY 4

5000-022B ASSEMBLY INSTRUCTIONS

(LEXION C512-30 / CAPELLO)

Note: Before starting installation, clean the corn head of debris, remove the guards, & lift the snouts.

Step 1: Attach the 5000-250 mount brackets to the frame using the 4) 5/8 x 7” bolts, mounting straps, & 5/8 lock hex nuts.

Mounting Brackets will be located under the snouts between rows 1 & 2, 2 & 3, 4 & 5, 5 & 6, 7 & 8, 8 & 9, 10 & 11, and

11 & 12. Slide the mount bracket up so the deck plate adjustment rod is located in the cut out of the mount bracket.

Note: Do not fully tighten hardware until Step 6 after all of the pivot arms & springs are installed.

Arrows indicate 5000-250 mount bracket locations

NOTE: NOTCHES NEED CUT IN THE GUARDS TO ALLOW THE MOUNTING BOLTS TO BE USED. CUT

THESE NOTCHES AFTER THE COMPLETION OF THE DEVASTATOR INSTALLATION. IN SOME

SITUATIONS, A HOLE MAY NEED DRILLED IN THE MOUNTING TAB FOR THE GUARDS. POSITION THE

DECK PLATE ADJUSTER VERTICALLY TO HAVE CLEARANCE IN THE DEVASTATOR MOUNT OPENING.

Ce manuel convient aux modèles suivants

Autres manuels Yetter Matériel agricole

Yetter

Yetter Systems One Seed Jet II Manuel utilisateur

Yetter

Yetter 2967-115A Manuel utilisateur

Yetter

Yetter 6000-002 Manuel utilisateur

Yetter

Yetter 2995 Manuel utilisateur

Yetter

Yetter CAB CONTROL STRIP FRESHENER 2984-050-R Manuel utilisateur

Yetter

Yetter 2968-026 Manuel utilisateur

Yetter

Yetter 2999 Mode d’emploi

Yetter

Yetter Nutrient Pro 4000 Series Manuel utilisateur

Yetter

Yetter MAX SEALER PLUS 2920 Series Manuel utilisateur

Yetter

Yetter 8500 SERIES Manuel utilisateur

Yetter

Yetter 2968-050 Manuel utilisateur

Yetter

Yetter 2967-081 Manuel utilisateur

Yetter

Yetter 5000 SERIES Manuel utilisateur

Yetter

Yetter TITAN 2967-008A Manuel utilisateur

Yetter

Yetter 5000-025C Manuel utilisateur

Yetter

Yetter Strip Freshener CC Manuel utilisateur

Yetter

Yetter NARROW ROW Manuel utilisateur

Yetter

Yetter 5000 SERIES Manuel utilisateur

Yetter

Yetter STALK DEVASTATOR 5000 Series Manuel utilisateur

Yetter

Yetter MAXIMIZER Manuel utilisateur

Yetter

Yetter 5000-023B Manuel utilisateur

Yetter

Yetter 2967-003A Manuel utilisateur

Yetter

Yetter 5000-022 Lexion C512-30/Capello Manuel utilisateur

Yetter

Yetter 2967-180B Manuel utilisateur

Manuels Matériel agricole populaires d'autres marques

GSi

GSi PNEG-2314 Manuel utilisateur

Checchi & Magli

Checchi & Magli TEXDRIVE Manuel utilisateur

Amazone

Amazone Cenius 4003-2TX Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuel utilisateur

Cima

Cima BLITZ Instructions d'utilisation et d'entretien

Amazone

Amazone CombiDisc 3000 Instructions d'installation

HE-VA

HE-VA Disc-Roller XL Contour Manuel utilisateur

AGT

AGT AGT-SSFM Manuel utilisateur

Milestone

Milestone 72-84 Manuel utilisateur

KUHN

KUHN Hector 3000 Manuel utilisateur

Krone

Krone X-Disc 6200 Manuel utilisateur

Eliet

Eliet DZC450 Manuel utilisateur

Taarup

Taarup BIO+ B4000 Manuel utilisateur

Garland

Garland SHAKER 310 DPG Manuel utilisateur

stable comfort

stable comfort StableWall System Manuel utilisateur

Raven

Raven AccuBoom Manuel utilisateur

International

International 710 Manuel utilisateur

Ashland

Ashland HDW-3217-14 Manuel utilisateur
