Yealink VC400 Manuel utilisateur

Yealink VC400 Video Conferencing System Quick Start Guide

Applies to firmware version 30.22.0.15 or later

V22.15

Yealink Network Technology CO., LTD

Table of Contents

Packaging Contents 01

Connections 02

Remote Control and Cable Ties Installation 03

Bracket and Camera Installation 04

Main Screen 06

Network Deployment 07

Troubleshooting 11

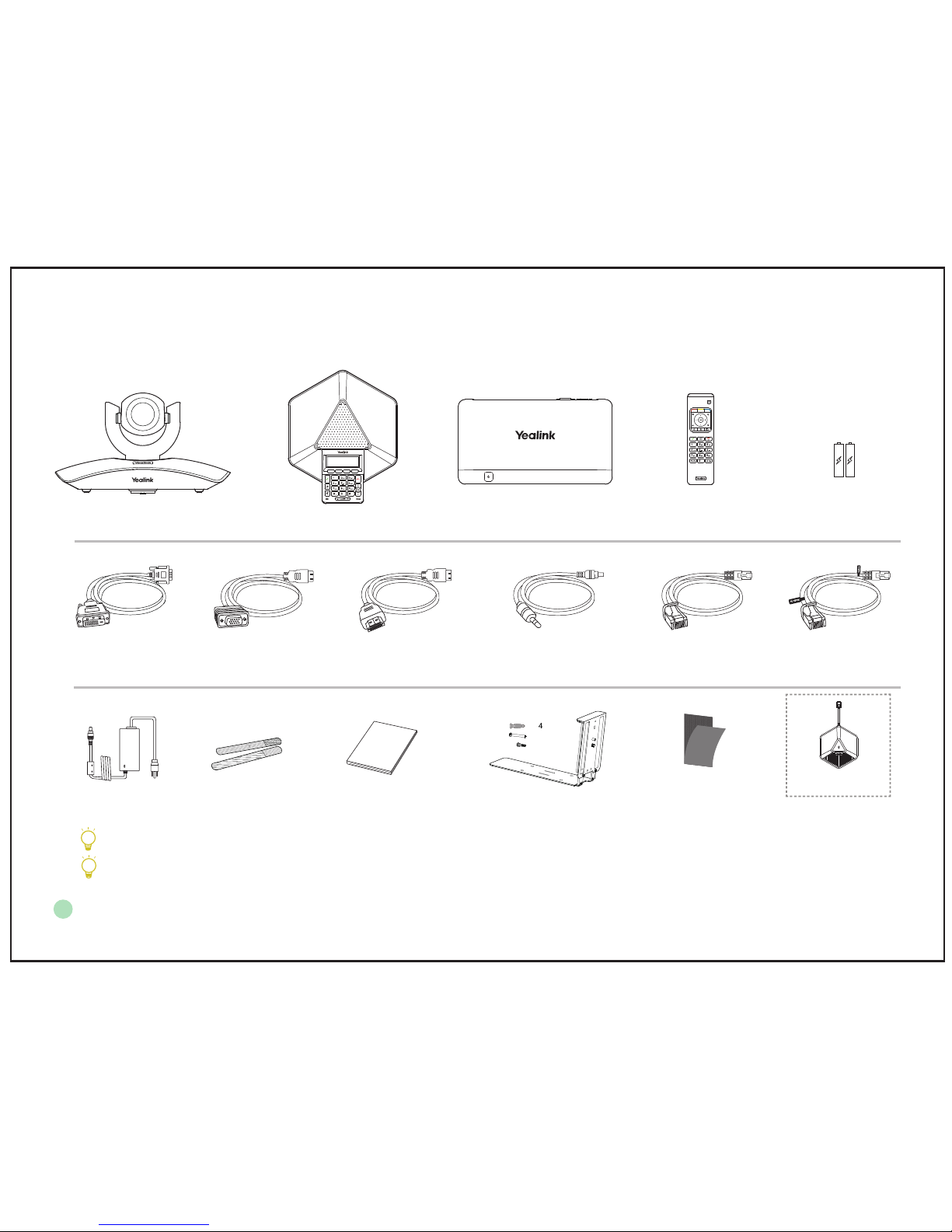

Quick Start GuidePower Adapter Optional Accessory

CPE80 Expansion

Microphone

Cable Ties 7

AAA Batteries 2

(2m) (7.5m)

3.5mm Audio Cable

Camera Mounting Accessories

VCC18 Camera VCP40 Video Conferencing Phone VC400 Codec VCR10 Remote Control

DVI Cable Ethernet Cable Ethernet Cable

HDMI Cable 2

Velcro 2

We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party

accessories may result in reduced performance.

Packaging Contents

HDMI-VGA Direct Cable

Please use the Yealink-customized DVI cable.

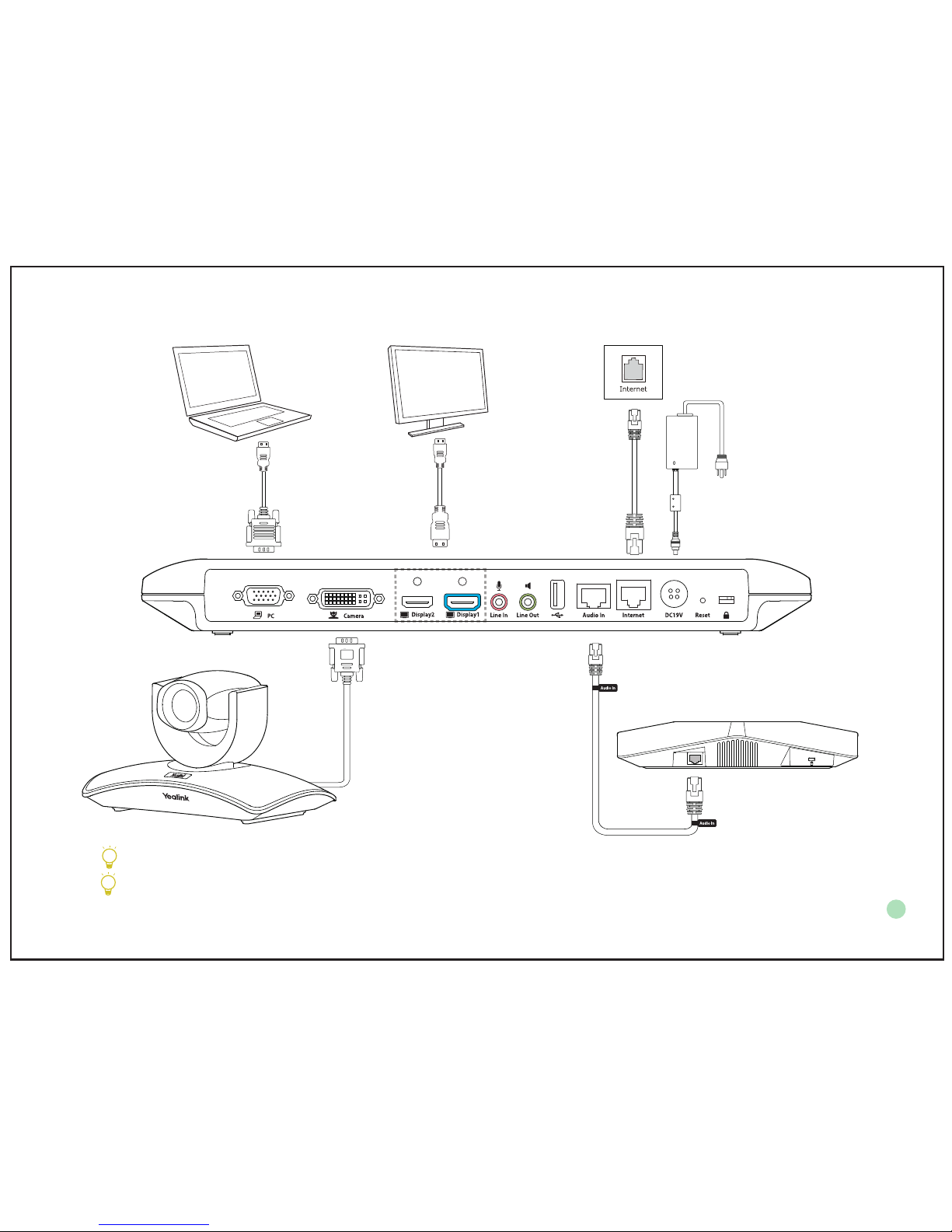

Connections

Please connect to the Display1 port if you only have one display device

VCC18 Camera

VCP40 Video Conferencing

Phone

HDMI Cable 2m Ethernet Cable Power Adapter

PC Display 2

DVI Cable 7.5m Ethernet Cable

The system should be used with Yealink original power adapter (19V/3.42A) only. The use of the third-party power

adapter may cause the damage to the system

HDMI-VGA Direct Cable

Remote Control and Cable Ties Installation

Fasten the cables with the cable tie

Install batteries

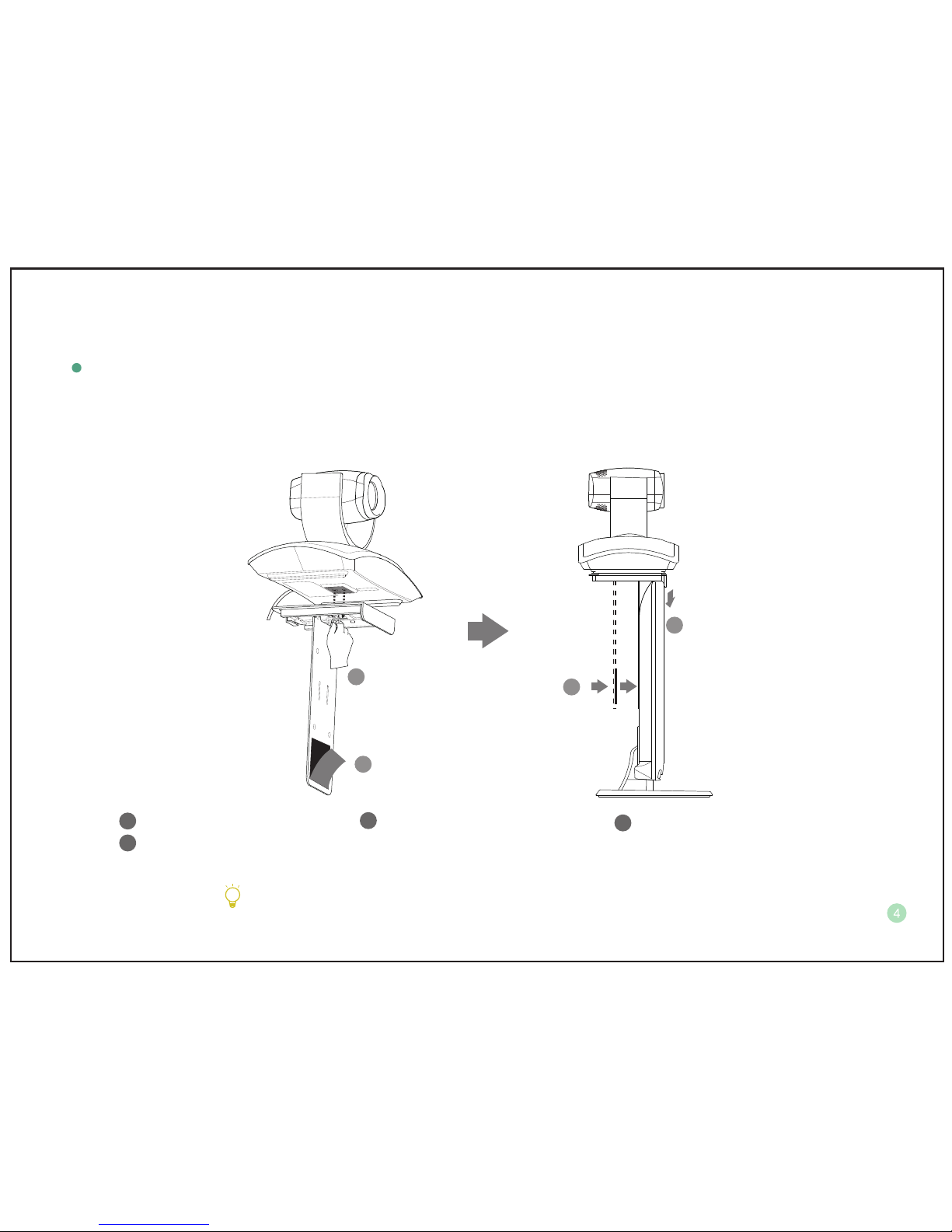

Bracket and Camera Installation

Please chose the following installation mode when the thickness of the TV is between 35-120mm

Hanging Mode

Adjust the bracket to ensure close adhesion to the back of the TV

Lock the camera to the L-bracket.

Steps:

Make sure the back of the TV is clean, and then adjust the bracket to ensure close adhesion to the back of the TV

2Remove the protection of the Velcro. Put the L-bracket on the top of the TV.

with Velcro.

The recommended height for camera positioning is 1.5m-1.8m above the ground

Wall Mount Method

Hole diameter: 6mm

Hole depth: 30mm

50mm

100mm 4

5 6

2Screw specification: M3 8

Screw specification: T4 30

Steps：Punch holes & Insert expansion bolts Drive screws Adjust the screws position and manually lock them

Insert screws to lock the bracket to the wall Connect DVI cable Lock the camera

Main Screen

Time and date Site name Status icon System IP address and

account information

Network Deployment

Cloud Deployment

VC400 supports two network deployment methods: Cloud deployment and traditional deployment. Choose the desired

deployment method according to your needs.

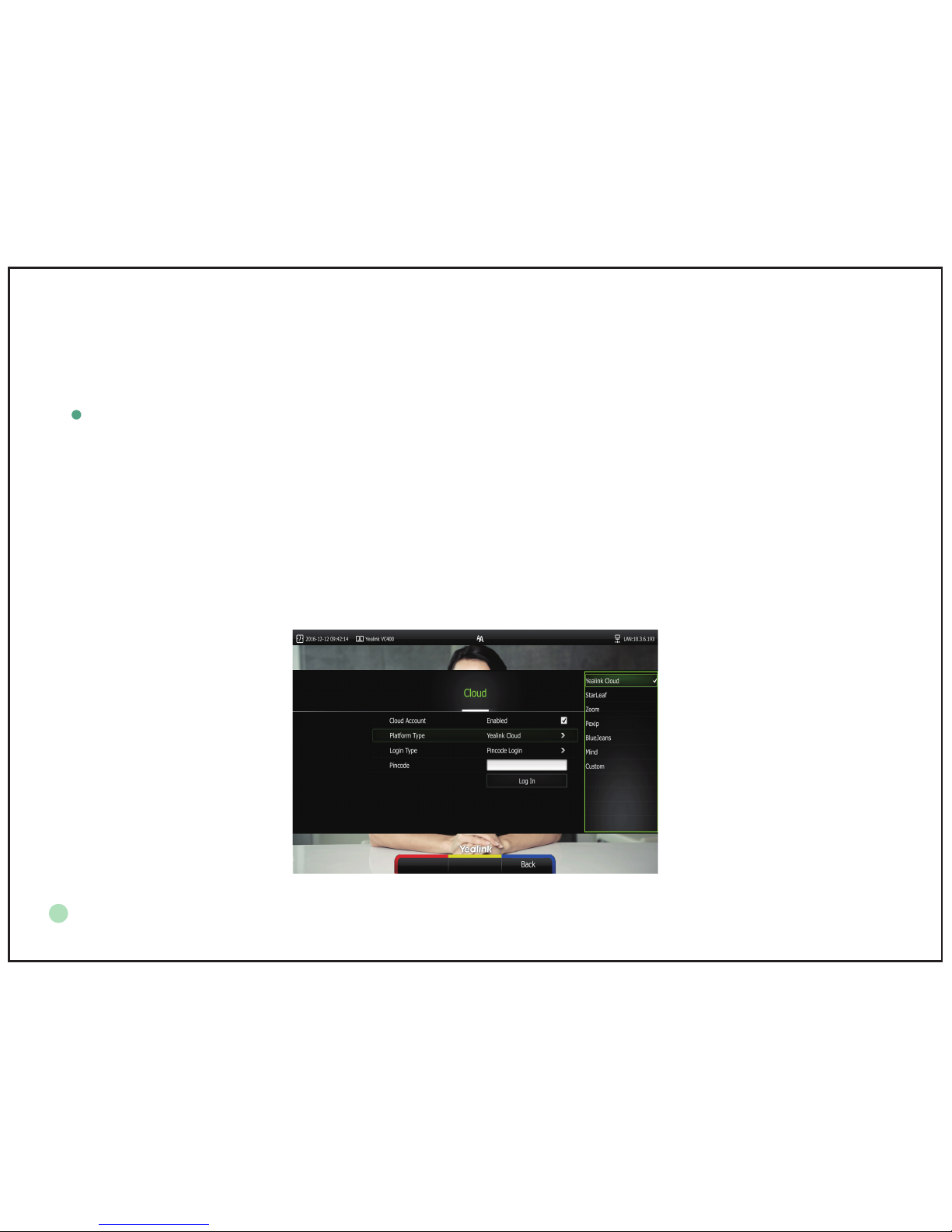

Select Menu->Advanced (Default Admin Password:0000)->Cloud.

In the Cloud Account filed, check the Enabled checkbox.

With Cloud service, organizations can communicate using the Cloud platform, so that complex network settings are

unnecessary. Both the head office and the branch offices can use this deployment method. You can log into Yealink

Cloud/StarLeaf/Zoom/Pexip/BlueJeans/Mind/Custom platform using VC400 video conferencing system. Get account

information from your administrator. Do the following to log into your VC400 via remote control:

Select the desired platform from the pull-down list of Platform Type.

Configure the desired platform.
