Yealink MVC860 Manuel utilisateur
MVC860 for Microso Teams Rooms System
1
Minimum Requirements
• A display connected to MCore Pro (not included).
• A Microsoft Teams Rooms or Skype® for Business account (not included).
• Wired network environment (not included).
2

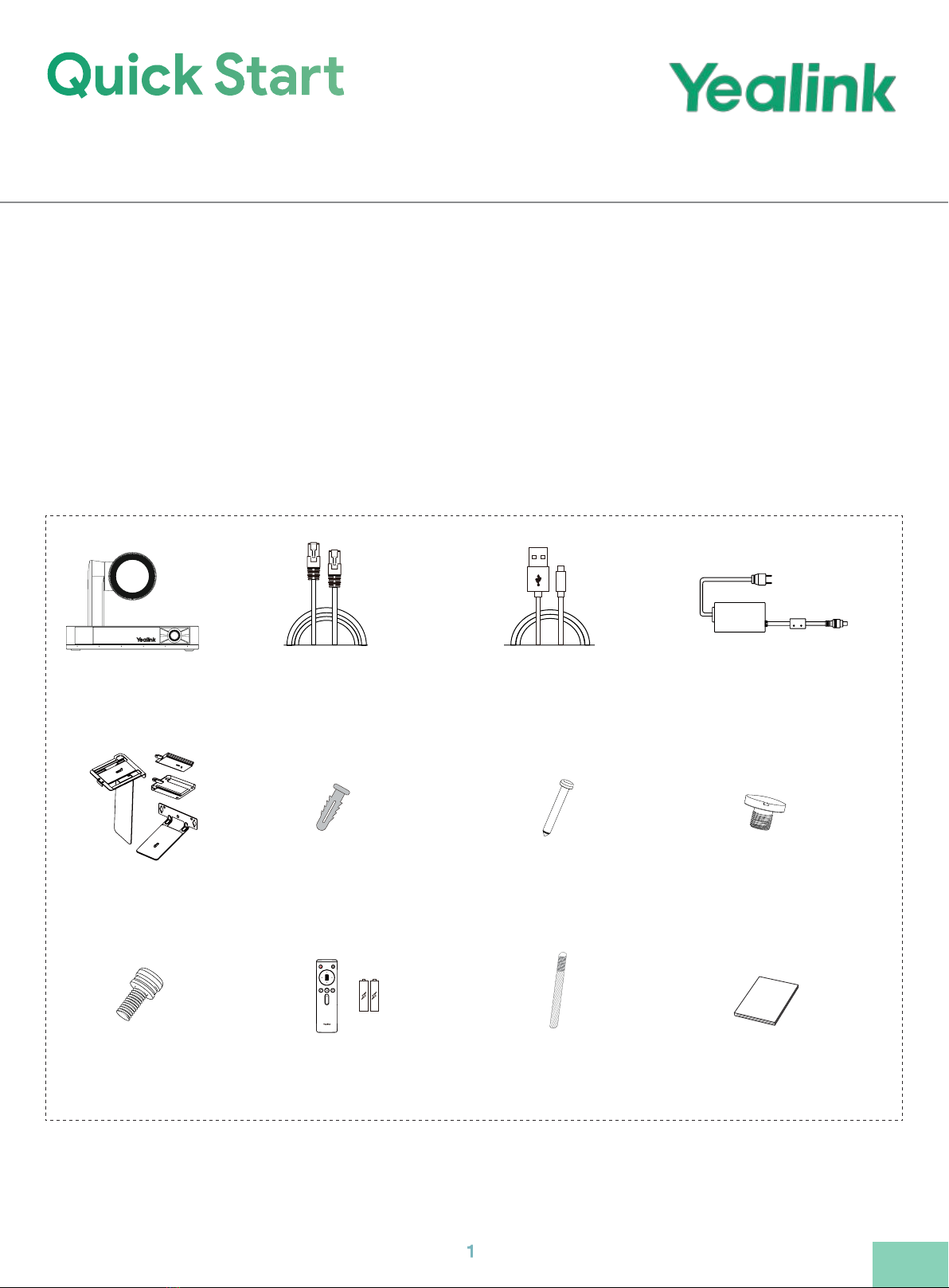

Package Contents
UVC86
Mounting Bracket φ6 * 30 mm, white, Polyamide 4*30 FAHOZN3+ (+)
M3*5.8KM0ZN3+ VCR20 Remote Control Quick Start Guide
1/4'' -20 UNC
CAT5e UTP (RJ45 - RJ45) Cable USB 2.0 (A - B) Cable Power Adapter (48V/0.7A)
(7.5m, 24.60ft) (2.5m, 8.20ft) (3.5m, 11.48ft)
× 4× 5× 2× 4UVC86 Package
(20 * 200 mm)
× 5Cable Ties
EN
MCore Pro HDMI Cable
Quick Start Guide
Power Adapter (19V/4.74A) Screwdriver
(1.8 m, 5.91 ft) (2.1 m, 6.89 ft) (WH-85*3.0mm)
MCore Pro Package
φ6 * 30 mm, white, Polyamide 4*30 FAHOZN3+ (+) 3*6PMOZN3+
× 2× 4× 4× 3MTouch Plus
M8*60mm,SUS304 Washer Wing Nuts
CAT5e UTP（RJ45 - RJ45）Cable USB 3.1 (C - C, HDMI) Cable
(7.5m, 24.6ft) (1.2m, 3.94ft)
(M8,φ30*T2mm,
SUS304) (M8,SUS304) (M8,SUS304)
2.5*9.0FMHZN(+)
Screwdriver
(WH-85*3.0mm)
φ6 * 30 mm, white, Polyamide 4*30 FAHOZN3+ (+)
× 4× 4× 4× 2× 2× 2Mounting Bracket
Double-Coating Tape
(207.44 mm * 126.99 mm)
(L200*W62.5*T1.2mm)
Velcro
(150*117*15mm)
(W25.4*L50mm,3M)
Mounting Bracket × 2
MTouch Plus Package
Quick Start Guide
Quick Start Guide
Lock cable buckle 2.5*8.0PAHOZN3+(+)
× 4VCM35
(CAT5e UTP RJ45 Cable)
Double-sided
adhesive
(φ50*T2mm)
(5m, 16.4ft)
VCM35 Package*2
RJ45 8P8C - RJ45 8P8C
MSpeaker II 3.5mm Audio Cable Power Adapter (48V/0.7A) Silicone Pad
Quick Start Guide
(3m, 9.84ft) (3.5 m, 11.48 ft) (φ38*T1.2mm)
MSpeaker II Package
φ6 * 30 mm, white,
Polyamide
4*30 FAHOZN3+ (+) M6*14.1FMHOZN3+
× 2× 2× 2Mounting Bracket
(116.16 mm * 166.41 mm) × 2(20 * 200 mm)
× 5Cable Ties
WPP30 Package
USB 3.1 Type-C (with USB2.0
AM to TYPE-CF adapter)
RCH40
RoomSensor
CAT5e UTP（RJ45 -
RJ45）Cable
(7.5m, 24.6ft)
(φ80mm*T1.55mm)
Power Adapter
(48V/2A)
(3.8m, 12.47ft)
Velcro
(W25.4*L50mm,3M)
× 2Quick Start Guide
RCH40 Package
RoomSensor Package
φ6 * 30 mm, white, Polyamide 4*30 FAHOZN3+ (+) PIR Blocking Sticker
× 2× 2× 5Quick Start Guide3M Adhesive Tape CR123A,3V
Quick Start Guide
MTouch
3x HDMI out
3
4
InstallationConnection
• MCore Pro supports: mount on the wall, mount on the TV, stick to the table.
• MTouch Plus supports: put on a table, paste on a table, xed on a table, mount on the wall.
• UVC86 supports: put on a flat surface, mount on top of a display, mount on the wall, mount on the ceiling,
mount on the TV mount.
• MSpeaker II supports: mount on a wall, stick to the table.
• RCH40 supports: put on the table, stick under the table, stick on the side of the table.
• RoomSensor supports: mount on the ceiling, mount on the wall.
• Install and deploy the accessories in the system according to the environment and actual needs. For how to
install and deploy, please refer to the quick start guide of each product.
Display
(not included)
Display
(not included)
MSpeaker II
VCM35
VCM35
UVC86
MCore Pro
RCH40
(2.1 m, 6.89 ft)
Power
(19V/4.74A)
(1.8 m, 5.91 ft) HDMI
(1.8 m, 5.91 ft) HDMI
(3.5m, 11.48ft)
Power
(48V/0.7A) (2.5m, 8.20ft)
USB 2.0 (A - B) Cable
(5m, 16.4ft) CAT5e Cable
(5m, 16.4ft) CAT5e Cable
(1.2 m, 3.94 ft) USB 3.1 (C - C, HDMI)
• Do not connect RCH40 to the Internet, otherwise it will cause network abnormalities.
• When starting up the system for the rst time, you need to connect a mouse to complete the initial conguration. We
recommend using the wireless mouse and keyboard kit.
• Not included accessories requirements:
»Display: Resolution of 1080p or higher and with an HDMI port.
»PC: Equipped with HDMI or USB-C (support DP protocol) Port.
»Ethernet cable: CAT5e or higher ethernet cable.
»HDMI: Standard HDMI cable.
PC
(not included) MTouch Plus
CAT5e Cable
(not included)
CAT5e Cable
(not included)
(7.5 m, 24.60 ft)
CAT5e
(7.5 m, 24.60 ft) CAT5e
1. Press the power button on the bottom left of MCore Pro, and the Microsoft Windows 10 IoT Enterprise
Edition operating system will be automatically loaded after starting MCore Pro.
Note: When starting up the system for the rst time, you need to connect a mouse to complete the initial
conguration. We recommend using the wireless mouse and keyboard kit.
After the system is initialized, you can use MTouch Plus to complete the system login and settings, and
the device will automatically start the Microsoft Teams conference system application and enter the
setting page.
2. Select the check box on the EULA page, and then tap Next.
3. Enter the account, the password on the Account page, and then tap Next. Supports Microsoft Teams
Rooms or Skype® for Business accounts.
4. On the Advanced page, congure the domain and tap Next.
5. Tap Finish to complete the setup wizard.

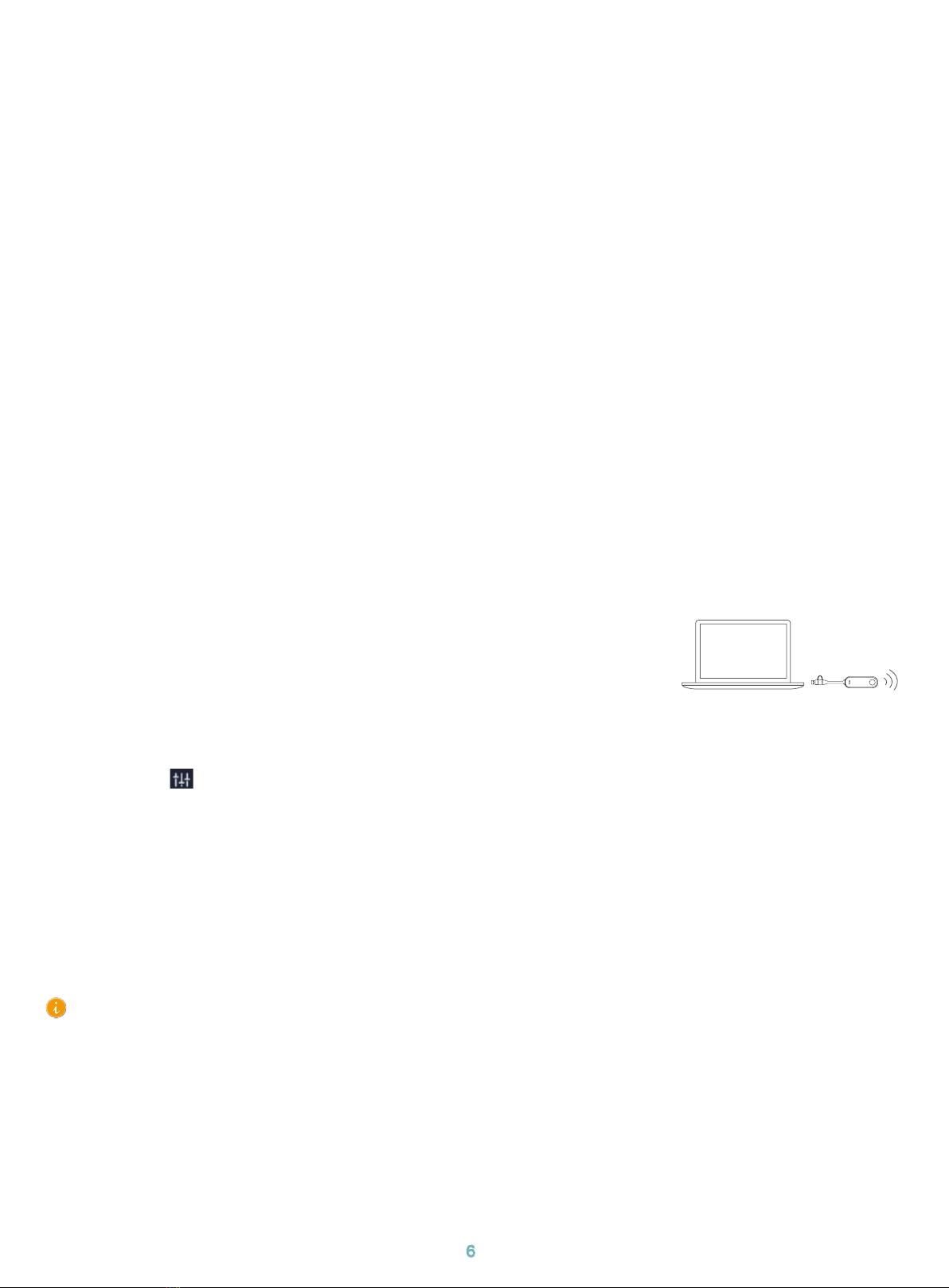

1. Connect the WPP30 to the USB port of the MTouch Plus.
When pairing, the LED indicator of WPP30 is orange. And the
pairing is successful, the LED indicator turns green breathing light.
2. Connect the paired WPP30 to the USB-A/USB-C port on your PC.
3. On the WPP30, press the presentation button to share full screen.
1. Switch account from Skype to Admin.
2. Open Yealink RoomConnect Software from Desktop.
3. Go to MTouch Plus > Sensor.
4. Add sensor. Select the right sensor to pair.
Remove the back cover of RoomSensor, you will see its name on the top. Then select accordingly.
1. Tap More > to enter the Camera Control page.
5
Initial Setup
6
Features
Wireless Sharing
Control UVC86 Camera Position
Pair with a RoomSensor 1$WPP30
• A MTouch Plus can be paired with one RoomSensor at most.
• The distance between MTouch Plus and RoomSensor needs to be within 20m.
1
系统最低要求
• 一台连接至MCore Pro的显示器。（需自备）• 一个Microsoft Teams Rooms 或 Skype® for Business 的账号。（需自备）• 有线网络环境。（需自备）2
包装清单
UVC86包装UVC86挂墙架φ6 * 30 mm, 白色, 聚酰胺4*30 FAHOZN3+ (+)M3*5.8KM0ZN3+VCR20 遥控器快速入门指南1/4'' -20 UNCCAT5e UTP (RJ45 - RJ45)线USB 2.0 (A - B) 线电源适配器(48V/0.7A)(7.5m, 24.60ft)(2.5m, 8.20ft)(3.5m, 11.48ft)× 4× 5× 2× 4(20 * 200 mm)× 5束线带CN
MCore ProHDMI 线魔术贴快速入门指南电源适配器(19V/4.74A)螺丝刀(1.8 m, 5.91 ft)(150*117*15mm)(W25.4*L50mm,3M)(2.1m, 6.89ft)(WH-85*3.0mm)MCore Pro包装φ6 * 30 mm, 白色, 聚酰胺挂墙架4*30 FAHOZN3+ (+)3*6PMOZN3+× 2× 4× 4× 3× 2MTouch Plus挂墙架M8*60mm,SUS304垫片蝶形快锁螺丝双面胶CAT5e UTP （RJ45 - RJ45）线USB 3.1 (C - C, HDMI) 线(7.5m, 24.6ft) (207.44 mm * 126.99 mm) (L200*W62.5*T1.2mm) (1.2m, 3.94ft) (M8,φ30*T2mm, SUS304) (M8,SUS304) (M8,SUS304) 2.5*9.0FMHZN(+)螺丝刀(WH-85*3.0mm)φ6 * 30 mm, 白色, 聚酰胺4*30 FAHOZN3+ (+)× 4× 4× 4× 2× 2× 2
快速入门指南VCM35 (CAT5e UTP RJ45 线)双面胶 (φ50*T2mm) (5m, 16.4ft) VCM35包装*2RJ45 8P8C - RJ45 8P8CMSpeaker II3.5mm音频线电源适配器(48V/0.7A)硅胶垫快速入门指南(3m, 9.84ft) (3.5m, 11.48ft) (φ38*T1.2mm) MSpeaker II包装φ6 * 30 mm, 白色, 聚酰胺4*30 FAHOZN3+ (+)M6*14.1FMHOZN3+× 2× 2× 2挂墙架(116.16 mm * 166.41 mm) × 2(20 * 200 mm)× 5束线带MTouch Plus包装快速入门指南锁线固定扣2.5*8.0PAHOZN3+(+)× 4螺丝刀3*6PMOZN3+螺丝刀
WPP30包装USB 3.1 Type-C (带USB2.0 AM至TYPE-CF转接头)RCH40RoomSensorCAT5e UTP （RJ45 - RJ45）线(7.5m, 24.6ft) (φ80mm*T1.55mm) 电源适配器(48V/2A)(3.8m, 12.47ft)魔术贴(W25.4*L50mm,3M)× 2快速入门指南RCH40包装RoomSensor包装φ6 * 30 mm, 白色, 聚酰胺4*30 FAHOZN3+ (+)PIR阻挡贴纸× 2× 2× 5快速入门指南魔术贴CR123A,3V快速入门指南
