YASKAWA L1000V CIMR-LC V Series Manuel utilisateur

Quick Start Guide

YASKAWA AC Drive L1000V

Lift Inverter Series

Models: 200 V Class, Three-Phase Input: 4.0 to 15 kW

400 V Class, Three-Phase Input: 4.0 to 15 kW

MANUAL NO. TOEP C710606 50B

Type: CIMR-LCV

To properly use the product, read this manual thoroughly and retain for easy

reference, inspection, and maintenance. Ensure the end user receives this

manual.

EN 2 YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise,

without the prior written permission of YASKAWA. No patent liability is assumed with

respect to the use of the information contained herein. Moreover, because YASKAWA is

constantly striving to improve its high-quality products, the information contained in this

manual is subject to change without notice. Every precaution has been taken in the

preparation of this manual. Nevertheless, YASKAWA assumes no responsibility for errors or

omissions. Neither is any liability assumed for damages resulting from the use of the

information contained in this publication.

YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

L1000V

Quick Start Guide

ENGLISH

Table of Contents

1 Safety Instructions and General Warnings . . . . . . . . . . 4

2 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4 Keypad Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5 Start Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6 Fine Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7 Parameter Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9 Safe Disable Input Function . . . . . . . . . . . . . . . . . . . . . 50

10 EN81-1 Conform Circuit with one Motor Contactor . 51

EN 4 YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

1 Safety Instructions and General Warnings

YASKAWA supplies component parts for use in a wide variety of industrial applications.

The selection and application of YASKAWA products remain the responsibility of the

equipment designer or end user. YASKAWA accepts no responsibility for the way its

products are incorporated into the final system design. Under no circumstances should any

YASKAWA product be incorporated into any product or design as the exclusive or sole

safety control. Without exception, all controls should be designed to detect faults

dynamically and fail safely under all circumstances. All products designed to incorporate a

component part manufactured by YASKAWA must be supplied to the end user with

appropriate warnings and instructions as to the safe use and operation of that part. Any

warnings provided by YASKAWA must be promptly provided to the end user. YASKAWA

offers an express warranty only as to the quality of its products in conforming to standards

and specifications published in the manual. NO OTHER WARRANTY, EXPRESS OR

IMPLIED, IS OFFERED. YASKAWA assumes no liability for any personal injury, property

damage, losses, or claims arising from misapplication of its products.

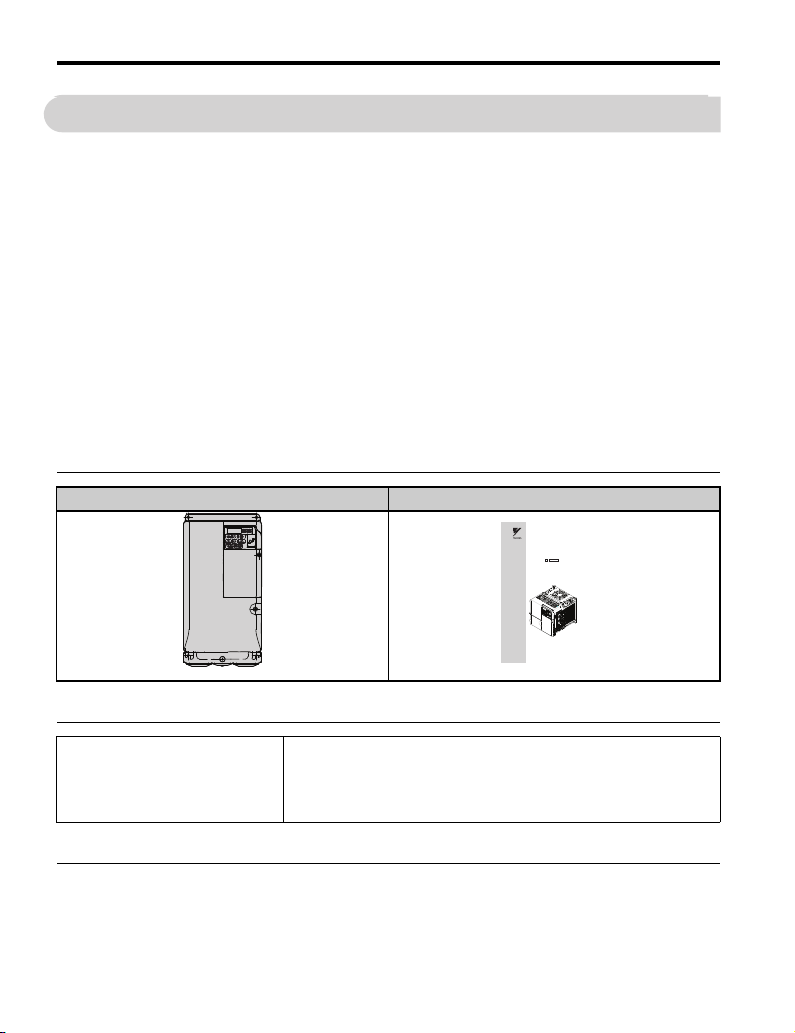

Scope of Delivery

Applicable Documentation

Receiving

Please perform the following tasks after receiving the drive:

L1000V Drive Quick Start Guide

L1000V Series AC Drive Quick Start

Guide (this book)

This guide is packaged together with the product. It contains basic

information required to install and wire the drive, in addition to an

overview of fault diagnostics, maintenance, and parameter

settings. Use the information in this book to prepare the drive for a

trial run with the application and for basic operation.

Quick Start Guide

YASKAWA AC Drive L1000V

Lift Inverter Series

Models: 200V Class, Three-Phase Input: 4.0 to 15 kW

400V Class, Three-Phase Input: 4.0 to 15 kW

MANUALNO. YEG TOEP C710606 50B

Type: CIMR-LC V

Toproperly use the product, read this manual thoroughly

and retain foreasy reference, inspection, and maintenance.

Ensure the end user receivesthis manual.

1 Safety Instructions and General Warnings

YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

EN 5

• Inspect the drive for damage. If the drive appears damaged upon receipt, contact your sup-

plier.

• Verify receipt of all components.

• Verify receipt of the correct model by checking the information on the nameplate. If you

have received the wrong model contact your supplier.

Drive Model Identification

Nameplate

CIMR

Drive L1000

Series

No. Region

Code

No. Voltage Class

Environmental

Specification

Design

Revision

Order

No. Customized

Specifications

C4 V 0015 F A A

C Europe

No. Enclosure

Type

BIP20 Type

Drive rated current

FIP20 /

NEMA Type 1

No.

AStandard

3-phase, 200-240 Vac

3-phase, 380-480 Vac

VV1000 Based

PRG

701

IND.CONT.EQ.

7J48 D

CIMR-LC4V0015FAA

YASKAWA ELECTRIC CORPORATION

MADE IN UK

: AC3PH 380-480V 50/60Hz 15.0A

: AC3PH 0-480V 0-120Hz 14.8A

: 3.8 kg

: M--

: IR

: E131457 IP20

PASS

MODEL

MAX APPLI. MOTOR : 5.5kW REV : A

INPUT

OUTPUT

MASS

O / N

S / N

FILE NO

TYPE 1 ENCLOSURE

AC drive model

Input specifications

Output specifications

Lot number

Serial number

Software version

Enclosure type

1 Safety Instructions and General Warnings

EN 6 YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

General Warnings

The following conventions are used to indicate safety messages in this manual:

Safety Warnings

WARNING

• Read and understand this manual before installing, operating or servicing this drive.

• All warnings, cautions, and instructions must be followed.

• All work must be performed by qualified personnel.

• The drive must be installed according to this manual and local codes.

• Heed the safety messages in this manual.

The operating company is responsible for any injuries or equipment damage resulting from

failure to heed the warnings in this manual.

WARNING

Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a property damage message.

WARNING

Electrical Shock Hazard

•

Do not attempt to modify or alter the drive in any way not explained in this manual.

Failure to comply could result in death or serious injury.

YASKAWA is not responsible for any modification of the product made by the user. This

product must not be modified.

•

Do not touch any terminals before the capacitors have fully discharged.

Failure to comply could result in death or serious injury.

Before wiring terminals, disconnect all power to the equipment. The internal capacitor remains

charged even after the power supply is turned off. The charge indicator LED will extinguish

when the DC bus voltage is below 50 Vdc. To prevent electric shock, wait at least five minutes

after all indicators are off and measure the DC bus voltage level to confirm safe level.

1 Safety Instructions and General Warnings

YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

EN 7

•

Do not allow unqualified personnel to use equipment.

Failure to comply could result in death or serious injury.

Maintenance, inspection, and replacement of parts must be performed only by authorized

personnel familiar with installation, adjustment, and maintenance of AC drives.

•

Do not remove covers or touch circuit boards while the power is on.

Failure to comply could result in death or serious injury.

•

Always ground the motor-side grounding terminal.

Improper equipment grounding could result in death or serious injury by contacting the motor

case.

•

Do not perform work on the drive while wearing loose clothing, jewelry or without eye protection.

Failure to comply could result in death or serious injury.

Remove all metal objects such as watches and rings, secure loose clothing, and wear eye

protection before beginning work on the drive.

•

Never short the output circuits of the drive.

Do not short the output circuits of the drive. Failure to comply could result in death or serious

injury.

•

Make sure the protective earthing conductor complies with technical standards and local safety

regulations.

When an EMC filter is installed, leakage current exceeds 3.5 mA. Therefore according to IEC

61800-5-1 automatic power supply interruption in case of discontinuity of the protective

earthing conductor must be provided or a protective earthing conductor with a cross section of at

least 10mm2(Cu) or 16mm2(Al) must be used.

•

Use appropriate equipment for residual current monitoring / detection (RCM / RCD).

The drive can cause a residual current with a DC component in the protective earthing

conductor. Where a residual current operated protective or monitoring device is used for

protection in case of direct or indirect contact, always use an RCM or RCD of type B according

to IEC 60755.

Sudden Movement Hazard

•

Stay clear of the motor during rotational Auto-Tuning. The motor may start operating suddenly.

During automatic starting of equipment, the machine may start moving suddenly, which could

result in death or serious injury.

•

System may start unexpectedly upon application of power, resulting in death or serious injury.

Clear all personnel from the drive, motor, and machine area before applying power. Secure

covers, couplings, shaft keys, and machine loads before applying power to the drive.

WARNING

1 Safety Instructions and General Warnings

EN 8 YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

Fire Hazard

•

Do not use an improper voltage source.

Failure to comply could result in death or serious injury by fire.

Verify that the rated voltage of the drive matches the voltage of the incoming power supply

before applying power.

•

Do not use improper combustible materials.

Failure to comply could result in death or serious injury by fire.

Attach the drive to metal or other noncombustible material.

•

Do not connect AC line power to output terminals U, V, and W.

•

Make sure that the power supply lines are connected to main circuit input terminals R/L1, S/L2, T/L3.

Do not connect the AC power line to the output motor terminals of the drive. Failure to comply

could result in death or serious injury by fire as a result of drive damage from line voltage

application to output terminals.

•

Tighten all terminal screws to the specified tightening torque.

Loose electrical connections could result in death or serious injury by fire due to overheating of

electrical connections.

CAUTION

Crush Hazard

• Do not carry the drive by the front cover.

Failure to comply may result in minor or moderate injury from the main body of the drive

falling.

Burn Hazard

• Do not touch the heatsink or braking resistor hardware until a powered-down cooling

period has elapsed.

NOTICE

Equipment Hazard

•

Observe proper electrostatic discharge procedures (ESD) when handling the drive and circuit boards.

Failure to comply may result in ESD damage to the drive circuitry.

•

Never connect or disconnect the motor from the drive while the drive is outputting voltage.

Improper equipment sequencing could result in damage to the drive.

WARNING

1 Safety Instructions and General Warnings

YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

EN 9

•

Do not perform a withstand voltage test on any part of the drive.

Failure to comply could result in damage to the sensitive devices within the drive.

•

Do not operate damaged equipment.

Failure to comply could result in further damage to the equipment.

Do not connect or operate any equipment with visible damage or missing parts.

•

Install adequate branch circuit short circuit protection per applicable codes.

Failure to comply could result in damage to the drive.

The drive is suitable for circuits capable of delivering not more than 30,000 RMS symmetrical

Amperes, 240 Vac maximum (200 V Class) and 480 Vac maximum (400V Class).

•

Do not use unshielded cable for control wiring.

Failure to comply may cause electrical interference resulting in poor system performance. Use

shielded twisted-pair wires and ground the shield to the ground terminal of the drive.

•

Do not allow unqualified personnel to use the product.

Failure to comply could result in damage to the drive or braking circuit.

Carefully review the braking option instruction manual when connecting a braking option to the

drive.

•

Do not modify the drive circuitry.

Failure to comply could result in damage to the drive and will void warranty.

YASKAWA is not responsible for modification of the product made by the user. This product

must not be modified.

•

Check all the wiring to ensure that all connections are correct after installing the drive and connecting

other devices.

Failure to comply could result in damage to the drive.

•

Do not connect unapproved LC or RC interference suppression filters, capacitors, or overvoltage

protection devices to the output of the drive.

Using unapproved filters could result in damage to the drive or motor equipment.

•

Check the motor rotation and elevator movement direction prior to starting up the drive.

The drive puts out voltage in phase sequence U-V-W with an Up command. Make sure the

elevator moves up if the motor is supplied with this phase sequence.

•

Always remove the ropes when performing Rotational Auto-Tuning.

During Rotational Auto-Tuning the drive turns the motor for a certain time. Not removing the

ropes might result in damage to the equipment.

NOTICE

1 Safety Instructions and General Warnings

EN 10 YASKAWA Europe

TOEP C710606 50B - AC Drive L1000V - Quick Start Guide

Precautions for CE Low Voltage Directive Compliance

This drive has been tested according to European standard EN61800-5-1, and it fully

complies with the Low Voltage Directive. The following conditions must be met to maintain

compliance when combining this drive with other devices:

Do not use drives in areas with pollution higher than severity 2 and overvoltage category 3

in accordance with IEC664.

Ground the neutral point of the main power supply for 400 V Class drives.

Precautions for UL/cUL Standards Compliance

This drive is tested in accordance with UL standard UL508C and complies with UL

requirements. The following conditions must be met to maintain compliance when using this

drive in combination with other equipment:

Do not install the drive to an area greater than pollution severity 2 (UL standard).

Use UL-listed copper wires (rated at 75C) and closed-loop connectors or CSA-certified

ring connectors.

Wire low voltage wires with NEC Class 1 circuit conductors. Refer to national state or local

codes for wiring. Use a class 2 (UL regulations) power supply for the control circuit

terminal.

This drive has undergone the UL short-circuit test, which certifies that during a short circuit

in the power supply the current flow will not rise above 30,000 amps maximum at 240 V for

200 V class drives and 480 V for 400 V class drives.

The drive internal motor overload protection is UL listed and in accordance with the NEC

and CEC. The setup can be done using the parameters L1-01/02.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels YASKAWA Entraînement CC

YASKAWA

YASKAWA PROFINET V1000 Manuel utilisateur

YASKAWA

YASKAWA JOHB-SMP3 Manuel utilisateur

YASKAWA

YASKAWA HV600 Mode d’emploi

YASKAWA

YASKAWA CIMR-AC4A0103TAA Manuel utilisateur

YASKAWA

YASKAWA E7 Drive Manuel utilisateur

YASKAWA

YASKAWA SI-S3/V Series Manuel utilisateur

YASKAWA

YASKAWA A1000 Series Manuel utilisateur

YASKAWA

YASKAWA CIMR-E7 series Manuel utilisateur

YASKAWA

YASKAWA E-V-SD Series Manuel utilisateur

YASKAWA

YASKAWA S-7 Series Instructions d'installation

YASKAWA

YASKAWA GA500 series Mode d'emploi

YASKAWA

YASKAWA SI-P1/ V7 Manuel utilisateur

YASKAWA

YASKAWA CIPR-GA50UB001AJ Series Mode d’emploi

YASKAWA

YASKAWA J1000 CIMR-JC series Manuel utilisateur

YASKAWA

YASKAWA Z1000 CIMR-ZU*A Series Guide de configuration

YASKAWA

YASKAWA CIMR-AC4A WAA Series Manuel utilisateur

YASKAWA

YASKAWA T103 Mode d’emploi

YASKAWA

YASKAWA PROFINET V1000 Manuel d'utilisation et d'entretien

YASKAWA

YASKAWA SI-EN3D Manuel utilisateur

YASKAWA

YASKAWA HV600 Manuel utilisateur

YASKAWA

YASKAWA E7B T Series Manuel utilisateur

YASKAWA

YASKAWA CIMR-JCBA0001 Manuel utilisateur

YASKAWA

YASKAWA L1000H Manuel utilisateur

YASKAWA

YASKAWA H6R B Series Manuel utilisateur

Manuels Entraînement CC populaires d'autres marques

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manuel utilisateur

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manuel de la liste des pièces

Chamberlain Garog

Chamberlain Garog D Series Manuel utilisateur

Parker

Parker PDS Series Manuel utilisateur

Festo

Festo DGC G Series Guide de configuration

Binks

Binks QS-5012-1-CE Manuel utilisateur

Danfoss

Danfoss VLT 2800 Series Fiche technique

ABB

ABB ACQ580-01 Series Manuel d'installation

GE D20A6 Manuel utilisateur

Unex

Unex MC-D-250-1000-050W-TW Manuel utilisateur

Geckodrive

Geckodrive G213V Manuel utilisateur

ABB

ABB RSYC-01 Manuel utilisateur

Rockwell Automation

Rockwell Automation PowerFlex 700S Manuel du propriétaire

WEG

WEG DeviceNet CFW500 Manuel utilisateur

Siemens

Siemens SINAMICS G Fiche technique

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Mode d'emploi

SOMFY

SOMFY JR RU 30 Manuel utilisateur

Beckhoff

Beckhoff AX8911 Manuel de l'opérateur
