YASKAWA SI-M3/V Manuel utilisateur

CompoNet通信

V1000オプションユニット

取扱説明書

形式 SI-M3/V

CompoNet

YASKAWA AC Drive-V1000 Option

Installation Manual

Type SI-M3/V

To properly use the product, read this manual thoroughly and retain

for easy reference, inspection, and maintenance. Ensure the end user

receives this manual.

製品を安全にお使い頂くために，本書を必ずお読みください。

また，本書をお手元に保管していただくとともに，最終的に本製品をご使用になる

ユーザー様のお手元に確実に届けられるよう，お取り計らい願います。

MANUAL NO. TOBP C730600 54A

2YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual

system, or transmitted, in any form or by any means, mechanical, electronic, photocopying,

recording, or otherwise, without the prior written permission of Yaskawa. No patent liability

is assumed with respect to the use of the information contained herein. Moreover, because

Yaskawa is constantly striving to improve its high-quality products, the information

contained in this manual is subject to change without notice. Every precaution has been

taken in the preparation of this manual. Yaskawa assumes no responsibility for errors or

omissions. Neither is any liability assumed for damages resulting from the use of the

information contained in this publication.

YASK AWA EL ECT RI C TOBP C730600 54A V1000 Option CompoNet Installation Manual 3

Table of Contents

1 PREFACE AND SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4 OPTION COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5 INSTALLATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . .16

6 RELATED PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7 TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8 CONFIGURING COMPONET MESSAGING. . . . . . . . . . . . . 34

9 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4 YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual

1 Preface and Safety

Yaskawa manufactures products used as components in a wide variety of industrial systems

and equipment. The selection and application of Yaskawa products remain the responsibility

of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its

products are incorporated into the final system design. Under no circumstances should any

Yaskawa product be incorporated into any product or design as the exclusive or sole safety

control. Without exception, all controls should be designed to detect faults dynamically and

fail safely under all circumstances. All systems or equipment designed to incorporate a

product manufactured by Yaskawa must be supplied to the end user with appropriate

warnings and instructions as to the safe use and operation of that part. Any warnings

provided by Yaskawa must be promptly provided to the end user. Yaskawa offers an express

warranty only as to the quality of its products in conforming to standards and specifications

published in the Yaskawa manual. NO OTHER WARRANTY, EXRESS OR IMPLIED, IS

OFFERED. Yaskawa assumes no liability for any personal injury, property damage, losses,

or claims arising from misapplication of its products.

1 Preface and Safety

YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual 5

◆Applicable Documentation

The following manuals are available for the CompoNet option:

◆Terms

◆Registered Trademarks

• CompoNet is a trademark of the ODVA.

• All trademarks are the property of their respective owners.

CompoNet Option

Yaskawa AC Drive V1000-Series Option

SI-M3/V CompoNet Installation Manual

Manual No: TOBP C730600 54

Read this manual first.

The installation manual is packaged with the

option and contains information required to

install the option and set up related drive

parameters.

Yaskawa AC Drive V1000-Series Option

SI-M3/V CompoNet Technical Manual

Manual No: SIEP C730600 54

The technical manual contains detailed

information about the option. In the U.S.,

access http://www.yaskawa.com to obtain the

technical manual. Customers in other areas

should contact a Yaskawa representative.

Yaskawa Drive

Yaskawa AC Drive

V1000 Quick Start Guide

The drive manuals cover basic installation,

wiring, operation procedures, functions,

troubleshooting, and maintenance information.

The manuals also include important

information about parameter settings and drive

tuning. Access these sites to obtain Yaskawa

instruction manuals:

U.S.: http://www.yaskawa.com

Europe: http://www.yaskawa.eu.com

Japan: http://www.e-mechatronics.com

Other areas: contact a Yaskawa representative.

For questions, contact your local Yaskawa

sales office or the nearest Yaskawa

representative.

Yaskawa AC Drive

V1000 Technical Manual

Note: Indicates supplemental information that is not related to safety messages

Drive: Yaskawa AC Drive V1000-Series

Option: Yaskawa AC Drive V1000-Series SI-M3/V CompoNet Option

≥1020: Indicates a drive feature or function that is only available in drive software version 1020 or greater

STOP

(Hz)

(A)

(V)



V1000

๟ᵄᢙᜰ઎

ᱜォㅒォㆬᛯ

಴ജ๟ᵄᢙ

಴ജ㔚ᵹ

಴ജ㔚࿶

ࡕ࠾࠲

ࡌ࡝ࡈࠔࠗ

࠮࠶࠻ࠕ࠶ࡊ

ࡄ࡜ࡔ࡯࠲⸳ቯ

ࠝ࡯࠻࠴ࡘ࡯࠾ࡦࠣ

ᝪ߃ઃߌޔㆇォߩ೨ߦߪᔅߕขᛒ⺑᣿ᦠࠍ⺒߻ߎߣޕ

ㅢ㔚߅ࠃ߮㔚Ḯㆤᢿᓟ

ಽએౝߪࡈࡠࡦ࠻ࠞࡃ࡯ࠍ

ᄖߐߥ޿ߎߣޕ

400V

⚖ࠗࡦࡃ࡯࠲ߩ႐วߪޔ㔚Ḯߩᕈὐ߇ធ࿾

ߐࠇߡ޿ࠆߎߣࠍ⏕⹺ߔࠆߎߣޕ㧔ޓޓኻᔕ㧕

ߌ߇㧚ᗵ㔚ߩ߅ߘࠇ߇޽ࠅ߹ߔޕ

ෂޓ㒾

1 Preface and Safety

6YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual

◆Supplemental Safety Information

Read and understand this manual before installing, operating, or servicing this option. Install

the option according to this manual and local codes.

The following conventions indicate safety messages in this manual. Failure to heed these

messages could cause fatal injury or damage products and related equipment and systems.

DANGER

Indicates a hazardous situation, which, if not avoided, will result in death or serious

injury.

WARNING

Indicates a hazardous situation, which, if not avoided, could result in death or

serious injury.

CAUTION

Indicates a hazardous situation, which, if not avoided, could result in minor or

moderate injury.

NOTICE

Indicates an equipment damage message.

1 Preface and Safety

YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual 7

■General Safety

General Precautions

• The diagrams in this book may include options and drives without covers or safety shields to illustrate details. Be

sure to reinstall covers or shields before operating any devices. Use the option according to the instructions

described in this manual.

• Any illustrations, photographs, or examples used in this manual are provided as examples only and may not apply

to all products to which this manual is applicable.

• The products and specifications described in this manual or the content and presentation of the manual may be

changed without notice to improve the product and/or the manual.

• When ordering new copies of the manual, contact a Yaskawa representative or the nearest Yaskawa sales office and

provide the manual number shown on the front cover.

DANGER

Heed the safety messages in this manual.

Failure to comply will result in death or serious injury.

The operating company is responsible for any injuries or equipment damage resulting

from failure to heed the warnings in this manual.

NOTICE

Do not expose the drive or option to halogen group disinfectants.

Failure to comply may cause damage to the electrical components in the option.

Do not pack the drive in wooden materials that have been fumigated or sterilized.

Do not sterilize the entire package after the product is packed.

Do not modify the drive or option circuitry.

Failure to comply could result in damage to the drive or option and will void warranty.

Yaskawa is not responsible for any modification of the product made by the user. This

product must not be modified.

1 Preface and Safety

8YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual

■Option Unit Warning Labels

Warning information is displayed on the option unit as shown in the figure below. Follow all

warnings and safety instructions when using the product.

When using the drive in an area that may require displaying warning information in

Japanese or Chinese, a warning label is provided with the option. This label can be placed

over the English and French warnings on the front of the option.

■Warning Contents

V1000

Warning

information

AVERTISSEMENT

Lire le manuel avant l'installation.

Attendre 5 minutes apres la coupure de l'alimentation,

pour permettre la decharge des condensateurs.

Pour repondre aux exigences , s assurer que le

neutre soit relie a la terre, pour la serie 400V.

WARNING

Read manual before installing.

Wait 5 minutes for capacitor discharge after

disconnecting power supply.

To conform to ޓrequirements, make sure

to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge

electrique.

AVERTISSEMENT

Lire le manuel avant l'installation.

Attendre 5 minutes apres la coupure de l'alimentation,

pour permettre la decharge des condensateurs.

Pour repondre aux exigences , s assurer que le

neutre soit relie a la terre, pour la serie 400V.

WARNING

Read manual before installing.

Wait 5 minutes for capacitor discharge after

disconnecting power supply.

To conform to ޓrequirements, make sure

to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge

electrique.

YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual 9

2 Product Overview

◆About This Product

The CompoNet option provides a communications connection between the drive and an

ODVA CompoNet network. The SI-M3/V CompoNet Option connects the drive to a

CompoNet network and facilitates the exchange of data.

This manual explains the handling, installation and specifications of this product.

CompoNet is a communications link to connect industrial devices (such as sensors and

variable frequency drives) as well as masters (such as programmable controllers) to a CIP

network.

By installing the CompoNet Option to a drive, it is possible to do the following from a

CompoNet master device:

• operate the drive

• monitor the operation status of the drive

• change parameter settings.

◆Applicable Models

The CompoNet Option can be used with the drive models in Table 1 .

Table 1 Applicable Models

Drive Software Version <1>

<1> See “PRG” on the drive nameplate for the software version number.

CIMR-VAAA≥1020

CIMR-VABA≥ 1020

CIMR-VAFA≥ 1020

10 YASKAWA ELECTRIC TOBP C730600 54A V1000 Option CompoNet Installation Manual

3 Receiving

Please perform the following tasks after receiving the option:

• Inspect the option for damage. Contact the shipper immediately if the option appears

damaged upon receipt.

• Verify receipt of the correct model by checking the model number printed on the option

nameplate ( Refer to Top Views of Option on page 11 for nameplate positioning).

• Contact your supplier if you have received the wrong model or the option does not

function properly.

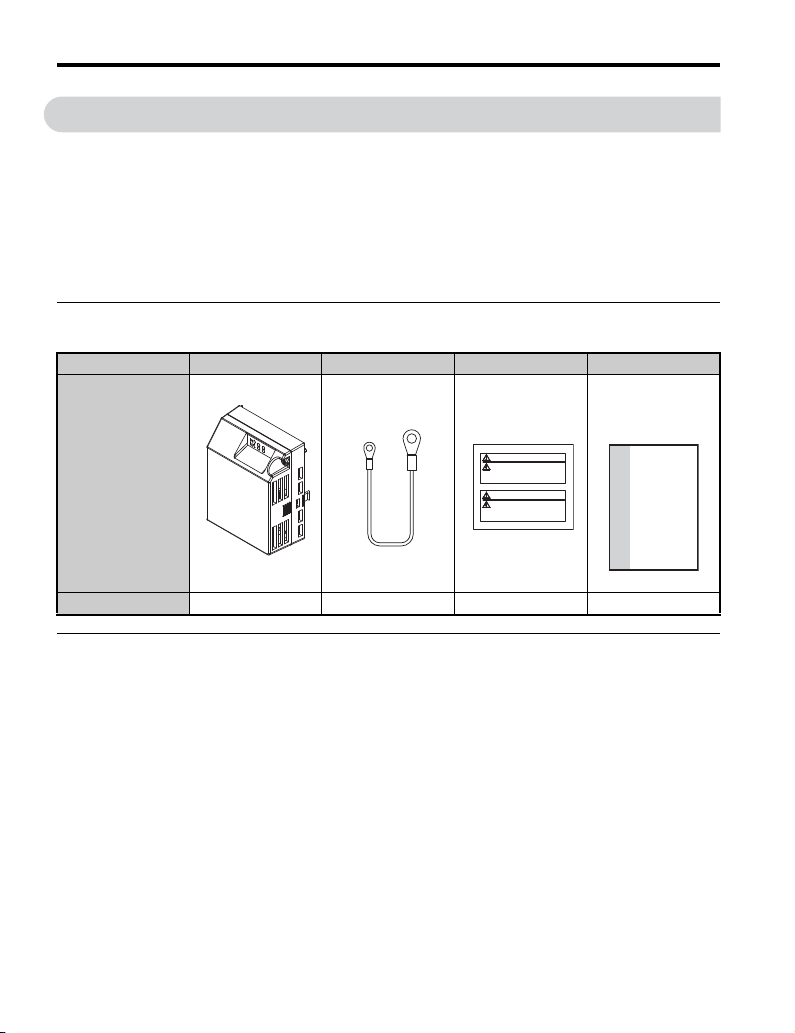

◆Option Package Contents

◆Tools Required for Installation

A Phillips screwdriver (M3 metric/#1, #2 U.S. standard size*) is required to install the

option and remove drive front covers.

*Screw sizes vary by drive capacity. Select a screwdriver appropriate for the drive capacity.

Note: Tools and parts required to prepare option networking cables for wiring are not listed in this

manual. Refer to the ODVA website for more information.

Description: Option Unit Ground Wire Warning Labels Installation Manual

Quantity: 1411

MANUAL

Table des matières

Autres manuels YASKAWA Contrôleurs

YASKAWA

YASKAWA CIMR-VC series Manuel utilisateur

YASKAWA

YASKAWA SI-EM3 Manuel utilisateur

YASKAWA

YASKAWA PROFINET V1000 Manuel utilisateur

YASKAWA

YASKAWA MOTOMAN Series Manuel utilisateur

YASKAWA

YASKAWA VU*B****AA*-134 Series Manuel utilisateur

YASKAWA

YASKAWA A1000 Series Manuel utilisateur

YASKAWA

YASKAWA iQpump1000 Manuel d'installation

YASKAWA

YASKAWA YRC1000 Manuel utilisateur

YASKAWA

YASKAWA SGD7S series Manuel utilisateur

YASKAWA

YASKAWA SGM series Manuel utilisateur

YASKAWA

YASKAWA P1000 Manuel utilisateur

YASKAWA

YASKAWA SI-EL3/V Manuel utilisateur

YASKAWA

YASKAWA SGD7S-xxxDA0 series Manuel utilisateur

YASKAWA

YASKAWA CIPR-GA50C series Manuel du propriétaire

YASKAWA

YASKAWA GA800 Series Manuel du propriétaire

YASKAWA

YASKAWA T1000V Manuel utilisateur

YASKAWA

YASKAWA Motoman DX200 Manuel utilisateur

YASKAWA

YASKAWA SI-T3 MECHATROLINK-II A1000 Series Manuel utilisateur

YASKAWA

YASKAWA Z1000 CIMR-ZU*A Series Manuel du propriétaire

YASKAWA

YASKAWA CIMR-ZU A Series Manuel du propriétaire

YASKAWA

YASKAWA MP210 Series Manuel utilisateur

YASKAWA

YASKAWA MOTOMAN FS100 Manuel utilisateur

YASKAWA

YASKAWA motoman NX100 Manuel utilisateur

YASKAWA

YASKAWA CIMR-LC2A0018 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

3M MicroTouch EX113 Manuel utilisateur
