YASKAWA SI-EN3/V Manuel utilisateur

EtherNet/IP

YASKAWA AC Drive-V1000 Option

Installation Manual

Type: SI-EN3/V

To properly use the product, read this manual thoroughly and retain

for easy reference, inspection, and maintenance. Ensure the end user

receives this manual.

MANUAL NO. TOBP C730600 60A

EN 2 YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

YASKAWA ELECTRIC CORPORATION

system, or transmitted, in any form or by any means, mechanical, electronic, photocopying,

recording, or otherwise, without the prior written permission of Yaskawa. No patent liability

is assumed with respect to the use of the information contained herein. Moreover, because

Yaskawa is constantly striving to improve its high-quality products, the information

contained in this manual is subject to change without notice. Every precaution has been

taken in the preparation of this manual. Yaskawa assumes no responsibility for errors or

omissions. Neither is any liability assumed for damages resulting from the use of the

information contained in this publication.

YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

Table of Contents

1 PREFACE AND SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 OPTION COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5 INSTALLATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . 15

6 RELATED DRIVE PARAMETERS . . . . . . . . . . . . . . . . . . . .28

7 CONFIGURING MESSAGING. . . . . . . . . . . . . . . . . . . . . . . . 32

8 OUTPUT ASSEMBLIES (DRIVE CONSUMES) . . . . . . . . . .33

9 INPUT ASSEMBLIES (DRIVE PRODUCES) . . . . . . . . . . . . 35

10 WEB INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

11 TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

12 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

EN 4 YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

1 Preface and Safety

Yaskawa manufactures products used as components in a wide variety of industrial systems

and equipment. The selection and application of Yaskawa products remain the responsibility

of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its

products are incorporated into the final system design. Under no circumstances should any

Yaskawa product be incorporated into any product or design as the exclusive or sole safety

control. Without exception, all controls should be designed to detect faults dynamically and

fail safely under all circumstances. All systems or equipment designed to incorporate a

product manufactured by Yaskawa must be supplied to the end user with appropriate

warnings and instructions as to the safe use and operation of that part. Any warnings

provided by Yaskawa must be promptly provided to the end user. Yaskawa offers an express

warranty only as to the quality of its products in conforming to standards and specifications

published in the Yaskawa manual. NO OTHER WARRANTY, EXPRESS OR IMPLIED, IS

OFFERED. Yaskawa assumes no liability for any personal injury, property damage, losses,

or claims arising from misapplication of its products.

uApplicable Documentation

The following manuals are available for the SI-EN3/V option:

Option Unit

Yaskawa AC Drive -V1000 Option

SI-EN3/V EtherNet/IP

Installation Manual

Manual No: TOBP C730600 60

(This book)

Read this manual first.

The installation manual is packaged with the

option and contains a basic overview of

wiring, settings, functions, and fault

diagnoses.

Yaskawa AC Drive -V1000 Option

SI-EN3/V EtherNet/IP

Technical Manual

Manual No: SIEP C730600 60

The technical manual contains detailed

information.

To obtain the technical manual access these

sites:

U.S.: http://www.yaskawa.com

Europe: http://www.yaskawa.eu.com

Japan: http://www.e-mechatronics.com

Other areas: contact a Yaskawa

representative.

1 Preface and Safety

YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual EN 5

uTerms

uRegistered Trademarks

• EtherNet/IP is a trademark of the ODVA.

• All trademarks are the property of their respective owners.

uSupplemental Safety Information

Read and understand this manual before installing, operating, or servicing this option. The

option must be installed according to this manual and local codes.

The following conventions are used to indicate safety messages in this manual. Failure to

heed these messages could result in serious or possibly even fatal injury or damage to the

products or to related equipment and systems.

Yaskawa Drive

Yaskawa AC Drive-V1000

Quick Start Guide

To obtain instruction manuals for Yaskawa

products access these sites:

U.S.: http://www.yaskawa.com

Europe: http://www.yaskawa.eu.com

Japan: http://www.e-mechatronics.com

Other areas: contact a Yaskawa

representative.

For questions, contact the local Yaskawa

sales office or the nearest Yaskawa

representative.

Yaskawa AC Drive-V1000

Technical Manual

Note: Indicates supplemental information that is not related to safety messages.

EtherNet/IP Option: Yaskawa AC Drive -V1000 Option SI-EN3/V EtherNet/IP

1012: Indicates a drive feature or function that is only available in drive software version 1012

or greater.

DANGER

Indicates a hazardous situation, which, if not avoided, will result in death or serious

injury.

STOP

1 Preface and Safety

EN 6 YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

nGeneral Safety

WARNING

Indicates a hazardous situation, which, if not avoided, could result in death or

serious injury.

CAUTION

Indicates a hazardous situation, which, if not avoided, could result in minor or

moderate injury.

NOTICE

Indicates an equipment damage message.

General Precautions

• The diagrams in this section may include options and drives without covers or safety shields to illustrate details. Be

sure to reinstall covers or shields before operating any devices. The option should be used according to the

instructions described in this manual.

• Any illustrations, photographs, or examples used in this manual are provided as examples only and may not apply

to all products to which this manual is applicable.

• The products and specifications described in this manual or the content and presentation of the manual may be

changed without notice to improve the product and/or the manual.

• When ordering new copies of the manual, contact a Yaskawa representative or the nearest Yaskawa sales office and

provide the manual number shown on the front cover.

DANGER

Heed the safety messages in this manual.

Failure to comply will result in death or serious injury.

The operator is responsible for injuries or equipment damage caused from failure to heed

the warnings in the manual.

1 Preface and Safety

YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual EN 7

nOption Unit Warning Labels

Warning information is displayed on the option unit as shown in the figure below. Follow all

warnings and safety instructions when using the product.

When using the drive in an area that may require displaying warning information in

Japanese or Chinese, a warning label is provided with the option. This label can be placed

over the English and French warnings on the front of the option.

NOTICE

Do not expose the drive or the option to halogen group disinfectants.

Failure to comply may cause damage to the electrical components in the option.

Do not pack the drive in wooden materials that have been fumigated or sterilized.

Do not sterilize the entire package after the product is packed.

Do not modify the drive or option circuitry.

Failure to comply could result in damage to the drive or option and will void warranty.

Yaskawa is not responsible for any modification of the product made by the user. This

product must not be modified.

V1000

Warning

information

AVERTISSEMENT

Lire le manuel avant l'installation.

Attendre 5 minutes apres la coupure de l'alimentation,

pour permettre la decharge des condensateurs.

Pour repondre aux exigences , s assurer que le

neutre soit relie a la terre, pour la serie 400V.

WARNING

Read manual before installing.

Wait 5 minutes for capacitor discharge after

disconnecting power supply.

To conform to ޓrequirements, make sure

to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge

electrique.

V1000

1 Preface and Safety

EN 8 YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

nWarning Contents

AVERTISSEMENT

Lire le manuel avant l'installation.

Attendre 5 minutes apres la coupure de l'alimentation,

pour permettre la decharge des condensateurs.

Pour repondre aux exigences , s assurer que le

neutre soit relie a la terre, pour la serie 400V.

WARNING

Read manual before installing.

Wait 5 minutes for capacitor discharge after

disconnecting power supply.

To conform to ޓrequirements, make sure

to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge

electrique.

V1000

YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual EN 9

2 Product Overview

uAbout This Product

The option provides a communications connection between the drive and an ODVA

EtherNet/IP network. The option connects the drive to an EtherNet/IP network and

facilitates the exchange of data.

This manual explains the handling, installation and specifications of this product.

EtherNet/IP is a communications link to connect industrial devices (such as smart motor

controllers, operator interfaces, and variable frequency drives) as well as control devices

(such as programmable controllers and computers) to a network. EtherNet/IP is a simple,

networking solution that reduces the cost and time to wire and install factory automation

devices, while providing interchangeability of like components from multiple vendors.

EtherNet/IP is an open device network standard.

By installing the option to a drive, it is possible to do the following from an EtherNet/IP

master device:

• operate the drive

• monitor the operation status of the drive

• change parameter settings.

uApplicable Models

The option can be used with the drive models in Table 1.

Table 1 Applicable Models

Drive Series Drive Model Number Software Version <1>

<1> See “PRG” on the drive nameplate for the software version number.

V1000 CIMR-VA 1012

EN 10 YASKAWA ELECTRIC TOBP C730600 60A V1000 Option EtherNet/IP Installation Manual

3 Receiving

Please perform the following tasks upon receipt of the option:

• Inspect the option for damage. Contact the shipper immediately if the option appears

damaged upon receipt.

• Verify receipt of the correct model by checking the model number printed on the name

plate of the option package.

• Contact your supplier if you have received the wrong model or the option does not

function properly.

uContents and Packaging

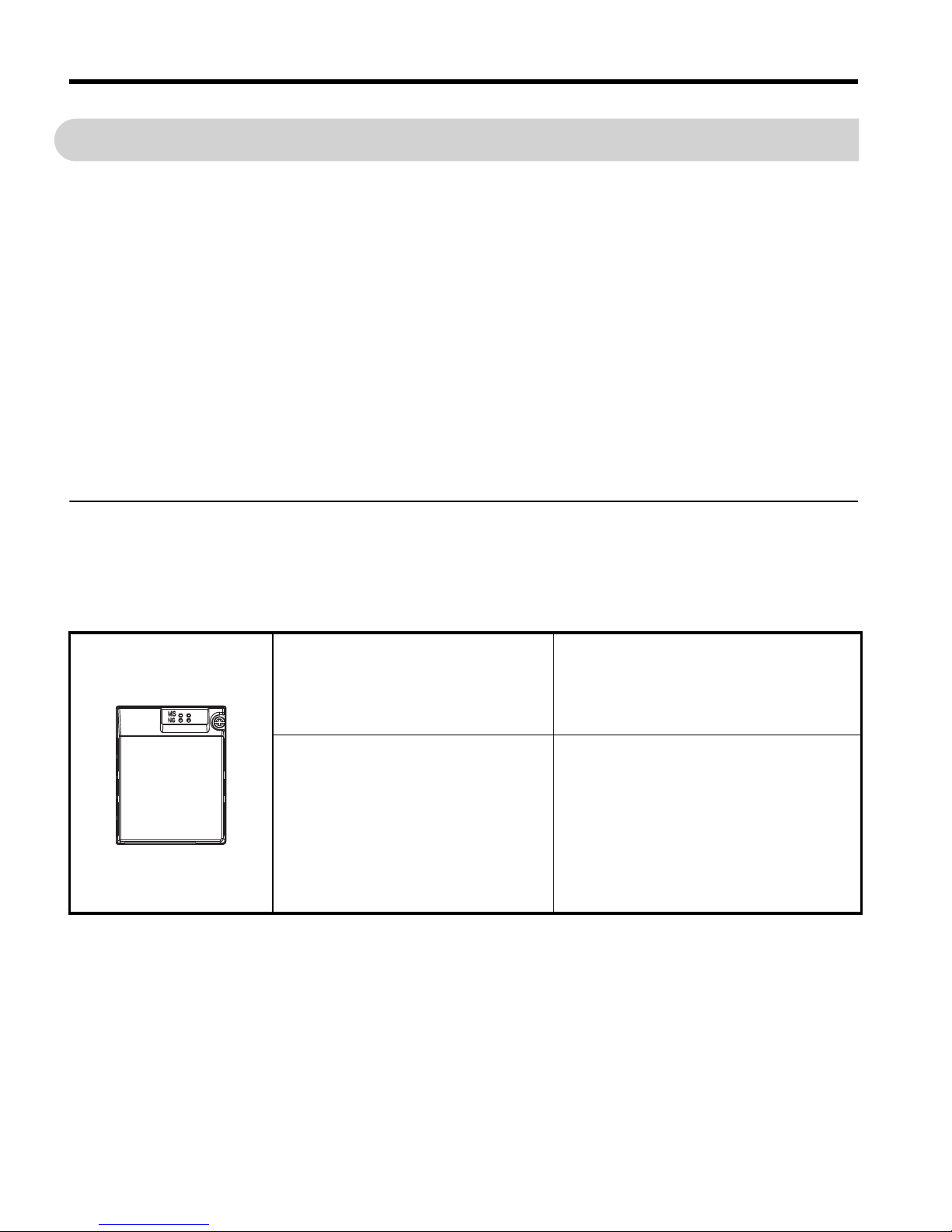

Table 2 Option Package Contents

uTools Required for Installation

A Phillips screwdriver (M3, M3.5 to M6 metric or #1, #2 U.S. standard <1>) is required to

install the option.

Note: Tools required to prepare the option cables for wiring are not listed in this manual.

Description: Option Unit Ground Wire Warning Labels Installation Manual

Quantity: 1411

<1> Screw sizes vary by drive capacity. Select a screwdriver that matches the drive capacity.

MANUAL

Autres manuels pour SI-EN3/V

Table des matières

Autres manuels YASKAWA Contrôleurs

YASKAWA

YASKAWA J1000 CIMR-JC series Manuel utilisateur

YASKAWA

YASKAWA Z1000 CIMR-ZU*A Series Manuel utilisateur

YASKAWA

YASKAWA J1000 CIMR-JC series Manuel utilisateur

YASKAWA

YASKAWA GA800 Series Manuel du propriétaire

YASKAWA

YASKAWA MOTOMAN FS100 Manuel utilisateur

YASKAWA

YASKAWA FSDrive-MV1000 Series Manuel utilisateur

YASKAWA

YASKAWA MOTOMAN DX100 Manuel utilisateur

YASKAWA

YASKAWA SI-EL3 Manuel utilisateur

YASKAWA

YASKAWA motoman NX100 Manuel utilisateur

YASKAWA

YASKAWA T1000V Manuel utilisateur

YASKAWA

YASKAWA SI-ET3 Manuel utilisateur

YASKAWA

YASKAWA SGD7S series Manuel utilisateur

YASKAWA

YASKAWA motoman NX100 Manuel utilisateur

YASKAWA

YASKAWA CIMR-V7xx20P1 series Manuel utilisateur

YASKAWA

YASKAWA SGD7S series Manuel utilisateur

YASKAWA

YASKAWA MP2300S Manuel utilisateur

YASKAWA

YASKAWA PROFINET V1000 Manuel utilisateur

YASKAWA

YASKAWA YASNAC J50 Guide de démarrage rapide

YASKAWA

YASKAWA Sigma-7Siec Manuel utilisateur

YASKAWA

YASKAWA V1000 Series Manuel d'installation et d'exploitation

YASKAWA

YASKAWA MP2000 Series Manuel utilisateur

YASKAWA

YASKAWA YRC1000 Manuel utilisateur

YASKAWA

YASKAWA MP2300 Manuel utilisateur

YASKAWA

YASKAWA A1000 Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

3M MicroTouch EX113 Manuel utilisateur
