SPEAKER STAND SPS-900

Thank you for selecting this Yamaha product. Be sure to read this instruction thoroughly before using this stand. After you

have read this instruction, keep it in a safe place for future reference.

■DIMENSION FIGURES ■SPECIFICATIONS

Dimensions (W x H x D):

360.3 x 603 x 415.3 mm

(14-3/16” x 23-3/4” x 16-3/8”)

Weight/unit: 6.5 kg (14 lbs. 5 oz.)

■USABLE SPEAKERS

•Soavo-2

Use the front and the rear screw holes in the bottom of the

speaker to fix the speaker.

•Soavo-900M

Use the front screw hole in the bottom of the speaker to fix

the speaker.

PRECAUTIONS

•This speaker stand is only for the speaker systems listed in “USABLE SPEAKERS” below. Do not use the speakers

other than these listed.

•To prevent the speaker from falling, use the screws and parts provided with the stand.

•To prevent the speaker stand from falling over, select a location which is flat and stable.

•To avoid accidents resulting from tripping over loose speaker cables and to prevent the speaker stand from falling over,

fix the speaker cables to the wall, etc.

•Do not let the children lean or sit on the stand as this might cause the serious accidents resulting from the falling over of

the speaker stand.

•To prevent the speaker stand from discoloring and warping, keep the speaker stand away from the stoves and places

where it will be exposed to direct sunlight, etc.

•Do not attempt to clean the speaker stand with chemical solvents as this might damage the finish. Use a clean, dry

cloth.

•When moving the speaker and stand, be sure to hold the support detached from the speaker.

•Secure placement or installation is the owner’s responsibility. Yamaha shall not be liable for any accident caused by

improper placement or installation of speakers.

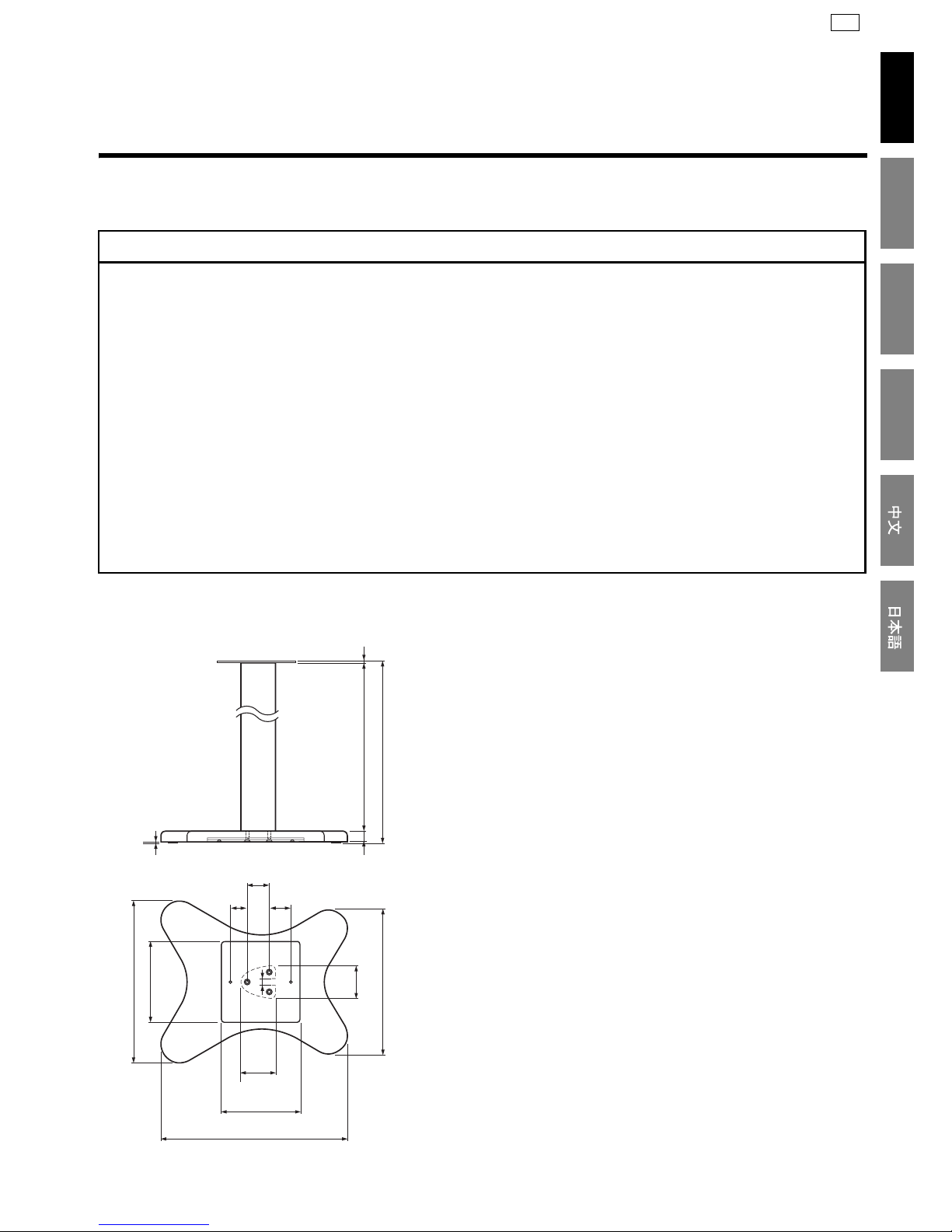

415.3 (16-3/8)

175

(6-7/8)

(3-1/16)

(1-15/16)

37.5

(1-1/2) 48.5

(1-15/16)

360.3 (14-3/16)

180 (7-1/16)

73.2

(2-7/8)

320.3 (12-5/8)

572 (22-1/2)

(3/16)

603 (23-3/4)

(1)

(1/16)

(9/16)

Front view unit: mm (inch)

Top view

ASSEMBLY

INSTRUCTION

2En

■ASSEMBLY

Before beginning assembly, check the parts list and make

sure all the parts are included.

You need a screwdriver for the assembly.

•Parts list (for 2 units)

Attaching the spikes

When setting up this unit on a thick carpet etc., attach

spikes on the bottom side of the base in order to increase

stability of this unit and to enhance sound quality.

•Attaching procedures

1.For each spike, screw a nut to the tip of the spike.

2.Screw the spike into the hole of the bottom side of

the base.

3.Place the base with the topside up in the desired

location and adjust the length of the spike to match

the depth of the carpet.

The tip of the spike may scratch or damage the flooring.

Please be careful when positioning the stand.

•Assembly procedures

Do not overtighten the screws. Doing so may damage screws or

screw holes.

1. Attach the base and the support.

Align holes in the base with holes in the support,

and then fasten 1flat-head Phillips screws using a

screwdriver.

2. Attach the plate and the support.

Align holes in the plate with holes in the support,

and then fasten 2flat-head Phillips screws using a

screwdriver.

When attaching the plate, put the plate with the spacer-side up on

the support.

3. Attach a speaker.

Align holes on the bottom of the speaker with holes

in the plate, and then fasten 3speaker mounting

screws using a screwdriver.

The screw hole(s) which is (are) used varies (vary) depending on

the speaker. For details about the screw hole(s) which is (are)

used, refer to “USABLE SPEAKERS” on page 1.

4. Fix speaker cables.

Put 4cable clamps into the conduit to fix speaker

cables after setting speaker cables into the conduit

on the back of the support.

NAME QUANTITY

Flat-head Phillips screws (M6 x 40 mm (1-9/16”))

Flat-head Phillips screws (M6 x 20 mm (13/16”))

Speaker mounting screws (M4 x 14 mm (9/16”))

4Cable clamps 8

5Spikes 8

6Nuts 8

Example:

Soavo-2

Speaker

cable

Plate

Spacer

Support

Base

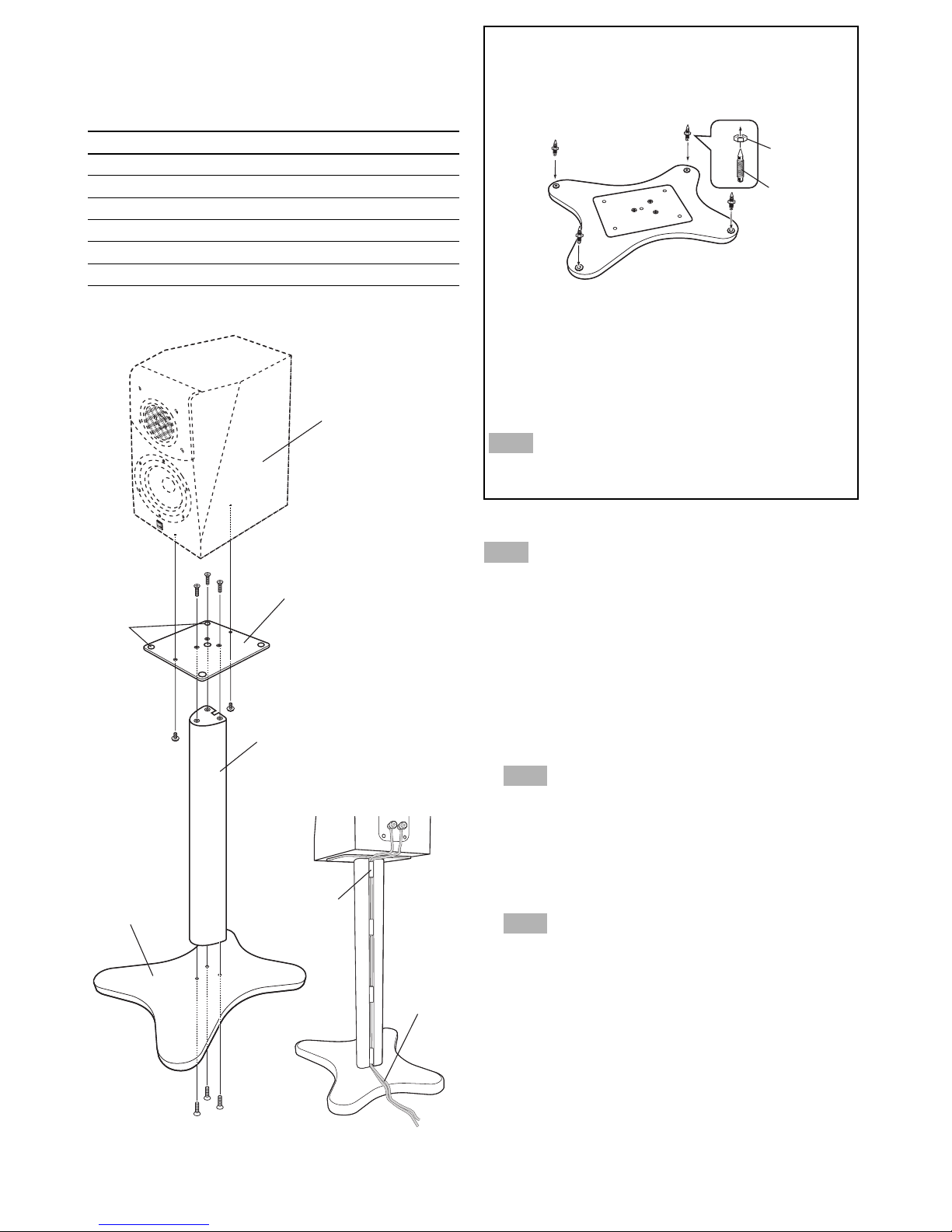

Assembly figure

Note

Bottom side of the base
