QUICK-CONNECT GUIDE

YHT-17

YHT-17QUICK-CONNECT GUIDE

INTRODUCTION

Yamaha developed the YHT-17 A/V Home Theater

package to turn your home into a theater. In addition to

enhancing the sound of a video source, like your TV,

DVD, or VCR, the YHT-17 also superbly reproduces

audio sources, such as a CD player or a cassette deck.

This Quick-Connect Guide will help you get started.

Study the speaker system plan (below), and then use

the interconnect diagrams (on the following pages) to

connect the receiver and speakers to your system.

For the video portion, you will need a DVD player or

hi-fi stereo VCR and a television or monitor. Refer to the

Yamaha HTR-5230 Owner’s Manual, as well as those that

came with your other components, for complete instruc-

tions and cautions. Be sure to turn off all power while

making connections.

Save this Quick-Connect Guide for future reference.

NOTE: Label the end of each speaker wire (i.e., left rear, right

front, etc.) before connecting them to the A/V receiver. For wire

runs over 30 feet, use larger 18- or 16-gauge speaker wire.

• Velcro (for secure fastening of NS-AC16 on TV)

• Brackets, toggle bolts, molly anchor screws, or sheet

metal screws (for securing NS-A16 speakers to walls)

NOTE: If you are unsure of how to securely and safely fasten

speakers to a wall, please contact a reliable source about the best

type of hardware for your particular wall's construction.

Secure installation is the purchaser's responsibility.

TOOLS AND PARTS

The YHT-17 Home Theater package consists of (1)

HTR-5230 A/V receiver with (1) universal remote

control, (4) 2-way NS-A16 front/rear speakers, (1)

NS-AC16 2-way center-channel speaker, 100' of

speaker wire, (1) SW-201 Powered Subwoofer, and

related owner’s manuals. You will also need:

• Wire strippers (optional)

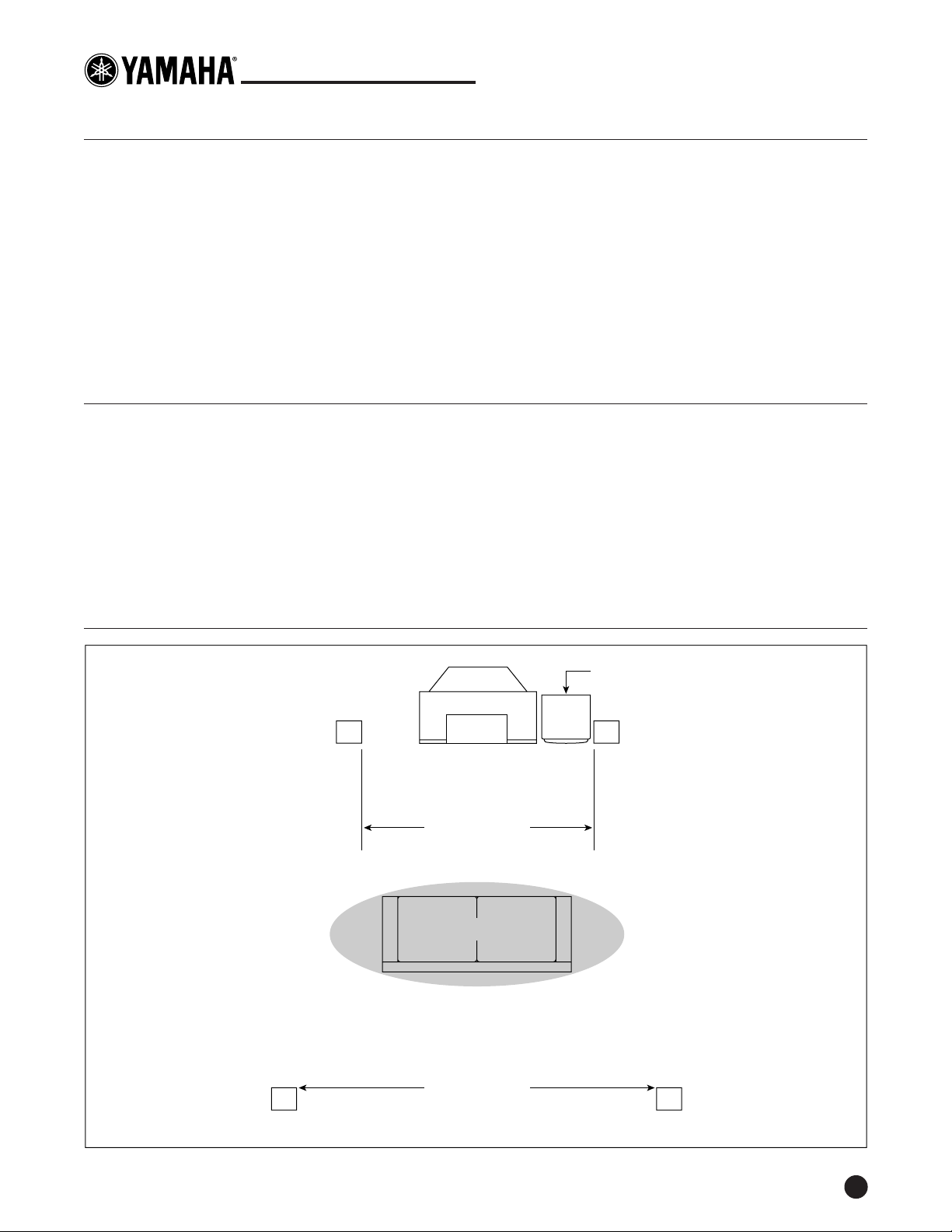

SPEAKER SYSTEM PLAN

NS-A16

(left side, same height as TV)

NS-A16

(right side, same height as TV)

L = Left Channel

R = Right Channel

C = Center Channel

S = Surround Channel

NS-A16

(on stand or wall, at least

ear level or preferably higher)

NS-A16

(on stand or wall, at least

ear level or preferably higher)

8'~10' apart

NS-AC16

(on top or below TV)

6'~8' apart

Couch

Listening Area

Sub

SW-201 Subwoofer (on floor)

YHT-17QUICK-CONNECT GUIDE

CONNECTING AUDIO COMPONENTS

Yamaha HTR-5230 Receiver (Rear Panel)

NOTE: For your convenience, the Yamaha HTR-5230 receiver is equipped with two

switched AC outlets (100 W max.). If desired, use them to power on connected

components (e.g., CD player or turntable) each time the receiver is turned on.

However, do not use them for components equipped with clocks (e.g., VCR).

TAPE/MD

(PLAY)

OUT

(REC)

AUDIO SIGNAL

L Out

Use RCA Audio Cables For Audio Interconnections

R Out

L Out* R Out*

* Use Playback Or Line Out

** Use Line In

L In** R In**

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

CD Player (Changer)

Cassette Deck or

MD Recorder

YHT-17QUICK-CONNECT GUIDE

CONNECTING THE YHT-17 SPEAKERS (BASIC HOOK-UP)

NS-AC16

(Center Channel)

NS-A16

(Front Right Ch.)

NS-A16

(Front Left Ch.)

NS-A16

(Surround Right)

NS-A16

(Surround Left)

Yamaha HTR-5230

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to right position

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

−

−−

−

Cntr R

Surround

Main Spkrs.

/MONO

VOLUME

INPUT1

FROMAMPLIFIER

OUTPUT

TOSPEAKERS

INPUT2

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

OFF

POWER

0I0

INPUT1

FROM AMPLIFIER

OUTPUT

TO SPEAKERS

Subwoofer Wiring

SW-201

(Subwoofer)

To AC Outlet

Speaker

Wiring

BLK TERMINAL = (–)

❶Strip 1⁄4" off ends of speaker wires

❷Push and hold down levers

❸Insert speaker wires and

release levers

❶

❸

❷

RED TERMINAL = (+)

YHT-17QUICK-CONNECT GUIDE

CONNECTING THE YHT-17 SPEAKERS (ADVANCED SPEAKER CONNECTIONS)

NS-AC16

(Center Channel)

NS-A16

(Front Right Ch.)

NS-A16

(Front Left Ch.)

NS-A16

(Surround Right)

NS-A16

(Surround Left)

Yamaha HTR-5230

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to right position

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

−

−−

−

Cntr R

Surround

Main Spkrs.

/MONO

VOLUME

INPUT1

FROMAMPLIFIER

OUTPUT

TOSPEAKERS

INPUT2

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

OFF

POWER

0I0

Subwoofer Wiring

SW-201

(Subwoofer)

To AC Outlet

INPUT2 /MONO

RCA Audio Cable

(not included)

Speaker

Wiring

BLK TERMINAL = (–)

❶

Strip 1⁄4" off ends of speaker wires

❷Push and hold down levers

❸Insert speaker wires and

release levers

❶

❸

❷

RED TERMINAL = (+)

YHT-17QUICK-CONNECT GUIDE

INITIAL ADJUSTMENT OFTHE SW-201 SUBWOOFER

To achieve the optimum volume balance between the

SW-201 Subwoofer and the NS-A16 Main Speakers,

perform the following procedure:

1. Insert the SW-201’s power plug into a nearby ac outlet.

2. Set the SW-201’s VOLUME control to 0 (minimum

setting), the AUTO STANDBY switch to HIGH, and

the HIGH CUT switch to LOW.

3. Press the SW-201’s POWER switch to ON and power

on all other components.

INPUT1

FROM AMPLIFIER

OUTPUT

TO SPEAKERS

INPUT2 /MONO

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

OFF

POWER

VOLUME

0I0

HIGH CUT

LOW

HIGH

To AC Outlet

SW-201 Subwoofer

(Rear Panel)

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

VOLUME

0I0

HIGH CUT

LOW

HIGH

❷

❸

❶

OFF

POWER

4. Play an audio source and adjust the HTR-5230’s

VOLUME control to a desired listening level.

5. On the SW-201, increase the volume gradually to

adjust the balance the volume between the SW-201

Subwoofer and the NS-A16 Main Speakers.

NOTE: Once the volume is balanced between the

subwoofer and the main speakers, you can adjust the

volume of your whole sound system by using the

HTR-5230's VOLUME control.

YHT-17QUICK-CONNECT GUIDE

CONNECTING VIDEO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch

(on the VCR) to Line position to record from another source

connected to the Yamaha HTR-5230 receiver.

Yamaha HTR-5230 Receiver (Rear Panel)

DVD/LD

SAT/D-TV MONITOR

OUT

IN OUT

VCR

VIDEO SIGNAL

VIDEO

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use RCA Video Cables And Jacks For Video Interconnections

Optional 75-ohm

Coaxial Cable

Hi-Fi Stereo VCR

DVD Player

(or Video Game)

Video In Video Out

Video Out

ANT In

ANT Out

(RF Out)

Video In

Monitor/TV

Satellite Receiver

YHT-17QUICK-CONNECT GUIDE

Yamaha HTR-5230 Receiver (Rear Panel)

DVD/LD

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use an RCA Video Cable And Jacks For Video Interconnections

DVD Player

Mixed Audio L Out

Mixed Audio R Out

Digital Audio Out

(Coaxial)

Digital Audio Out

(Optical)

Video Out

CONNECTING A DVD PLAYER

YHT-17QUICK-CONNECT GUIDE

CONNECTING A 5.1-CHANNEL DECODER

If you own a 5.1-channel decoder (or a unit which

incorporates a 5.1-channel decoder), you can connect

its discrete outputs to the HTR-5230 as shown below.

• To hear playback of a stereo or mono audio source

or one encoded with Dolby Pro Logic Surround*,

connect the unit (e.g., DVD player) to the DVD/LD

(or SAT/D-TV) AUDIO SIGNAL input terminals.

• The discrete signals feeding to the HTR-5230 cannot

be recorded by a tape deck, MD recorder, or VCR.

To record programs from a source (e.g., laserdisc

player), connect the source unit to the DVD/LD (or

SAT/D-TV) AUDIO SIGNAL input terminals.

Yamaha HTR-5230 Receiver (Rear Panel)

DVD/LD

MAIN SUR.

CNTR.

SUB.

EXTERNAL DECODER INPUT

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use an RCA Video Cable And Jacks

For Video Interconnections

Digital Audio Cable

(Optical or Coaxial)

DVD Player

Audio L Out Audio R Out

L Main Out

R Main Out

L Surround Out

Center Out

Subwoofer Out

R Surround Out

Video Out

5.1-Channel Decoder

*Dolby Pro Logic Surround is a trademark of Dolby Laboratories Licensing Corp.
