Yamaha NS-C8800 Manuel utilisateur

English

E-1

Read these precautions carefully before using your

speakers.

●Any time you note distortion, reduce the volume

control on your amplifier to a lower setting. Never

allow your amplifier to be driven into “clipping”.

Otherwise the speakers may be damaged.

●When using an amplifier with a rated output power

higher than the nominal input power of the speakers,

care should be taken never to exceed the speakers’

maximum input.

●Do not attempt to clean the speakers with chemical

solvents as this might damage the finish. To clean,

wipe with a dry, soft cloth.

●To prevent the enclosure from warping or

discoloring, do not place the speakers where they

will be exposed to direct sunlight or excessive

humidity.

PRECAUTIONS

SETTING UP THE SPEAKERS

NS-C8800 Natural Sound Center Speaker System

NS-E8800 Natural Sound Effect Speaker System

●Do not place the speaker where they are liable to be

knocked over or struck by falling objects. Stable

placement will also ensure better sound

performance.

●Placing the speakers on the same shelf or rack as

the turntable can result in feedback.

●These speakers feature a magnetically shielded

design, but there is still a chance that placing them

too close to a TV set might impair picture color.

Should this happen, move the speakers away from

the TV set.

●Secure placement or installation is the owner’s

responsibility.

YAMAHA shall not be liable for any accident

caused by improper placement or installation of

the speakers.

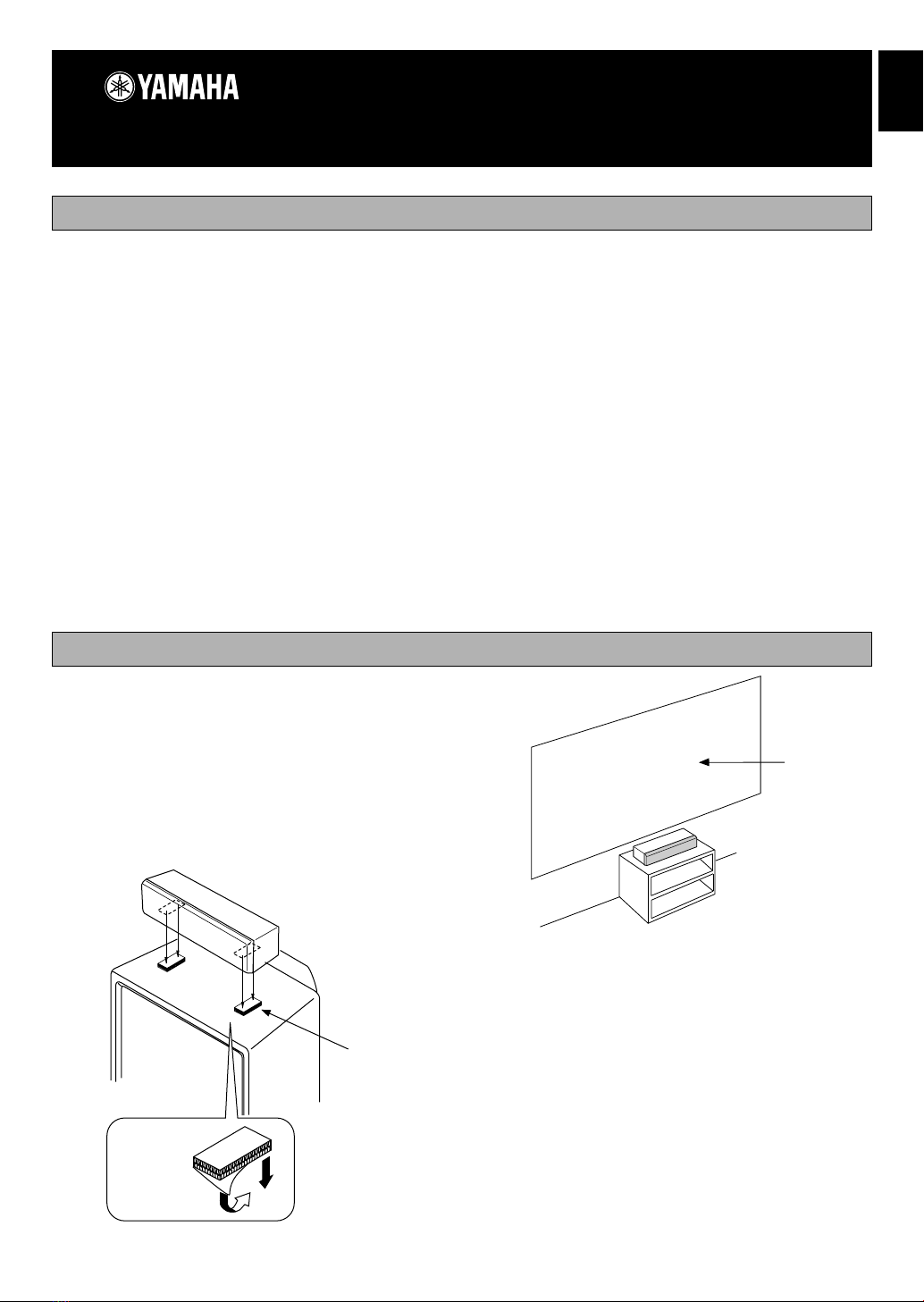

Place the speaker on the TV whose top is flat or on the

floor under the TV or inside the TV rack so that it is

stabilized.

When placing the speaker on top of the TV, to prevent

the speaker from falling down, put the provided

fasteners at two points on both bottom of the speaker

and top of the TV.

䡵Placing the center speaker

Fastener

TV set

Notes

●Do not place the speaker on top of the TV

whose area is smaller than the bottom area of

the speaker. If placed, the speaker may drop out

causing an injury to you.

●Do not place the speaker on top of the TV with

an inclination.

●Do not touch the adhesive surface after peeling

off the seal as this will weaken its adhesive

strength.

●Thoroughly wipe clean the surface where the

fastener is to be applied. Note that adhesive

strength is weakened if the surface is dirty, oily

or wet and that this may cause the center

speaker to drop.

Screen

Peel off

the seal

NS-C8800-E8800(02.7.10) 02.7.11, 10:03 AM1

E-2

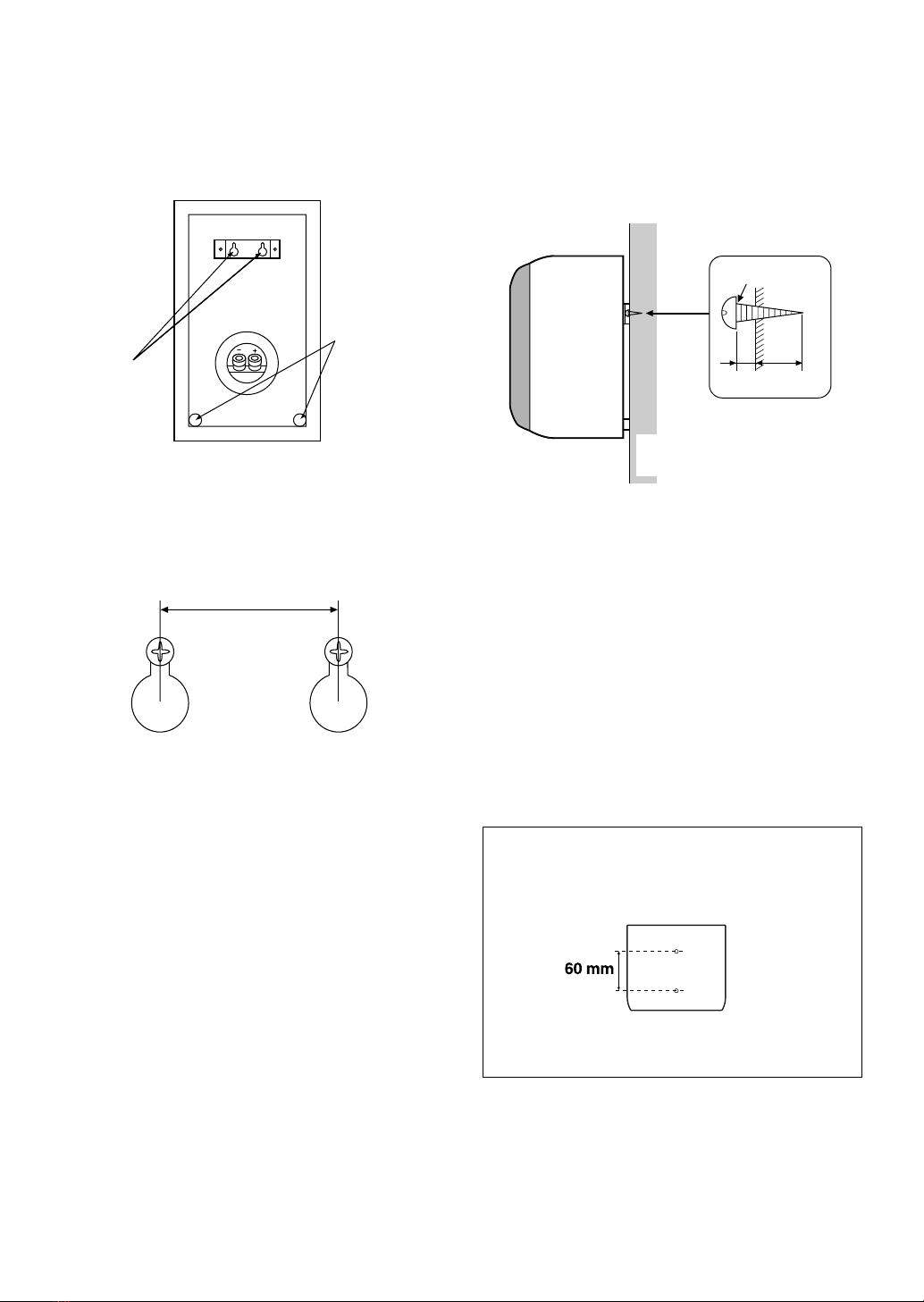

The speakers can be mounted on a wall by using the

bracket attached to the speakers’ back panels.

Make sure that the screws are caught by a narrow

part of the holes securely.

Put the screws into a wall according to the figure

shown below.

䡵Mounting the effect speakers on the wall

Holes

Pads

Fasten screws into a firm wall or wall support as

shown in the figure below, and hang the holes on the

protruding screws.

WARNING

●Each speaker weights 2.3 kg. Do not mount

them on thin plywood or soft wall surface

material, as the screws may come out of the

flimsy surface, causing the speakers to fall

down and be damaged, or result in personal

injury.

●Do not fasten the speakers to wall with nails,

adhesives, or other unsound hardware. Long

term use and vibrations may cause them to fall

down.

●To avoid accidents resulting from tripping over

loose speaker cords, fix them to the wall.

40 mm

Diam. 3.5 to 4 mm

Min.

12 mm

3 mm

Tapping screw

(available at a

hardware store)

Wall or wall

support

You can also use the screw holes on the bottom of the

NS-E8800 for installing the speakers on commericially

available speaker stands (if you do not use the provided

mounting brackets.)

* Before installing, please refer to the instruction manual

of the speaker stand.

NS-C8800-E8800(02.7.10) 02.7.11, 10:03 AM2

English

E-3

IMPED

SET B

MAIN A OR B: 4

A +B: 8

CENTER

: 6

REAR

: 6

SPEAKERS

MAIN

–

R L

–

CENTER REAR

(SURROUND)

–

SUB

OOFER

OUTPUT

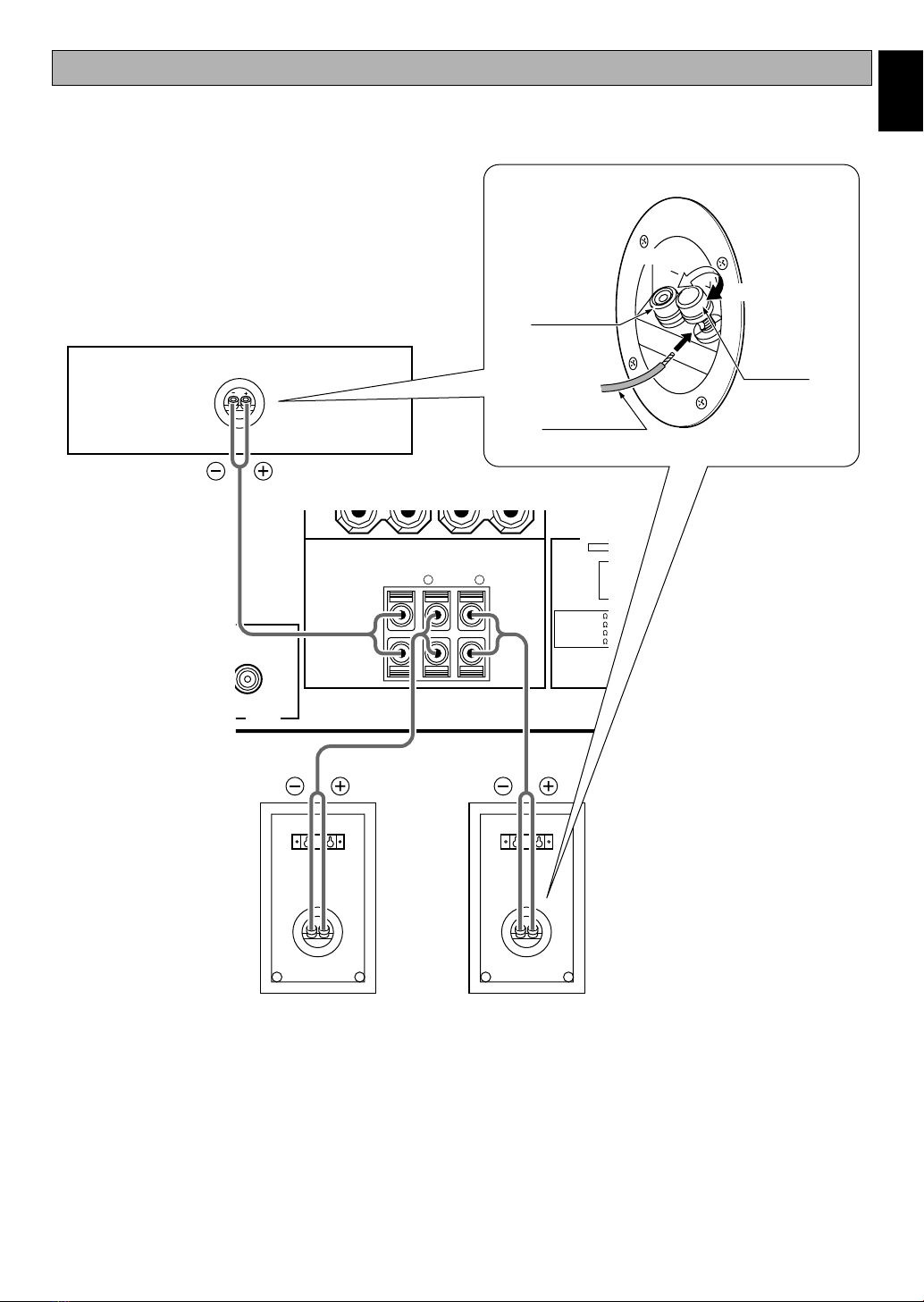

CONNECTIONS TO YOUR AMPLIFIER

BEFORE MAKING CONNECTIONS, MAKE SURE THAT THE AMPLIFIER IS SWITCHED OFF.

Note

Do not let the bare speaker wires touch each other

as this could damage the speaker or the amplifier,

or both of them.

Amplifier or

Receiver

Loosen

Tighten

Black (–)

Red (+)

NS-C8800

NS-E8800

LeftRight

Red (+)

NS-C8800-E8800(02.7.10) 02.7.11, 10:03 AM3

E-4

SPECIFICATIONS

<NS-C8800>

Type.................. 2-way 3-speaker acoustic-suspension

speaker system

Magnetic-shielding type

Driver........................................ 10 cm cone woofer x 2

2.5 cm balanced dome tweeter

Impedance ........................................................ 6 ohms

Frequency Response .......................... 65 Hz to 28 kHz

Nominal Input Power ............................................ 60 W

Maximum Input Power ........................................ 160 W

Sensitivity .............................................. 89 dB/2.83V/m

Crossover Frequency .......................................... 8 kHz

Dimensions (WxHxD) ................... 465 x 135 x 175 mm

Weight ................................................................. 3.8 kg

Accessories ............................. Speaker cable (4m) x 1

Fastener x 2

<NS-E8800>

Type.................. 2-way 2-speaker acoustic-suspension

speaker system

Magnetic-shielding type

Driver.............................................. 10 cm cone woofer

2.5 cm balanced dome tweeter

Impedance ........................................................ 6 ohms

Frequency Response .......................... 60 Hz to 28 kHz

Nominal Input Power ............................................ 40 W

Maximum Input Power ........................................ 100 W

Sensitivity .............................................. 85 dB/2.83V/m

Crossover Frequency ........................................ 10 kHz

Dimensions (WxHxD) ................... 150 x 265 x 159 mm

Weight ................................................................. 2.3 kg

Accessories ........................... Speaker cable (10m) x 1

●Specifications subject to change without notice due to product improvements.

●Care should be taken not to exceed the input power values noted above.

NS-C8800-E8800(02.7.10) 02.7.11, 10:03 AM4

V990460

Printed in China

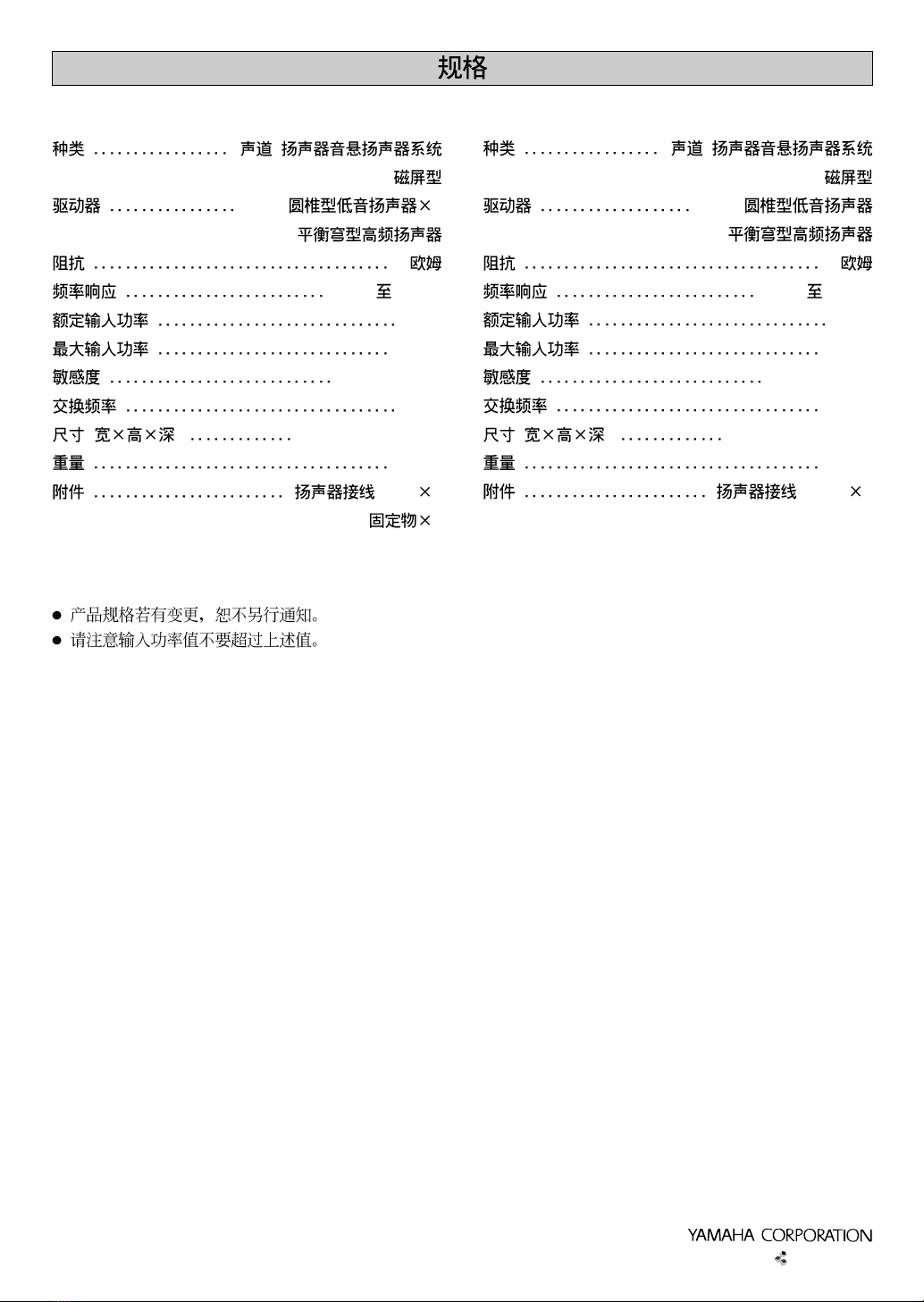

<NS-C8800>2 3

10 cm 2

2.5 cm

65 Hz 28 kHz

60 W

160 W

89 dB/2.83V/m

8 kHz

( ) 465 x 135 x 175 mm

3.8 kg

(4 m) 1

<NS-E8800>2 2

10 cm

2.5 cm

60 Hz 28 kHz

40 W

100 W

85 dB/2.83V/m

10 kHz

( ) 150 x 265 x 159 mm

2.3 kg

(10 m) 2
