Yamaha MusicCast BAR 400 Manuel utilisateur

UAB

Front Surround System

YAS-408

Quick Start Guide

English

2En

Contents

Before using the unit ............................................................ 3

Features....................................................................................................................3

PREPARATION

Supplied items ...................................................................... 4

Part names and functions .................................................... 6

Installation ............................................................................ 9

Connections ........................................................................ 10

PLAYBACK

Operations........................................................................... 13

NETWORKS

Connecting to a network.................................................... 18

Specifications...................................................................... 22

About this Quick Start Guide

This Quick Start Guide provides basic setup to use the unit and feature of the unit.

The unit is equipped with a number of other functions not described in this document.

For more information about this product, refer to the Owner’s Manual on the Yamaha

website.

Follow one of the methods described below to view the latest Owner’s Manual.

In HTML format

• Scan the QR code found on the front cover of this document.

• Visit the following website.

https://manual.yamaha.com/av/18/yas408/

In PDF format

• Visit the following website.

https://download.yamaha.com/

[For U.S. customers only]

Visit the following website for additional information, FAQ’s, downloads such as

“Owner’s Manual” and product updates.

http://usa.yamaha.com/support/

• In this booklet, iOS and Android mobile devices are collectively referred to as

“mobile devices”. The specific type of mobile device is noted in explanations as

needed.

• Trademarks and trade names used in this document are those of their respective

owners. See the Owner’s Manual for more information.

• This manual uses the following signal words for the important information:

–WARNING

This content indicates “risk of serious injury or death.”

–CAUTION

This content indicates “risk of injury.”

–NOTICE

Indicates points that you must observe in order to prevent product failure, damage

or malfunction and data loss, as well as to protect the environment.

–NOTE

Indicates notes on instructions, restrictions on functions, and additional

information that may be helpful.

Before using the unit En 3

Before using the unit

Introduction

This front surround system allows for the enjoyment of dynamic sound with video played on a TV.

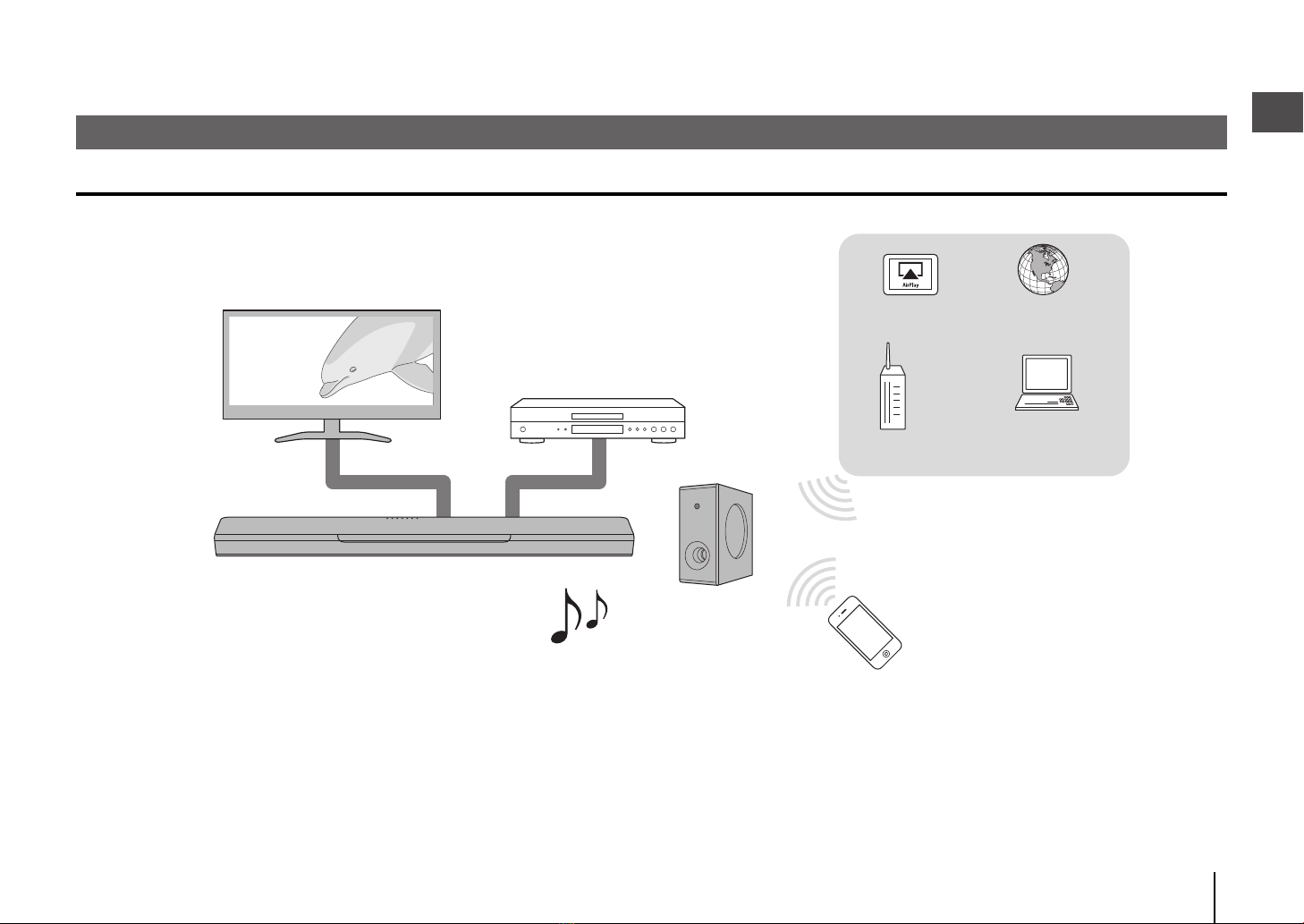

Features

Playback device

(BD/DVD player)

The unit

• Play audio from a TV or BD/DVD player in

surround sound.

• Play audio from a Bluetooth device with

excellent quality.

• Play audio over a network with superior

sound quality.

Bluetooth device

(Smartphone)

AirPlay Internet radio

Streaming service

Computer (NAS)

Wireless router

4En PREPARATION ➤Supplied items

PREPARATION

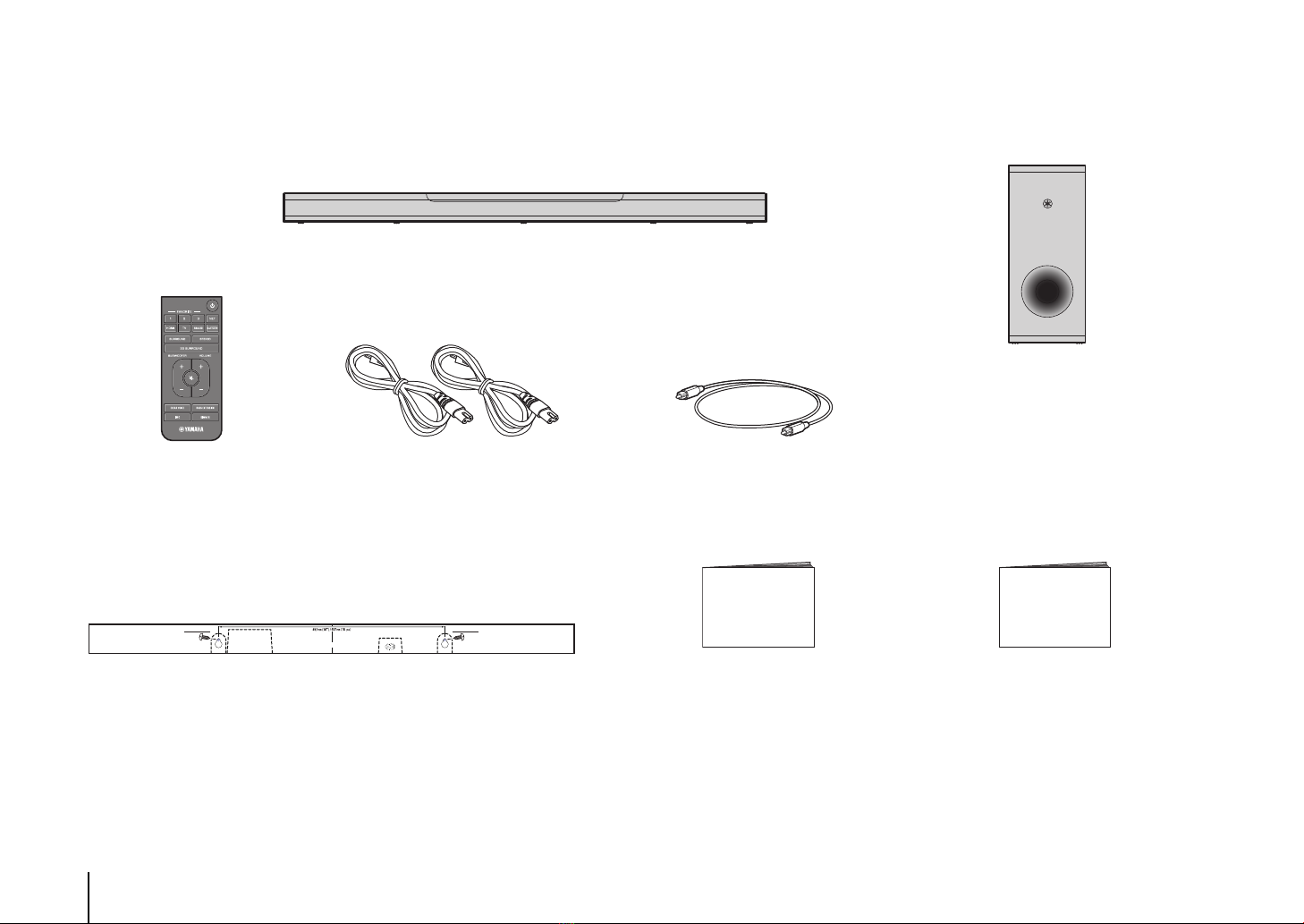

Supplied items

Make sure you have received all of the following items.

Center unit (YAS-CU408)

Remote control

A CR2025 Lithium battery has

already been inserted into the

remote control.

Optical digital audio cablePower cord × 2

DRILL HERE / PERCER CIC

MOUNTING TEMPLATE / GABARIT DE FIXATION

DRILL HERE / PERCER CIC

Mounting template

Use when mounting the center unit on a wall

Quick Start Guide (this booklet)

Wireless subwoofer (NS-WSW43)

In this manual, the wireless subwoofer is

referred to as “subwoofer”.

Safety Brochure

PREPARATION ➤Supplied items En 5

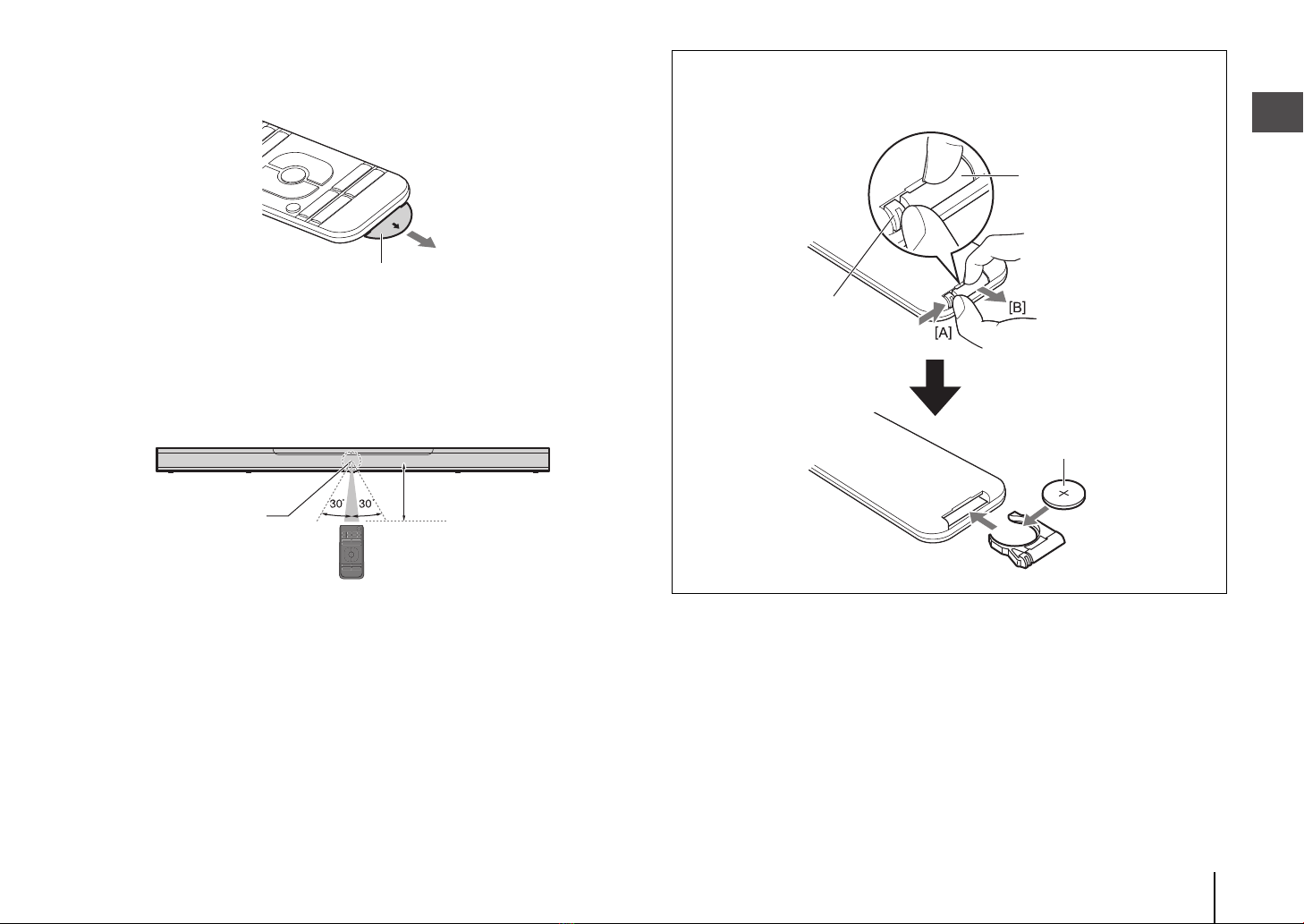

Preparing the remote control

Remove the battery’s insulating strip before attempting to use the remote control.

Operating range of the remote control

Operate the remote control within the range as shown below.

Battery’s insulating strip

Remote control sensor

Within 6 m (20 ft)

Replacing the battery in the remote control

Press and hold the release tab firmly in the direction indicated by [A], and slide the

battery holder out in the direction indicated by [B].

Battery holder

Release tab

CR2025 Lithium battery

6En PREPARATION ➤Part names and functions

Part names and functions

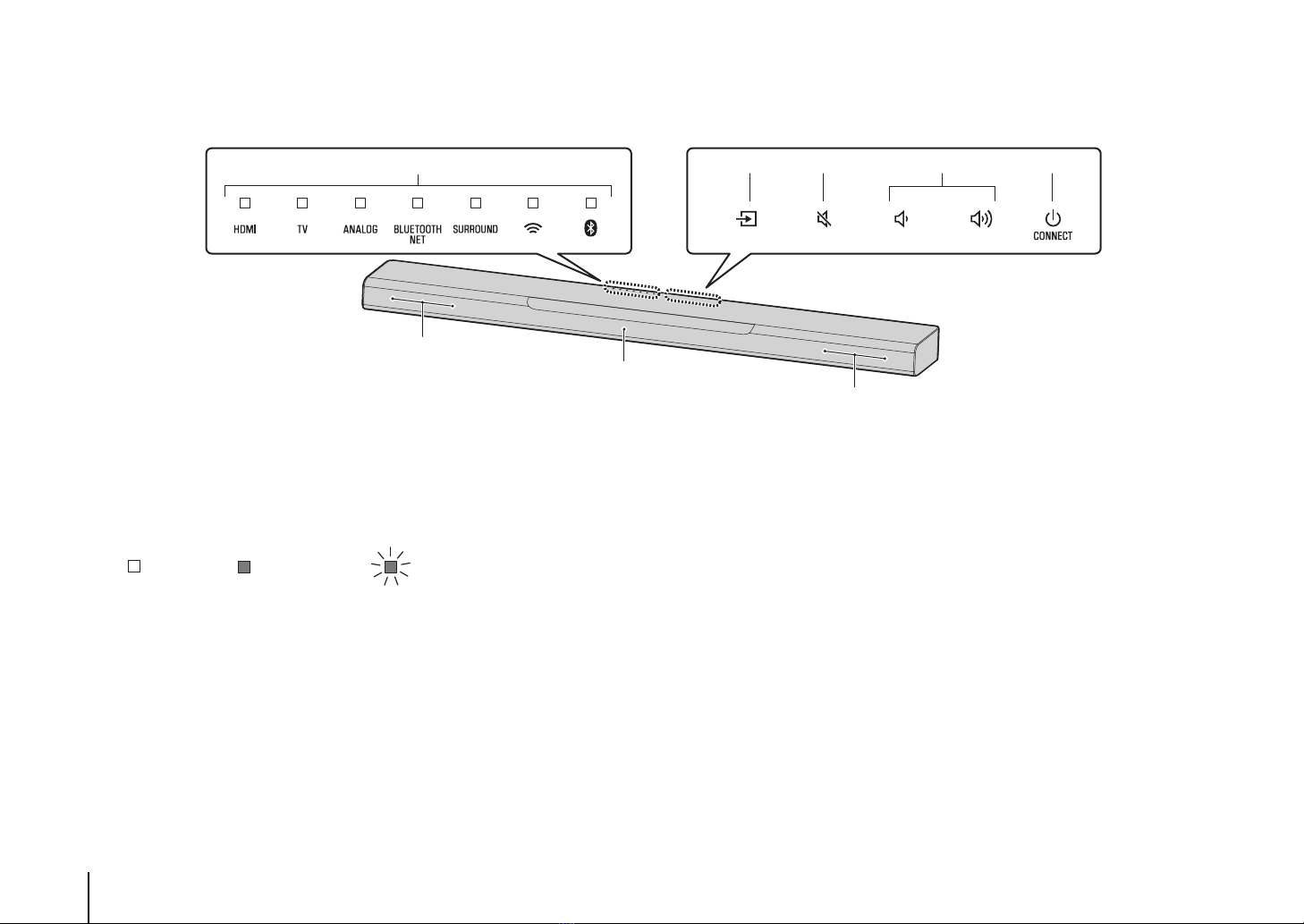

Center unit (front panel/top panel)

aIndicators

The indicators on the top panel flash or glow, to show the operation and setting

status.

In this manual, indicators status, such as off, glowing, and flashing, are shown as the

illustrations below.

NOTE

• The brightness of the indicators can be changed using DIMMER on the remote control (p.17).

by(input)

Select an input source to be played back (p.14).

c|(mute)

Mute the audio output. Touch |again to unmute (p.15).

d}/{(volume +/-)

Adjust the volume (p.15).

ez(power)/CONNECT

Turn on or off the unit (p.13).

Use to connect the unit to a network using the MusicCast CONTROLLER app (p.19).

NOTE

• The unit may automatically turn off when the auto power standby function is enabled. For details, see

“Setting the auto power standby function” in the Owner’s Manual.

fSpeakers

gRemote control sensors

Receive infrared signals from the remote control of the unit (p.13).

NOTE

•b, c, dand eare touch sensors. Touch icons with your finger to control functions.

• Do not place any objects on the touch panel as doing so may result in unintended operations.

• When touch panel control is disabled, no operations can be performed using the unit’s touch panel. This

prevents accidental operation of the unit. For details, see “Enabling/disabling touch panel control (child lock

function)” in the Owner’s Manual.

bc d ea

: Off : Glows : Flashes

PREPARATION ➤Part names and functions En 7

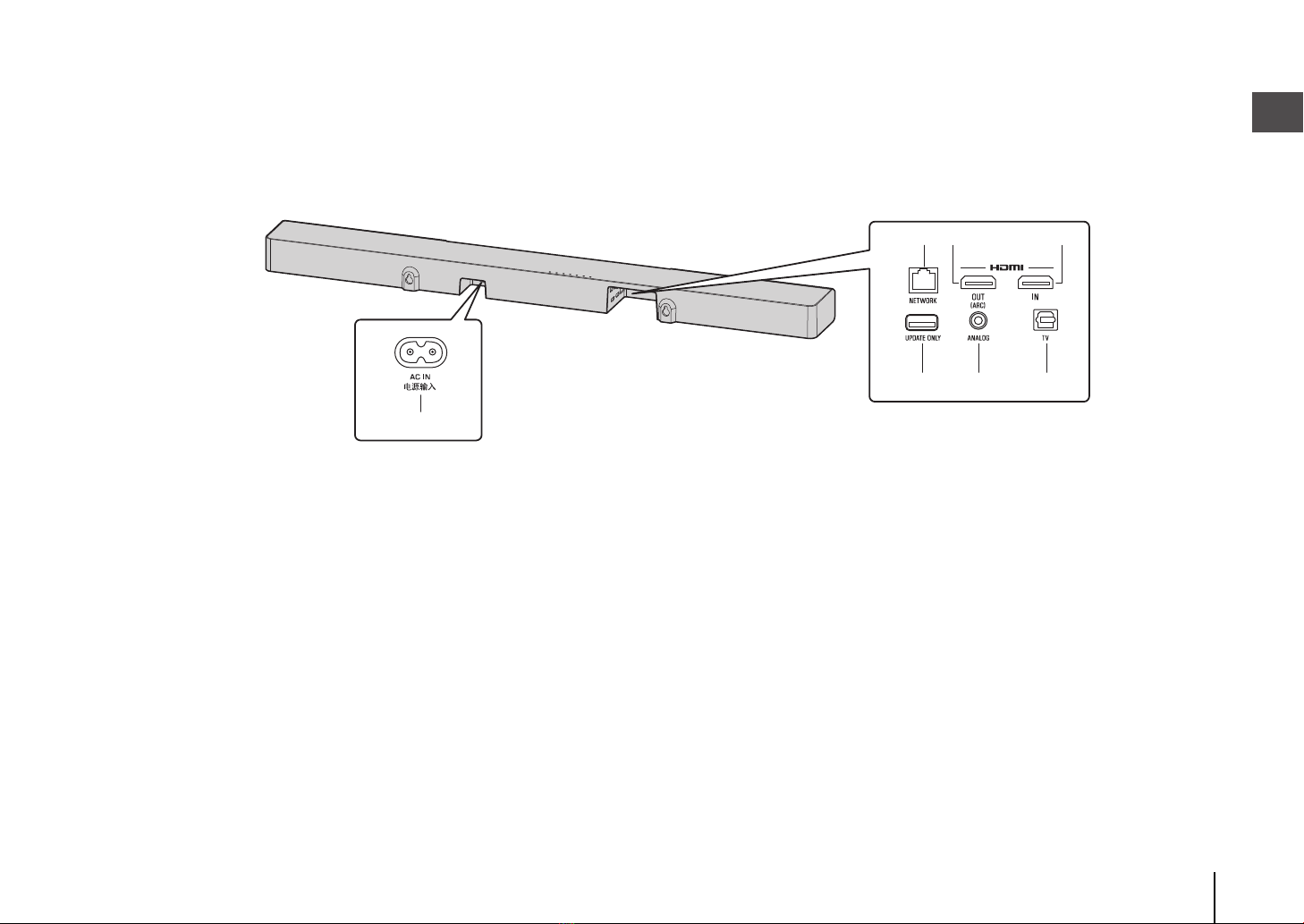

Center unit (rear panel)

The illustrations in this manual include labels next to the jacks on the bottom of the unit for easy identification.

aAC IN jack

Connect the power cord of the center unit (p.11).

bNETWORK jack

For connecting to a network with a network cable (p.18).

cHDMI OUT (ARC) jack

For connecting to an HDMI-compatible TV and outputting video/audio signals (p.10).

When a TV that supports Audio Return Channel (ARC) is used, TV audio signal can

also be input through this jack.

dHDMI IN jack

For connecting to an HDMI-compatible playback device, such as a BD/DVD player, a

satellite and cable TV tuner, and a game console, and inputting video/audio signals

(p.10).

eUPDATE ONLY jack

Use to update this unit’s firmware.

Refer to the instructions supplied with the firmware for details.

fANALOG input jack

For connecting to an external device with a 3.5 mm stereo mini plug cable and

inputting audio signals (p.11).

gTV input jack

For connecting to a TV with an optical digital audio cable and inputting audio signals

(p.10).

ef g

8En PREPARATION Part names and functions

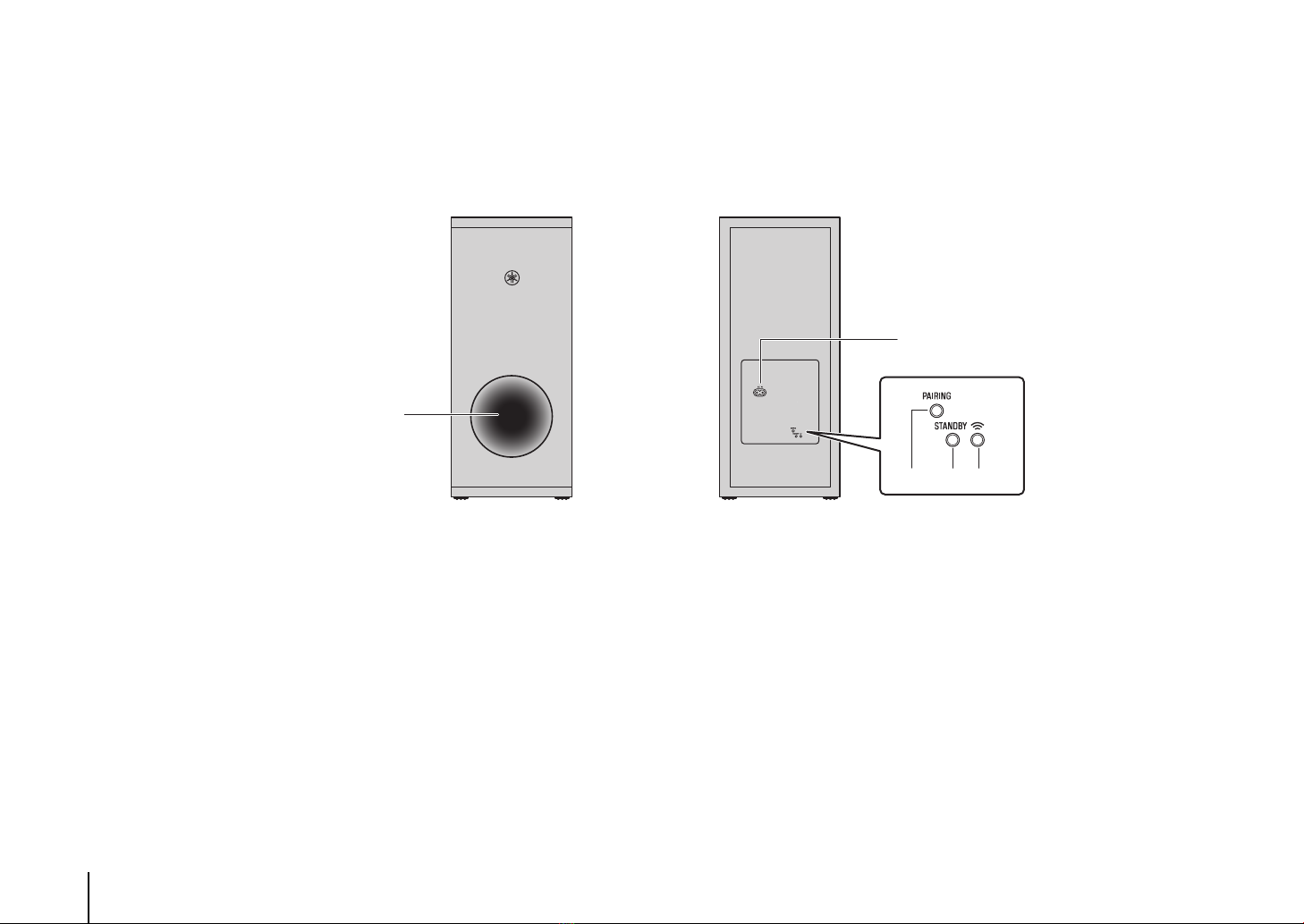

Subwoofer

aBass reflex port

bAC IN jack

Connect the power cord of the subwoofer (p.11).

cPAIRING button

Use to pair the center unit with the subwoofer manually.

dSTANDBY indicator

Shows subwoofer’s status (p.13).

e*indicator

Glows when the center unit and subwoofer are connected wirelessly (p.12).

cde

PREPARATION ➤Installation En 9

Installation

The center unit can be installed on a TV stand, etc.

Position the subwoofer to the left or right of the center unit. Angle the subwoofer slightly toward the center of the room to prevent sound from reflecting off of walls.

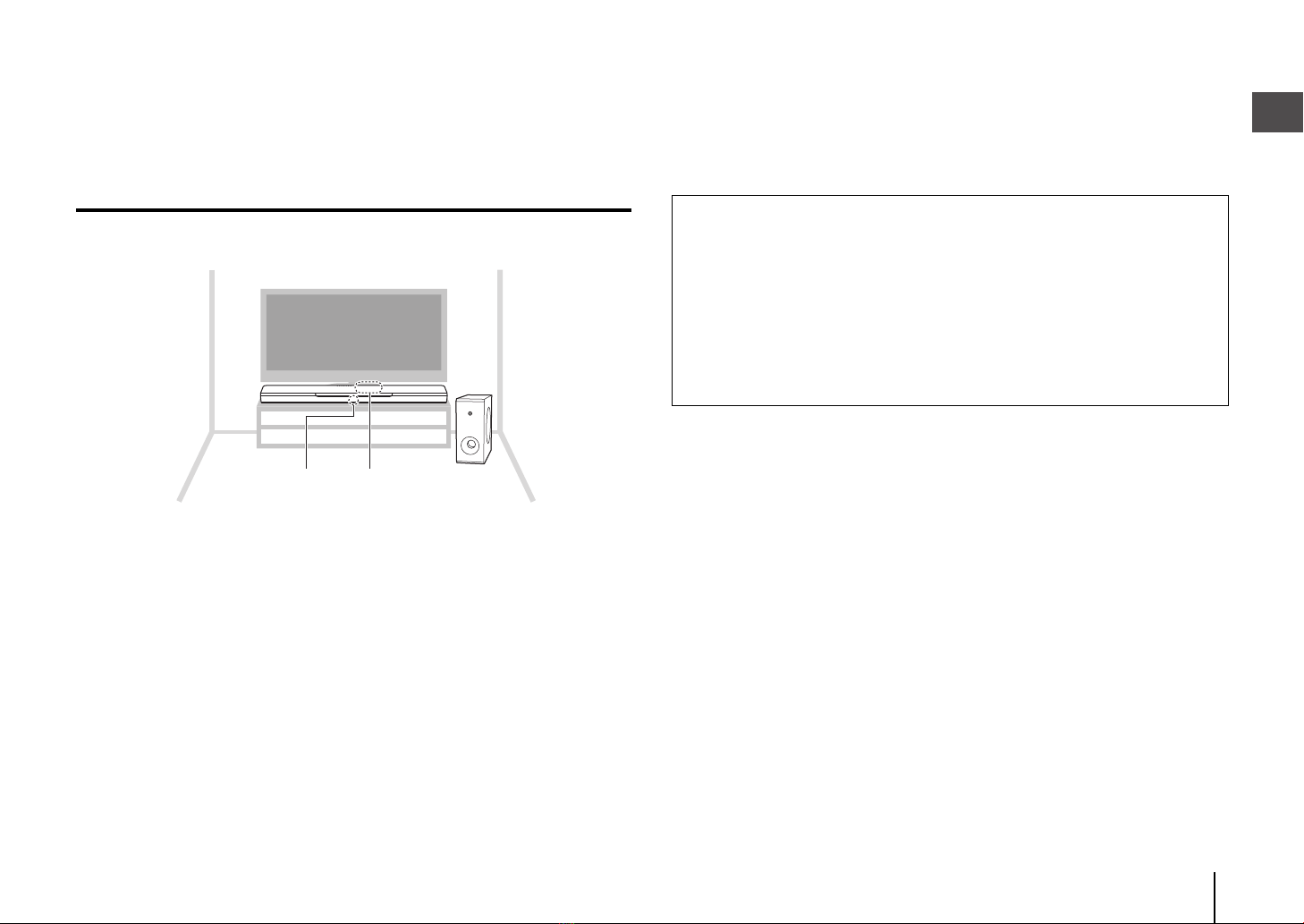

Installing the center unit on a TV stand

Position the center unit with the touch panel facing up.

NOTE

• The center unit can also be mounted on a wall. Some knowledge of building construction is required for

safe installation. Please have a qualified contractor or dealer install the center unit on a wall. For details,

see “Information for qualified contractors or dealers” in the Owner’s Manual.

Touch panelRemote control sensor

NOTICE

• Do not stack the center unit and a BD player or other device directly on each other. Doing so may cause

a malfunction due to vibrations.

• Avoid touching, and never place any weight or pressure on, the subwoofer’s speaker (portion covered

with fabric). Doing so may damage the speakers.

• Do not install the subwoofer where the speaker (portion covered with fabric) is too close to a wall, or

cover the subwoofer’s bass reflex port. Doing so may reduce sound volume.

• The subwoofer can only be used in its upright position. Do not position the subwoofer on its side.

• This unit contains non-magnetic shielding speakers. Do not place magnetically sensitive items (hard disk

drive, etc.) near the unit.

• The center unit and subwoofer communicate wirelessly. Do not place objects that block or interfere with

wireless signals, such as metallic furniture or devices, between the center unit and the subwoofer as

wireless communication may be adversely affected.

10 En PREPARATION ➤Connections

Connections

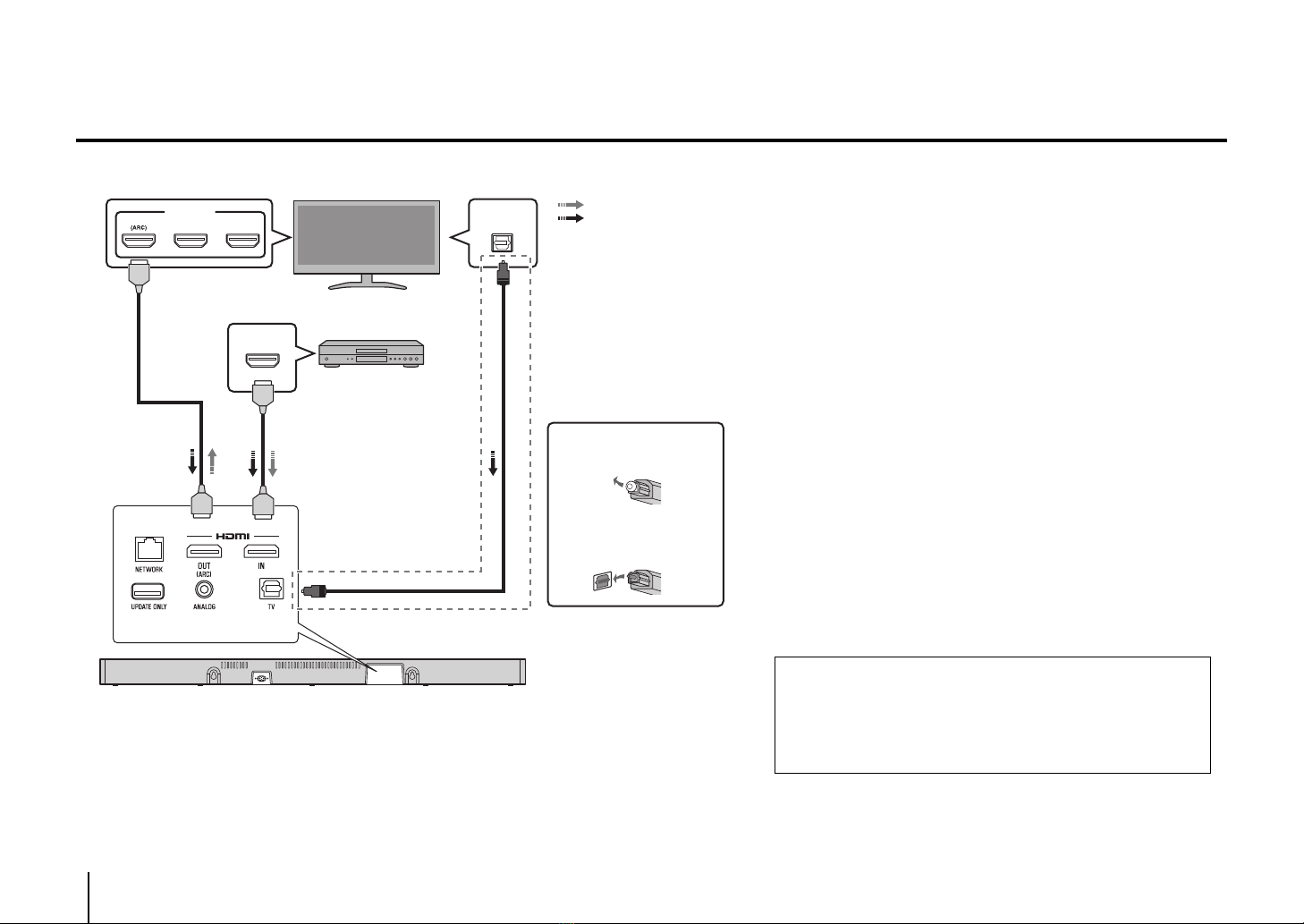

aConnecting a TV and set-top box

For the cable connection, follow the procedure below.

OPTICAL

OUTPUT

123

HDMI INPUT

HDMI

OUTPUT

1HDMI cable (sold separately)

The digital audio/video signals from the set-top box or BD/DVD

player are input to this unit.

2HDMI cable (sold separately)

Digital video from the set-top box or BD/DVD player is displayed

on the TV.

NOTE

• Use a 19-pin HDMI cable with the HDMI logo printed on it. A cable with a maximum

length of 5 m (16 ft) is recommended to prevent degradation of signal quality.

• Use of a flat HDMI cable may make installing the center unit difficult because the

cable will be bent by the bottom of the center unit when connected. Confirm the layout

and position of jacks on the center unit before choosing an appropriate HDMI cable.

• This unit supports HDCP version 2.2, a copy protection technology. For playback of

4K video, connect the unit to the HDMI input jack (one compatible with HDCP 2.2) on

an HDCP 2.2-compliant TV, and to the HDMI output jack on a HDCP 2.2-compliant

BD/DVD player.

• Use a premium high-speed HDMI cable for playback of 3D and 4K video content.

Audio Return Channel (ARC) supported TV

• Connect an HDMI cable to the audio return channel supported jack

(the jack with “ARC” indicated) on TV.

• Video and audio content from playback devices can be output from

the TV even when this unit is off (HDMI signal pass-through).

What is Audio Return Channel (ARC)?

In order for the unit to play audio from a TV, the TV must usually be

connected to the unit via an audio cable as well as an HDMI cable.

If, however, the TV supports Audio Return Channel (ARC), TV

audio signals can be input to the unit via the HDMI cable that

outputs video signals from the unit to the TV.

Cable, satellite or

network set-top box, or

BD/DVD player

1. Remove the cap.

2. Check the plug’s

orientation.

: Video signals

: Audio signals

Use the optical digital audio cable

(supplied) when connecting the

center unit to a TV that does not

support Audio Return Channel.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yamaha Système de haut-parleurs

Yamaha

Yamaha NS-U30 Manuel utilisateur

Yamaha

Yamaha YAS-105 Manuel utilisateur

Yamaha

Yamaha IF2112M Manuel utilisateur

Yamaha

Yamaha NS-BP300 Manuel utilisateur

Yamaha

Yamaha NS-W2 Manuel utilisateur

Yamaha

Yamaha YSP-1 Manuel utilisateur

Yamaha

Yamaha SV10 Manuel utilisateur

Yamaha

Yamaha NS-C200 Manuel utilisateur

Yamaha

Yamaha YHT-340 Instructions de montage

Yamaha

Yamaha NS-300 Manuel utilisateur

Yamaha

Yamaha BR10 Instructions de montage

Yamaha

Yamaha HTY-7040 Manuel utilisateur

Yamaha

Yamaha NS-C700 Manuel utilisateur

Yamaha

Yamaha S112V Manuel utilisateur

Yamaha

Yamaha Waveforce WF112 Manuel utilisateur

Yamaha

Yamaha YSP-5100 Manuel d'installation

Yamaha

Yamaha IF2205 Instructions de montage

Yamaha

Yamaha NS-U50 Manuel utilisateur

Yamaha

Yamaha IF2115/AS Manuel utilisateur

Yamaha

Yamaha NS-C225 - Center CH Speaker Manuel utilisateur

Yamaha

Yamaha F12M Manuel utilisateur

Yamaha

Yamaha NS-555 Manuel utilisateur

Yamaha

Yamaha KMS-2500 Manuel utilisateur

Yamaha

Yamaha NS-P220 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur

TCL

TCL 6100 Series Manuel utilisateur
