What are Add-On Effects?

Add-On Effects are software packages that install additional high-quality effects programs on

digital consoles.

Studio Manager Open Deck Window

What is Open Deck?

Open Deck is an Add-On Effects package.

It emulates the tape compression created by two open reel tape recorders (a recording deck and a reproduction

deck). You can change the sound quality by adjusting various elements, such as the deck type, tape quality,

playback speed, etc.

What is VCM (Virtual Circuitry Modeling)?

VCM is a technology that enables the creation of models of element levels in analog circuits (such as resistors

and capacitors).

This technology was developed by an engineering group led by Mr. Kunimoto, an engineer who developed the

first physical modeling synthesizers, VL1 and VP1. Open Deck utilizes VCM technology.

Special Notices

• Copying of the commercially available music sequence data and/or digital audio files is strictly prohibited except for your personal use.

• The software and this Owner’s Manual are exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written

consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held

responsible for the results of the use of this manual and the software.

• The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and may appear somewhat different from

the screens which appear on your computer.

• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective

companies.

Installing Open Deck

See the Add-On Effects Installation Guide for more information on installing Open Deck.

Using Open Deck

As with other effects, you can recall and edit the Open Deck program on the console or in Studio Manager.

The basic operation is as follows:

Select one of the internal effects processors.

Patch the signal to and from the currently selected effects processor.

Locate the Effects Library page.

Select and recall Open Deck.

When you recall the program, all effects processor outputs will be muted temporarily.

Locate the Effects Edit page.

Set the parameters. (See the “Part Names and Functions” section for more information on Open Deck

parameters.)

The procedure for recalling and editing Open Deck varies depending on the console you are using.

Refer to the Owner’s Manual that came with your console for more information.

Editing Parameters in Studio Manager

In Studio Manager, editable parameters appear in both the Open Deck window and the Generic Editor window.

Basically, the Open Deck window enables you to edit Open Deck specific parameters, and the Generic Editor

window enables you to edit parameters common to Open Deck and other Effects.

Refer to the Studio Manager Owner’s Manual for your console for more information on the Generic Editor

window.

Studio Manager Generic Editor Window

Part Names and Functions

Open Deck consists of the following main sections:

•Recording deck section (page 4)

•Reproduction deck section (page 5)

•Open reel tape section (page 6)

•Meter section (page 7)

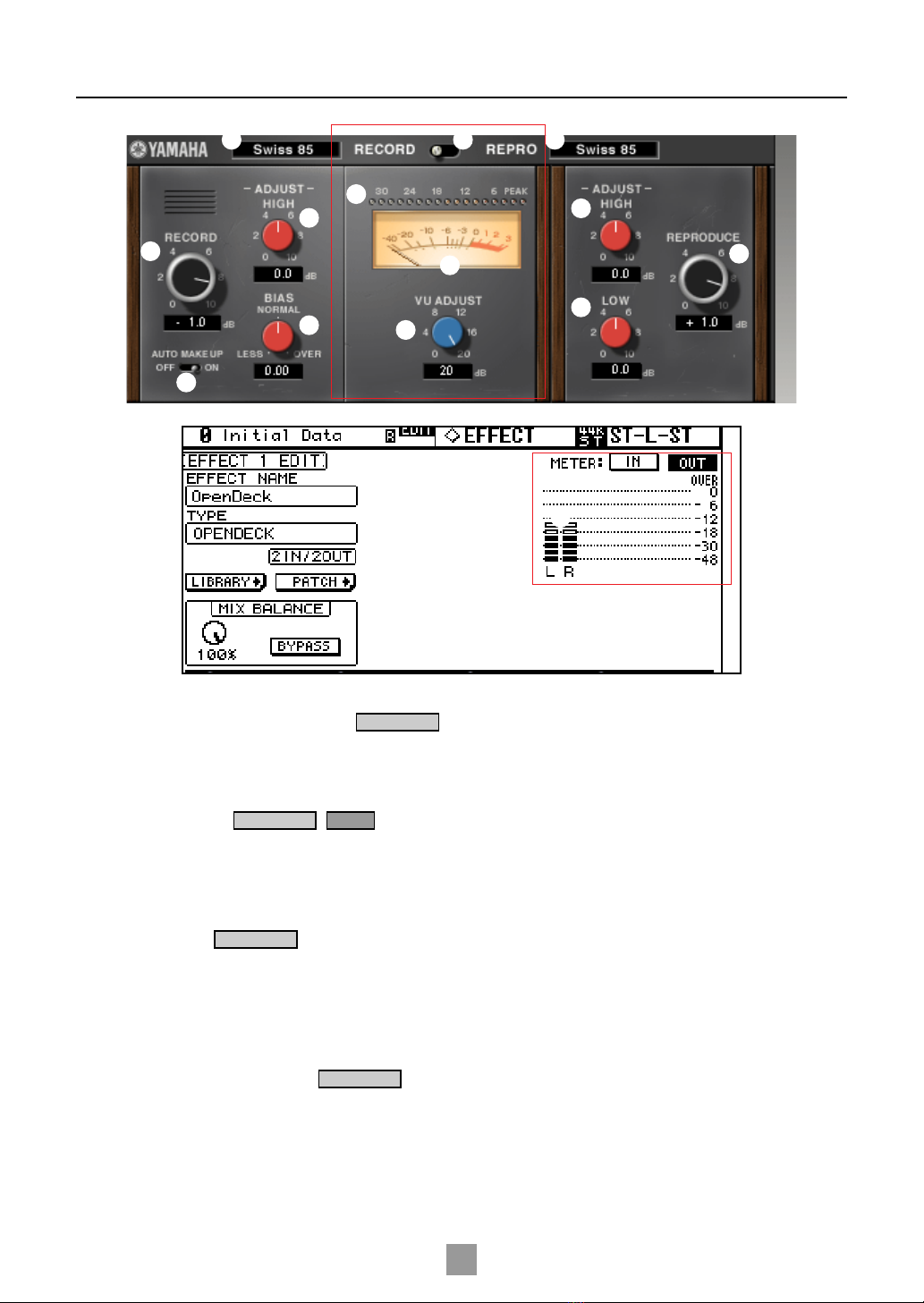

Studio Manager Open Deck Window

Console screen (This is a DM2000 screen.)

)!@

# 6

1 6 !

2 7

3 8

4 9

In the following section:

Functions marked with are available in Studio Manager.

Functions marked with are available on the console.

Recording deck section

[REC DEC]

Selects the recording deck type.

You can select from four deck types: Swiss70, Swiss78, Swiss85, and America70.

[RECORD]/[REC LVL] control

Adjusts the input level of the recording deck. As you raise the level, tape compression is generated, which

narrows the dynamic range and distorts the sound.

The range is from –96.0 through +18.0 dB.

RECORD:[-ADJUST- HIGH]/[REC HI] control

Adjusts the high range gain of the recording deck.

The range is from –6.0 through +6.0 dB.

Studio Manager

Console

1 6 !

2 7

3 8

4 9

)!@

# 6

Studio Manager Console

Studio Manager

Console

[BIAS]/[REC BIAS] control

Adjusts the bias of the recording deck.

The range is from –1.00 through +1.00.

[AUTO MAKE UP] switch/[MAKE UP] control

If you turn on this switch or control, when you adjust the level of the recording deck (by using the

[RECORD]/[REC LVL] control

), the level of the reproduction deck (the

[REPRODUCE]/[REPR

LVL] control

) reflects the change, maintaining the relative output level. You can change the amount of

distortion without changing the output level.

When you change the level of the reproduction deck, this switch and control automatically turn off.

Reproduction deck section

[REPR DECK]

Selects the reproduction deck type.

You can select from four deck types: Swiss70, Swiss78, Swiss85, and America70.

[REPRODUCE]/[REPR LVL] control

Adjusts the output level of the reproduction deck.

The range is from –96.0 through +18.0 dB.

REPRODUCE:[-ADJUST- HIGH]/[REPR HI] control

Adjusts the high range gain of the reproduction deck.

The range is from –6.0 through +6.0 dB.

Studio Manager Console

Studio Manager

Console

# 6

1 6 !

2 7

3 8

4 9

Studio Manager Console

Studio Manager

Console

Studio Manager Console

REPRODUCE:[-ADJUST- LOW]/[REPR LO] control

Adjusts the low range gain of the reproduction deck.

The range is from –6.0 through +6.0 dB.

Open reel tape section

[VU ADJUST] button

When you turn this button on, the

[VU ADJUST] control

, instead of the

VU meter

for Channel 2, appears in

the meter section. If you turn this button off, the VU meter for Channel 2 appears.

[SPEED] switch/[TP SPEED] control

Selects the tape speed.

nYou can select either 15 ips or 30 ips.

[TAPE KIND] switch/[TP KIND] control

Selects the tape type.

nYou can select either New or Old.

Studio Manager Console

)!@

1 6 !

2 7

3 8

4 9

)

Studio Manager

Console

Studio Manager

Console

Meter section

[RECORD/REPRO] switch

Enables you to select RECORD (input to the recording deck) or REPRO (output from the reproduction deck) as

the signals to be monitored via the level and VU meters.

Level meters

Studio Manager displays the Effects output level.

On the console, you can select the input level or output level to be displayed using the METER: [IN][OUT]

switch.

VU meters

The VU meters of the deck selected by using the [RECORD/REPRO] switch are displayed here.

The number of VU meters varies depending on the status of the [VU ADJUST] button.

When the [VU ADJUST] button is on, the meter for one channel is displayed. When the [VU ADJUST]

button is off, the meters for two channels are displayed.

[VU ADJUST] control

Specifies the level assigned to 0VU on the VU meter.

This control appears only when the [VU ADJUST] button is on.

nThe range is from 0.0 through 20.0 dB.

1 6 ! @

# 6

Studio Manager

Studio Manager Console

Studio Manager
