PWK–150
WALL MOUNTING UNIT
Installationsanleitung
Vor der Installation lesen Site bitte diese Anleitung
sorgfaltig durch. Diese Anleitung zum spateren
Nachschlagen aufbewahren.
Instruzioni per I’installazione
Prima di iniziare a montare questi accessori, siete pregati
di leggere interamente le presenti istruzioni.
Siete inoltre pregati di conservare questo libro per future
consultazioni.
Manuel d’installation
Avant d’essayer d’assembler ces accessories, vauillez lire
ces instructions complètement.
Veuillez garder ce manuel pour une référence future.
Instrucciones de instalación
Antes de instalar estos accesorios, lea cuidadosamente
estas instrucciones.
Guarde estas instrucciones para futuras referencias.
Installation Instructions
Before attempting to assemble these accessories, please
read these instructions completely.
Please retain this book for future reference.
TQZW261
2
•Before installing the wall mounting unit, please read these instructions and the plasma display operation manual
carefully to make sure installation is carried out correctly.
•After installation, please hand these instructions to the customer and ask him to carefully read them and keep
them for future reference. (The instructions may be needed again when moving or carrying out maintenance.)
Precautions with regard to setting up
WARNING
Installation work should only be carried out by a qualified technician.
• If the wall mounting unit is installed incorrectly, the display may fall down and personal injury
may result.
Make sure that all safety factors regarding strength of installation are observed.
• If the installation strength is insufficient, the display may fall down and personal injury may
result.
Do not install in places which are unable to bear loads.
• If the strength of the installation surface is insufficient, the display may fall down and personal
injury may result.
CAUTION
Do not install in places which are subject to humidity, dust, oil fumes, water vapour or
excessive heat.
• These can have adverse effects on wide plasma display operation, and fire or electric shocks
may result.
Do not install the wide plasma display face up, sideways or upside down.
• Doing so may cause heat to build up inside the display, and fire may result.
Two people are required to install and remove the display.
• If two people are not present, the display may be dropped, and personal injury may result.
Maintain a space of at least 10 cm ((3 15/16 inches))at the top, bottom and sides of the
display, and at least 1.9 cm (3/4inches) at the rear of the display.
• The display has air outlet holes at the top and air intake holes at the bottom and rear. These
holes must not be covered, otherwise fire may result.
3
Components
Points to note for installation
•The wall mounting unit is for use in installing the wide plasma display to a vertical wall for
viewing purposes. Do not use it for any type of installation other than vertical wall
installation.
•In order to ensure correct, problem-free operation of the wide plasma display, do not
install the display in any of the following places.
• Places which are next to sprinklers or sensors
• Places which are subject to vibration or shocks
• Places which are close to high-voltage wires or electric motors
• Places in direct contact with air from heaters
•When installing this wall mounting unit, use a fixing method appropriate to the type of wall.
•Use an M6 bolt (sold separately) appropriate for the type of wall material (wood, steel
frame, concrete, etc.) the bracket is to be mounted on.
•Insert the power cord plug for the wide plasma display into a wall outlet which is close and
easily accessible.
•Provide adequate ventilation so that the temperature around the display does not rise
above 40°C (104 F°). If there is insufficient movement of the air inside display, heat may
build up inside the display, and fire may result.

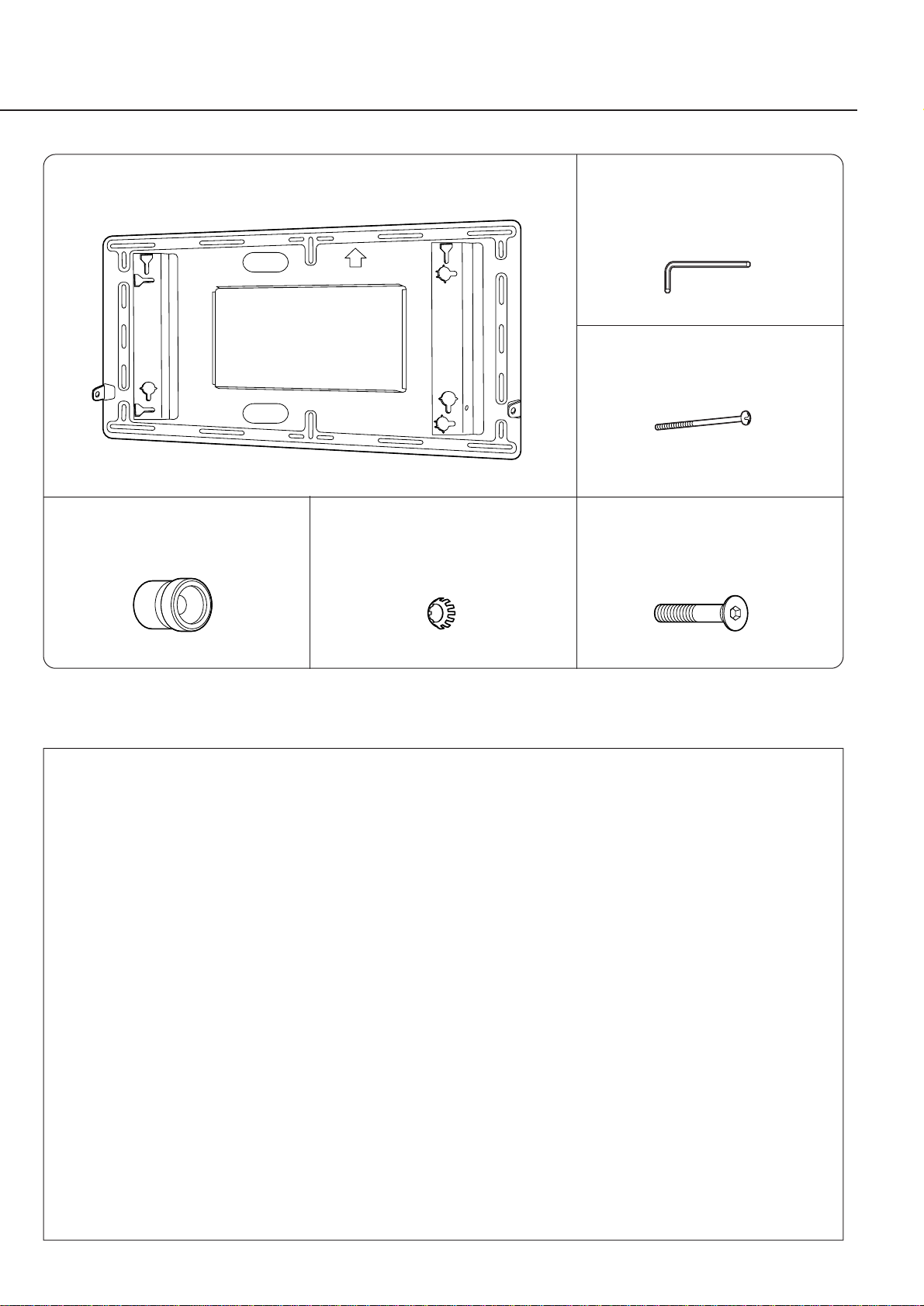

Wall mounting unit.............................................................1 Allen key (accessory) ......1
M5 screw .........................2
Insulating spacer
....................................4
Toothed pan washer
....................................4
Pan head bolt with
hex socket (M8-45) .........4
(Fixing screw)
4
Installation procedure
The wall mounting unit weighs approximately 6 kg (13.23 lbs.), and the wide plasma display unit weights
approximately 43 kg (94.8 lbs.).

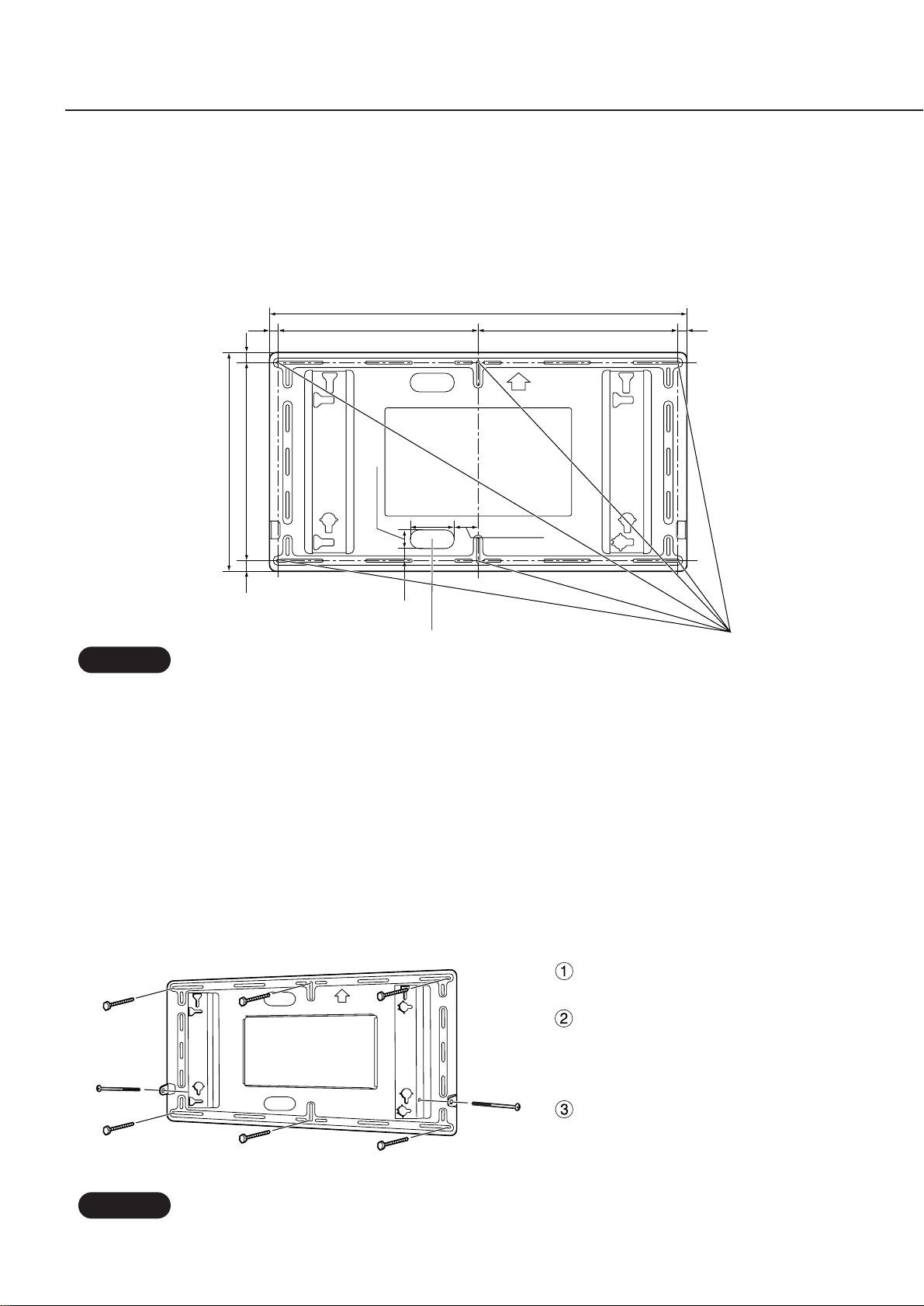

While referring to the wall mounting unit installation dimensions in the diagram below, check the strength of the
wall in six installation locations, and add reinforcing if any of these locations are not strong enough.
• The wall mounting unit has installation holes provided in 24 locations.
If the wall material will not allow sufficient strength to be obtained from using six installation holes, use some of the spare holes.
However, depending on the construction material used at the place of installation, cracks may develop if the screws are
inserted too close to each other.
Note
Note
Note
Note
Installation procedure
First screw a bolt into the center-top
hole.
Use a level gauge to correct the
alignment of the wall mounting unit,
and then screw bolts into the
remaining five holes.
Provisionally tighten the fixing screws.
If the screws are inserted more than
5 mm (13/64 inches), it will not be
possible to install the wide plasma
display in the correct position.
1. Check the strength of the installation location.
2. Install the wall mounting unit to the wall.
Fixing screw
Fixing screw
•Install the wall mounting unit so that the arrow shown on the wall mounting unit is pointing upwards.
•If it is necessary to embed bolts or nuts beforehand because the wall is made from concrete, use the wall
mounting unit itself to determine the correct installation hole positions, or use the dimension diagram to
calculate the hole positions. Then embed the M6 bolts or nuts into the holes. Furthermore, when embedding
the bolts, allow the bolts to protrude from the wall by 10 mm (13/32 inches) to 15 mm (19/32 inches).
930 (36 39/64)
490 (19 19/64)
450 (17 23/32)
30
2020
450 (17 23/32)450 (17 23/32)
100 50 (1 31/32)
15 15
Used for routing wires behind a wall
Units : mm
( ) : inches
(19/32) (19/32)
(3 15/16)
(25/32)(25/32)
(1 3/16)
Wall installation holes (6 locations)
50 (1 31/32)
•Use commercially-available M6 bolts which suit the wall materials for installation to the wall.
YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY
YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND
YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
Printed in Japan M0602-0
