Yamaha F4A Manuel utilisateur

F4A

LIT-18626-04-49

F4A

OWNER’S MANUAL

U.S.A.Edition

Thank you for choosing a Yamaha out-

board motor. This Owner’s manual con-

tains information needed for proper oper-

ation, maintenance and care. A thorough

understanding of these simple instruc-

tions will help you obtain maximum

enjoyment from your new Yamaha. If you

have any question about the operation or

maintenance of your outboard motor,

please consult a Yamaha dealer.

In this Owner’s Manual particularly

important information is distinguished in

the following ways.

QThe Safety Alert Symbol means

ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

Failure to follow WARNING instructions

could result in severe injury or death to

the machine operator, a bystander, or a

person inspecting or repairing the out-

board motor.

A CAUTION indicates special precautions

that must be taken to avoid damage to

the outboard motor.

NOTE:

A NOTE provides key information to make

procedures easier or clearer.

* Yamaha continually seeks advance-

ments in product design and quality.

Therefore, while this manual contains

the most current product information

available at the time of printing, there

may be minor discrepancies between

your machine and this manual. If there

is any question concerning this manual,

please consult your Yamaha dealer.

NOTE:

The F4MHA and its standard accessories

are used as a base for the explanations

and illustrations in this manual. There-

fore, some items may not apply to every

model.

EMU01418*

TO THE OWNER

EMU01446*

F4A

OWNER'S MANUAL

1st Edition, January 2001

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Corporation, USA

is expressly prohibited.

Printed in Belgium

P/N LIT-18626-04-49

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 1

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 2

GENERAL INFORMATION

BASIC COMPONENTS

OPERATION

MAINTENANCE

TROUBLE RECOVERY

INDEX

READ THIS OWNER’S MANUAL CAREFULLY

BEFORE OPERATING YOUR OUTBOARD MOTOR.

EMU00003

CONTENTS

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 3

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 4

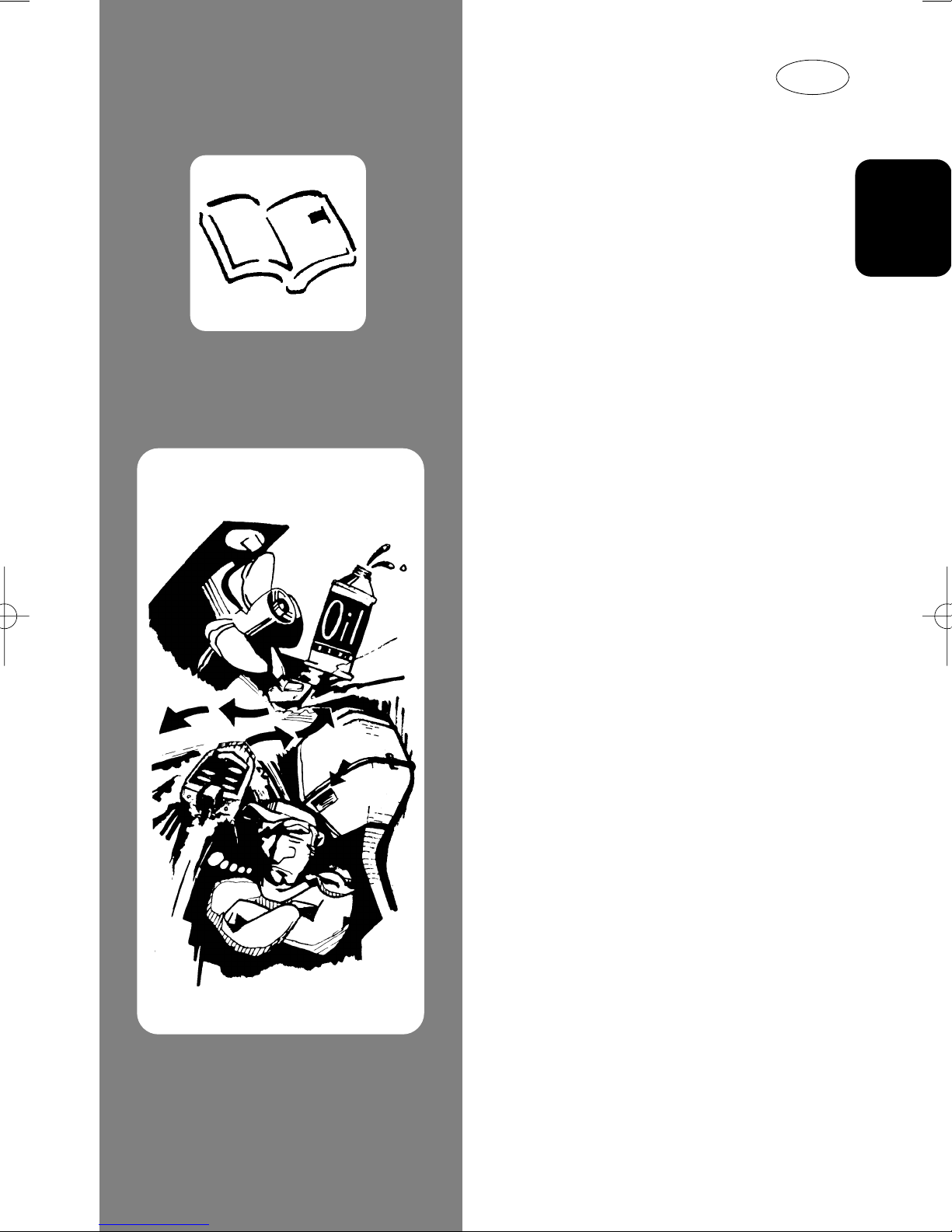

EMU00004

Chapter 1

GENERAL

INFORMATION

IDENTIFICATION NUMBERS RECORD ..1-1

Outboard motor serial number ...........1-1

EMISSION CONTROL INFORMATION...1-2

SAFETY INFORMATION..........................1-4

IMPORTANT LABELS ..............................1-6

BASIC BOATING RULES ........................1-7

FUELING INSTRUCTIONS.....................1-11

Gasoline (petrol) .................................1-12

ENGINE OIL ............................................1-13

PROPELLER SELECTION .......................1-14

START-IN-GEAR PROTECTION ............1-15

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 5

1-1

EMU00005

IDENTIFICATION NUMBERS

RECORD

EMU00007

OUTBOARD MOTOR SERIAL

NUMBER

The outboard motor serial number is

stamped on the label attached to the port

side of the clamp-bracket.

Record your outboard motor serial num-

ber in the spaces provided to assist you in

ordering spare parts from your Yamaha

dealer or for reference in case your out-

board motor is stolen.

1Outboard motor serial number

401012

M B K INDUSTRIE

PRODUCT ASSEMBLED IN FRANCE

PRODUIT ASSEMBLE EN FRANCE

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 6

1-2

EMU01385

EMISSION CONTROL

INFORMATION

EMU01387

NORTH AMERICAN MODELS

This engine conforms to U.S. Environ-

mental Protection Agency (EPA) regula-

tions for marine SI engines. See the label

affixed to your engine for details.

Approval label of Emission control

certificate

This label is attached to the bottom cowl-

ing.

1Emission control information label

New Technology ; (4-stroke) EM

Manufactured date label

This label is attached to the clamp brack-

et.

2Manufactured date label

EMISSION CONTROL INFORMATION

ENGINE FAMILY :

THIS ENGINE CONFORMS TO 2001 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.

THIS ENGINE CONFORMS TO 2001 CALIFORNIA EMISSION REGULATIONS FOR SI MARINE ENGINES.

REFER TO THE OWNERS MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

FELs :

SPARK PLUG :

DISPLACEMENT :

ADVERTISED POWER :

IDLE SPEED :

SPARK PLUG GAP (mm) :

FUEL : GASOLINE

VALVE LASH (mm) : IN EX

g/kw-hr rpm IN NEUTRAL

Manufactured:

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 7

1-3

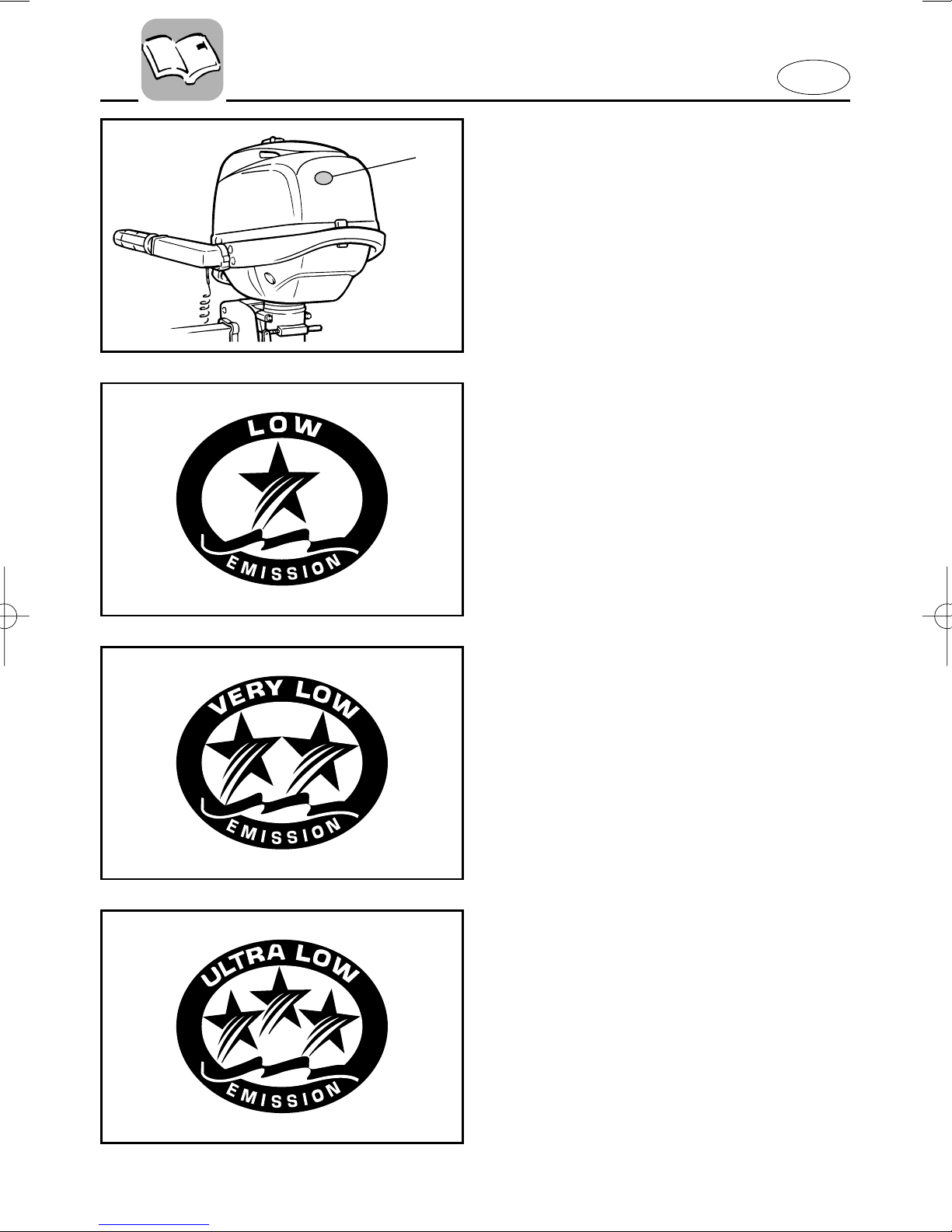

EMU01389

STAR LABELS

Your outboard motor is labeled with a

California Air Resources Board (CARB)

star label. See below for a description of

your particular label.

1Star label

One Star - Low Emission

The one-star label identifies engines that

meet the Air Resources Board’s 2001

exhaust emission standards. Engines

meeting these standards have 75% lower

emissions than conventional carbureted

two-stroke engines. These engines are

equivalent to the U.S. EPA’s 2006 stan-

dards for marine engines.

Two Stars - Very Low Emission

The two-star label identifies engines that

meet the Air Resources Board’s 2004

exhaust emission standards. Engines

meeting these standards have 20% lower

emissions than One Star-Low-Emission

engines.

Three Stars - Ultra Low Emission

The three-star label identifies engines that

meet the Air Resources Board’s 2008

exhaust emission standards. Engines

meeting these standards have 65% lower

emissions than One Star-Low-Emission

engines.

000831

68D-F9-11-01 (E) 10/18/01 1:26 PM Page 8
