Yamaha F2.5B Manuel utilisateur

F25B

T25B

OWNER’S MANUAL

U.S.A.Edition

LIT-18626-05-06

65W-9-16 hyoshi 4/18/02 3:15 PM Page 1 (2,1)

65W-9-16 hyoshi 4/18/02 3:15 PM Page 2 (1,1)

Thank you for choosing a Yamaha outboard

motor. This Owner’s manual contains infor-

mation needed for proper operation, mainte-

nance and care. A thorough understanding

of these simple instructions will help you

obtain maximum en oyment from your new

Yamaha. If you have any question about the

operation or maintenance of your outboard

motor, please consult a Yamaha dealer.

In this Owner’s Manual particularly important

information is distinguished in the following

ways.

QThe Safety Alert Symbol means

ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

Failure to follow WARNING instructions

could result in severe injury or death to

the machine operator, a bystander, or a

person inspecting or repairing the out

board motor.

A CAUTION indicates special precautions

that must be taken to avoid damage to

the outboard motor.

NOTE:

A NOTE provides key information to make

procedures easier or clearer.

* Yamaha continually seeks advancements

in product design and quality. Therefore,

while this manual contains the most cur-

rent product information available at the

time of printing, there may be minor dis-

crepancies between your machine and this

manual. If there is any question concern-

ing this manual, please consult your

Yamaha dealer.

NOTE:

The F25MH, T25TR and their standard

accessories are used as a base for the

explanations and illustrations in this manual.

Therefore, some items may not apply to

every model.

EMU01449

TO THE OWNER

EMU01446

F25B, T25B

OWNER’S MANUAL

1st Edition, April 2002

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Corporation, USA

is expressly prohibited.

Printed in Japan

P/N LIT 18626 05 06

65W-9-16-1 3/15/02 5:11 PM Page 1

65W-9-16-1 3/15/02 5:11 PM Page 2

GENERAL INFORMATION

BASIC COMPONENTS

OPERATION

MAINTENANCE

TROUBLE RECOVERY

INDEX

READ THIS OWNER’S MANUAL CAREFULLY

BEFORE OPERATING YOUR OUTBOARD MOTOR.

EMU00003

CONTENTS

65W-9-16-1 3/15/02 5:11 PM Page 3

65W-9-16-1 3/15/02 5:11 PM Page 4

EMU00004

C apter 1

GENERAL

INFORMATION

IDENTIFICATION NUMBERS RECORD ..1-1

Outboard motor serial number...........1-1

Key number...........................................1-1

EMISSION CONTROL INFORMATION...1-2

SAFETY INFORMATION..........................1-4

IMPORTANT LABELS ..............................1-6

BASIC BOATING RULES .........................1-7

FUELING INSTRUCTIONS.....................1-11

Gasoline ( etrol).................................1-12

ENGINE OIL ............................................1-13

BATTERY REQUIREMENT ....................1-14

PROPELLER SELECTION .......................1-15

START-IN-GEAR PROTECTION ............1-16

65W-9-16-1 3/15/02 5:11 PM Page 5

1-1

EMU00005

IDENTIFICATION NUMBERS

RECORD

EMU00007

OUTBOARD MOTOR SERIAL

NUMBER

The outboard motor serial number is

stamped on the label attached to the port

side of the clamp-bracket.

Record your outboard motor serial num-

ber in the spaces provided to assist you in

ordering spare parts from your Yamaha

dealer or for reference in case your out-

board motor is stolen.

1Outboard motor serial number

EMU00008

KEY NUMBER

If a main key switch is equipped with the

motor, the key identification number is

stamped on your key as shown in the

illustration. Record this number in the

space provided for reference in case you

need a new key.

1Key number

401013

904011*

123

YAMAHA

YAMAHA MOTOR CO., LTD.

MADE IN JAPAN

PAYS D'ORIGINE JAPON

65W-9-16-1 3/15/02 5:11 PM Page 6

1-2

EMU01385

EMISSION CONTROL

INFORMATION

EMU01387

NORTH AMERICAN MODELS

This engine conforms to U.S. Environ-

mental rotection Agency (E A) regula-

tions for marine SI engines. See the label

affixed to your engine for details.

Approval label of Emission control

certificate

This label is attached to the bottom cowl-

ing.

1Emission control information label

New Tec nology ; (4-stroke) EM

Manufactured date label

This label is attached to the clamp brack-

et.

2Manufactured date label

EMISSION CONTROL INFORMATION

ENGINE FAMILY :

THIS ENGINE CONFORMS TO 2001 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.

THIS ENGINE CONFORMS TO 2001 CALIFORNIA EMISSION REGULATIONS FOR SI MARINE ENGINES.

REFER TO THE OWNERS MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

FELs :

SPARK PLUG :

DIS LACEMENT :

ADVERTISED POWER :

IDLE SPEED :

SPARK PLUG GAP (mm) :

FUEL : GASOLINE

VALVE LASH (mm) : IN EX

g/kw-hr rpm IN NEUTRAL

Manufactured:

65W-9-16-1 3/15/02 5:11 PM Page 7

1-3

EMU01389

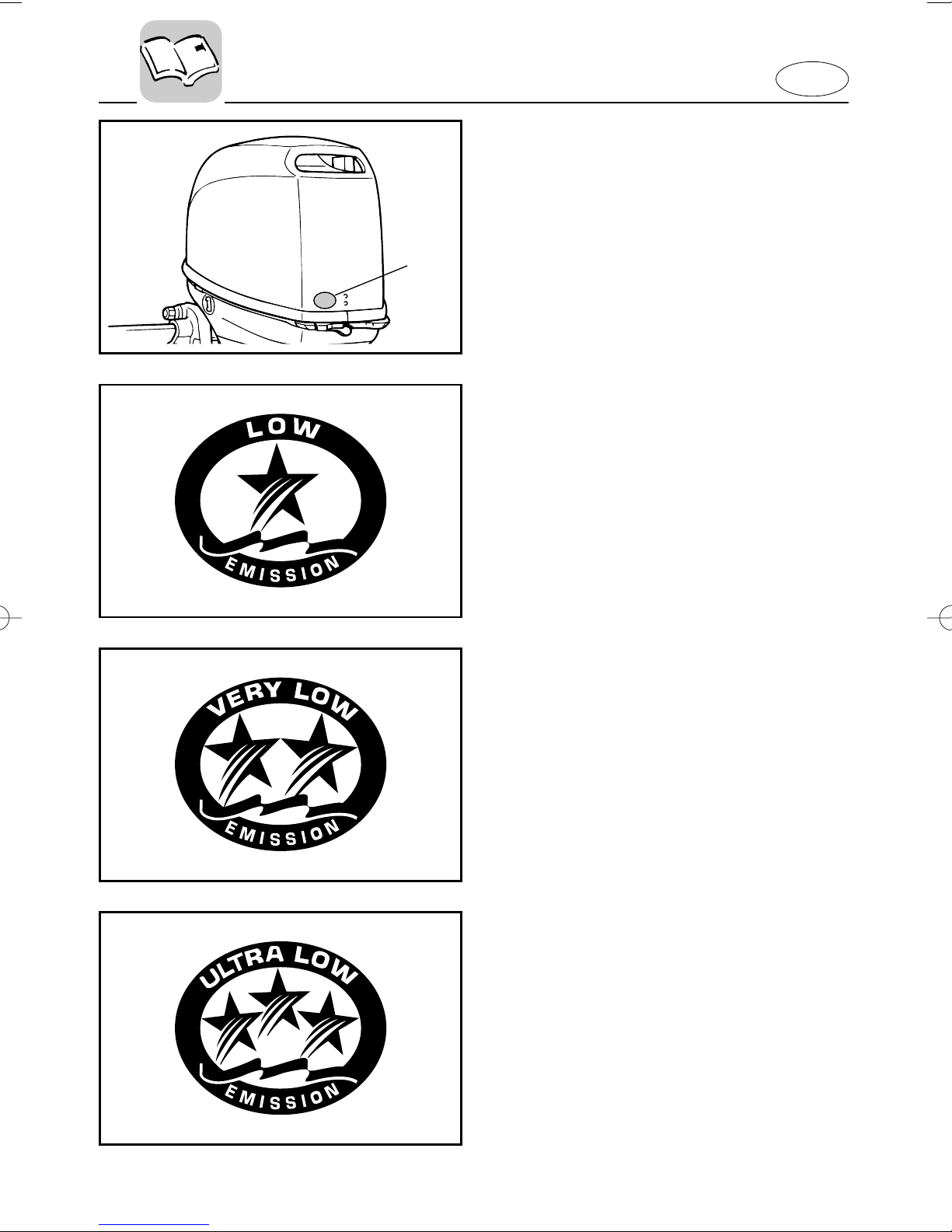

STAR LABELS

Your outboard motor is labeled with a

California Air Resources Board (CARB)

star label. See below for a description of

your particular label.

1Star label

One Star - Low Emission

The one-star label identifies engines that

meet the Air Resources Board’s 2001

exhaust emission standards. Engines

meeting these standards have 75% lower

emissions than conventional carbureted

two-stroke engines. These engines are

equivalent to the U.S. E A’s 2006 stan-

dards for marine engines.

Two Stars - Very Low Emission

The two-star label identifies engines that

meet the Air Resources Board’s 2004

exhaust emission standards. Engines

meeting these standards have 20% lower

emissions than One Star-Low-Emission

engines.

T ree Stars - Ultra Low Emission

The three-star label identifies engines that

meet the Air Resources Board’s 2008

exhaust emission standards. Engines

meeting these standards have 65% lower

emissions than One Star-Low-Emission

engines.

000853

65W-9-16-1 3/15/02 5:11 PM Page 8
