Yamaha F200C Manuel utilisateur

F200C

LF200C

F225C

LF225C

SERVICE MANUAL

69J-28197-1F-11LIT-18616-02-76

*LIT186160276*

NOTICE

This manual has been prepared by Yamaha primarily for use by Yamaha dealers and their trained

mechanics when performing maintenance procedures and repairs to Yamaha equipment. It has

been written to suit the needs of persons who have a basic understanding of the mechanical and

electrical concepts and procedures inherent in the work, for without such knowledge attempted

repairs or service to the equipment could render it unsafe or unfit for use.

Because Yamaha has a policy of continuously improving its products, models may differ in detail

from the descriptions and illustrations given in this publication. Use only the latest edition of this

manual. Authorized Yamaha dealers are notified periodically of modifications and significant

changes in specifications and procedures, and these are incorporated in successive editions of this

manual.

Important information 1

Particularly important information is distinguished in this manual by the following notations:

The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS

INVOLVED!

WARNING

Failure to follow WARNING instructions could result in severe injury or death to the machine

operator, a bystander, or a person inspecting or repairing the outboard motor.

CAUTION:

A CAUTION indicates special precautions that must be taken to avoid damage to the out-

board motor.

NOTE:

A NOTE provides key information to make procedures easier or clearer.

F200C, LF200C, F225C, LF225C

SERVICE MANUAL

1st Edition, September 2003

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Corporation, USA

is expressly prohibited.

Printed in USA

LIT-18616-02-76

Contents

General information 1

GEN

INFO

Specifications 2

SPEC

Periodic checks and adjustments 3

CHK

ADJ

Fuel system 4

FUEL

Power unit 5

POWR

Lower unit 6

LOWR

Bracket unit 7

BRKT

Electrical systems 8

ELEC

Troubleshooting 9

TRBL

SHTG

Index

–+

GEN

INFO

69J1D11

General information

How to use this manual.................................................................................1-1

Manual format............................................................................................1-1

Symbols.....................................................................................................1-2

Safety while working......................................................................................1-3

Fire prevention...........................................................................................1-3

Ventilation..................................................................................................1-3

Self-protection ...........................................................................................1-3

Parts, lubricants, and sealants ..................................................................1-3

Good working practices .............................................................................1-4

Disassembly and assembly .......................................................................1-4

Identification...................................................................................................1-4

Applicable models .....................................................................................1-4

Serial number ............................................................................................1-4

Features and benefits....................................................................................1-6

Newly developed V6 4-stroke engine ........................................................1-6

Valve train system .....................................................................................1-9

Intake system ..........................................................................................1-11

Exhaust system .......................................................................................1-11

Fuel system .............................................................................................1-13

PTT (Power trim and tilt) unit...................................................................1-17

Technical tips ...............................................................................................1-18

Fuel injection control................................................................................1-18

Fail-safe function table ............................................................................1-20

PTT (Power trim and tilt) unit...................................................................1-21

Cooling system ........................................................................................1-26

Lubrication system...................................................................................1-26

Propeller selection.......................................................................................1-27

Propeller size...........................................................................................1-27

Selection..................................................................................................1-27

69J1D11

Predelivery checks ......................................................................................1-28

Checking the fuel system ........................................................................1-28

Checking the gear oil...............................................................................1-28

Checking the engine oil ...........................................................................1-28

Checking the battery................................................................................1-28

Checking the outboard motor mounting height........................................1-29

Checking the remote control cables ........................................................1-29

Checking the steering wheel ...................................................................1-30

Checking the gearshift and throttle operation..........................................1-30

Checking the tilt system...........................................................................1-30

Checking the engine start switch and engine stop lanyard switch ..........1-30

Checking the cooling water pilot hole ......................................................1-31

Test run ...................................................................................................1-31

Break-in ...................................................................................................1-31

After test run ............................................................................................1-31

GEN

INFO General information

1-1 69J1D11

How to use this manual 1

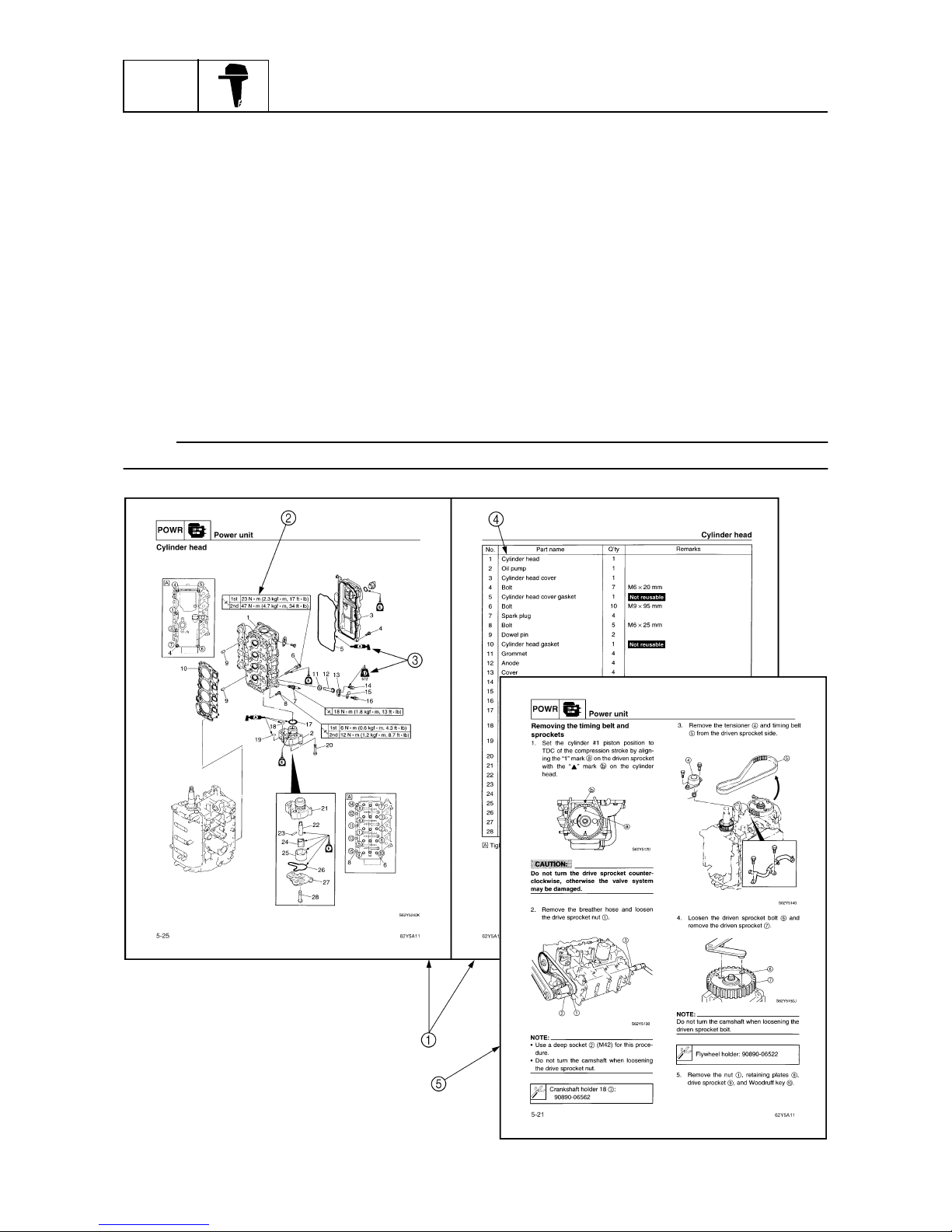

Manual format

The format of this manual has been designed to make service procedures clear and easy to under-

stand. Use the information below as a guide for effective and quality service.

1Parts are shown and detailed in an exploded diagram and are listed in the components list.

2Tightening torque specifications are provided in the exploded diagrams and after a numbered

step with tightening instructions.

3Symbols are used to indicate important aspects of a procedure, such as the grade of lubricant

and lubrication point.

4The components list consists of parts and part quantities, as well as bolt, screw, O-ring, and hose

dimensions.

5Service points regarding removal, checking, and installation are shown in individual illustrations

to explain the relevant procedure.

NOTE:

For troubleshooting procedures, see Chapter 9, “Troubleshooting.”

69J1D11 1-2

Symbols

The symbols below are designed to indicate the content of a chapter.

General information

Specifications

Periodic checks and adjustments

Fuel system

Power unit

Lower unit

Bracket unit

Electrical systems

Troubleshooting

GEN

INFO

SPEC

CHK

ADJ

FUEL

POWR

LOWR

BRKT

ELEC

TRBL

SHTG

–+

Symbols 1to 6indicate specific data.

1Special tool

2Specified oil or fluid

3Specified engine speed

4Specified tightening torque

5Specified measurement

6Specified electrical value

(resistance, voltage, electric current)

Symbols 7to Ain an exploded diagram indicate the grade of lubricant and the lubrication point.

7Apply Yamaha 4-stroke motor oil

8Apply water resistant grease (Yamaha grease A)

9Apply molybdenum disulfide grease

0Apply corrosion resistant grease

(Yamaha grease D)

AApply low temperature resistant grease

(Yamaha grease C)

Symbols Bto Gin an exploded diagram indicate the type of sealant or locking agent and the appli-

cation point.

BApply Gasket Maker®

CApply Yamabond No. 4

DApply LOCTITE®No. 271 (Red)

EApply LOCTITE®No. 242 (Blue)

FApply LOCTITE®No. 572

GApply silicon sealant

123456

7890A

A M D C

BCDEFG

271

242

572

LT SS

How to use this manual

GEN

INFO General information

1-3 69J1D11

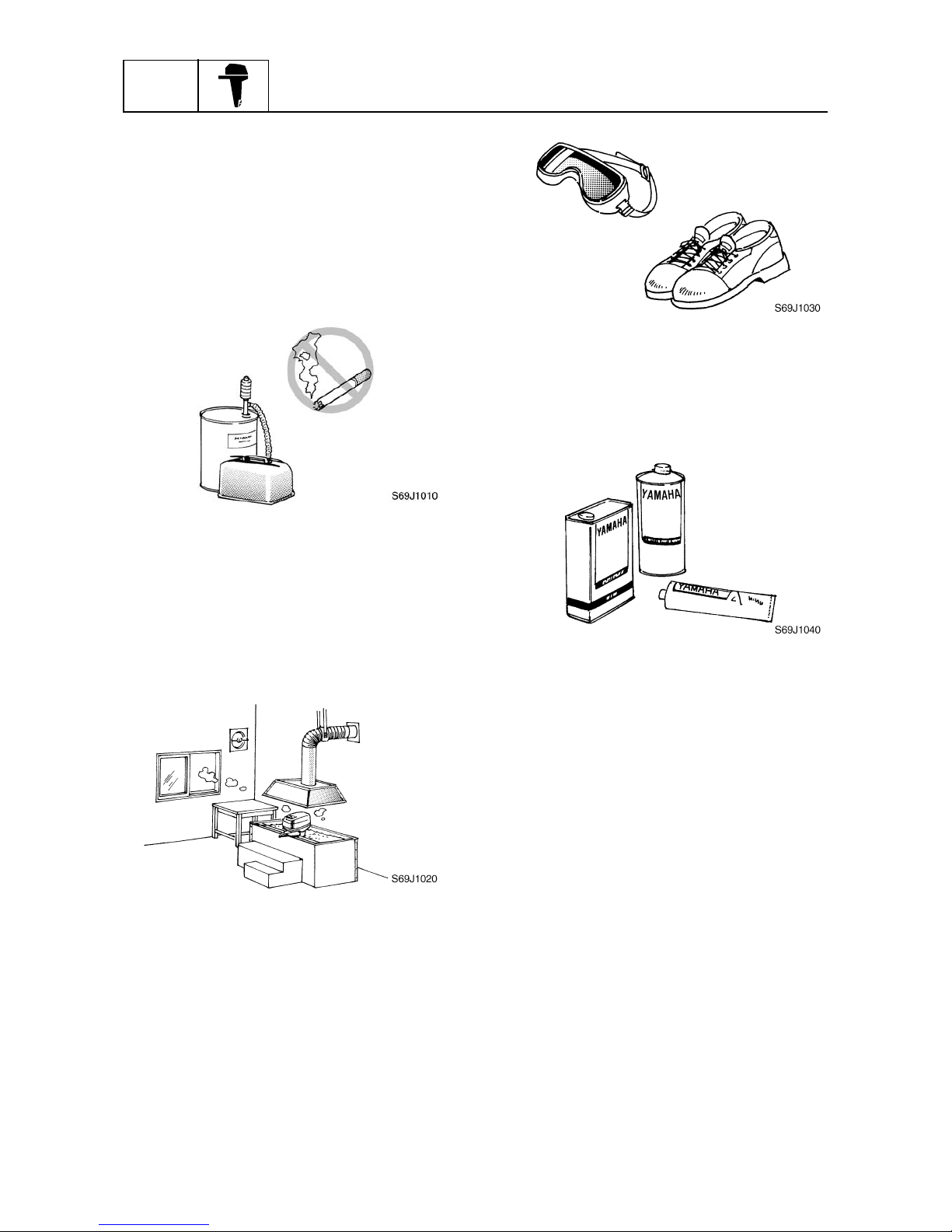

Safety while working 1

To prevent an accident or injury and to

ensure quality service, follow the safety pro-

cedures provided below.

Fire prevention

Gasoline is highly flammable.

Keep gasoline and all flammable products

away from heat, sparks, and open flames.

Ventilation

Gasoline vapor and exhaust gas are heavier

than air and extremely poisonous. If inhaled

in large quantities they may cause loss of

consciousness and death within a short time.

When test running an engine indoors (e.g., in

a water tank) be sure to do so where ade-

quate ventilation can be maintained.

Self-protection

Protect your eyes by wearing safety glasses

or safety goggles during all operations involv-

ing drilling and grinding, or when using an air

compressor.

Protect your hands and feet by wearing pro-

tective gloves and safety shoes when neces-

sary.

Parts, lubricants, and sealants

Use only genuine Yamaha parts, lubricants,

and sealants or those recommended by

Yamaha, when servicing or repairing the

outboard motor.

Under normal conditions, the lubricants men-

tioned in this manual should not harm or be

hazardous to your skin. However, you should

follow these precautions to minimize any risk

when working with lubricants.

1. Maintain good standards of personal and

industrial hygiene.

2. Change and wash clothing as soon as

possible if soiled with lubricants.

3. Avoid contact with skin. Do not, for

example, place a soiled rag in your

pocket.

4. Wash hands and any other part of the

body thoroughly with soap and hot water

after contact with a lubricant or lubricant

soiled clothing has been made.

5. To protect your skin, apply a protective

cream to your hands before working on

the outboard motor.

69J1D11 1-4

6. Keep a supply of clean, lint-free cloths for

wiping up spills, etc.

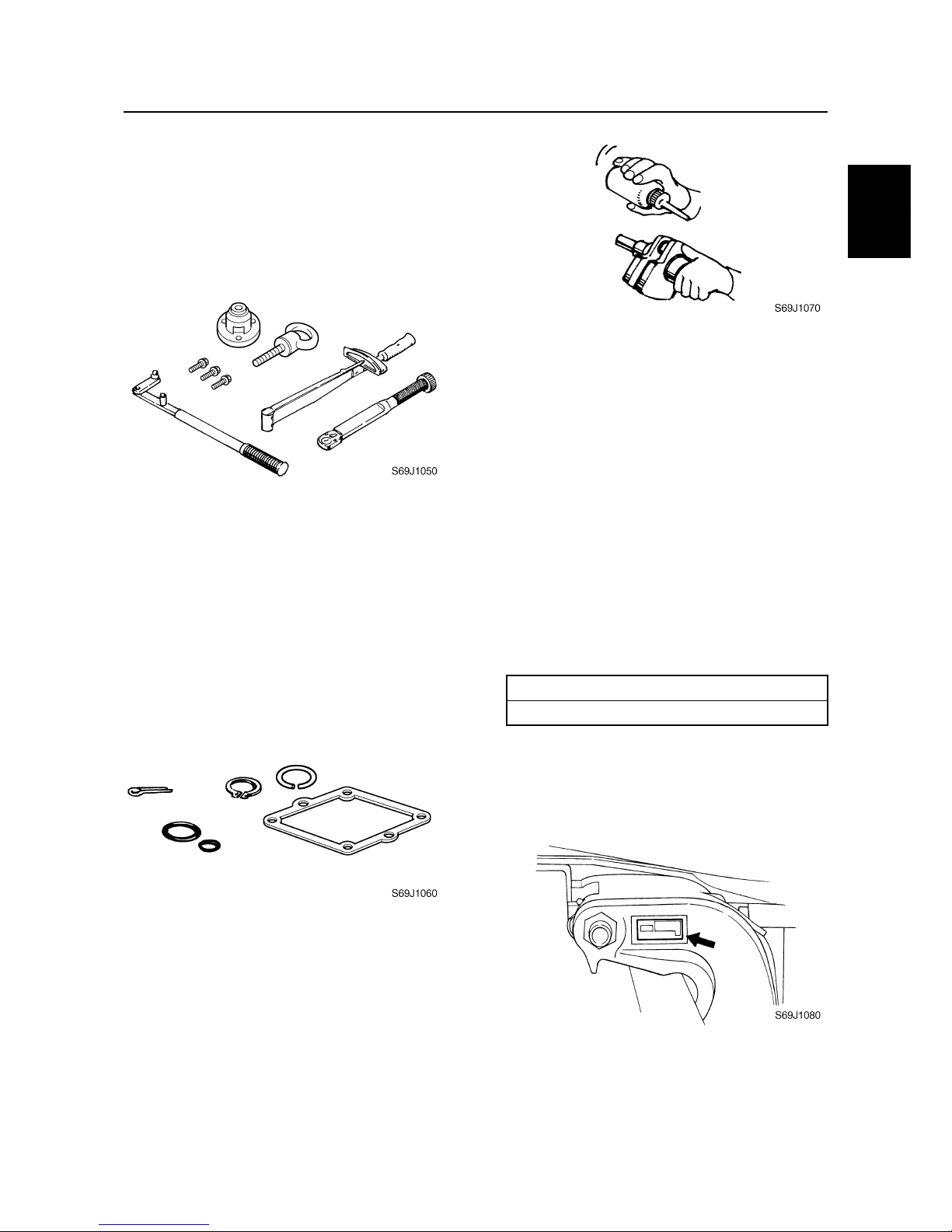

Good working practices

Special tools

Use the recommended special tools to pro-

tect parts from damage. Use the right tool in

the right manner—do not improvise.

Tightening torques

Follow the tightening torque specifications

provided throughout the manual. When tight-

ening nuts, bolts, and screws, tighten the

large sizes first, and tighten fasteners starting

in the center and moving outward.

Non-reusable parts

Always use new gaskets, seals, O-rings, cot-

ter pins, circlips, etc., when installing or

assembling parts.

Disassembly and assembly

1. Use compressed air to remove dust and

dirt during disassembly.

2. Apply engine oil to the contact surfaces

of moving parts before assembly.

3. Install bearings with the manufacture

identification mark in the direction indi-

cated in the installation procedure. In

addition, be sure to lubricate the bearings

liberally.

4. Apply a thin coat of water-resistant

grease to the lip and periphery of an oil

seal before installation.

5. Check that moving parts operate nor-

mally after assembly.

Identification 1

Applicable models

This manual covers the following models.

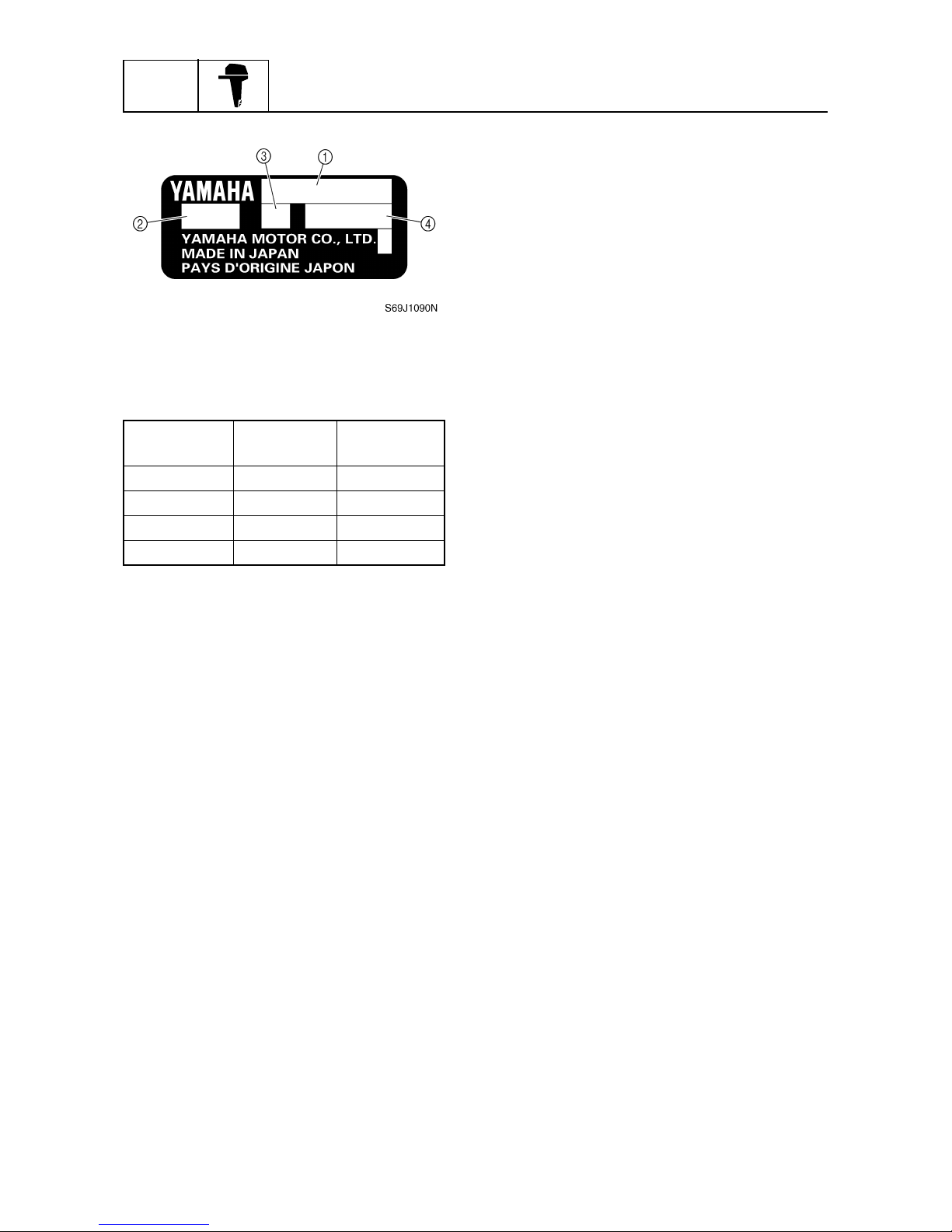

Serial number

The outboard motor serial number is

stamped on a label attached to the port

clamp bracket.

Applicable models

F200TR, LF200TR, F225TR, LF225TR

Safety while working / Identification

GEN

INFO General information

1-5 69J1D11

1Model name

2Approved model code

3Transom height

4Serial number

Model name Approved

model code

Starting

serial No.

F200TR 60L 1001799–

LF200TR 60M 1000373–

F225TR 69J 1007259–

LF225TR 69K 1002513–

Autres manuels pour F200C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yamaha Moteur hors-bord

Yamaha

Yamaha V MAX SHO Manuel utilisateur

Yamaha

Yamaha F6A Manuel utilisateur

Yamaha

Yamaha F80Y Manuel utilisateur

Yamaha

Yamaha F150 Manuel utilisateur

Yamaha

Yamaha PX150x Manuel utilisateur

Yamaha

Yamaha F40B Manuel utilisateur

Yamaha

Yamaha F80A Manuel utilisateur

Yamaha

Yamaha D150W Manuel utilisateur

Yamaha

Yamaha 150A Manuel utilisateur

Yamaha

Yamaha F25A Manuel utilisateur

Yamaha

Yamaha 25A Manuel utilisateur

Yamaha

Yamaha 150AET Manuel utilisateur

Yamaha

Yamaha Z200 Manuel utilisateur

Yamaha

Yamaha 20ESHT2 Manuel utilisateur

Yamaha

Yamaha F200C Manuel utilisateur

Yamaha

Yamaha F4 Manuel utilisateur

Yamaha

Yamaha F9.9 Manuel utilisateur

Yamaha

Yamaha cl7 Manuel d'instructions

Yamaha

Yamaha Z300A 2003 Manuel utilisateur

Yamaha

Yamaha MZ360 Manuel utilisateur

Yamaha

Yamaha 4AC Manuel utilisateur

Yamaha

Yamaha F15A Manuel utilisateur

Yamaha

Yamaha 13.5A Manuel utilisateur

Yamaha

Yamaha V-6 OFFSHORE OUTBOARDS FourStrake Manuel utilisateur

Manuels Moteur hors-bord populaires d'autres marques

Sleipner

Sleipner SEP-IP30 Manuel utilisateur

Suzuki

Suzuki DF 40 Manuel utilisateur

SELVA MARINE

SELVA MARINE Corse Manuel utilisateur

TOHATSU

TOHATSU BFT 250A Manuel utilisateur

KONRAD

KONRAD Series 600B Manuel utilisateur

Mercury

Mercury 8 Bigfoot 4-Stroke Guide d'installation

Sleipner

Sleipner E-Vision Electric Thruster E300 Manuel utilisateur

Suzuki

Suzuki DF40A Manuel utilisateur

IST

IST 18.BF200D Manuel utilisateur

Side-Power

Side-Power SP 155 TC i Manuel utilisateur

Mercury

Mercury 40 FourStroke Manuel utilisateur

Quick

Quick BTR250 Manuel utilisateur

Yanmar

Yanmar ZT350 series Manuel utilisateur

MotorGuide

MotorGuide X3-40 Manuel utilisateur

Mercury

Mercury 30 - 60 HP Manuel utilisateur

Torqeedo

Torqeedo Ultralight 403 Manuel utilisateur

Vetus

Vetus BOWPRO65 Manuel utilisateur

Torqeedo

Torqeedo Ultralight 403 A Manuel utilisateur
