Introduction

EAU10103

Welcome to the Yamaha world of motorcycling!

As the owner of the EGO GEAR, you are beneting from Yamaha’s vast experience and newest technology regarding the

design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.

Please take the time to read this manual thoroughly, so as to enjoy all advantages of your EGO GEAR. The Owner’s Manual

does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself

and others from trouble and injury.

In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any

further questions, do not hesitate to contact your Yamaha dealer.

The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety rst!

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur-

rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and

this manual. If there is any question concerning this manual, please consult a Yamaha dealer.

WARNING

EWA10032

Please read this manual carefully and completely before operating this motorcycle.

Important manual information

EAU10134

Particularly important information is distinguished in this manual by the following notations:

*Product and specications are subject to change without notice.

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

A WARNING indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

A NOTICE indicates special precautions that must be taken to avoid damage to the

vehicle or other property.

A TIP provides key information to make procedures easier or clearer.

WARNING

NOTICE

TIP

Important manual information

EGO GEAR

EAUN0430

OWNER’S MANUAL

1st edition, May 2021

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in Malaysia

Table of contents

Periodic maintenance chart for the

emission control system.............. 8-2

General maintenance and

lubrication chart........................... 8-4

Removing and installing the panels 8-9

Checking the spark plug.................8-12

Engine oil and oil strainer.............. 8-13

Final transmission oil..................... 8-15

Air lter and V-belt case air lter

elements ................................... 8-16

Adjusting the throttle grip

free play ..................................... 8-19

Valve clearance............................. 8-19

Tires .............................................. 8-20

Cast wheels .................................. 8-21

Checking the front brake lever

free play..................................... 8-22

Adjusting the rear brake lever

free play..................................... 8-22

Checking the front brake pads

and rear brake shoes ............... 8-23

Checking the brake uid level ...... 8-23

Changing the brake uid ............. 8-24

Checking the V-belt ...................... 8-25

Checking and lubricating the

cables........................................ 8-25

Checking and lubricating the

throttle grip and cable............... 8-25

Lubricating the front and rear

brake levers............................... 8-26

Location of important labels........... 1-1

Safety information............................ 2-1

Further safe-riding points ............... 2-5

Helmets .......................................... 2-6

Description ....................................... 3-1

Left view ......................................... 3-1

Right view....................................... 3-2

Controls and instruments ............... 3-3

Stop and Start System

(EGO GEAR) ....................................... 4-1

Stop and Start System................... 4-1

Stop and Start System operation... 4-1

Instrument and control functions... 5-1

Remote answer back

(EGO GEAR) ................................. 5-1

Main switch/steering lock............... 5-3

Keyhole shutter .............................. 5-4

Indicator lights and warning light ... 5-5

Speedometer unit ........................... 5-6

Handlebar switches........................ 5-7

Front brake lever ............................ 5-8

Rear brake lever ............................. 5-8

Rear brake lever lock...................... 5-8

Fuel tank cap.................................. 5-9

Fuel.................................................5-10

Catalytic converter ....................... 5-11

Kickstarter .................................... 5-11

Seat .............................................. 5-11

Helmet holders ............................. 5-12

Convenience hook........................ 5-13

Power outlet.................................. 5-13

Sidestand ..................................... 5-14

Ignition circuit cut-off system....... 5-15

For your safety – pre-operation

checks ............................................... 6-1

Operation and important riding

points................................................. 7-1

Engine break-in .............................. .7-1

Starting the engine.......................... 7-2

Starting off ......................................7-3

Acceleration and deceleration ........ 7-3

Braking ...........................................7-3

Tips for reducing fuel consumption 7-4

Parking............................................ 7-4

Periodic maintenance and

adjustment ........................................ 8-1

Owner’s tool kit .............................. 8-1

Table of contents

Checking and lubricating the

centerstand and sidestand........ 8-26

Checking the front fork................. 8-27

Checking the steering................... 8-28

Checking the wheel bearings ....... 8-28

Battery .......................................... 8-28

Replacing the fuse........................ 8-30

Headlight ...................................... 8-30

Replacing a front turn signal

light bulb or auxiliary light bulb.... 8-31

Replacing a tail/brake light bulb

or a rear turn signal light bulb ... 8-32

Troubleshooting............................ 8-33

Troubleshooting chart .................. 8-35

Scooter care and storage ............. 9-1

Matte color caution....................... 9-1

Care............................................... 9-1

Storage........................................... 9-3

Specications................................. 10-1

Consumer information ................... 11-1

Identication numbers................... 11-1

Vehicle data recording .................. 11-2

Location of important labels

1-1

EAUN2190

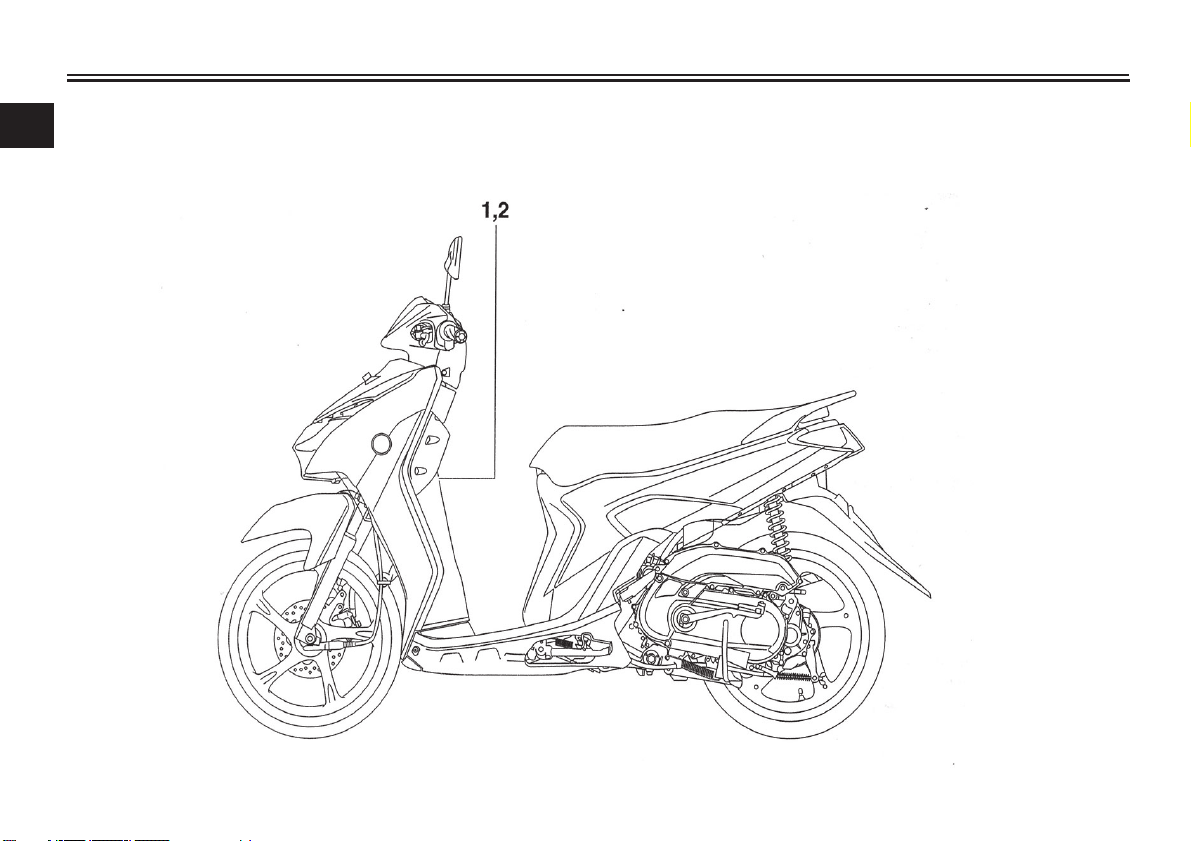

Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of

your vehicle. Never remove any labels from your vehicle.

Location of important labels

1-2

100kPa=1bar kPa, psi kPa, psi

225, 33 250, 36

Before you operate

this vehicle, read

the owner’s manual

WARNING

2-1

Safety information

EAU67760

Be a Responsible Owner

As the vehicle’s owner, you are re-

sponsible for the safe and proper oper-

ation of your motorcycle.

Motorcycles are single-track vehicles.

Their safe use and operation are de-

pendent upon the use of proper riding

techniques as well as the expertise of

the operator. Every operator should

know the following requirements be-

fore riding this motorcycle.

He or she should:

Obtain thorough instructions from

a competent source on all aspects

of motorcycle operation.

Observe the warnings and mainte-

nance requirements in this Own-

er’s Manual.

Obtain qualied training in safe

and proper riding techniques.

Obtain professional technical ser-

vice as indicated in this Owner’s

Manual and/or when made neces-

sary by mechanical conditions.

Never operate a motorcycle with-

out proper training or instruction.

Take a training course. Beginners

should receive training from a cer-

tied instructor. Contact an autho-

rized motorcycle dealer to nd out

about the training courses nearest

you.

Safe Riding

Perform the pre-operation checks

each time you use the vehicle to make

sure it is in safe operating condition.

Failure to inspect or maintain the vehi-

cle properly increases the possibility of

an accident or equipment damage.

See page 6-1 for a list of pre-operation

checks.

This motorcycle is designed to

carry the operator and a passen-

ger.

The failure of motorists to detect

and recognize motorcycles in traf-

c is the predominating cause of

automobile/motorcycle accidents.

Many accidents have been

caused by an automobile driver

who did not see the motorcycle.

Making yourself conspicuous ap-

pears to be very effective in reduc-

ing the chance of this type of

accident.

Therefore:

•Wear a brightly colored jacket.

•Use extra caution when you are

approaching and passing

through intersections, since in-

tersections are the most likely

places for motorcycle accidents

to occur.

•Ride where other motorists can

see you. Avoid riding in another

motorist’s blind spot.

•Never maintain a motorcycle

without proper knowledge.

Contact an authorized motorcy-

cle dealer to inform you on ba-

sic motorcycle maintenance.

Certain maintenance can only

be carried out by certied staff.

Many accidents involve inexperi-

enced operators. In fact, many op-

erators who have been involved in

Safety information

2-2

accidents do not even have a cur-

rent driver’s license.

•Make sure that you are qualied

and that you only lend your mo-

torcycle to other qualied oper-

ators.

•Know your skills and limits.

Staying within your limits may

help you to avoid an accident.

•We recommend that you prac-

tice riding your motorcycle

where there is no trafc until you

have become thoroughly famil-

iar with the motorcycle and all of

its controls.

Many accidents have been

caused by error of the motorcycle

operator. A typical error made by

the operator is veering wide on a

turn due to excessive speed or un-

dercornering (insufcient lean an-

gle for the speed).

•Always obey the speed limit and

never travel faster than warrant-

ed by road and trafc condi-

tions.

•Always signal before turning or

changing lanes. Make sure that

other motorists can see you.

The posture of the operator and

passenger is important for proper

control.

•The operator should keep both

hands on the handlebar and

both feet on the operator foot-

rests during operation to main-

tain control of the motorcycle.

•The passenger should always

hold onto the operator, the seat

strap or grab bar, if equipped,

with both hands and keep both

feet on the passenger footrests.

Never carry a passenger unless

he or she can rmly place both

feet on the passenger footrests.

Never ride under the inuence of

alcohol or other drugs.

This motorcycle is designed for

on-road use only. It is not suitable

for off-road use.

Protective Apparel

The majority of fatalities from motorcy-

cle accidents are the result of head in-

juries. The use of a safety helmet is the

single most critical factor in the pre-

vention or reduction of head injuries.

Always wear an approved helmet.

Wear a face shield or goggles.

Wind in your unprotected eyes

could contribute to an impairment

of vision that could delay seeing a

hazard.

The use of a jacket, substantial

shoes, trousers, gloves, etc., is ef-

fective in preventing or reducing

abrasions or lacerations.

Never wear loose-tting clothes,

otherwise they could catch on the

control levers or wheels and cause

injury or an accident.

Always wear protective clothing

that covers your legs, ankles, and

feet. The engine or exhaust sys-

tem become very hot during or af-

ter operation and can cause

burns.

A passenger should also observe

the above precautions.

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon

monoxide, a deadly gas. Breathing

carbon monoxide can cause head-

aches, dizziness, drowsiness, nausea,

confusion, and eventually death.

Table des matières

Autres manuels Yamaha Moto

Yamaha

Yamaha Bolt XVS95CH Manuel utilisateur

Yamaha

Yamaha YP400T Manuel utilisateur

Yamaha

Yamaha YZ125(R)/LC Guide d'application

Yamaha

Yamaha BT1100 2002 Manuel utilisateur

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha FJR1300R Manuel utilisateur

Yamaha

Yamaha xvs9500aa Manuel utilisateur

Yamaha

Yamaha VMAX VMX17 Manuel utilisateur

Yamaha

Yamaha XMAX CZD300M 2021 Manuel utilisateur

Yamaha

Yamaha WR450F 2013 Manuel utilisateur

Yamaha

Yamaha PW50 2020 Manuel utilisateur

Yamaha

Yamaha YZ65 Manuel utilisateur

Yamaha

Yamaha WR25R 2008 Manuel utilisateur

Yamaha

Yamaha TDM Twin 900 2008 Manuel utilisateur

Yamaha

Yamaha YZ450F(V) Manuel de l'installateur

Yamaha

Yamaha XSR700M 2021 Manuel utilisateur

Yamaha

Yamaha XT660RW Manuel utilisateur

Yamaha

Yamaha 1995 XV1000G Manuel utilisateur

Yamaha

Yamaha PW80(T) Guide d'application

Yamaha

Yamaha FZ-07 2016 Manuel utilisateur

Yamaha

Yamaha 2009 YW125Y Manuel utilisateur

Yamaha

Yamaha FSI-E Manuel d'instructions

Yamaha

Yamaha MT09 Manuel utilisateur

Yamaha

Yamaha NIKEN 2019 Manuel utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur

Triumph

Triumph Thunderbird Manuel utilisateur

Ducati

Ducati 996 Manuel utilisateur

BMW

BMW MOTORRAD K 1200 R Sport Manuel d'installation et d'entretien

BMW Motorrad

BMW Motorrad G 650 GS 2007 Manuel d'installation et d'entretien
