Yamaha A-S3000 Manuel utilisateur

Printed in Malaysia ZG15690

Integrated Amplifier

Amplificateur Intégré

OWNER’S MANUAL

MODE D’EMPLOI

A Living Tradition in Sound

A piano comes into this world through the perfect synergy of advanced technical

skill and artistry. Such a piano can create sound that truly reflects the player’s

feelings.

The final stage in piano production is called “voicing”. It is here that the

instrument is given its soul.

A highly skilled expert concentrates his mind and sensitivity on the sound of each

key, finely adjusting the dynamic feel of the hammers, bringing the tone and

vibrancy of all 88 keys together perfectly; a truly stunning achievement.

It is a quality of sound that can only be determined by an astute, sensitive ear. We

apply this very same concept to the manufacture of our audio products. The

technician performs exhaustive listening tests and every component is considered,

in order to finally achieve the ideal sound.

Yamaha’s tradition of audio quality stretches back over 125 years, and continues to

live on in all Yamaha products today.

Excellence in Audio Achievement

First HiFi System introduced in 1920

We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated

amplifiers, preamplifiers, power amplifiers

and speakers) in 1955 - 1965.

Natural Sound Speaker Series introduced

in 1967

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Natural Sound Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi

enthusiasts.

B-1 Power Amplifier

An innovative power amp that used vertical FETs in all

stages.

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show.

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors

in the world.

A-1 Integrated Amplifier

PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turnta ble

First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Redefined the capabilities of separate components.

AX-1 Integrated Amplifier

GT-CD1 CD Player

MX-1 Power Amplifier and

CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Stereo Amplifier and

CD-S2000 Super Audio CD Player

NP-S2000 Network Player

4En

◆Full floating and balanced circuit design achieves the full potential of

analogue amplification

An entirely new floating and balanced power amplifier achieves complete symmetry and permits full balanced

transmission (amplification) from the input jack to just before the speaker jack.

◆Full-stage balanced signal transmission

The integrated amplifier offers full stage balanced transmission, combining high power output with good sound texture

and outstanding S/N performance.

◆Parallel volume and tone control

◆Large power supply with four separate circuits

◆Left-right symmetrical design with rigid, stable construction

◆Discrete phono amplifier

◆High-quality headphone amplifier with low-impedance drive

■Supplied accessories

Please check that you have received all of the following parts.

• Remote control

• Batteries (AAA, R03, UM-4) (×2)

• Power cable

• SAFETY BROCHURE

■About this manual

•yindicates a tip for your operation.

• The color of images in this manual may vary from the original.

• Read the “SAFETY BROCHURE” before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 16

Specifications. ...................................................................................................................................................... 24

Troubleshooting................................................................................................................................................... 28

5En

Controls and functions

In this chapter, you will learn the controls and functions of A-S3000.

6En

Controls and functions

■Front panel (pages 6 to 9)

1STANDBY/ON/OFF switch

Turns on or off this unit.

STANDBY/ON (upper position):

In this position, you can select STANDBY or ON,

using the pAMP key on the remote control.

OFF (lower position):

The power of this unit is turned off.

• When you turn on this unit, it will take a few seconds

before this unit can reproduce sound.

• If you disconnect the power cable from the AC outlet and

connect it again when this unit is in STANDBY mode, the

power of the unit is turned on. If the unit is not to be

operated for a long time, set the STANDBY/ON/OFF

switch to OFF.

2STANDBY/ON indicator

Lit brightly:

Shows that the power of the unit is ON. In this

condition, you can switch the unit to STANDBY mode

using the pAMP key on the remote control.

Lit dimly:

Shows that the unit is in STANDBY mode. In this

condition, press the pAMP key on the remote control

to turn on the unit.

Off:

Shows that the power of the unit is OFF. In this

condition, you can turn on the unit using the

STANDBY/ON/OFF switch only.

3PHONES jack

Outputs audio for private listening with headphones.

• When headphones are plugged in:

– Both speaker sets connected to the SPEAKERS L/R CH

terminals are turned off.

– No signals are output at the PRE OUT jacks.

– You cannot select MAIN DIRECT as the input source.

• If headphones are plugged into the PHONES jack while

MAIN DIRECT is selected as the input source, no audio is

output at the PHONES jack.

4TRIM selector

Adjusts the volume level when headphones are

plugged in to avoid sudden changes in volume.

Choices: –6 dB, 0 dB, +6 dB, +12 dB

STANDBY/ON PHONESTRIM

-6 +6

+12

SPEAKERS

OFF BA+B

BI-WIRING

METER

BASS

PEAK

OFF VU

–+

TREBLE

–+

BALANCE INPUT

LEFT

20 10

110

1000.10.01

304060–+3

RIGHT

20 10

110

1000.10.01

304060–+3

OFF

PHON

BAL 1 CD

BAL 2

TUNERLINE 1

PHONOLINE 2

MAIN DIRECT

1 2 3 4 5 6 7 8 9 :

Notes Notes

7En

5SPEAKERS selector

Turns on or off the speaker set connected to the

SPEAKERS L/R CH A and/or B terminals on the rear

panel.

• Switch to the OFF position to turn off both speaker

sets.

• Switch to the A or B position to turn on the speaker

set connected to the SPEAKERS L/R CH A or B

terminals.

• Switch to the A+B BI-WIRING position to turn on

both speaker sets.

If you use two sets (A and B), the impedance of each speaker

must be 8 Ωor higher.

6METER selector

Switches the display of the meter to OFF, PEAK or

VU.

OFF:

Turns off the meter and the illumination.

PEAK:

Switches the meter to a peak level meter. The peak

level meter shows a momentarily highest audio output

level.

VU:

Switches the meter to a VU (Volume Unit) level meter.

The VU level meter shows an effective audio output

value that is similar to human senses.

7Meter displays (LEFT/RIGHT)

Show the audio output level of the left (LEFT) and

right (RIGHT) channels in VU or PEAK meter mode.

The VU or PEAK meter can be selected by the

METER selector.

8BASS control

Increases or decreases the low frequency response.

The 0 position produces a flat response.

Control range: –10 dB to +10 dB

9TREBLE control

Increases or decreases the high frequency response.

The 0 position produces a flat response.

Control range: –10 dB to +10 dB

0BALANCE control

Adjusts the audio output balance of the left and right

speakers to compensate for sound imbalances caused

by speaker locations or listening room conditions.

• When both the BASS and TREBLE controls are set to the 0

position, audio signal bypasses the tone control circuitry.

• The BASS, TREBLE and BALANCE controls do not affect the

signals input at the MAIN IN jacks and signals output at the

LINE 2 REC jacks.

Caution

INPUT

100

PHONO

MM AUDIO MUTE

VOLUME

BAL 1 CD

TUNER

PHONO

Notes

English

8En

Controls and functions

■Front panel (pages 6 to 9)

ARemote control sensor

Receives signals from the remote control.

The remote control transmits a directional infrared beam. Be

sure to aim the remote control directly at the remote control

sensor on the front panel of this unit during operation.

BINPUT selector/indicator

Selects the input source to be played back. The

indicator of the input source selected with the INPUT

selector lights.

The audio signals of the selected input source are also

output at the LINE 2 REC jacks.

MAIN DIRECT: Selects the component connected to

the MAIN IN jacks.

When MAIN DIRECT is selected as the input

source, the audio signals are not output at the PRE

OUT, LINE 2 REC and PHONES jacks.

LINE 1/LINE 2: Selects the component connected to

the LINE 1 or LINE 2 jacks.

BAL 1/BAL 2: Selects the component connected to

the BAL 1 or BAL 2 jacks (balanced XLR jacks).

CD: Selects the CD player connected to the CD jacks

(unbalanced RCA jacks).

TUNER: Selects the tuner connected to the TUNER

jacks.

PHONO: Selects the turntable connected to the

PHONO jacks.

When LINE 2 is selected, the audio signals are not output at

the LINE 2 REC jacks.

PHONESTRIM

-6 +6

+12

OFF BA+B

BI-WIRING

METER

BASS

PEAK

OFF VU

–+

TREBLE

–+

BALANCE INPUT

RIGHT

20 10

110

1000.10.01

304060–+3

OFF

PHON

BAL 1 CD

BAL 2

TUNERLINE 1

PHONOLINE 2

MAIN DIRECT

A B

SPEAKERS

STANDBY/ON

LEFT

20 10

110

1000.10.01

304060–+3

3030

Approximately 6 m (20 ft)

Note

9En

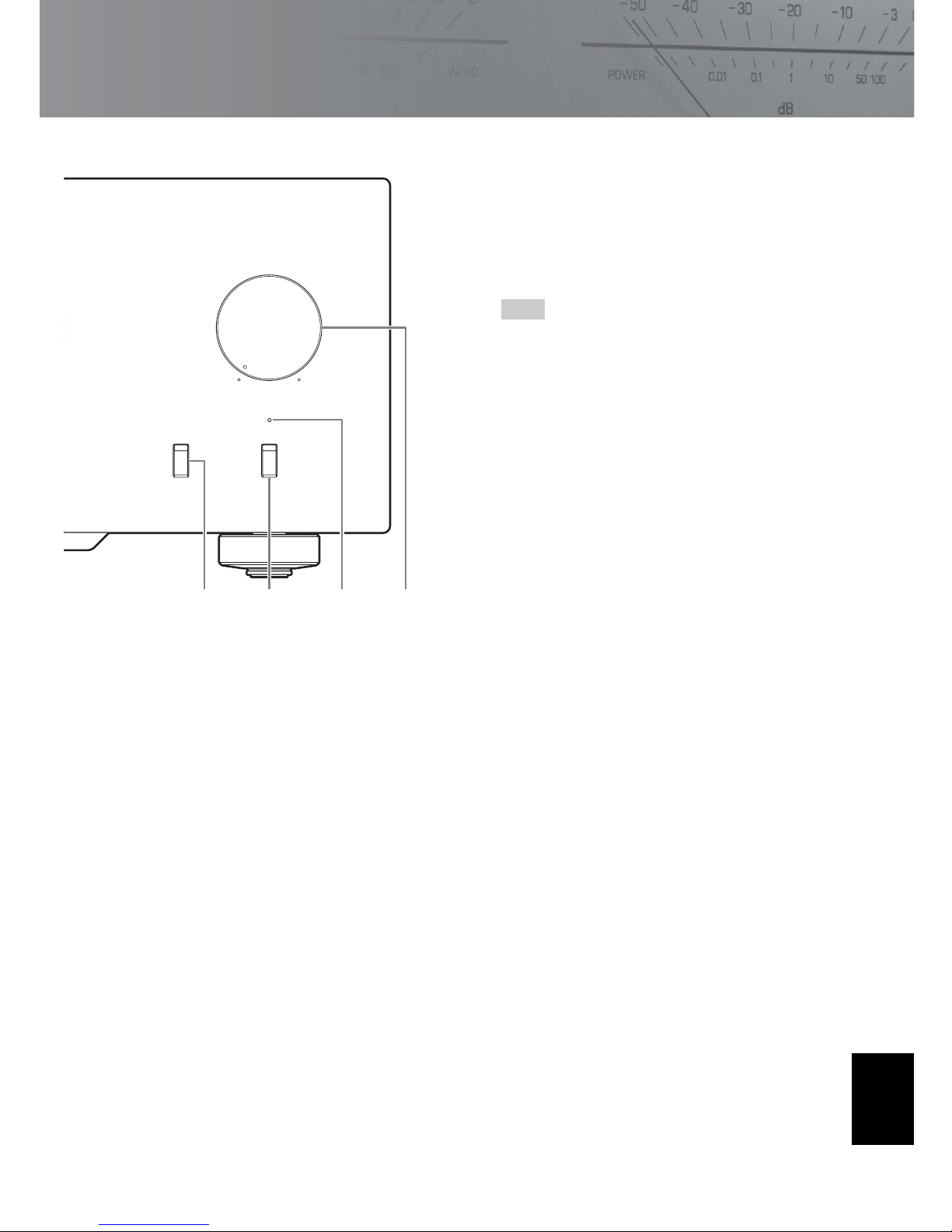

CPHONO switch

Selects the type of magnetic cartridge of the turntable

connected to the PHONO jacks on the rear panel.

• Press upward to the MM position when the

connected turntable has a moving magnet (MM)

cartridge.

• Press downward to the MC position when the

connected turntable has a moving coil (MC)

cartridge.

When you replace the cartridge, be sure to turn off this unit.

DAUDIO MUTE switch

Press downward to reduce the current volume level by

approximately 20 dB. Press again to restore the audio

output to the previous volume level.

You can also rotate the VOLUME control on the front panel

or press the VOLUME + or – key on the remote control to

resume the audio output.

EAUDIO MUTE indicator

Lights when the mute function is turned on with the

AUDIO MUTE switch.

FVOLUME control

Controls the volume level. This does not affect the

output level at the LINE 2 REC jacks.

The VOLUME control does not affect when you select

MAIN DIRECT as the input source. Adjust the volume level

using the volume control on the external amplifier connected

to the MAIN IN jacks.

100

PHONO

MM AUDIO MUTE

VOLUME

C D E F

Note

English

10 En

Controls and functions

■Rear panel

1TUNER input jacks

2GND (Ground) terminal

3PHONO input jacks

4CD input jacks

5BAL 1/BAL 2 (balanced) input jacks

Two sets of balanced input jacks are provided.

Set the ATTENUATOR selector and PHASE selector

associated with the BAL 1 or BAL 2 jacks according

to the player connected to the corresponding jacks.

For details of settings, see page 20.

6AUTO POWER STANDBY switch

ON:

The unit enters STANDBY mode automatically if not

operated for 8 hours.

OFF:

The unit does not enter STANDBY mode

automatically.

7LINE 1 input jacks

8LINE 2 jacks

PB (playback) input jacks and REC (recording) output

jacks are provided.

NORMAL(EIA

)

SPEAKERSR CH

SYSTEM CONNECTOR

REMOTE

TUNER

GND PHONO

TRIGGER AC IN

IN INOUT

A OR B:4 MIN./SPEAKER A + B:8MIN./SPEAKER

BAL 1

+HOT

- COLD

ATTENUATOR

BYPASS ATT.

(-6DB)

PHASE

NORMAL INV.

BAL 2 LINE 1

ATTENUATOR

BYPASS ATT.

(-6DB)

PHASE

NORMAL INV.

AUTO POWER STANDBY

ON OFF

B C D E

1 2 54 63

See page 16 for connection information.

Autres manuels pour A-S3000

Table des matières

Autres manuels Yamaha Amplificateur

Yamaha

Yamaha MX-1 Manuel utilisateur

Yamaha

Yamaha A-S3000 Manuel utilisateur

Yamaha

Yamaha P5000S - Amplifier Manuel utilisateur

Yamaha

Yamaha CA-610 II Manuel utilisateur

Yamaha

Yamaha A-S1100 Manuel utilisateur

Yamaha

Yamaha PC2602 Manuel utilisateur

Yamaha

Yamaha A-1020 Manuel utilisateur

Yamaha

Yamaha MA2120 Manuel utilisateur

Yamaha

Yamaha RX V565 Manuel utilisateur

Yamaha

Yamaha AVC-30U Manuel utilisateur

Yamaha

Yamaha HA-G1 Manuel utilisateur

Yamaha

Yamaha A-S2000 - Amplifier Manuel utilisateur

Yamaha

Yamaha MX-D1 - Amplifier Manuel utilisateur

Yamaha

Yamaha A100 Manuel utilisateur

Yamaha

Yamaha Electone C-40 Manuel utilisateur

Yamaha

Yamaha AX-500 Manuel utilisateur

Yamaha

Yamaha AX-750RS Manuel utilisateur

Yamaha

Yamaha AV-75PRO Manuel utilisateur

Yamaha

Yamaha AS1000 - Amplifier Manuel utilisateur

Yamaha

Yamaha PC4002M Manuel utilisateur

Yamaha

Yamaha P4050 Manuel utilisateur

Yamaha

Yamaha A-S2000 - Amplifier Manuel utilisateur

Yamaha

Yamaha AX-497 Manuel utilisateur

Yamaha

Yamaha XMV8280-D Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
