Yale Real Living Assure Lock YRD226 Caractéristiques techniques

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.

Yale Assure Lock®

® Touchscreen Deadbolt

Installation and Programming Instructions

(YRD226/YRD620/YRD622)

This manual will walk you through all the required steps to add your new

Yale Assure Lock to your door.

• Remove existing deadbolt

• Double check door measurements

• Install your Assure Lock

• Program your Assure Lock

• Add your Assure Lock to your smart home system or Yale

Access app if purchased with Yale Smart Module or Yale Access

Upgrade Kit

Before you begin

Using the app on your smart

phone, scan this QR for step-by

-step installation instructions & to

DOWNLOAD

THE BILT APP

Tools Needed

Standard

Phillips Head

Screwdriver

Tools Needed For New

Doors Or Adjusting Existing Door

Utility

Knife

Drill Wood

Mortise

Chisel

Pencil Tape

Measure Level

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

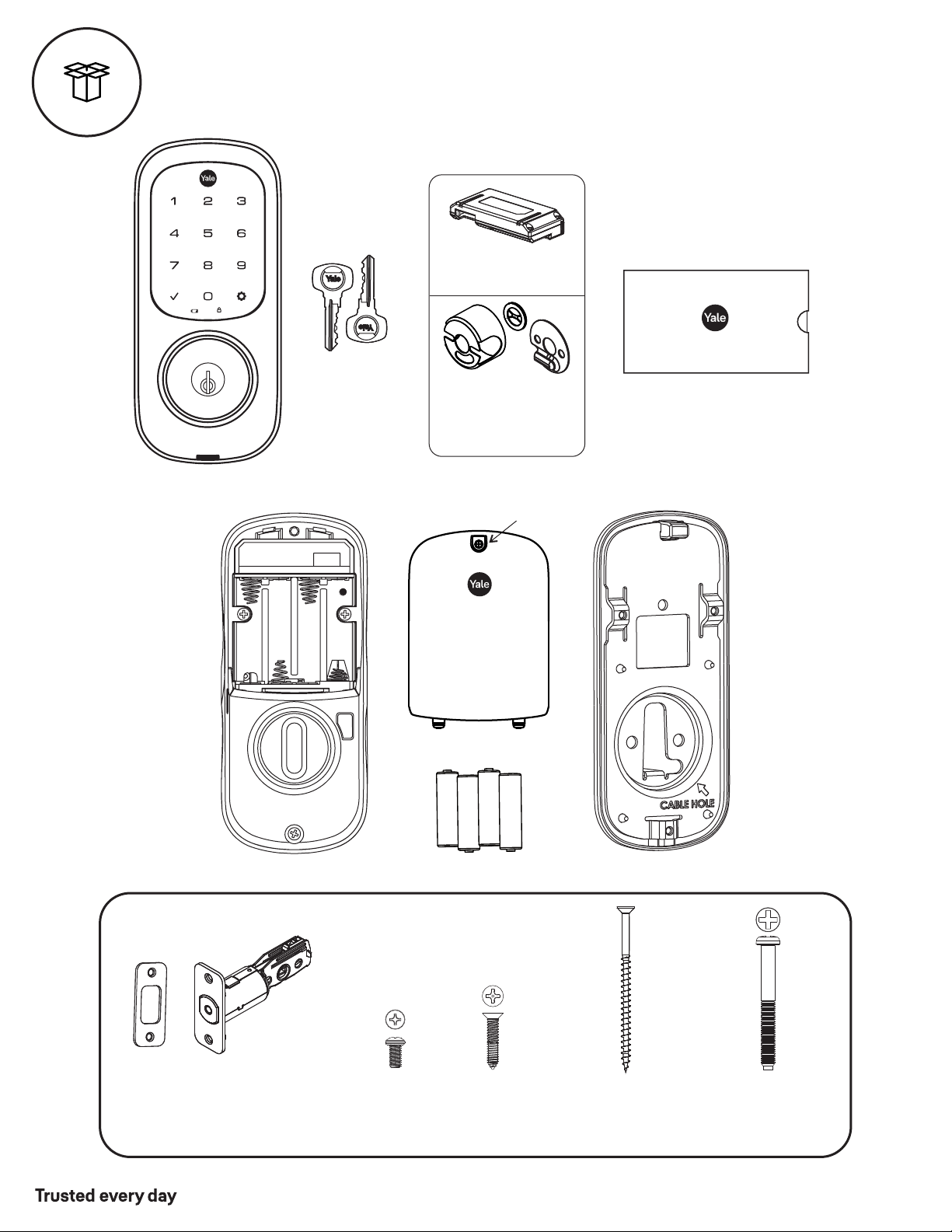

What's In The Box

Installation Guide

and Door Template

Mounting Hardware

Strike Plate Adjustable

Deadbolt

(AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase)

Strike Plate

and

Deadbolt Screws

Inside Lock

Screws Optional

Security

Strike Plate Screws

Let's Get Started

Touchscreen Keypad

Long Through-bolt for

1-3/4" - 2-1/4"

Door Thickness

Yale Smart Module

(with select models)

Optional

Fire Kit Parts

(Required for

Fire Rated Openings)

x2 x2 x2

Keys

Loosen screw to

remove cover

Battery Cover

Mounting Plate

Inside Lock 4 AA Batteries

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

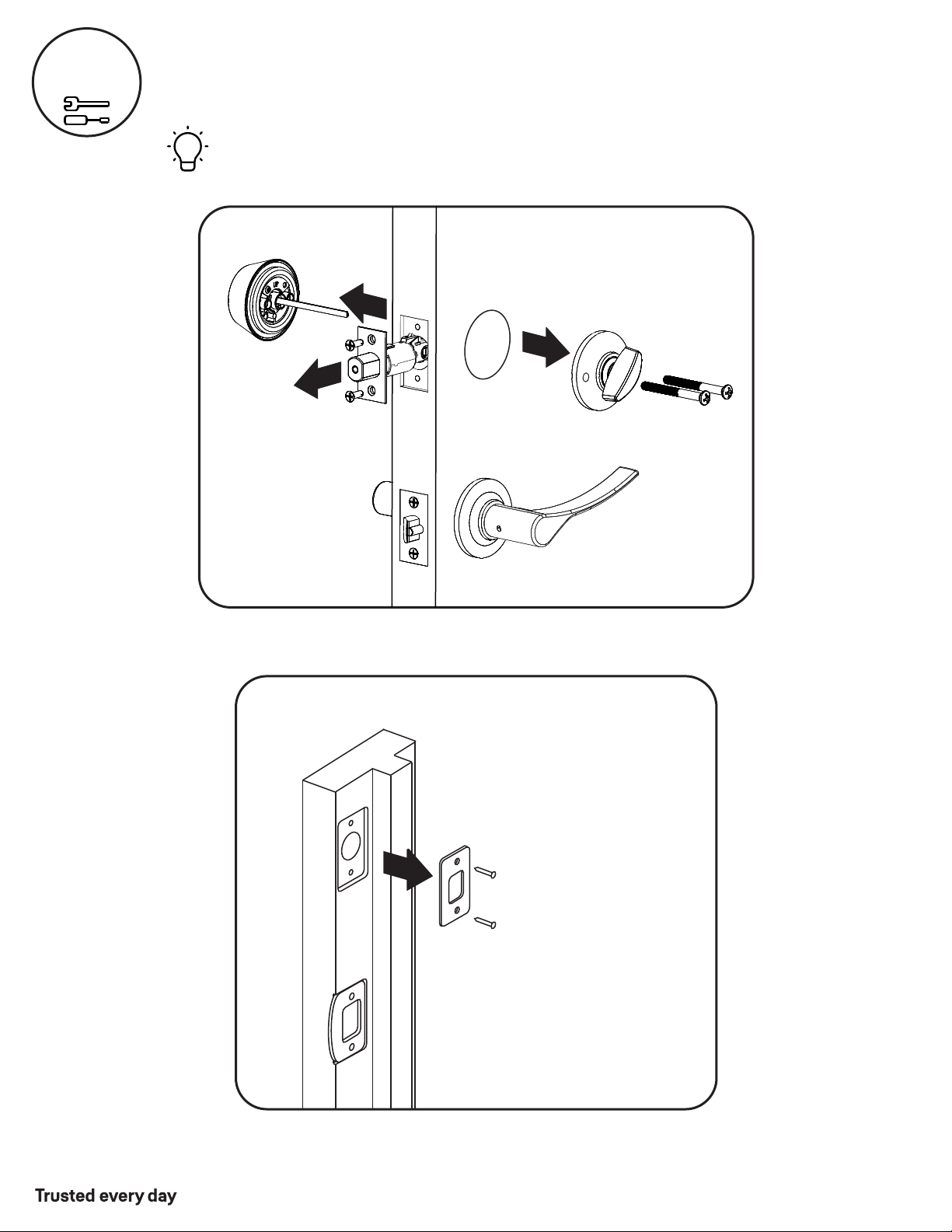

Remove Existing Deadbolt

Do not discard old lock hardware until Assure Lock has been successfully installed.

Frame

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

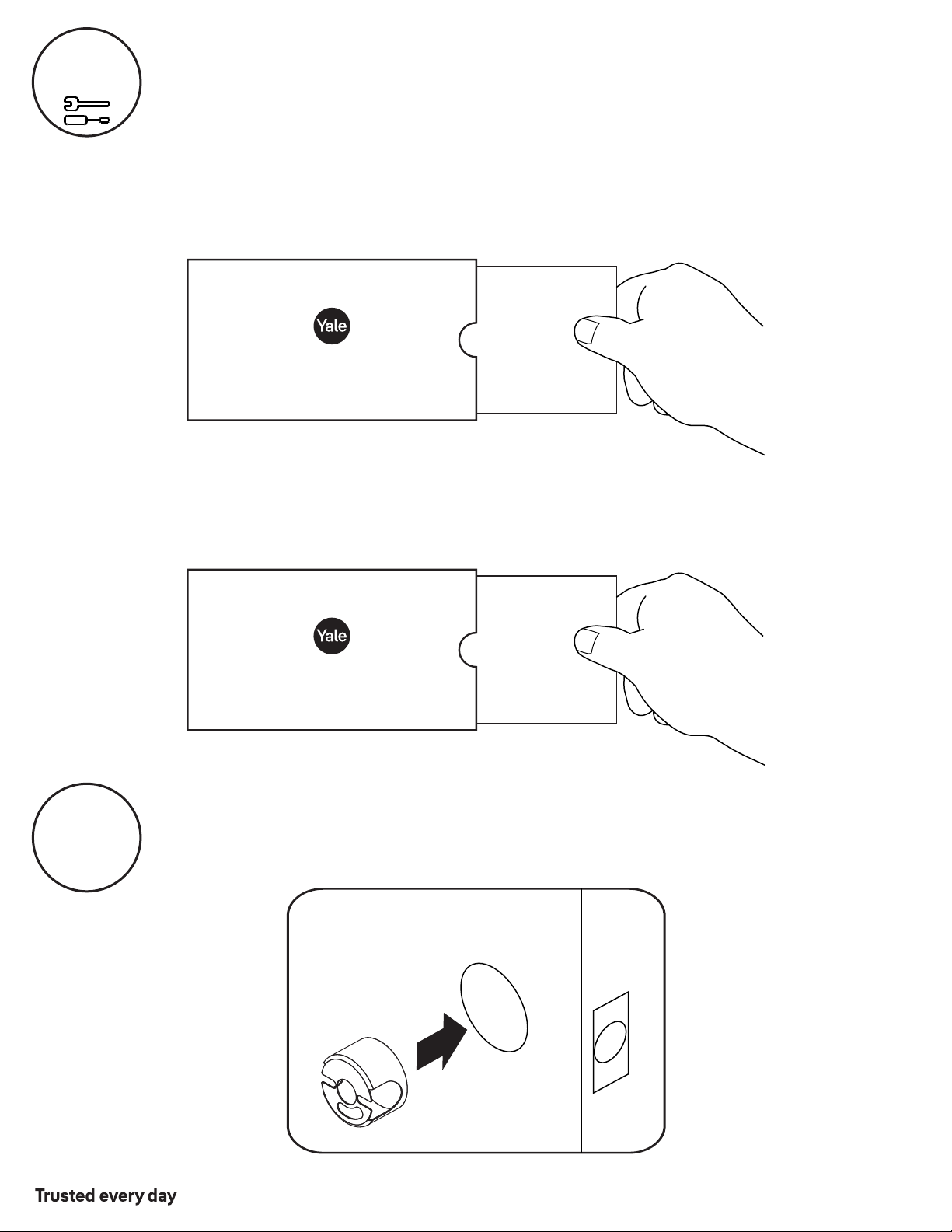

New Door Marking Template

Door Checker

Check Door Measurements And

Make Adjustments If Needed

Use door checker from installation guide envelope to verify your door

measurements and make any needed adjustments.

With the door checker, use the template from installation guide envelope

to prep a new door that has not been predrilled for hardware.

Inside of Door

optional

1 of 3

Install Optional Fire Cup for Fire Rated Openings

Only included with select models

New Door

Marking

Template

Check

Your Door

Guide

Let's Get Started

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

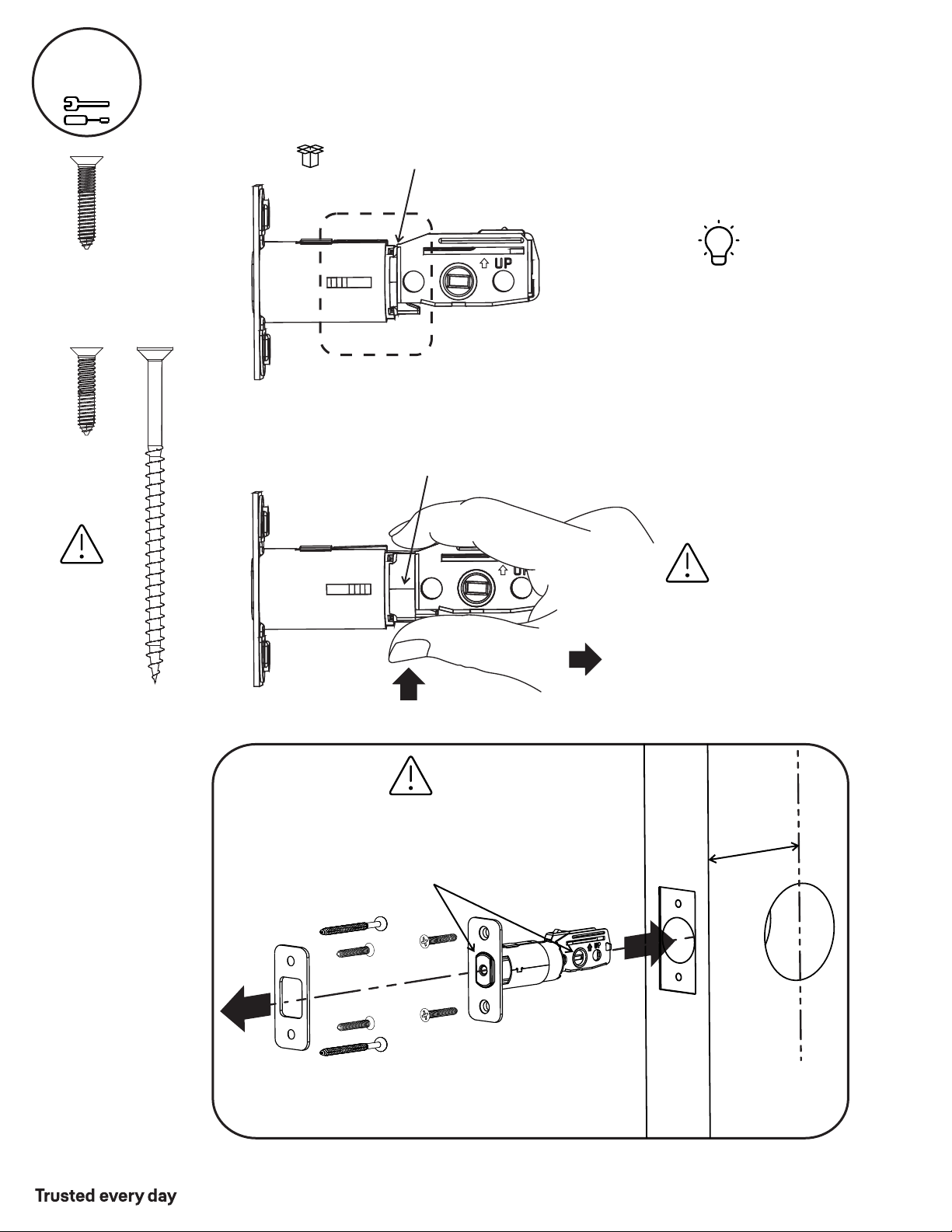

3Install Deadbolt and Strike Plate

For Deadbolt

Actual Size

*Deadbolt position is based on

backset. Choose position

appropriate for your door.

Reference Door Checker

measurements E and F.

AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase

optional

*2-3/8" Backset, default

*2-3/4" Backset, optional

Press

Pull

Bolt must be in retracted (unlocked)

position. Note horizontal orientation of

tailpiece slot and UP orientation of

deadbolt latch.

Backset

For Strike Plate

Actual Size

Choose

standard strike

plate screws

or security

screws.

For Strike Plate, optional

Actual Size

Bolt must be in

retracted

(unlocked)

position.

x2 O

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

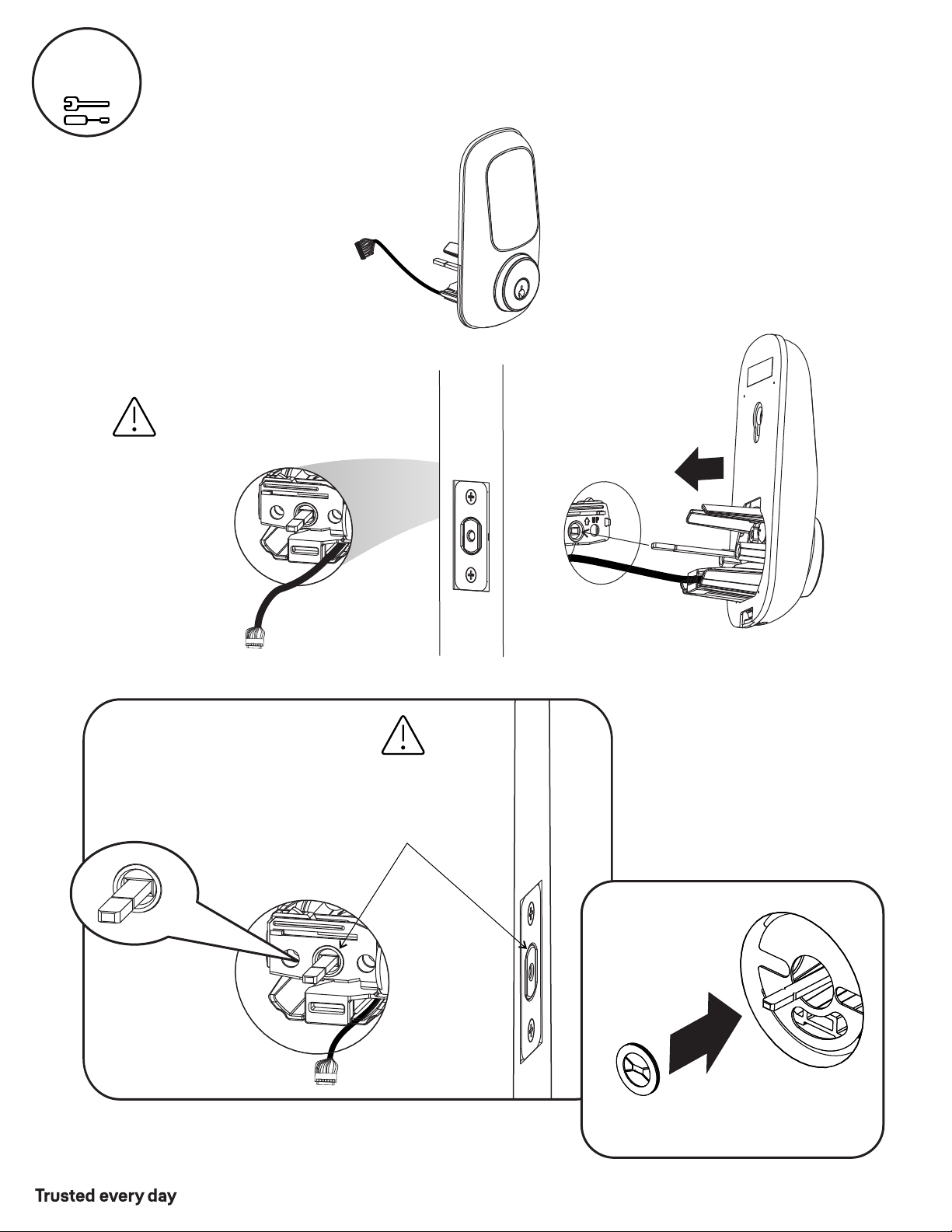

4Install Touchscreen Keypad

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

mechanism.

Outside of DoorInside of Door

To be used with Fire Cup

for Fire Rated openings

Door face hole

must be at least

2-1/8".

If hole is too

small, a door lock

installation kit or

jig should be used

to increase hole

size.

optional

2 of 3

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

Actual Size

Install Inside Mounting Plate

To be used with Fire Cup

for Fire Rated openings

optional

3 of 3

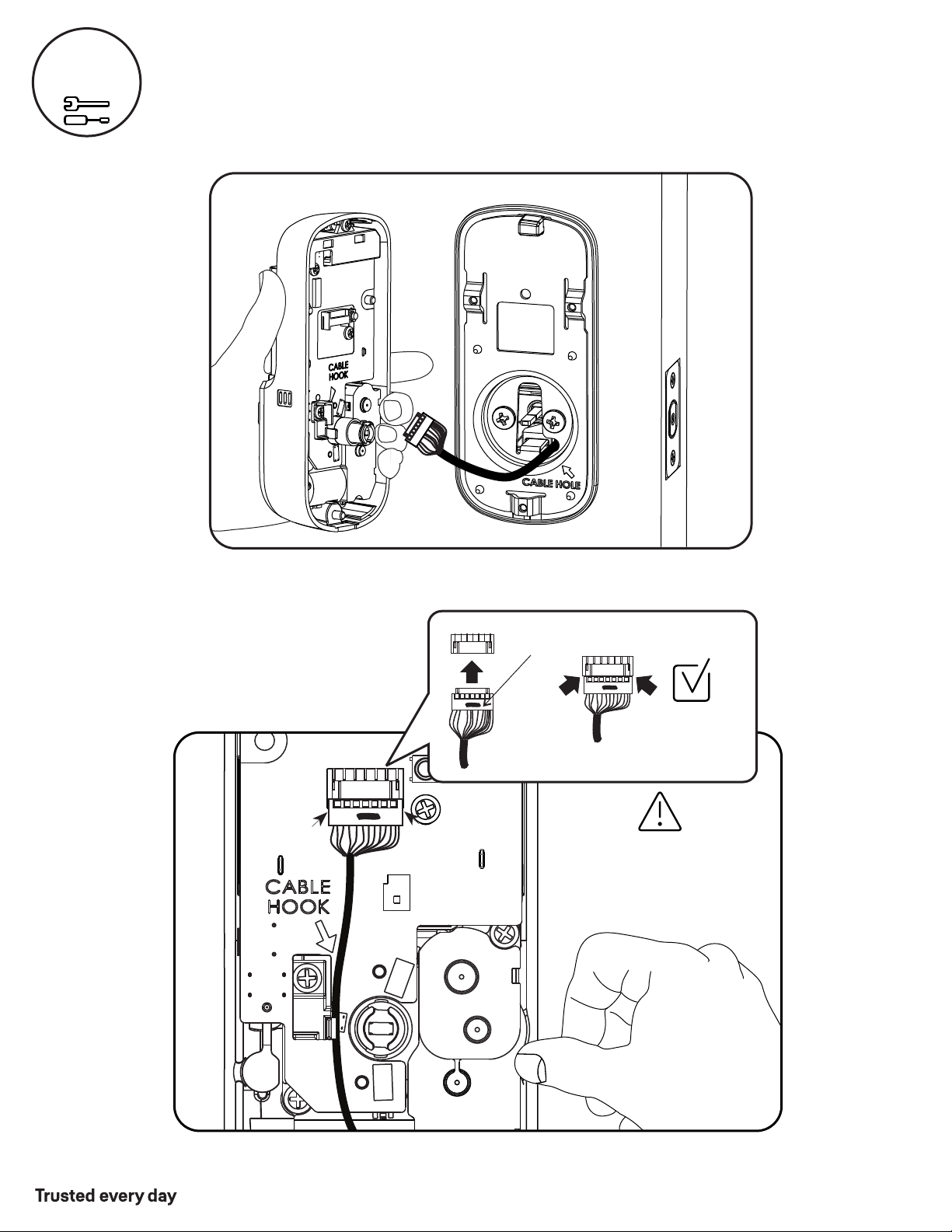

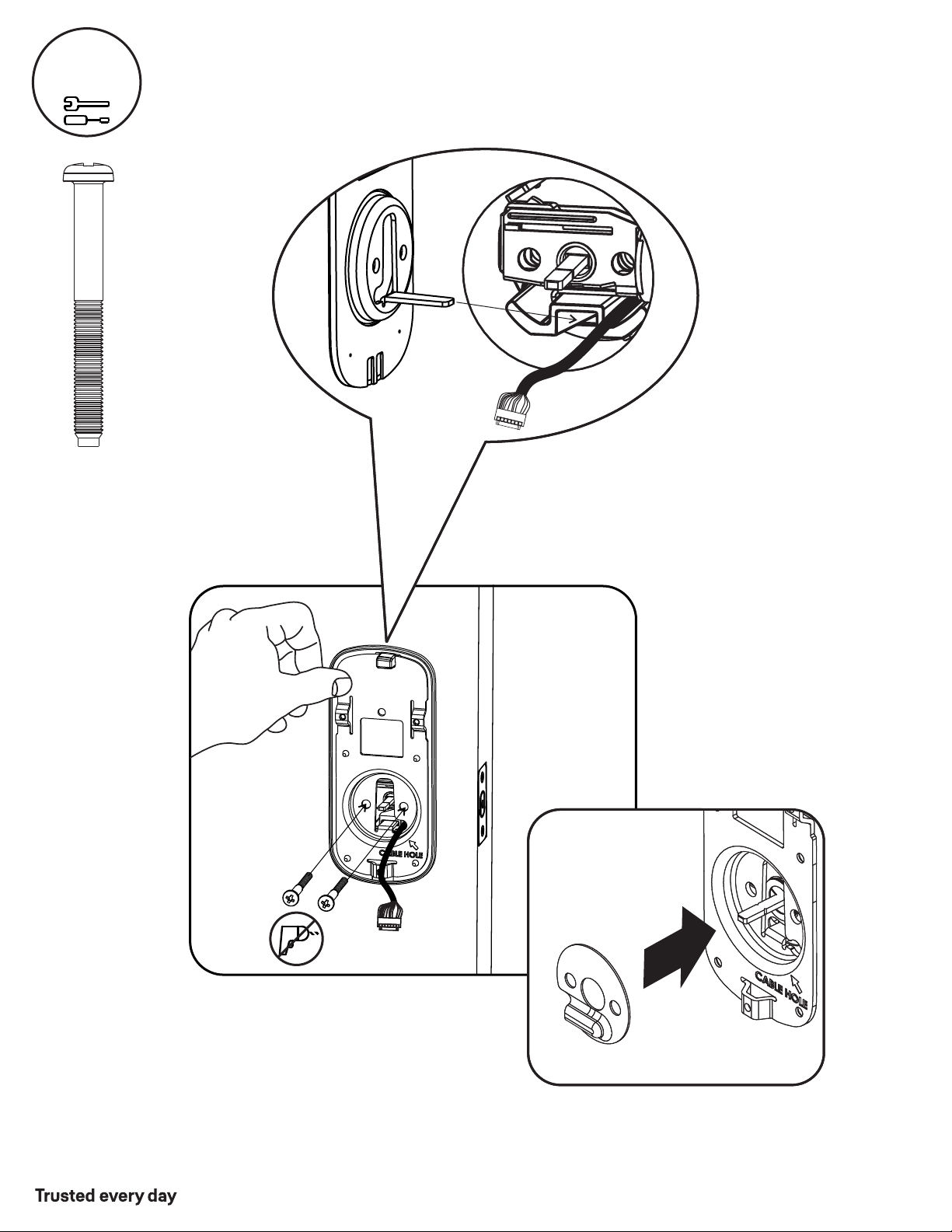

6Attach Cable

This Side Up

mark

Make sure cable

is securely

attached

Use cable hooks for proper

routing, when possible. Position

wires carefully when not using

hook. Do not pinch wire.

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

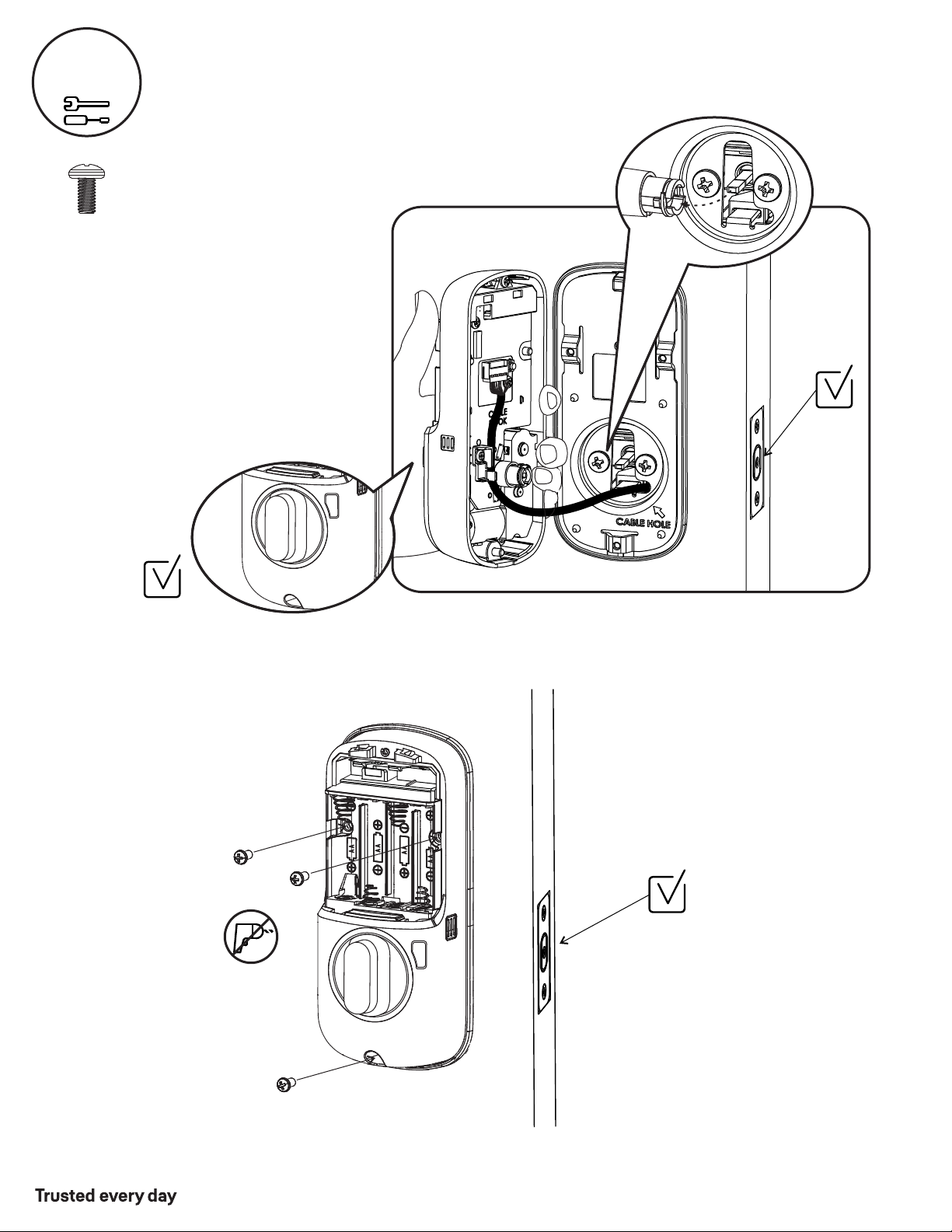

7Install Inside Lock

Actual Size

Make sure thumbturn

is vertical. If thumbturn does

not move freely, refer to

"Hardware Troubleshooting".

P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY

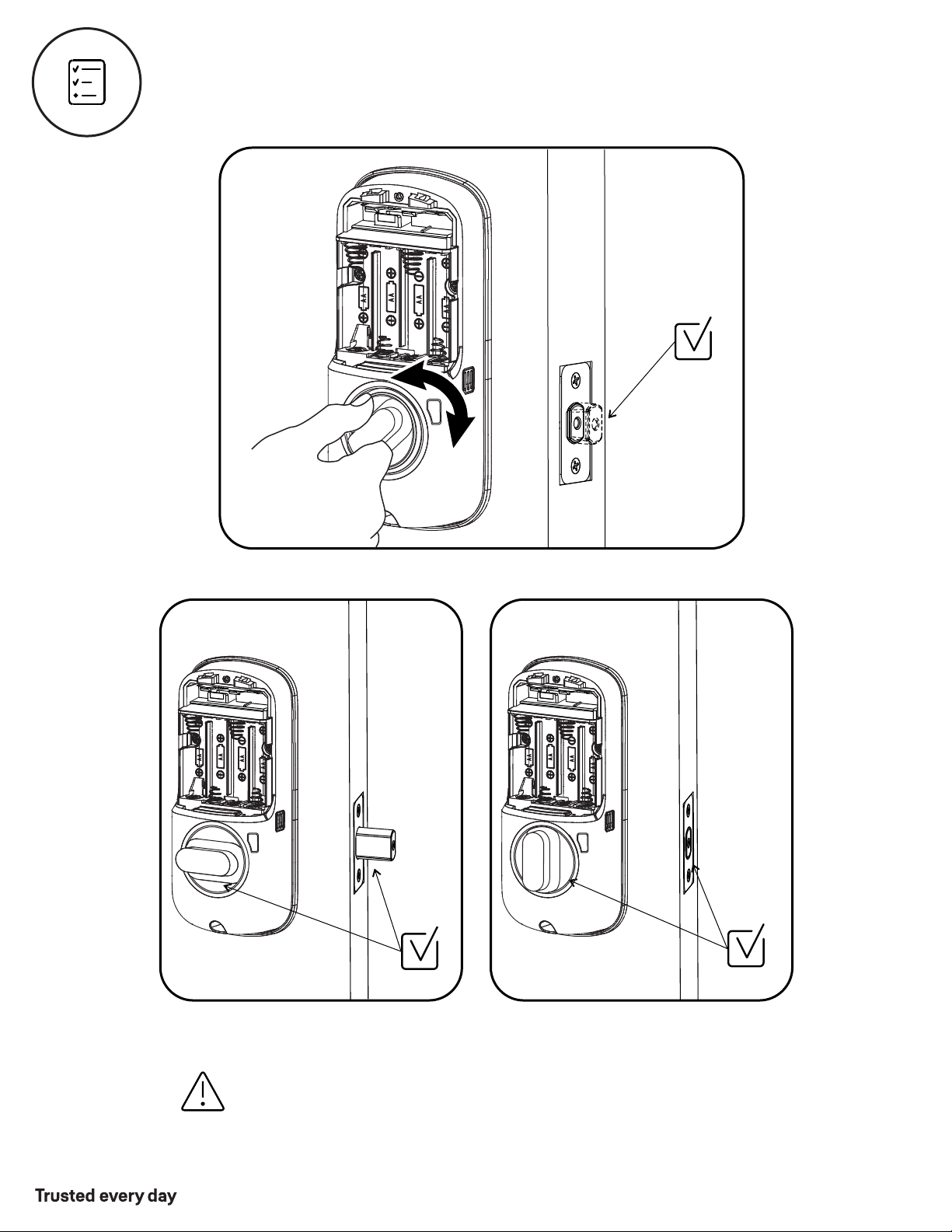

Test Mechanical Operation

If thumbturn operation fails, check the installation beginning with Step 7.
