What is the GM Function? ............................................................................................. 2

GM Operation.................................................................................................................. 3

Display the APL (Automatic Position Locating) screen.............................................. 4

Confirm the location of a Group Member station in real time.................................... 5

Display the position of the member station on the compass screen............................. 5

Registering the Location Information of a Partner Station ............................................ 6

Checking Received Messages and Images.................................................................. 7

Sending massages or images....................................................................................... 9

Creating and sending a new message.......................................................................... 9

Using Standard Messages ...................................................................................... 10

Registering a standard message............................................................................. 11

Replying to the Sender of the Checked Message or Image Data............................... 12

Forwarding the Checked Message or Image Data ..................................................... 12

Sending Your Snapshot Images.................................................................................. 13

GM Set Mode List ......................................................................................................... 14

GM Set Mode Function List ......................................................................................... 14

What is the GM Function?

The GM (Group Monitor) function automatically monitors on the same frequency for

any other stations with the GM function in operation, or stations operating in DN mode,

within communication range. The GM function then displays the acquired direction and

distance information for each detected call sign on the screen.

If the DG-ID number is other than “00”, the GM function will check for partner stations

set to the same DG-ID number, with the GM function turned ON, that are within commu-

nication range.

In addition to knowing who is in the service area, the APL (Automatic Position Locat ing)

screen indicates the positions of the group members, centered on your own station (up

to four are simultaneously displayed). The direction and progress of each station is dis-

played, and you can check each other's position, distance, and moving direction.

You can also use GM functions to send data such as messages and images with your

friends.

• When the GM function is activated, the operating band is automatically switched to the A

band, and the communication mode is switched to the C4FM digital (DN) mode.

• To use the GM function, all of the members must operate on the same frequency.

• Note that when the receive DG-ID number of your transceiver is set to a DG-ID number

other than “00”, received signals that do not have the same DG-ID number may not be

heard.

Insert a commercially available micro-SD card into this unit to send and receive messages

and images.

Usable microSD Memory Cards

This transceiver only supports the following capacity of microSD and microSDHD memory

cards.

•2GB•4GB•8GB•16GB•32GB

Not all microSD and microSDHC cards sold commercially are guaranteed to work with this

product. In addition, microSDXC memory cards are not supported.

GM Operation

1. Tune to the frequency used by the group that you would like to communicate with.

• If you only want to check your group location information, press and hold the [GM]

key and set the send and receive DG-ID numbers to the same numbers except “00”

at all the partner stations.

• The frequency cannot be changed while the GM function is operating.

2. Press the [GM] key.

• The callsign and signal strength of stations (up to 24) operating in the DN mode

and those with their GM function in operation, that are within communications

range, will be displayed.

• Stations within the sphere of communications callsigns are displayed in white and

are displayed in descending order of signal strength.

• Each time you press the [BAND grp] key, turn ON/OFF the functions displayed in

order of signal strength (the display of signal strength is also turned OFF).

• Stations outside the sphere of communications callsigns are displayed in gray.

• You can communicate in DN mode of C4FM digital by pressing the PTT switch.

JQ1YBF-0AB

JH1YPC-FGH

JA2YSO-789

JA1YOE-123

JA7YWC-022

JA1ZRL-CDE

Selected member

Signal strength

Out of range

In range

Display the APL (Automatic Position Locating) screen

The positions of up to four group stations are displayed on the APL (Automatic Position

Locating) screen, centered on your own station. The direction and progress of each sta-

tion is displayed, and you can check each other's position, distance, and moving direc-

tion.

JQ1YBF

JH1YPC

JA1YOE

JA7YWC

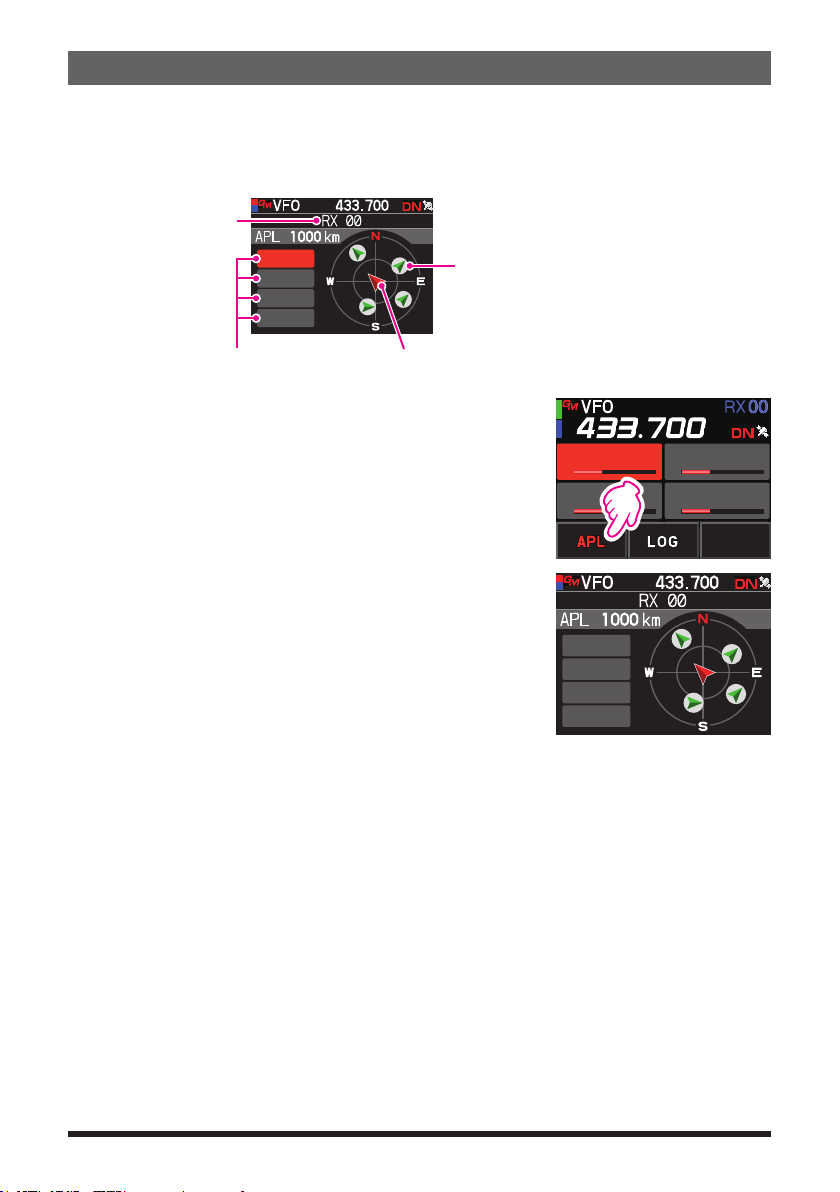

Displayed members (max 4 stations)

Callsign (first 6 characters)

DG-ID number

Member

(Arrow indicates the direction of progress)

Own station

(Arrow indicates the direction of progress)

1. Press the [F menu] key, then press the DIAL knob

while the GM function is active:

• The last four stations received by the GM function

are displayed on the APL screen. The displayed sta-

tions are listed on the left side of the screen with the

first six characters of the callsign and the direction

from your own station.

• The direction of members will be displayed on the

compass screen, centered on your own station. The

traveling direction of your own and member stations

is indicated on the compass screen.

• The scale of the compass screen is automatically set

according to the distance of the selected member

station when the APL screen is displayed. Rotate the

DIAL knob to change the scale.

• The maximum distance at which a member's posi-

tion can be displayed on the compass screen is a

radius of 1,000 mi (or 1,000 km).

JQ1YBF-0AB

JH1YPC-FGH

JA2YSO-789

JA1YOE-123

JA7YWC-022

JA1ZRL-CDE

JQ1YBF

JH1YPC

JA1YOE

JA7YWC

zDisable the APL screen display

1. Press the [SQL back] key.

Return to the normal GM screen.

Confirm the location of a Group Member station in real time

The position of the selected member can be confirmed in real time on the compass

screen.

The member's current position may be registered as the navigation destination.

Display the position of the member station on the compass screen

1. Press the [GM] key.

2. Rotate the DIAL knob to select the station for which

you want to display location information.

JQ1YBF-0AB

JH1YPC-FGH

JA2YSO-789

JA1YOE-123

JA7YWC-022

JA1ZRL-CDE

3. Press the DIAL knob or [DISP] key.

The call sign and direction, distance, and heading of the selected partner station are

displayed.

JA1YOE-0AB

Callsign of other station

Direction of other station

HUP: Heading up

NUP: North UP

Distance to other station

Direction of your station

zSwitch the compass screen display method

Press and hold the [F menu] key [DISPLAY] [6 COMPASS]. Press the DIAL

knob then rotate the DIAL knob to select the screen display method (direction to-

ward the top of the screen) from “HEADING UP” or “NORTH UP”. The default setting

is “HEADING UP”.

HEADING UP: The compass circle indicates the direction ( , , and ) you are

heading.

The arrow indicates the direction toward your partner station.

NORTH UP: Always displays the north ( ) on the top. The arrow indicates the di-

rection you are heading.

zDisable the Compass screen display

1. Press the [SQL back] or [DISP] key.

• You cannot update the location information of the partner stations outside of

communication range.

• If your station or your partner stations do not set the location information manually or

capture it from the GPS satellite signals, the compass display is not available.

• GPS location information may have an error of several hundred meters depending on the

surrounding environment and so on.

• This function is a simple function using GPS satellite data. Use this as a guide for the

position of your own station or partner station.

Registering the Location Information of a Partner Station

You can register the current position of the selected member, and then navigate toward

that station.

1. Press the [GM] key.

2. Rotate the DIAL knob to select the station for which

you want to registering location information.

3. Press the DIAL knob or [DISP] key.

4. Press the [F menu], then rotate the DIAL knob to

select [MEM], then press the DIAL knob.

[«], [L1] and [L2] will start blinking.

5. Rotate the DIAL knob to select the [«], [L1] or [L2],

then press the DIAL knob.

6. Press the [BACK] key.

• The Callsign and location information of your partner

station is registered, and the Navigation starts.

• To cancel the registration, rotate the DIAL knob to

select [MEM], then press the DIAL knob.

• The registered location information can be recalled

later to allow navigation to that point.

JA1YOE-0AB

Checking Received Messages and Images

Use the GM function to check the messages and images on the LOG list.

When using a GM function, a beep sounds when a new message or image is received, and

the “LOG MSG” or “LOG PICT” list screen (see step 3 below) appears automatically.

1. Press the [GM] key.

2. Press the [F menu]key, then rotate the DIAL knob to

select [LOG], then press the DIAL knob.

JQ1YBF-0AB

JH1YPC-FGH

JA2YSO-789

JA1YOE-123

JA7YWC-022

JA1ZRL-CDE

3. Rotate the DIAL knob to select [MESSAGE] or [PICT].

VOICE: Audio recorded (Only playback of record-

ed content is possible.)

MESSAGE: Text Message

PICT: Image

4. Press the DIAL knob.

LOG

VOICE

MESSAGE

PICT

Select “MESSAGE” or “PICT” to display the LOG MSG

list or LOG PICT list.

The icons on the left side of the LOG list indicate the

following:

Message received (unread)

Message received (read)

Message sent

Message failed to send

Image received (unread)

Image received (read)

Image sent

Image failed to send

Image taken with the camera built in the optional

microphone

NEW

JA6YPC- 7 12:34

JA1YOE-13 08:56

JQ1YBF- 9 06:17

JQ1YBG-14 05/05

JA1ZRL- 9 04/24

LOG MSG

5. Rotate the DIAL knob to select to the message or image to be displayed, then press

the DIAL knob.

• The selected message or image will be displayed.

• Press the [F menu] key, then rotate the DIAL knob to select [FWD], then press the

DIAL knob to forward the checked message or image data. Refer to “Forwarding

the Checked Message or Image Data (page 12).

• Press the [F menu] key, then rotate the DIAL knob to select [REPLY], then press

the DIAL knob to reply to the sender of the downloaded message or image data.

Refer to “Replying to the Sender of the Checked Message or Image Data” (page

12).

• Press the [F menu] key, then rotate the DIAL knob to select [DEL], then press the

DIAL knob to display “DELETE?”. Rotate the DIAL knob to select [OK], then press

the DIAL knob to delete the information.

6. Press the [SQL back] key, then press the [DISP] key.

Returns to the previously viewed screen.

Sending massages or images

There are 4 ways to send messages or images using the GM function:

(1) Creating and sending a new message

(2) Replying to the sender of the checked message or image data

(3) Forwarding the checked message or image data

(4) Sending your snapshot images

Creating and sending a new message

Create and send a new message:

1. Press the [GM] key.

2. Press the [F menu]key, then rotate the DIAL knob

to select [LOG], then press the DIAL knob.

JQ1YBF-0AB

JH1YPC-FGH

JA2YSO-789

JA1YOE-123

JA7YWC-022

JA1ZRL-CDE

3. Rotate the DIAL knob to select [MESSAGE], then

press the DIAL knob.

Displays the LOG list.

NEW

JA6YPC- 7 12:34

JA1YOE-13 08:56

JQ1YBF- 9 06:17

JQ1YBG-14 05/05

JA1ZRL- 9 04/24

LOG MSG

4. Rotate the DIAL knob to select [NEW], then press

the DIAL knob.

NEW

JA6YPC- 7 12:34

JA1YOE-13 08:56

JQ1YBF- 9 06:17

JQ1YBG-14 05/05

JA1ZRL- 9 04/24

LOG MSG

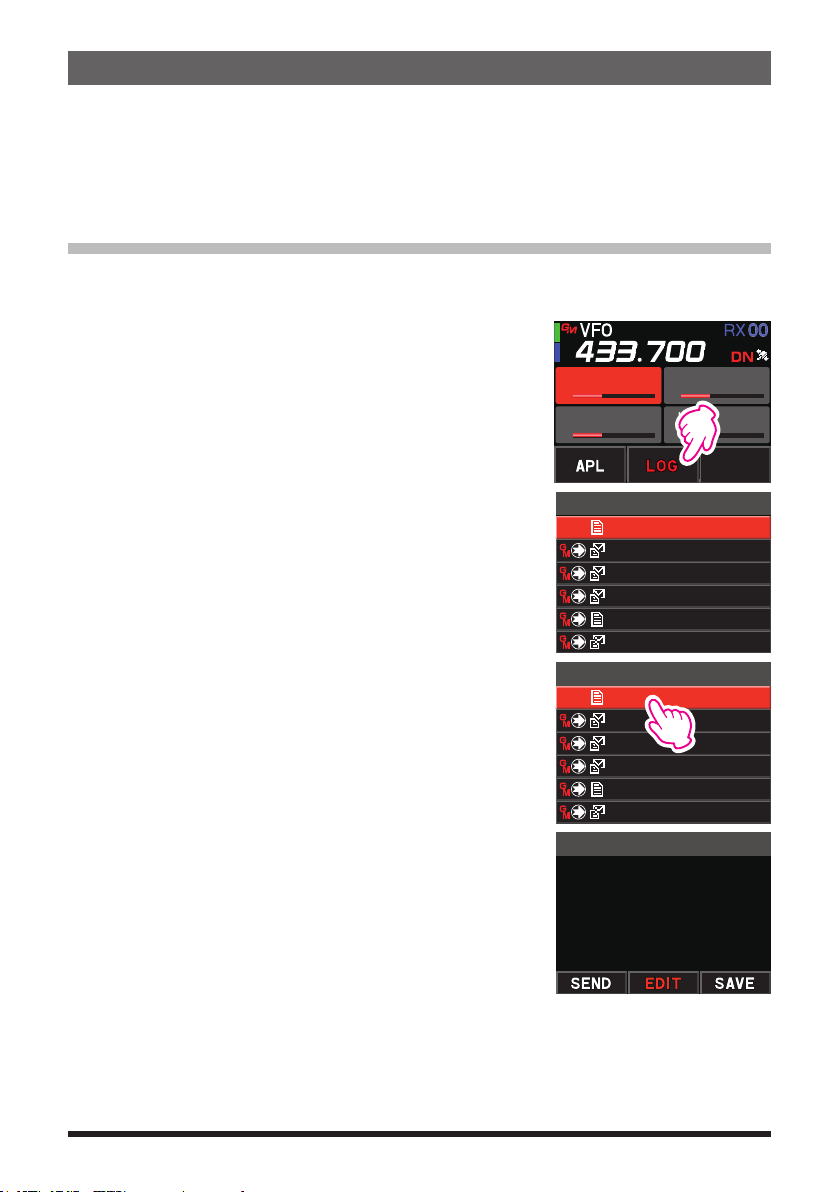

5. Press the [F menu]key, then rotate the DIAL knob

to select [EDIT], then press the DIAL knob.

Displays the message entry screen.

||||||||||||||||||||

NEW

Autres manuels pour FTM-200DR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yaesu Émetteur-récepteur

Yaesu

Yaesu FT-75B Manuel utilisateur

Yaesu

Yaesu FT-950 Manuel technique

Yaesu

Yaesu 857D Manuel utilisateur

Yaesu

Yaesu FT-5100 Manuel utilisateur

Yaesu

Yaesu FTM-350R - SOFTWARE UPDATE PROCEDURE 7110 Manuel

Yaesu

Yaesu FT-780R Manuel utilisateur

Yaesu

Yaesu FTM-7250DE Manuel utilisateur

Yaesu

Yaesu FT-470 Manuel utilisateur

Yaesu

Yaesu FTM-3100E Manuel utilisateur

Yaesu

Yaesu FTM-3100R Manuel utilisateur

Yaesu

Yaesu FT-757GX II Manuel utilisateur

Yaesu

Yaesu FTM-6000R Manuel utilisateur

Yaesu

Yaesu FTA-450 series Manuel utilisateur

Yaesu

Yaesu FTM-400DR/DE Manuel

Yaesu

Yaesu FT DX 9000MP CONTEST - DATA MANAGEMENT... Manuel utilisateur

Yaesu

Yaesu FT-7100M Manuel utilisateur

Yaesu

Yaesu FTM-300DE Guide de référence

Yaesu

Yaesu FT-270R/RH Manuel utilisateur

Yaesu

Yaesu FTM-3200DR Manuel utilisateur

Yaesu

Yaesu FTDX5000 - SOFTWARE UPDATE AND VERSION... Manuel technique

Yaesu

Yaesu FT-712RH Manuel

Yaesu

Yaesu FT-950 Manuel technique

Yaesu

Yaesu FT-290R II Manuel utilisateur

Yaesu

Yaesu FTDX10 Manuel

Manuels Émetteur-récepteur populaires d'autres marques

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur

Uniden

Uniden UH820 Series Manuel utilisateur
