Yaesu FT5De Manuel utilisateur

C4FM/FM 144/430MHz

DUAL BAND DIGITAL TRANSCEIVER

FT5DR

FT5DE

Instruction Manual (GM Edition)

Contents

What is the GM Function? ............................................................................................. 2

GM Operation.................................................................................................................. 3

Display the APL (Automatic Position Locating) screen.............................................. 4

Confirm the location of a Group Member station in real time.................................... 5

Display the position of the member station on the compass screen............................. 5

Registering the Location Information of a Partner Station ............................................ 6

Checking Received Messages and Images.................................................................. 7

Sending massages or images....................................................................................... 9

Creating and sending a new message.......................................................................... 9

Using Standard Messages ...................................................................................... 10

Registering a standard message............................................................................. 11

Replying to the Sender of the Checked Message or Image Data............................... 12

Forwarding the Checked Message or Image Data ..................................................... 12

Sending Your Snapshot Images.................................................................................. 13

GM Set Mode List ......................................................................................................... 14

GM Set Mode Function List ......................................................................................... 14

What is the GM Function?

The GM (Group Monitor) function automatically monitors on the same frequency for

any other stations with the GM function in operation, or stations operating in DN mode,

within communication range. The GM function then displays the acquired direction and

distance information for each detected call sign on the screen.

If the DG-ID number is other than “00”, the GM function will check for partner stations

set to the same DG-ID number, with the GM function turned ON, that are within commu-

nication range.

In addition to knowing who is in the service area, the APL (Automatic Position Locat-

ing) screen indicates the positions of the group members, centered on your own station

(up to four are simultaneously displayed). The direction and progress of each station is

displayed, and you can check each other's position, distance, and moving direction.

You can also use GM functions to send data such as messages and images with your

friends.

• When the GM function is activated, the operating band is automatically switched to the A

band, and the communication mode is switched to the C4FM digital (DN) mode.

• To use the GM function, all of the members must operate on the same frequency.

• Note that when the receive DG-ID number of your transceiver is set to a DG-ID number

other than “00”, received signals that do not have the same DG-ID number may not be

heard.

Insert a commercially available micro-SD card into this unit to send and receive messages

and images.

Usable micro-SD Memory Cards

This transceiver only supports the following capacity of micro-SD and micro-SDHD memory

cards.

• 2GB • 4GB • 8GB • 16GB • 32GB

Not all micro-SD and micro-SDHC cards sold commercially are guaranteed to work with this

product. In addition, micro-SDXC memory cards are not supported.

GM Operation

1. Tune to the frequency used by the group that you would like to communicate with.

• If you only want to check your group location information, press and the [F MENU]

key touch [GM] and set the send and receive DG-ID numbers to the same num-

bers except “00” at all the partner stations.

• The frequency cannot be changed while the GM function is operating.

2. Press the [GM/X] key.

• The callsign, distance, and direction of all stations (up to 24) within the communi-

cation range operating with the GM function on the designated frequency in DN

(V/D) mode are displayed.

• The call sign of the member who can communicate is displayed in white charac-

ters, and the distance and direction of the member from your own station are dis-

played.

• Stations outside the sphere of communications callsigns are displayed in grey.

• You can communicate in DN mode of C4FM digital by pressing the PTT switch.

Selected member

Out of range

Direction

Distance

In range

Display the APL (Automatic Position Locating) screen

The positions of up to four group stations are displayed on the APL (Automatic Position

Locating) screen, centered on your own station. The direction and progress of each sta-

tion is displayed, and you can check each other's position, distance, and moving direc-

tion.

DG-ID TX00 RX00

DG-ID number

Displayed members (max 4 stations)

• Callsign (first 6 characters)

• Distance

Return to the

normal GM screen

Change the scale

Own station

(Arrow indicates the direction of progress)

Member

(Arrow indicates the direction of progress)

1. Touch [APL] while the GM function is active:

• The last four stations received by the GM function

are displayed on the APL screen. The displayed sta-

tions are listed on the right side of the screen with

the first six characters of the callsign and the dis-

tance from your own station.

• Display additional members by turning the DIAL

knob.

• The direction and distance of members will be dis-

played on the compass screen, centered on your

own station. The traveling direction of your own

and member stations is indicated on the compass

screen.

• The scale of the compass screen is automatically set

according to the distance of the selected member

station when the APL screen is displayed. Touch [ ]

or [ ] to change the scale.

• The maximum distance at which a member's posi-

tion can be displayed on the compass screen is a

radius of 1,000 km.

DG-ID TX00 RX00

zDisable the APL screen display

1. Touch [ ] on the display or press the [BACK] key.

Return to the normal GM screen.

Confirm the location of a Group Member station in real time

The position of the selected member can be confirmed in real time on the compass

screen.

The member's current position may be registered as the navigation destination.

Display the position of the member station on the compass screen

1. Press the [GM/X] key.

2. Touch the station for which you want to display location

information.

1. Press the [F MENU] key Touch [DISP].

If [DISP] is not displayed, touch [FWD →] to display [DISP] and then touch it.

If the GPS information screen is displayed, touch the compass display to switch to

the navigation display screen.

The call sign and direction, distance, and heading of the selected partner station are

displayed.

JA1YOE-123 1.0km

Callsign and distance to

partner station

Progress direction of

own station

Direction of remote station

H-UP: Heading Up

N-UP: North Up

zSwitch the compass screen display method

Press and hold the [F MENU] key touch [DISPLAY] [3 COMPASS], select the

screen display method (direction toward the top of the screen) from “HEADING UP”

or “NORTH UP”. The default setting is “HEADING UP”.

HEADING UP: The compass circle indicates the direction ( , , and ) you are

heading. The arrow indicates the direction toward your partner sta-

tion.

NORTH UP: Always displays the north ( ) on the top. The arrow indicates the di-

rection you are heading.

zDisable the Compass screen display

1. Press the [F MENU] key.

• You cannot update the location information of the partner stations outside of

communication range.

• If your station or your partner stations do not set the location information manually or

capture it from the GPS satellite signals, the compass display is not available.

• GPS location information may have an error of several hundred meters depending on the

surrounding environment and so on.

• This function is a simple function using GPS satellite data. Use this as a guide for the

position of your own station or partner station.

Registering the Location Information of a Partner Station

You can register the current position of the selected member, and then navigate toward

that station.

1. Touch [MEM] in step 3 of “Display the position of the

partner station on the compass screen” (page 5).

[★], [L1] and [L2] will start blinking.

2. Touch [★], [L1] or [L2].

• The Callsign and location information of your partner

station is registered, and the Navigation starts.

• To cancel the registration, touch [MEM] again.

• The registered location information can be recalled

later to allow navigation to that point.

N-UP

JA1YOE-123 1.0km

Checking Received Messages and Images

Use the GM function to check the messages and images on the LOG list.

• When using a GM function, a beep sounds when a new message is received, and the “LOG

MSG” list screen (see step 3 below) appears automatically.

• When using a GM function, a beep sounds when a new image is received, and the image

appears automatically. Touch [SAVE] to save the received image, or touch [DEL] to not

save it.

1. Press the [GM/X] key.

2. Touch [LOG].

3. Touch [MESSAGE] or [PICT].

VOICE: Audio recorded (Only playback of record-

ed content is possible.)

MESSAGE: Text Message

PICT: Image

PICT

MESSAGE

VOICE

Select “MESSAGE” or “PICT” to display the LOG MSG

list or LOG PICT list.

The icons on the left side of the LOG list indicate the

following:

Message received (unread)

Message received (read)

Message sent

Message failed to send

Image received (unread)

Image received (read)

Image sent

Image failed to send

Image taken with the camera built in the optional

microphone

JA1YOE-123 00/00

NEW

4. Touch the message or image to be displayed.

• The selected message or image will be displayed.

• When the message list is displayed, press the [F MENU] key Touch [DISP]to dis-

play the location information of the sending station on the compass screen.

• When the picture is displayed, press the [F MENU] key Touch [DISP]to display

the location where the picture was taken on the compass screen.

• Touch [FWD], to forward the checked message or image data. Refer to

“Forwarding the Checked Message or Image Data” (Page 12).

• Touch [REPLY], To reply to the sender of the downloaded message or image data.

Refer to “Replying to the Sender of the Checked Message or Image Data” (page

12).

• Touch [DEL] to display “DELETE ?”. Touch [OK], then touch [OK] to delete the

information.

5. Press the [BACK] key three times.

Returns to the previously viewed screen.

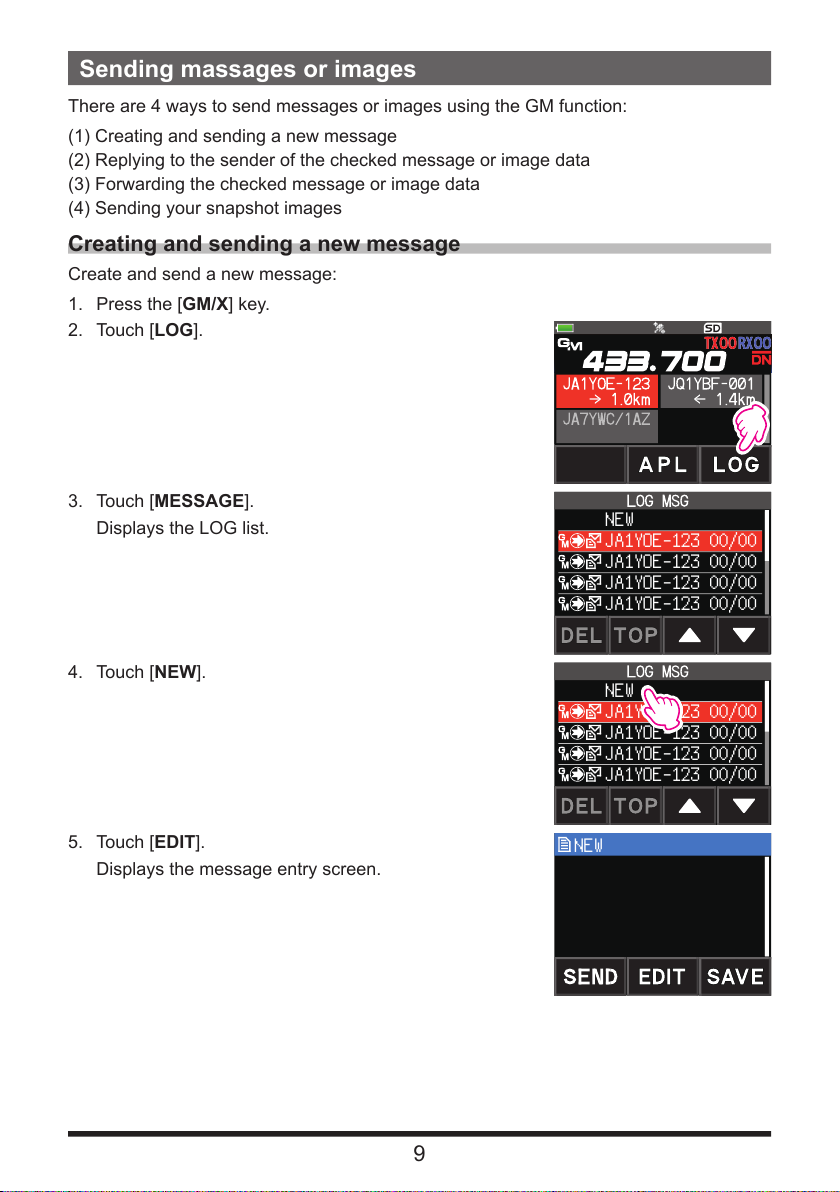

Sending massages or images

There are 4 ways to send messages or images using the GM function:

(1) Creating and sending a new message

(2) Replying to the sender of the checked message or image data

(3) Forwarding the checked message or image data

(4) Sending your snapshot images

Creating and sending a new message

Create and send a new message:

1. Press the [GM/X] key.

2. Touch [LOG].

3. Touch [MESSAGE].

Displays the LOG list. JA1YOE-123 00/00

JA1YOE-123 00/00

NEW

4. Touch [NEW].

JA1YOE-123 00/00

NEW

5. Touch [EDIT].

Displays the message entry screen.

NEW

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yaesu Émetteur-récepteur

Yaesu

Yaesu FT-817 - Manuel

Yaesu

Yaesu FT DX 9000 CONTEST - 2 Manuel utilisateur

Yaesu

Yaesu FT-757GX II Manuel utilisateur

Yaesu

Yaesu FT-980 Manuel

Yaesu

Yaesu FT-100 Micro Mobile Manuel utilisateur

Yaesu

Yaesu FTH-2006 Manuel utilisateur

Yaesu

Yaesu FT-7100M Manuel utilisateur

Yaesu

Yaesu FTM-10R Manuel utilisateur

Yaesu

Yaesu FT-7900R Manuel utilisateur

Yaesu

Yaesu FT-817 - Manuel utilisateur

Yaesu

Yaesu FT-2311R Manuel utilisateur

Yaesu

Yaesu FT-80C - SERVICE Manuel utilisateur

Yaesu

Yaesu FT1DR Manuel utilisateur

Yaesu

Yaesu FT-290R II Manuel utilisateur

Yaesu

Yaesu FT-51R Manuel utilisateur

Yaesu

Yaesu FT-290R Manuel utilisateur

Yaesu

Yaesu FTDX 9000 Series Manuel utilisateur

Yaesu

Yaesu FT-726R Manuel utilisateur

Yaesu

Yaesu FTM-7250DR Manuel utilisateur

Yaesu

Yaesu FTA-550 series Guide de démarrage rapide

Yaesu

Yaesu FT-100D Manuel utilisateur

Yaesu

Yaesu FT-710 Manuel utilisateur

Yaesu

Yaesu FT-8900R Manuel utilisateur

Yaesu

Yaesu VX-6R Manuel utilisateur

Manuels Émetteur-récepteur populaires d'autres marques

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur

Uniden

Uniden UH820 Series Manuel utilisateur
