XtendLan IPM-401W Manuel utilisateur

IPM-401W

User Manual

- 2 -

Table of Content

Product Overview............................................... 3

Features.............................................................................................. 3

Specification....................................................................................... 3

InterfaceDescription ......................................... 5

Front View ......................................................................................... 5

Rear View........................................................................................... 7

Setting up your device....................................... 9

Before we Start.................................................................................. 9

Hardware Connection....................................................................... 9

Software Installation......................................................................... 9

Web Interface.................................................... 19

Connect to your Device.................................................................. 19

WiFi Information............................................................................ 46

Load Factory Default & Restart System ...................................... 63

Controlling the Device..................................... 66

FAQ : ................................................................. 70

- 3 -

Product Overview

Features

Built in Web Server Design, directly control by web browser –PC & Smartphone :

Internet Explorer (IE) , Firefox , Google Chrome,

Safari ( iPhone ) and Android browser of smartphone

Support WiFi - Wireless 802.11 N/ B/ G and WPS connection

(WPA-PSK, WPA2-PSK, AES,128-bitWEP,64-bit WEP,TKIP, WPA2,WPA )

Support HTTPS , TCP/ IP , DHCP, DDNS, SNMP & SMTP

Control 4 individual outlet power ON & OFF .

Detect the consumed current of 4 individual outlet & show in LIVE line chart

Over Current protection and record Current Value history

Temperature detection - for Internal use only

Support USB Webcam( W/ UPNP, M-JPEG / YUV ) to view the area near IPM-401W.

With IR remote controller : control directly without need through PC web browser

10.

Time scheduler : Multiple time setting for each outlet power ON , OFF or REBOOT

11.

Auto Ping (Watchdog) capability to control external devices automatically

12.

E-mail functionality for

13.

notifying user - Support public e-mail --Google mail & Hotmail . .

14.

Supply “Log “function to store device information and usage record

15.

Fuse protection as power overloading ( total 10Amp)

16.

Support Telnet , SNMP , and HTTP CGI command ( SDK) for system integration

17.

CNT Technology –for quick and easy setup without port forwarding on Router , just plug

and play

18.

IP Server: for quick search and easy access in Internet byname without thru DDNS.

Easily find on internet without remember the complicated IP address number

19.

Option : RS232 control ( request by OEM /ODM only )

Specification



Power input : 100V - 240V



Maximum loading of each output: 9 amp



Maximum of Total loading : 10 amp ( 220V) / 15amp ( 110V)



Fuse protection : 10 amp ( with spare fuse in socket )



Dimensions: 195 x 135 x 48 mm ( L x W x H )



Weight: 1kg

- 4 -

Minimum System Requirements

WINDOS PC OS with network capacity.

Browser : IE 9.0 or above , Firefox, Google Chrome , Safari

RJ45 LAN & Internet HUB & Switch

JAVA version 1.60 or above to check USB Webcam under web browser Internet Explorer -IE

Internet ( for remote access) or Ethernet Network ( Internal Network use) with some type of

Internet connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)

Package Contents

1. IPM-401W Unit x 1

2. IR Remote Power Control

3. IPM-401W Installation CD

3. WiFi Antenna

X 2 pcs

5. RJ45 Cable x 1 (option)

5.) Input Power Cable (option)

Please double check the power cable compatible

for 10 amp current loading .

- 5 -

InterfaceDescription

Front View

Power Status Indicator:

The Power Status Indicator - Green light ON

as power ON.

Reset :

There are 2 function for this button.

Enable WPS function by one short click

There is one long beep as enable WPS

function. Please refer page #16 for details.

Set back to default setting by long press

To reset to original manufacture settings, hold

down the reset button with a sharpen pin for

5- 6 seconds then release. There are THREE

beeps response ( short –- mid long –short )

which means reset successfully and

IPM-401W will be rebooted itself ( one beep

after

reboot ) and most information go back to

default setting ( LAN IP )

Restart :

The restart button just resets the device by

turning off and then turning on the power.

- 6 -

Link:

The Link Indicator shows the WiFi signal

transfer status. The light will be ON all the time

and flashing while transfer data.

IR Receiver :

This area is for receiving the signal from

handheld IR remote controller which comes in

shippingpackage.

Network:

10/100 Mbps network

USB:

USB 2.0 for USB Web Camera. (With UPNP &

video format as M-JPG / YUV )

RS232 Serial Port Console :

Underconstruction

- 7 -

Rear View

4 Output Power Ports:

Connect up to 4 separate devices

that will be controlled by the

IPM-

401W. Ports 1 - 4

1 Input Power Port :

In this socket, there is power input

and Fuse socket .



The input power sends power

to the IPM-401W.



Fuse : To prevent electrical

surges from damaging the unit.

The IPM-401W comes with

one

spare fuse in the unit.

TYPE：U/C GFE 10A 250V (PF)

1 Power Switch:

The Power switch turns on the

input power.

- 8 -

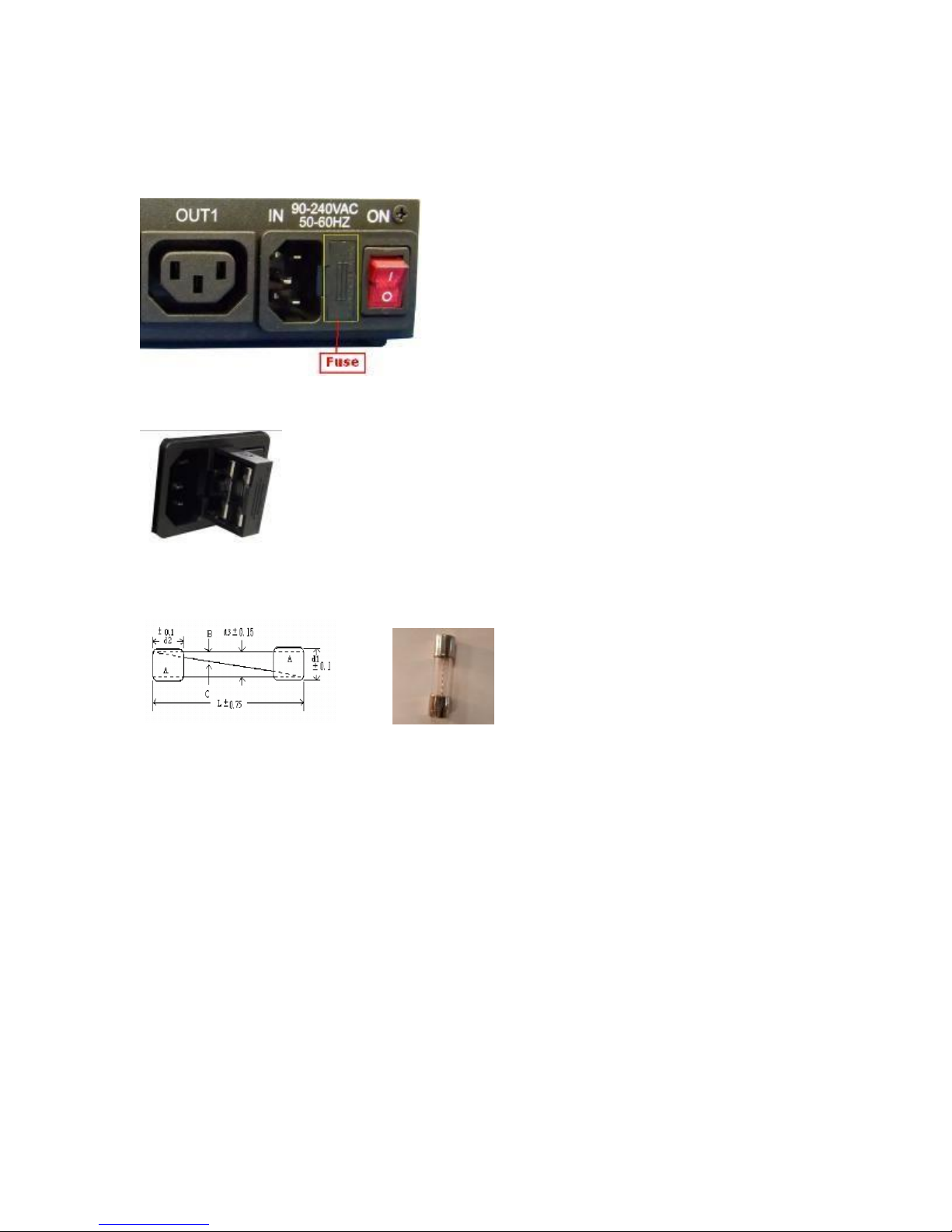

Fuse replacement

1.) The fuse is located between the power switch and the power input plugs.

2.) Carefully remove the fuse holder with a flat screwdriver.

3.) The fuse can be purchased from electronic shops.

Specification : U/C GFE 10A 250V (PF)

- 9 -

Setting up your device

Before we Start

*Before setting up the device make sure of the following:

1.) All the package contents are all included if anything is missing please contact the dealer

where the device was purchased from.

2.) Check the power input cable is working correctly.

3.) Check all cables to make sure there are no problems with it.

Hardware Connection

Please refer following procedure :

1.) Connect the Ethernet cable (RJ45) to the IPM-401W to your local area

network.

2.) Then connect the power cable into the power input port of the IPM-

401W.

3.) Connect the device that you would like to control to the output plug on the top of the IPM-

401W.

4.) Switching the power source to ON status , this switch is located at the rear of 9258.

5.) After power on for around 45 seconds , there is a short beep sound for IPM-401W which

means the system reboot successfully

) Go to page #14 for software installation guide –use IP EDIT to log in the webpage of

IPM-401W.

Note: To change the network setting for WiFi connection ( if your Router without WPS function ) ,

please go to page # 12 to setup the WiFi connection manually .

Software Installation

The Media Link - IP Family CD comes with the device , it will have all the necessary software to

run and setup the device.

IP Power Software:

IP Edit (Required)

IP Power Center *( For multiple IP Power devices control )

Installing Software

1.) Place the Media Link-IP Family CD into the CD/DVD Rom drive.

(The CD should auto run but if it does not go to the CD/DVD Rom drive and select the

“autorun.html”file.)

- 10 -

2.) Click on the IP Power Section Bar

3.) Select the IP Power IPM-401W
