Operation Manual

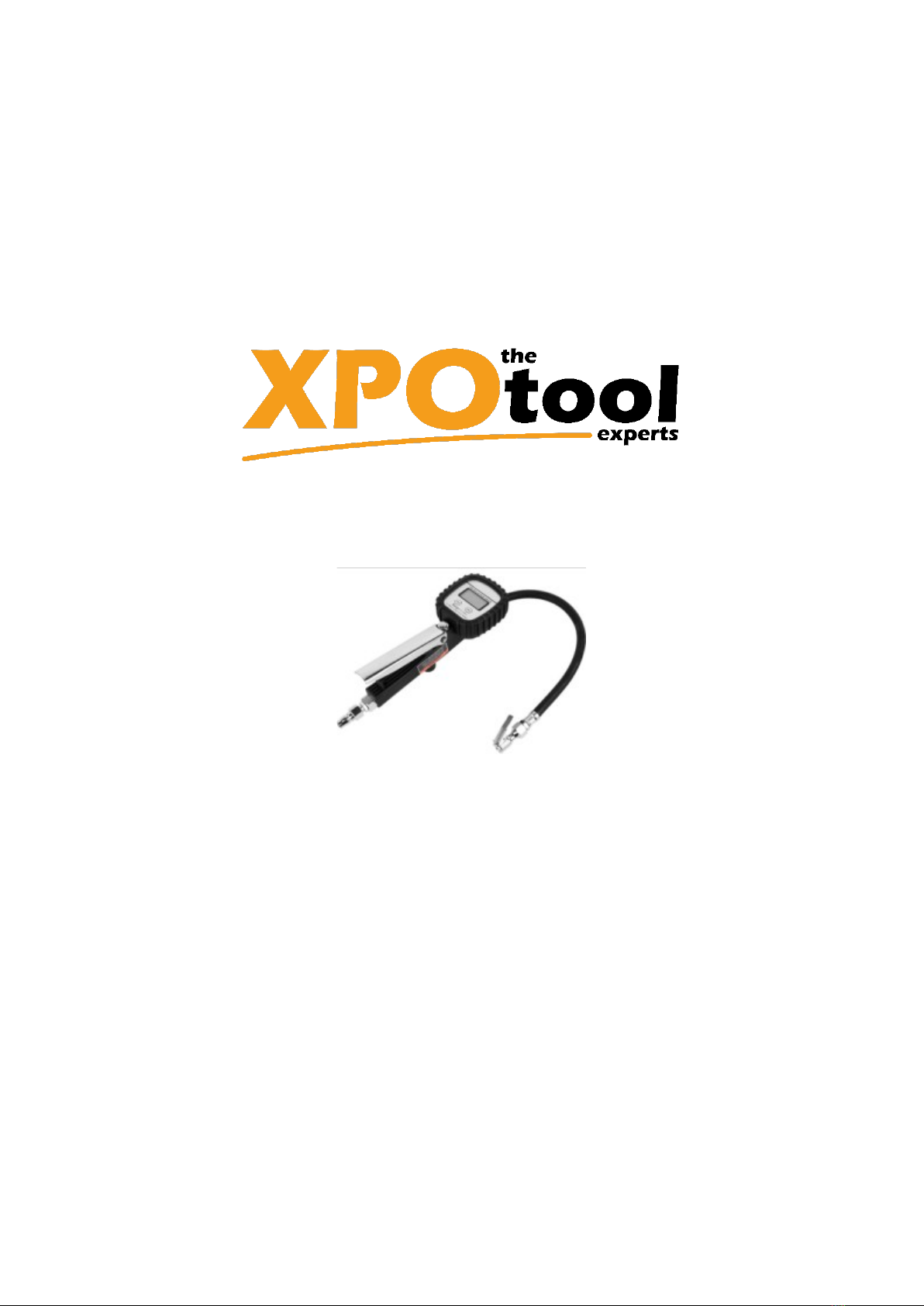

Multifunction tyre pressure gauge with digital display
63039
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15
To return orders for exchange, repair or for other purposes, please use the following address. tten-
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus-
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15
https://www.XPOtool.com Item 63039 Page 2
The Tool Experts
05 2021-1
Introduction
Thank you for purchasing this quality product. To minimi e the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety instructions
The appliance can be used by children aged from 8 years and above and persons with re-
duced physical, sensory or mental capabilities or lack of experience and/or knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children must not play with the appliance. Cleaning or maintenance operations must not be
carried out by children without supervision.
The appliance must not be used in rooms or areas where there is a risk of explosion.
Do not expose the unit to water (e.g. rain) or allow liquids to enter its interior.
Only use the unit in a dry environment.
Product features
1. Suitable for inflation, deflation and pressure measurement for vehicle tyres.
2. Digital measurement, improving the accuracy of readings.
3. Measurement via LCD displays - intuitive, fast and accurate.
4. utomatic reset to zero.
5. During pressure measurement, the device automatically switches on; if no measurement is
taken, the device automatically switches off.
Technical Data
Suitable for Motorbikes, cars, small and medium-sized vans
Power supply (V) 3 (2×1,5)
Operating temperature ( )℃–20 bis +50
Measuring range (bar) 0,4–10 (5–150)
https://www.XPOtool.com Item 63039 Page 3
The Tool Experts
05 2021-1
Names and layout of the parts
Front view (Fig. 1)
No. Name
1Shock absorbing rubber sleeve
2Digital display panel
3Button
4Drain valve
5Pin
6Metal handle
7Rear transition piece
Rear view (Fig. 2)
No. Name
1Nylon hook
2Battery cap
3Lower valve cap
4Handle
5Rear transition piece
6ir inlet
https://www.XPOtool.com Item 63039 Page 4
The Tool Experts
05 2021-1
Side view (Fig. 3)
No. Name
1Shock absorbing rubber sleeve
2Front transition piece
3Nylon hook
4Lower valve cap
5Handle
6Rear transition piece
7Metal handle
8Drain valve
Connection/Installation
1. Inserting the battery: Remove the screws from the battery compartment cover and open it.
Insert the two batteries (pay attention to the direction!) and then close the battery compart-
ment cover again.
2. ttach the air hose to the front transition piece of the unit and tighten it. Then attach the
quick coupling to the rear transition piece. Tighten it so that no air escapes.
3. Connect the quick coupling to the air supply line. The unit is then ready for operation.
Notes:
Disconnect the air supply hose from the unit when it is not in use. This will prevent damage.
Install an air dryer or an oil and water separator in the air supply.
Application
This product is designed to inflate, deflate and measure air pressure. This is done by lifting the valve
piston on the upper and lower valve attachments.
1. Measure pressure: ttach the air hose connector to the tyre (make sure there is no air
leakage). Read the pressure when the handle is at rest.
2. Inflate: Push the handle down; then you can inflate with the device.
3. Deflate: If the tyre pressure is too high, you need to deflate. To do this, simply press the air
release button.
4. Using the buttons: UNIT to convert units (long press to switch off), LIGHT to switch on the
backlight.
https://www.XPOtool.com Item 63039 Page 5
The Tool Experts
05 2021-1
Troubleshooting table
Problem Suggested solution
No digital display Check the contact and condition of the batteries or
contact a specialist.
Random display Check if air is leaking from the front transition piece of
the unit.
Check if the air hose connection and the tyre connec-
tion are tight.
Incomplete display The pressure sensor may be defective and must be
replaced.
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
