XIEGU G90 Manuel utilisateur

G90

Portable SDR HF Transceiver with inbuilt ATU

SINOTEL UK LIMITED 2019

Operating instructions

V1.00.04

Sinotel UK Limted

Table of Contents

Description

Function Buttons

Panel Buttons

Function Button Table

Front Panel Layout

Split frequency operation (SPL) and VFO A/B settings

Front Panel Controls

CW Operation

Function Buttons

Standing Wave Ratio (SWR) Scanning

Rear Panel Layout & Controls

Digital Filter

Side Panel Sockets

Line Input/output Selection and Adjustment

Connector Pinouts

Storing and Deleting Memory Channels

Microphone Controls

Power-on Display Call Sign Setting

Power Connection

System Menu Description

LCD Display

Computer Connection for Data Modes

Power On/Off

Computer Control Instruction Set

Band Selection

Band Voltage Data

Operating Mode Selection

Specifications

Volume/VOX Setting

Contents of Carton

Multi-function Knob (MFK)

G90 and XPA125B Connection

Transmit Power Adjustment

CE-19 Expansion Adapter Diagram

Frequency Selection

Antenna Tuning (ATU)

Sinotel UK Limted

The Xiegu G90 is a portable 20W HF amateur radio transceiver with 24-bit 48 kHz SDR architecture and a built-in

automatic antenna tuner. The display panel and the main unit can be separated to enable remote mounting of the

display panel. It delivers excellent performance on both transmit and receive and is highly configurable. Standout

features include the following:

High performance front end with pre-selectable filter options;

Frequency range of 0.5-30MHz, SSB/CW/AM/ FM*1 operating modes;

30 x 35 mm high brightness full colour TFT LCD screen;

±24 kHz bandwidth spectrum display with waterfall function;

Software defined narrowband filter (CW mode: 50 Hz);

Detachable display panel;

Up to 20W RF output power;

Built-in wide range ATU;

Diversified interfaces, In particular, the baseband I/Q output allows it to interface with any external device that can handle baseband I/Q,

including sound card-based or PC-based applications such as XDT1.

In order to derive the maximum utility from your new transceiver, please read this manual carefully before use.

*1: The FM mode can only be turned on when the forthcoming GSOC controller/panadapter is used.

Sinotel UK Limted

X5105

T/R DATA LINK

LOCK

PRE

ATT MODE

V/M

A/B

NB RIT

ATU Po

①

②

③

④

⑤

⑥

⑦⑧ ⑨ ⑩

???

Sinotel UK Limted

1. Volume knob

Turn to adjust the AF volume.

Short press to switch to headphone mode.

2. Power/Receive/Transmit LED

Standby/receive status - yellow-green;

Transmitting status - red;

CW decoding status –flashes yellow.

3. Power switch

Press and hold to power on.

Press and hold to shut down.

Press briefly to cycle display on/off.

4. Multifunction adjustment Knob (MFK)

Turn to change frequency –default step is 100 kHz.

Press and hold to customize MFK operation (page 17).

5-6. Mode switching

Mode switching.

7-8. Band Switching

Band switching.

9. Function Indicator light

This indicator lights up when the second function of the

button is selected (page 21).

10. △F LED

CW decoding RX lock indicator.

11. Main Control Knob

Turning this knob will change the selected frequency

in VFO mode. In memory (channel) mode it can be

used to select stored memory channels.

Sinotel UK Limted

12. Function buttons

Button definitions and functions are detailed in the

operation section starting on page 21.

Sinotel UK Limted

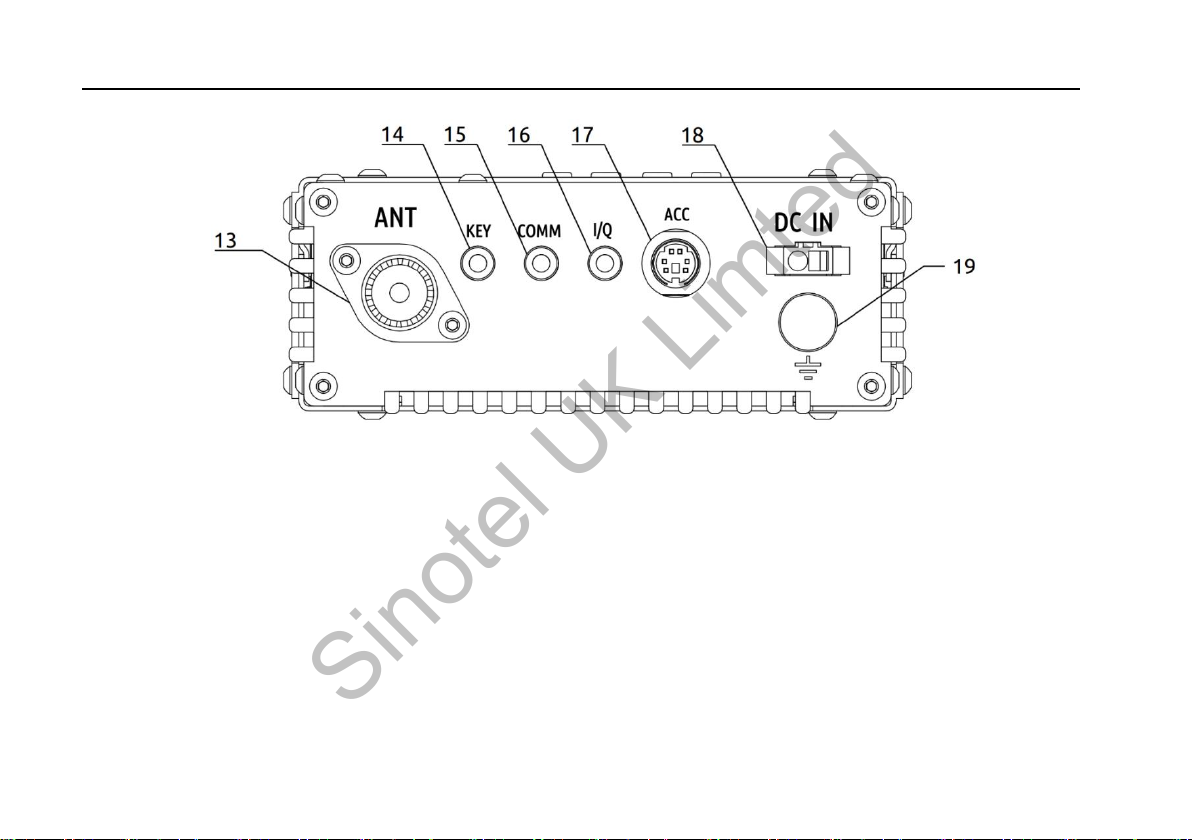

13. Antenna interface

SO-239 type，impedance 50 Ω.

14. CW KEY socket

3.5mm stereo jack socket for connection of

manual/automatic CW keys.

15.Comm socket

3.5mm stereo jack socket for base unit firmware

updates.

16. I/Q Signal low level baseband output socket

3.5mm stereo jack socket to output the spectrum/waterfall

display on a PC via a soundcard with a stereo input.

17.Accessory socket

8-pin mini DIN socket for digital modes & CE-19 connection,

wiring diagram shown on page 8.

18.DC power socket

External DC power input socket.

The round hole is - , the square hole is +.

19.Ground terminal

Sinotel UK Limted

20. MIC Connector (Right side of the display unit)

Plug the multi-function microphone into this connector.

21.Headphone socket (Left side of the display unit)

3.5mm stereo jack socket for connecting headphones

(stereo only).

22.Communication interface (Left side of the display unit)

For firmware updates to the display unit.

Sinotel UK Limted

1. MIC interface

2. COMM plug

3. Headphone plug

4. ACC Socket

5. Iambic CW key wiring diagram

Note: When using a manual CW key,

connect "dit" and "da" together.

MIC

MDATA

GND

MIC

MICE PTT

MSVSW

+8V

TX D

R X D G N D

信号

信号 G N D

PTTBA N D

A F_IN

A F_O U T

A LC

D A TA

+ 8V

G N D

Left channel

Right channel

Ground

RXD

TXD

Sinotel UK Limted

1. LOCK

2. PTT

3. UP/DOWN

4. Receive/transmit LED

5. Numeric keypad

6. FIL

7. MODE

8. Function indicator

9. Function button

10. MW

11. V/M

12. XFC

13. TUNER

Lock button

Transmit control button

Frequency up/down buttons

RX/TX operation indicator

Numeric keypad area

Filter selection

Operating mode selection

Not used

F1/F2 self-defined setting button

Memory storage operation

Frequency/channel switching

Not used

Press & hold to activate the built-in ATU

Sinotel UK Limted
