XFit LEGEND Manuel utilisateur
Treadmill
User’s Manual
* Product specifications may differ from the photo and are subject to change without notice.
- 1 -
- 2 -
WARNING
Read all instructions carefully before using this product. Retain this owner’s manual for future
reference:
----When using this treadmill, keep attaching the safety pull pin rope to your clothes.
----When you are running, keep your hand swinging natural, stare frontward, never look down at
your feet.
----Add the speed step by step when running.
----When emergency happens, take away the “emergent stop button” immediately.
----Leave the treadmill after the running belt stop stably.
Caution: Read the assembly instruction carefully, follow the instruction when assemble.
ATTENTION
01- Before starting any exercise program, consult with your physician or health professional.
02- Check all the bolts locked.
03- Never put the treadmill in the wetness area, or it will cause troubles.
04- We take no responsibility for any troubles or hurts due to above reasons.
05- Dress sport clothes and shoes before running.
06- Do not do exercise in 40 minutes after meal.
07- To prevent hurts, please warm up before exercise.
08- Consult with doctor before exercise if you have high blood pressure.
09- The treadmill is only used for adults.
10- Provide the olds, children and handicapped with good care, guide, and supervision.
11- Do not plug anything into any parts of this equipment, or it may damage.
12- Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do
not put any heavy thing on cable or put the cable near the heat source; forbid using socket with
several holes, these may cause fire or people may be hurt by the power.
13- Cut off the power when the equipment is not used. When the power is cut off, do not pull the
power line to keep the wire unbroken.
14- Maximum weight of user: 130 kgs.
15- Pulse monitor data may not be accurate, cannot be used for medicine. Over-exercise may
cause injury, even death. If you have a feeling of dizziness, sickness, or other abnormal symptoms,
please stop training, and consult a doctor immediately.
CAUTION! The company does not have no responsibility for causing damage due to misuse of the
product and non-compliance with the instructions for use.
- 3 -
IMPORTANT SAFETY PRECAUTIONS
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must
be grounded. If it has breakdown, grounding provides a path of least resistance for electric current
to reduce the risk of electric shock.
2. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on
and adjusting the speed control there may be a pause before the walking belt begins to move,
always stand on the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting
clothing that may be caught in the treadmill. Always wear running or aerobic shoes with rubber
soles.
6. Make sure the power supply is connected and the safety lock is effective before using the
treadmill. Fit one side of the safety lock on the treadmill and clip the other side on your clothes or
belt, which will enable you to pull off the safety lock promptly in an emergency.
7. Always unplug the power cord before remove the treadmill motor cover.
8. Make sure there is no less than 2*1m space behind the treadmill.
9. Keep small children away from the treadmill during operation.
10. Always hold the handrails when initially walking or running on the treadmill, until you are
comfortable with the use of the treadmill.
10. Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill
should suddenly increase in speed due to an electronics failure or the speed being inadvertently
increased, the treadmill will come to a sudden stop when the pull pin is disengaged from the
console.
12. In case of any abnormality during the use process, please remove the safety lock immediately,
grasping the handlebar and jumping onto the two edgings, then get off the treadmill after it stops.
13. When the treadmill is not being used, the power cord should be unplugged, and the safety pull
pin removed.
14. Put the safety key away where cannot be reached by the children. Minors must be accompanied
by the adults when using the treadmill.
15. Before starting any exercise program, consult with your physician or health professional. He or
she can help establish the exercise frequency, intensity (target heart zone) and time appropriate for
your age and condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your
physician before continuing.
- 4 -
16. If you observe any damage or wear on the mains plug or on any section of the mains lead then
please have these replaced immediately by a qualified electrician – do not attempt to change or
repair these yourself.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
18. Put your feet on the side rail before using the treadmill, and always attach the safety pull pin
rope to your clothing. Hold the handlebar before the running belt moving well (feel the running
speed by your single foot before using it). To avoid loss balance, please slow down the speed to the
lowest or take off the safety. And hold the handlebar to jump to the side rail when emergency or the
safety key is not attached.
19. Make sure the treadmill has stopped before folding. Please don’t operate it after folding the
treadmill.
- 5 -
ASSEMBLY STEPS
Note: Assembly requires 2 people.
STEP 1:
Open the package, take out all parts and place the main frame on the flat ground.
(NOTE: please don’t cut down the packing straps right now.)
- 6 -
STEP 2:
1. Cut down the straps when the main frame was placed well. (NOTE: Don’t move it anymore.)
2. Connect the Controller wire（97）and Extension lower wire (96).
3. Lock the upright tube (3) on the bottom frame (1) with the hex socket screws (59) and the Lock
washer (84).
NOTE: please don’t tighten the Hex socket screw (59) for the time being.
- 7 -
STEP 3:
1. Connect the extension upper wire (95) and the extension lower wire (96)
2. Lock the computer frame (4) on the upright tube (3) with the hex socket screw (59) and Lock washer
(84) lock the hex socket screw (59) tightly which connect the bottom frame (1) and upright tube (3).
- 8 -
STEP 4:
1. Lock the Protective cover (37L /R) tightly to the Bottom frame （1）with Cross tapping screw (79).
2. Insert the A side of the Outside upright cover (35) and inside upright cover (36) to the B side of the
computer frame (4) as the picture shown, then lock the Outside upright cover (35) and inside
upright cover (36) tightly to the Upright tube (3) with Cross tapping screw (79).
- 9 -

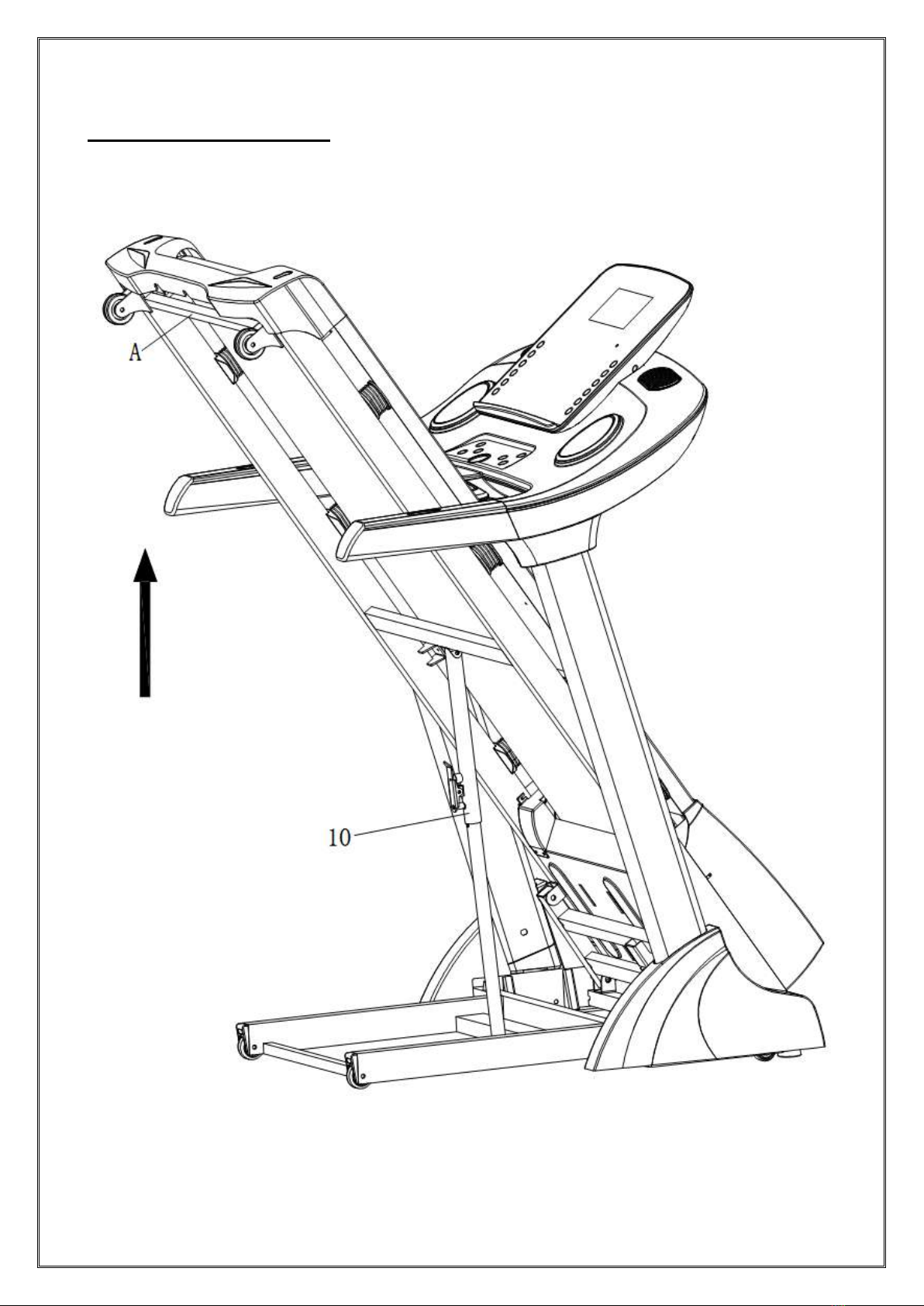

STEP 5:
When you fold the machine:
Put your hands on place A, lift up the machine in the direction of the arrow until you hear the sound from
the cylinder (10).
