Xerox Phaser 3250 Manuel utilisateur

Phaser® 3250

Black-and-White Laser Printer

Phaser® 3250

Service Manual

www MK-Electronic de

Chapter

Parts List

In this chapter...

■Serial Number Format

■Using the Parts List

■Print Engine Parts

■Options

■Xerox Supplies and Accessories

www MK-Electronic de

9-2 Phaser 3250 Laser Printer Service Manual

Parts List

Serial Number Format

Changes to Xerox products are made to accommodate improved components

as they become available. It is important when ordering parts to include the

following information:

■Component's part number

■Product type or model number

■Serial Number of the printer

The serial number is found on a label located on the frame of the printer.

Mass Production Units (MP Build)

PPP1SSSSS

SSSSS = Five digit numeric serial number based on the following table:

The nine-digit serial number has the following format:

■PPPRSSSSS

■PPP = Three digit alphanumeric product code

■R = Single digit numeric revision digit, 0~9. To be rolled when a major product

change occurs and initiated with a change request.

Product Code Product

MXV 3250D, 110 V Engine

MXW 3250D, 220 V Engine

MXX 3250DN, 110 V Engine

MXY 3250DN, 220 V Engine

Product Starting Serial Number Ending Serial Number

3250D, 110V Engine 085501 11225

3250DN, 110V Engine 158001 183750

3250D, 220V Engine 112251 158000

3250DN, 220V Engine 183751 239500

www MK-Electronic de

Phaser 3250 Laser Printer Service Manual 9-3

Parts List

Example

MXV85501: Xerox Serial Number

MVX: Product Code for the Phaser 3250, configuration D or DN, 110V printer

85501 = Serial Number for 3250_D

Serial Number Label and Location

Serial No.: MXV85501

Xerox Corporation

Phaser™ 3250D

Manufactured: JUNE 2008

CLASS 1 LASER PRODUCT

s3250-151

www MK-Electronic de

9-4 Phaser 3250 Laser Printer Service Manual

Parts List

Using the Parts List

■ID No.: The callout number from the exploded part diagram.

■Name/Description: The name of the part to be ordered and the number

of parts supplied per order.

■Part Number: The material part number used to order that specific part.

■Parts identified throughout this manual are referenced PL#.#.#; For

example, PL3.1.10 means the part is item 10 of Parts List 3.1.

■A black triangle preceding a number followed by a parenthetical statement

in an illustrated parts list means the item is a parent assembly, made up of

the individual parts called out in parentheses.

■The notation “with X~Y” following a part name indicates an assembly that

is made up of components X through Y. For example, “1 (with 2~4)”

means part 1 consists of part 2, part 3, and part 4.

■An asterisk (*) following a part name indicates the page contains a note

about this part.

■The notation (NS) next to a part indicates that particular part is not

spared, but contained in a kit or major assembly.

■The notation “J1<>J2 and P2” is attached to a wire harness. It indicates

that connector Jack 1 is attached to one end of the wire harness and

connector J2 is attached to the other end that is plugged into P2.

Note

Only parts showing part numbers are available for ordering by support.

Parts not showing part numbers are available on the parent assembly.

Abbreviations

Abbreviation Meaning

C C-ring

E E-ring

KL K-clip

S Screw

www MK-Electronic de

Phaser 3250 Laser Printer Service Manual 9-5

Parts List

Print Engine Parts

Parts List 1.1 Main

4 5

10 11

14-1

14-2

16-1 16-3

16-2

16-4

s3250-056

www MK-Electronic de

9-6 Phaser 3250 Laser Printer Service Manual
Parts List
Parts List 1.1 Main
ID No. Name/Description Part Number
0. Set - MEA Unit Cover Top (P3250DN) 002N02738
1. Shield Controller
2. PBA Main Controller (P3250 D) 140N63322
PBA Main Controller (P3250 DN) 140N63323
3. HVPS 105N02147
4. SMPS-PSP-Type 2 V2C (110V) (LVPS) 105N02139
SMPS-PSP-Type 2 V2C (220V) (LVPS) 105N02140
5. CBF Harness Fuser AC (SMPS)
6. Cable from Conn Coax
7. CBF Harness HVPS
8. ELA Unit Drive (Drive Assembly) 007N01601
9. CBF Harness Motor & Solenoid
10. CBF Harness AC Inlet
11. Roller Transfer 022N02354
12. ELA Unit LSU (Laser Unit) 122N00279
13. MEA Unit Duplex 097N01682
14. Duplex Rear Cover Assy 002N02736
14-1. Cover Duplex
14-2. Cover Rear Duplex
15. Cover Top Lower 002N02739
16-1. MEA Unit Cover Left 002N02731
16-2. MEA Unit Cover Right (P3250D) 002N02733
MEA Unit Cover Right (P3250DN) 002N02732
16-3. MEA Unit Cover Rear 002N02734
16-4. MEA Unit Cover Front 002N02735
17. MEA Unit Cassette 050N00521
18. ELA Unit SCF (Optional Tray 2) 098N02194
19. CBF-Power Cord, 110V 105N02072
CBF-Power Cord, 220V 117N01769
20. ELA HOU-DEVE (Print Cartridge - 3.5K) 106R01373
ELA HOU-DEVE (Print Cartridge - 5K) 106R01374
21. Cover Top Upper
www MK-Electronic de

Phaser 3250 Laser Printer Service Manual 9-7

Parts List

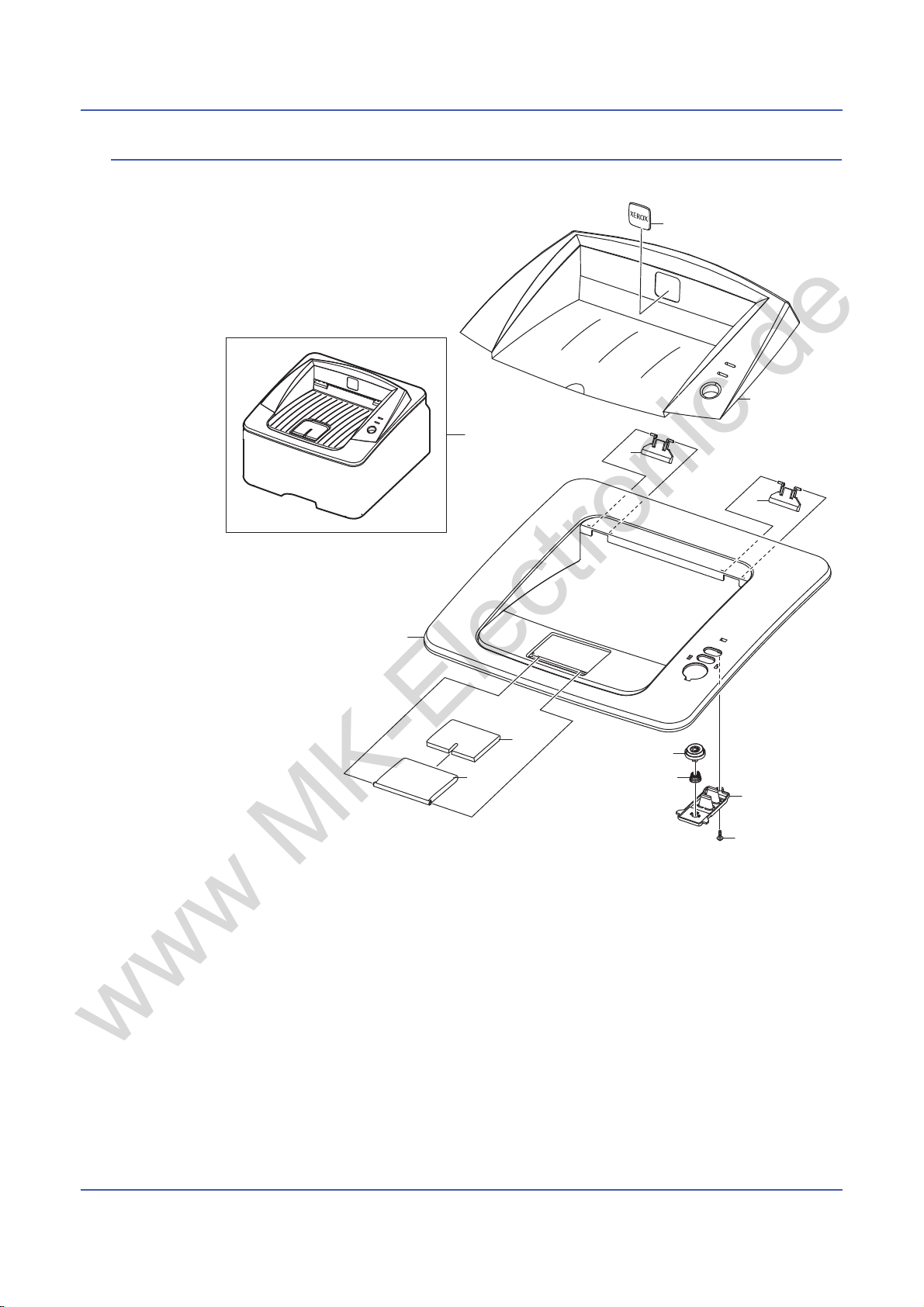

Parts List 2.1 Top Cover

s3250-066

www MK-Electronic de

9-8 Phaser 3250 Laser Printer Service Manual

Parts List

Parts List 2.1 Top Cover

ID No. Name/Description Part Number

0. MEA Unit Cover Top (P3250DN) 002N02738

1. Cover Top Lower 002N02739

2. Stacker Large

3. PMO Sub M-Stacker

4. Stacker Small

5. Cover Top Upper

6. Badge Xerox

7. Lens LED

8. Spring CS

9. Key On-Line

10. Screw Taptite

11. Sponge Cover Top (not shown)

www MK-Electronic de

Phaser 3250 Laser Printer Service Manual 9-9

Parts List

Parts List 3.1 Cover Assembly

3-1

3-2

s3250-067

www MK-Electronic de
