Troubleshooting

WorkCentre 7500 Series Multifunction Printer 211

User Guide

3. If the message on the control panel instructs you to turn the green wheel, turn it in the direction

shown. Turning the green wheel moves the original out of the feeder.

4. If the message instructs you to open the inner cover, lift the lever with the green tab to open the

inner cover.

5. Turn the green wheel in the direction shown to move the original out of the feeder. Carefully remove

the jammed original.

6. Close the inner cover, then close the top cover, pressing it down until it clicks into place.

7. If the original is not visible when the top cover is opened, lift the document cover and remove the

original.

Troubleshooting

212 WorkCentre 7500 Series Multifunction Printer

User Guide

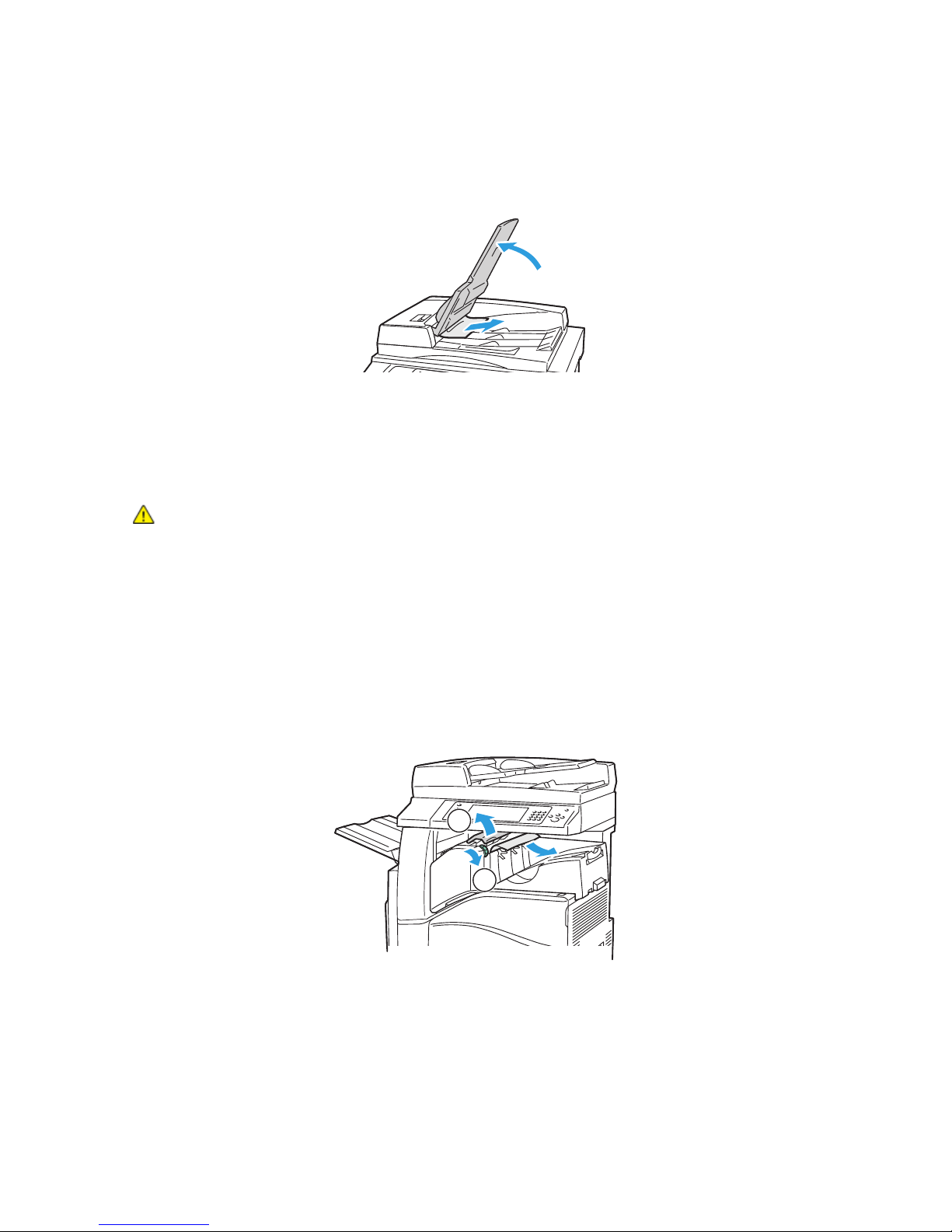

8. If the original is not visible when the document cover is opened, lift up the document feeder tray,

then remove the paper.

9. Lower the document feeder tray.

10. If the original is not wrinkled or torn, load it into the feeder again following the instructions on the

touch screen.

Note: After clearing a document feeder jam, reload the entire document, including the pages already

scanned. The printer automatically skips the scanned pages and scans the remaining pages.

CAUTION: Torn, wrinkled, or folded originals can cause jams and damage the printer. To copy torn,

wrinkled, or folded originals, use the document glass.

Clearing Jams in the Integrated Finisher

1. Locate the Integrated Finisher mounted beneath the Scanner and Control Panel.

2. Open the top cover of the finisher (1).

3. Turn the green knob in the direction shown to remove the paper (2).

4. Remove the paper by pulling it in the direction shown.

Note: If the paper is torn, remove all torn pieces from the printer.

5. Close the top cover of the Integrated Finisher.

Troubleshooting

WorkCentre 7500 Series Multifunction Printer 213

User Guide

Clearing Jams in the Office Finisher LX

Clearing Jams Under the Finisher Top Cover

1. Pull up the lever on the top cover.

2. Open the top cover by rotating it to the left.

3. Remove the jammed paper.

Note: If the paper is torn, remove all torn pieces from the finisher.

4. Close the top cover of the finisher.

Troubleshooting

214 WorkCentre 7500 Series Multifunction Printer

User Guide

Clearing Jams in the Finisher Transport

1. Locate the handle on the right front of the center tray.

2. Lift the handle of the center tray straight up to open the transport cover.

3. Remove the jammed paper.

Note: If the paper is torn, remove all torn pieces from the finisher.

4. Close the transport cover.

Clearing Jams in the Professional Finisher

Clearing Jams in the Center Tray

1. If the paper is jammed at the exit to the center output tray, pull the paper in the direction shown.

Troubleshooting

WorkCentre 7500 Series Multifunction Printer 215

User Guide

2. Open, then close, the finisher transport cover.

Clearing Jams in the Finisher Transport

1. Open the finisher transport cover.

2. Remove the jammed paper.

Troubleshooting

216 WorkCentre 7500 Series Multifunction Printer

User Guide

Note: If the paper is torn, remove all torn pieces from the finisher.

3. If no paper is visible, turn green knob 1 in the direction shown and carefully pull out the jammed

paper.

4. Close the finisher transport cover.

Clearing Jams at 2a in the Finisher

1. If the paper is visible at the output tray exit, remove the paper by pulling it in the direction shown.

2. Open the front door of the finisher.

Troubleshooting

WorkCentre 7500 Series Multifunction Printer 217

User Guide

3. Move green lever 2a to the right.

4. Remove the jammed paper.

5. If the paper is inaccessible or if the control panel displays a message to do so, turn knob 2c in the

direction shown to release the paper.

6. Carefully remove the paper.

Note: If the paper is torn, remove all torn pieces from the finisher.

7. Return lever 2a to its original position.

8. Close the front door of the finisher.

Troubleshooting

218 WorkCentre 7500 Series Multifunction Printer

User Guide

Clearing Jams at 2b in the Finisher

1. Open the front door of the finisher.

2. Move green lever 2b to the right.

3. Remove the jammed paper.

4. If the paper is inaccessible or if the control panel displays a message to do so, turn knob 2c in the

direction shown to release the paper.

5. Carefully remove the paper.

Note: If the paper is torn, remove all torn pieces from the finisher.

Troubleshooting

WorkCentre 7500 Series Multifunction Printer 219

User Guide

6. Return lever 2b to its original position.

7. Close the front door of the finisher.

Clearing Jams at 3 in the Finisher

1. Open the front door of the finisher.

2. Pull down green lever 3.

3. Carefully remove the jammed paper.

Note: If the paper is torn, remove all torn pieces from the finisher.

4. Return lever 3 to its original position.

5. Close the front door of the finisher.

Troubleshooting

220 WorkCentre 7500 Series Multifunction Printer

User Guide

Clearing Jams at 4a in the Finisher

1. Open the front door of the finisher.

2. Using the green handle, pull out unit 4 until it stops.

3. Turn green knob 4a in the direction shown to release the jammed paper.

4. Carefully remove the paper as shown.

Note: If the paper is torn, remove all torn pieces from the finisher.

5. Return unit 4 to its original position.

6. Close the front door of the finisher.
