Xentino A405N Manuel utilisateur
Quick Installation Guide
Model : A405N
Copyright © 2014 Xentino Technologies Corp. All rights reserved.
Outdoor Long Range 802.11a/n 5GHz Wireless AP/CPE/Bridge
(2T2R)
Package Content
Quick Installation Steps
1. Take off the water-proof sliding cover.
2. Connect the Main Ethernet port of A405N with a RJ-45 8P8C cable.
3. Make the water-proof sliding cover well installed.
4. Connect PoE Injector to A405N as below diagram.
DC: Plug in the DC jack of 24V/1A power adapter
PoE port: Connect to Main Ethernet port with a RJ-45 8P8C cable.
LAN port: Connect to your computer/laptop for Web configuration.
Reset button: It allows user to remotely reset the system of A405N.
Quick Installation Guide
Model : A405N
Copyright © 2014 Xentino Technologies Corp. All rights reserved.
NOTE.
1. There is no software driver or utility installation needed.
2. RJ-45 8P8C Ethernet cable is required.
3. It takes about 60 seconds to complete the boot up sequence afterA405N powered up.
4.A405N built in PoE pass through function on Secondary Ethernet port. It means the
Secondary Ethernet port is able to provide 24V power for a secondary device and can be
enabled on Web Configuration (Please refer to the statement onAdvanced Setting of Radio
menu).
Software Configuration
Network Connection Setup
The default IP of A405N is 192.168.1.200. You have to make sure your computer is on the same
network segment as A405N before connecting to A405N.
Example: In the Windows 7 operating system
1. Press Start and enter ncpa.cpl in search bar. You will see network connection page.
2. Select your network interface card and Right click to set Properties.
3. Double click Internet Protocol Version 4 (TCP/IPv4).
4. Select Specify an IP address and enter the IP address.
IPAddress: 192.168.1.x (x can be any number between 1 to 254 except for 200)
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.200
5. Click OK to complete the IP setting.
Get started with A405N

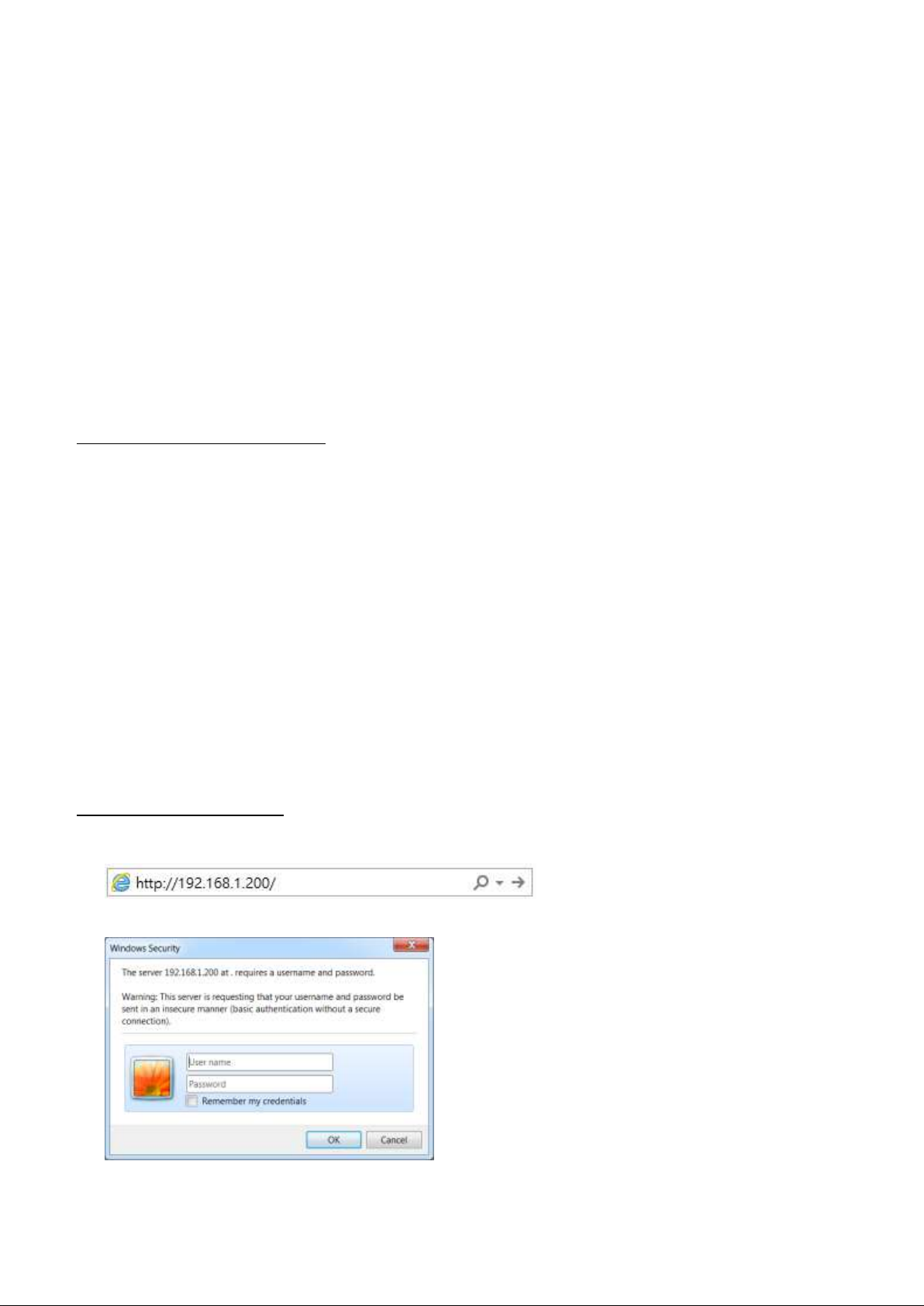

1. Open Web browser and enter 192.168.1.200 in the URL field of Web browser.
2. Enter “admin”as default user name, and “admin”as default password.
3. After successful login , you’ll see the system status on the screen. Regarding to detailed Web
configurations, please refer to user manual placed in product CD.
