xelux smartglass S3 STUD Manuel utilisateur
castelberg design gmbh | Räffelstrasse 29 | 8045 Zürich | Switzerland | 2022
Technical specications
Frame material: Polycarbonate, skin-friendly
Functional insert material: Glass/Plastics, skin-friendly
Total weight: 42 g
Dimensions: 170 x 150 x 50 mm
Standards: CE: EN166, EN170, EN172, EN379, ISO 12609-1
Warranty: 5 years
Lifetime: Min. 6 years including battery lifetime
Marking CE
3 / > 8 / GEO / 1 / 1 / 1 / 2 / 379 CE
Light state
Dark state
Manufacturer
Optical class
Diffusion of light class
Variations in luminous
transmittance class
Angle dependence of
luminous transmittance
CE standard
Instruction Manual
Warning! The active safety glasses smartglass S3 STUD are
intended exclusively to protect from light pulses as they are emitted
from stud welding processes.
Please read the instruction manual before rst use.
This personal protective equipment (PPE) is complies with EU
regulation 2016/425 , with effect from April 21, 2018.
Characteristics
Reaction time of less than a millisecond
Full color recognition and natural view with realcolor optics
Maximum eye protection with minimum weight
Combining comfort with safety
CE certied according EN166, EN170, EN172, EN379, ISO 12609-1
Application
The active safety glasses smartglass S3 STUD were specically
developed for people working with stud welding processes. The
active safety glasses smartglass S3 STUD reliably protect against
harmful light pulses as they are emitted when stud welding while
working comfortably.
The active safety glasses smartglass S3 STUD are fully operational
out of the box. There is no on/off switch. The active safety glasses
smartglass S3 STUD will automatically darken.
Technology
The active safety glasses smartglass S3 STUD light state’s shade
level is 2.5. Upon the ring of a light-pulse, the active safety glasses
smartglass S3 STUD automatically switches from the light state to a
dark state at shade level 8 within less than a millisecond. The
electronics were designed to only start darkening once an
uncomfortable illuminance threshold is reached.
The active safety glasses smartglass S3 STUD protects in the
wavelength range of 200 – 3000 nm. The light state of the realcolor
optics is clear and color neutral. This allows the user to accurately
perceive signal colors.
8
2.5
SCHWEISSEN IN FARBE
Active Safety GlassesAktive Schutzbrille
SWISS MADE
castelberg design gmbh | Räffelstrasse 29 | 8045 Zürich | Switzerland | 2022
Security advice
The active safety glasses smartglass S3 STUD may not be used for
other purposes besides protection from IPL-pulses.
The active safety glasses smartglass S3 STUD should be stored at
temperatures from -10°C to +40°C and at a relative humidity below
80%. Avoid moisture and sunlight. The operating temperature is
between -10°C and +55°C. Prolonged use outside of ideal
temperatures can lead to damages that are not covered by the
warranty. Storage together with acids, alkalis, oils or organic solvents
can lead to damages to the product.
In rare cases allergic reactions to the glasses are possible. If the
glasses cause skin irritation, the active safety glasses
smartglass S3 STUD must not be used further and medical advice is
recommended.
The active safety glasses smartglass S3 STUD is certied as the
combination frame, cover lens and functional insert. The functional
insert must not be used without the cover lens.
If the active safety glasses smartglass S3 STUD do not operate
normally or are clearly damaged they must not be used further.
Wearing the active safety glasses smartglass S3 STUD on top of
other glasses can transmit shocks of high-speed particles and can
therefore be dangerous to the wearer.
Any application of the smartglass S3 STUD outside of the specied
conditions, especially under extreme temperatures or exposure to
high-speed particles, is forbidden.
Accessories and spare parts
Frame, cover lens and functional insert are easily exchangeable. They
can be ordered individually.
Frame white complete with cover lens clear blue
Item no.: 10.051
Cover lens clear blue
Item no.: 10.810
Functional insert S3 STUD
Item no.: 20.065
Distribution
Distribution is taken care of by the qualied retailers, our online shop
or by contacting us directly. We will also gladly recommend you a
local distribution partner.
Please visit our website castelberg-design.com where you can nd
further information.
If you have any questions, please do not hesitate to contact us. We
will gladly help you.
Manufacturer: castelberg design gmbh
Räffelstrasse 29
8045 Zurich
Switzerland
Notied body: ECS GmbH (1883)
Hüttfeldstrasse 50
73430 Aalen
Germany
An original smartglass S3 STUD must have this marking!
Maintenance, lifetime and warranty
The active safety glasses smartglass S3 STUD require no
maintenance besides cleaning. They should be cleaned with a
microbre towel or any other towel intended to clean glasses. For
disinfection use a standard disinfectant with a towel. Do not pour or
spray liquids directly on to the glasses.
Power is provided by an integrated lithium ion battery. The battery
lifetime is 6 years at minimum and it can be replaced by the
manufacturer. Please dispose the product at the end of its lifetime in
an appropriate manner for electronics.
The warranty for material and manufacturing mistakes is 5 years.
Damages that result from physical abuse of the product are not
covered by the warranty. The warranty only applies for the intended
use case and only to unmodied products. Besides legit warranty
claims, no other damages are covered.

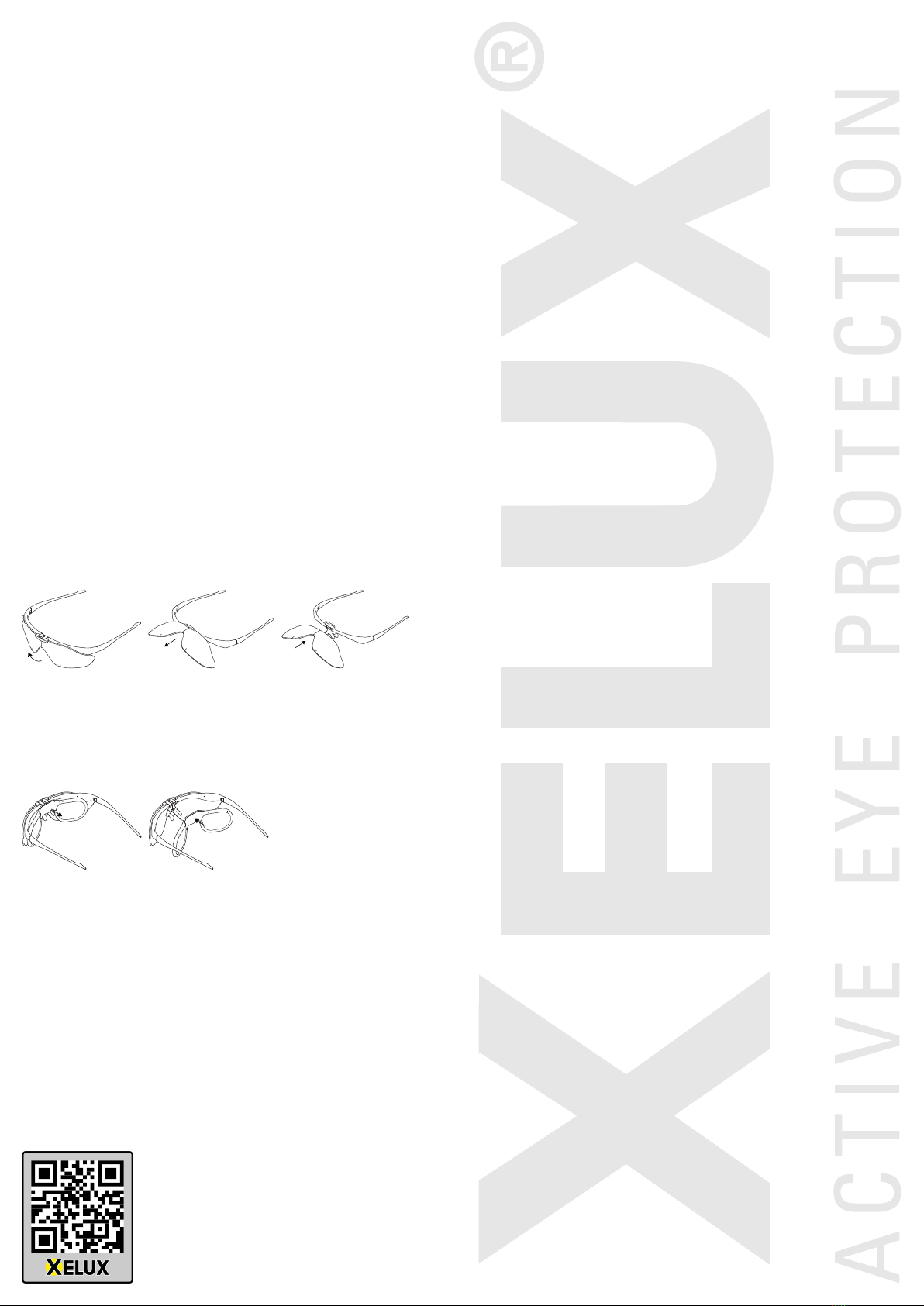

Changing of cover lens and functional insert
Cover lens:
Flip the cover lens upward. Pull the cover lens out of its holder. Insert
a new cover lens and let it snap into position.
Functional insert:
Push a coin or a similar at solid object between the frame and the
functional insert. Twisting the coin will eject the insert. Align the cam
of the functional insert with the corresponding hole on the frame.
Gently push the functional insert into the hole of the frame until it
snaps into position.
