X10 VK60A Manuel utilisateur

OWNER'S MANUAL

VGA Video Sender

MODEL VK60A

(INCLUDES VT36A SENDER AND VR30A RECEIVER)

VT36AVR30A

FCC CAUTION

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

This equipment generates and uses radio frequency energy, and if not installed and

used properly, that is, in strict accordance with the manufacturers instructions, it may

cause interference to radio and television reception. It has been type tested and found

to comply with the limits for remote control devices in accordance with the

specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to

provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause interference to radio or television reception,

which can be determined by unplugging the equipment, try to correct the interference

by one or more of the following measures.

• Reorient the antenna of the radio/TV experiencing the interference.

• Relocate the equipment with respect to the radio/TV.

• Move the equipment away from the radio/TV.

• Plug the equipment into an outlet on a different electrical circuit from the radio/TV

experiencing the interference.

• If necessary, consult your local Dealer for additional suggestions.

NOTE: Modifications to this product will void the user's authority to operate this

equipment.

INTRODUCTION

Your Wireless Big Picture VGA Video Sender kit consists of a Sender

base unit which connects to the audio out jack and the VGA output

on your PC, and a Receiver unit which you connect to your TV. The

Sender converts the audio signal from your PC's sound card, and the

VGA video from your PC's video card into a radio frequency (RF)

signal and transmits it (even through walls) to the Receiver unit. The

Receiver converts the signals back to their original form and passes

them to your TV.

WARNING:

To reduce the risk of fire or electric shock, do not expose this product

to rain or moisture.

SYSTEM REQUIREMENTS

To use the Big Picture system your PC must have a serial port, a VGA

out port (that normally connects to your monitor) and a sound card

with mono or stereo output.

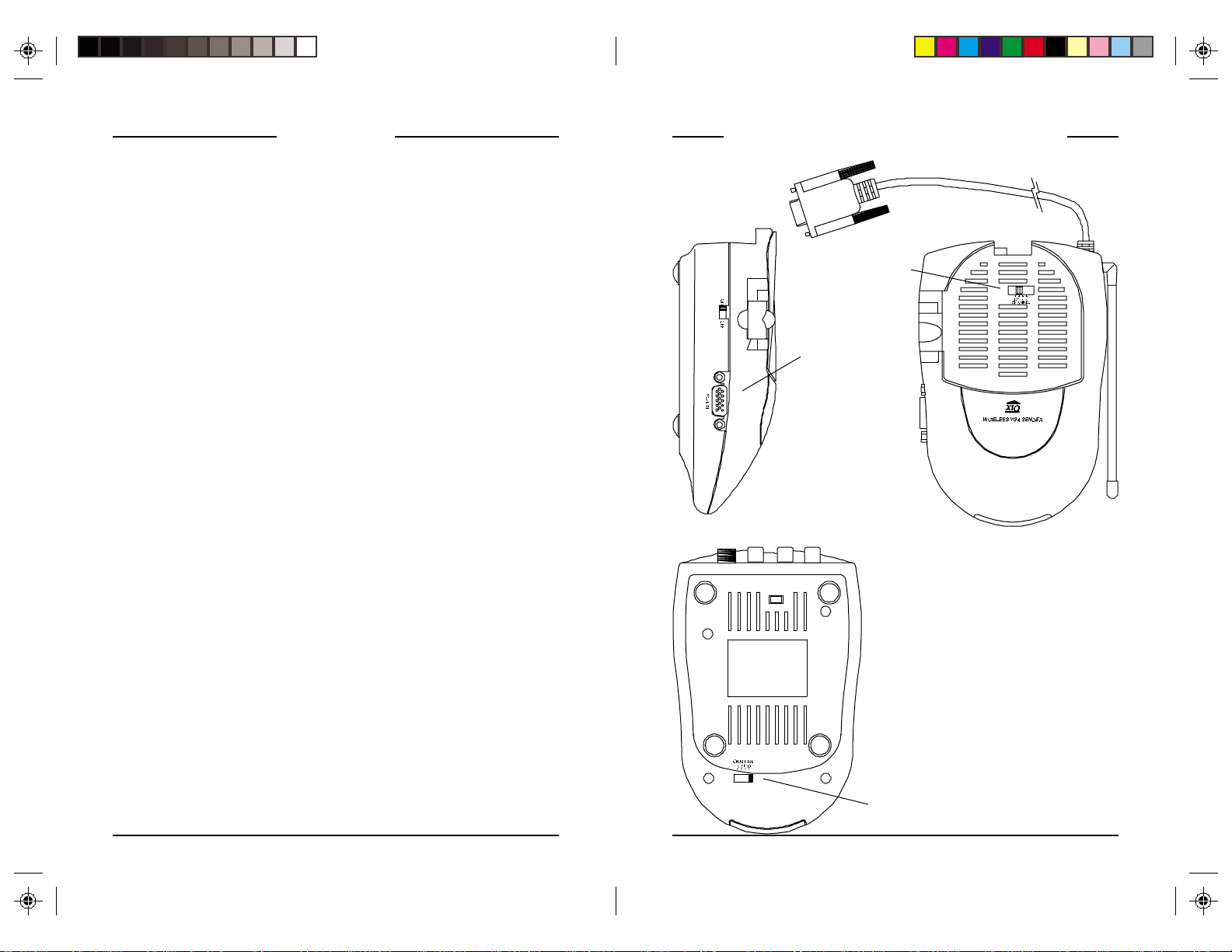

SENDER

(TOP VIEW)

RECEIVER

(BOTTOM VIEW)

2.4 GHz

Channel Switch

2.4 GHz

Channel Switch

CONTROLS AND CONNECTIONS

SENDER

(SIDEVIEW)

VGA In

CONTENTS

CONTROLS AND CONNECTIONS

.................................................5

SENDER..........................................................................6

RECEIVER ........................................................................7

BEFORE YOU START .................................................................8

CONNECTING UP

..................................................................

HOOKING UP THE SENDER

....................................................

HOOKING UP THE RECEIVER

.................................................

FINE TUNING YOUR SYSTEM

....................................................12

TROUBLESHOOTING ..............................................................13

Serial port

connector

RECEIVER

2.4 GHz

Video

Antenna

TV Output

Connector

A/V Input

Jacks

Power Supply

Jack

2.4 GHz Channel

Switch

(on bottom)

TV Channel

Switch

(on bottom)

ON-OFF

Switch

(on side)

SENDER

310 MHz Antenna for

use with UR81A remote

Audio Input

Jacks

Power Supply

Jack

2.4 GHz

Video

Antenna

ON-OFF

Switch

(on side)

2.4 GHz Channel

Switch

Serial port

connector

CONNECTING UP

HOOKING UP THE VGA SENDER

1. Connect the jack on the audio cable (supplied) to the audio out

jack on your PC sound card.

2. Connect the red RCA plug to the socket labelled AUDIO RIGHT

and the white RCA plug to the jack labeled AUDIO LEFT on the

VGA Video Sender.

3. Connect the VGA cables as show below so that the VGA out from

your PC connects to the VGA input on the VT36A and then also

passes to the VGA input on your monitor.

4. Connect the serial port connector to your PC's serial port.

5. Set the channel switch (on the TOP of the unit) to channel A (to the

RIGHT).

6. Plug the VGA Video Sender's Power Supply (the smaller of the

two power supplies) into a convenient 120 volt wall outlet and

plug its jack into the VGA Video Sender.

7. Position the VGA Video Sender in a convenient location and

orient the antenna so that the flat side points in the direction of the

room where you will be installing the Video Receiver.

Before you start installing your Big Picture System it is recommended

that you read this entire owner's manual. This will familiarize you

with the basic hardware installation. Then install the hardware. You

will then be able to see a picture from your PC on our TV screen. You

can then visit www.x10.com/software and download the "Boom"

program there, which will give you control over what is sent from

your PC to your TV.

BEFORE YOU START

Serial port connecter

1110

IFYOUR SECOND TV IS ALREADY HOOKED UP TO ADBS RECEIVER OR

OTHER A/V DEVICE

If your DBS Receiver or other A/V

component is connected to the TV using

A/V cables, you can connect the Video

Receiver to the free LINE IN jacks on

the component. If there are no LINE IN

jacks, you will need to use a TV

antenna splitter as described earlier.

HOOKING UP THE AUDIO RECEIVER

1. Connect a set of Audio/Video cables to the A/V OUT jacks of

your Video Receiver. Connect the other end to your secondary TV.

2. Plug the Video Receiver's Power Supply (the larger of the two

power supplies) into a 120 volt wall outlet and plug its jack into

the Video Receiver.

3. Position the Video Receiver in a convenient location such as on

top of the TV and orient the antenna so that the flat side points in

the direction of the room where you set up the Video Sender.

IFYOUR TV DOES NOT HAVE A/V CONNECTORS

You can use the supplied

coaxial cable to connect the

TV OUT socket on the Video

Receiver to the Antenna

input on your TV. If you

already have an antenna

connected to your TV, you

will need to use a TV

antenna splitter.

Set your TV and the TV

Channel switch on the

Video Receiver (on bottom)

to the same channel (3 or 4).

1312

FINE TUNING YOUR SYSTEM

The Wireless VGA Video Sender usually works best with the flat faces

of the antennas on the Sender and Receiver units facing each other

(see diagram below). Sometimes, however, reflections and other

effects in your home may affect the signal so that some adjustment of

either the Sender or Receiver antenna might be necessary to get the

best the signal.

TROUBLESHOOTING

IFYOU ARE NOT GETTING ANY AUDIO OR VIDEO AT ALL FROM THE

VR30A

•Check that the CHANNEL slide switch (labeled A, B, C, D) on both

units is set to the same letter.

•Check that both the transmitter and receiver's power supplies are

plugged in. Check that the ON/OFF switch on the transmitter and

receiver are ON.

IFTHE SOUND OR VIDEO IS POOR, OR THERE IS INTERFERENCE

•Try changing the channel on both units. Do this by adjusting the

CHANNEL slide switch on each unit to any position (A, B, C, or

D).

•Make sure both units are set to the same letter. Try repositioning

the antenna on each unit.

12 MONTH LIMITED WARRANTY

X10.COM A DIV. OF X10 WIRELESS TECHNOLOGY, INC. (X10)

WARRANTS ITS PRODUCTS TO BE FREE FROM DEFECTIVE MATERIAL AND

WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR FROM THE ORIGINAL

DATE OF PURCHASE AT RETAIL. X10 AGREES TO REPAIR OR REPLACE, AT

ITS SOLE DISCRETION, A DEFECTIVE X10 PRODUCT IF RETURNED TO X10

WITHIN THE WARRANTY PERIOD AND WITH PROOF OF PURCHASE.

IF SERVICE IS REQUIRED UNDER THIS WARRANTY:

1. CALL 1-800-675-3044, OR VISIT WWW.X10.COM, OR E-MAIL

[email protected] TO OBTAIN A RETURN AUTHORIZATION (RA)

NUMBER.

2. RETURN THE DEFECTIVE UNIT POSTAGE PREPAID TO THE ADDRESS

ON BACK.

3. ENCLOSE A CHECK FOR $4.00 TO COVER HANDLING AND RETURN

POSTAGE.

4. ENCLOSE A DATED PROOF OF PURCHASE.

5. X10 IS NOT RESPONSIBLE FOR SHIPPING DAMAGE. UNITS TO BE

RETURNED SHOULD BE PACKED CAREFULLY.

THIS WARRANTY DOES NOT EXTEND TO ANY X10 PRODUCTS WHICH

HAVE BEEN SUBJECT TO MISUSE, NEGLECT, ACCIDENT, INCORRECT

WIRING OR TO USE IN VIOLATION OF OPERATING INSTRUCTIONS

FURNISHED BY US, NOR EXTEND TO ANY UNITS ALTERED OR REPAIRED

FOR WARRANTY DEFECT BY ANYONE OTHER THAN X10. THIS

WARRANTY DOES NOT COVER ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR

IMPLIED AND NO REPRESENTATIVE OR PERSON IS AUTHORIZED TO

ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE

SALE OF OUR PRODUCTS.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN

IMPLIED WARRANTY LASTS, AND/OR THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE

LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO THE ORIGINAL

CUSTOMER. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

NOTES

X10.com, a division of X10 Wireless Technology, Inc.

(Returns Depot), 3824 North 5th St., Suite C,

North Las Vegas, NV 89030

VK60A-04/01
