X-Vision XUSB4DVR Manuel utilisateur
CCTV
Model:
XUSB4DVR
4Camera 25fps USB DVR Card
and Software
Beforeyou begin
•Please unpack all boxes carefully and identify that all the parts are present.
•Do not cut the cables, this will void the warranty.
Model: XUSB4DVR
4Camera25fps USB DVR Card
and Software
Quick Guide
Thank you for choosing the Xvision USB 4 Camera CCTV DVR and
SmartDVR Software. Please make sure you operate this product in
accordance with the manual, to ensure optimum performance.
1. Introduction......................................................................................2
2. Installation Notes............................................................................2
3. Specification.....................................................................................3
4. System Requirements.......................................................................3
5. Hardware installation.......................................................................4
6. Software Installation........................................................................4
1. Introduction
This product is a high speed device, which connects via USB to a
Windows PC/Laptop and turns it into a powerful 4 camera CCTV
recorder with remote viewing, including all the features of an
advanced CCTV DVR system.
2. Installation Notes
1. For Software use, please refer to the electronic manual on the
CD-Rom supplied.
2. The XUSB4DVR is equipped with precision components. Take care
when moving or installing this product.
3. Make sure that your PC has a USB 2.0 port (this product will not
operate on USB 1.0 ports)
4. If you need to remove the XUSB4DVR, follow these steps:
Right click the taskbar > stop device > remove the XUSB4DVR.
2
5. Using the Xvision XUSB4DVR with other USB devices
simultaneously may cause a conflict and the computer may not
recognise the XUSB4DVR. Do not use more than one XUSB4DVR or
use with any other Video capture devices.
6. For technical support, please contact your local distributor.
3. Specification
PCI Card: USB 4 Camera CCTV DVR
Video format: PAL/NTSC
Resolution: 352x288, 704x576 (PAL)
Maximum Frame 25fps (PAL)
Rate:
Video Channels: 4
Audio channels: 4
Data format: MPEG4
4. System Requirements
Operating System: Windows XP or Vista
CPU: Pentium 4, 1.7GHz or above
Graphics: Nvidia Geforce 2/ATI Rage 128
compatible or similar
RAM: 256MB
Direct X: Version 9 or above
USB 2.0 Sockets required: 1
3
5. Hardware Installation
1. Connect the XUSB4DVR to your PC/laptop.
2. Connect camera(s) to the yellow phono connectors for video and
the white phono connectors for audio.
6. Software Installation
After you have completed the hardware installation, turn on your
computer, your system may prompt you that it has ‘Found new
hardware’. Insert the CD in to your PC and run ‘setup.exe’ and the
installation interface appears as shown opposite.
Camera 1
(No Audio)
Camera 2
(No Audio)
Camera 3
(Audio)
Camera 4
(Audio)
4

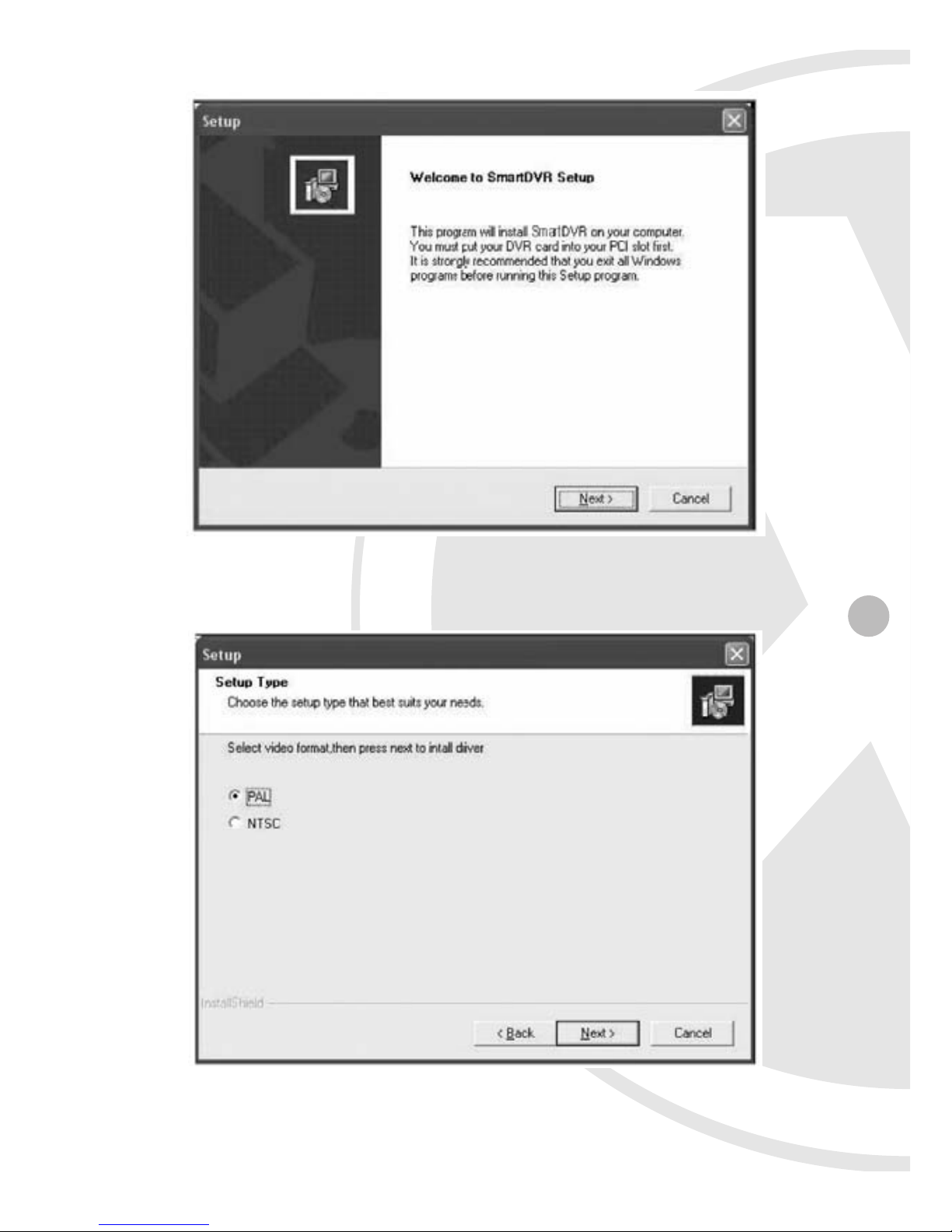

Click ‘next’
Select the desired video format (for european countries this should be
PAL) and click ‘next’:
5
Select ‘next’ or browse to choose a new destination folder
Select ‘next’ to select program folder
6
Click ‘Finish’ to complete installing
After completing the software installation, please restart the
computer and launch the SmartDVR software application. A shortcut
to the program is created on the desktop.
7
CCTV
Manufactured exclusively for:
Xvision (Europe) Group,
Head Office: London, U.K.
Email: [email protected].uk
Web: www.x-vision.co.uk
TECHNICAL SUPPORT:
For Technical Support for any Xvision product please contact your local
distributor.
LIMITED WARRANTY:
This product is supplied with a 1 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and
damage caused by normal wear and tear. In the unlikely event that you
encounter a problem with this product, it should be returned to the place
of purchase.
8
