X-Vision DVR is a computerized system that performs displaying, recording and retrieving the analog data from CCTV onto
personal computer. As it admixes advanced hardware technology and innovative software, it carries out security tasks with
high performance and maximized system stablility.
X-Vision DVR can accept up to 32 cameras on frame rate up to 400/400fps (in PAL type) depending on model type.
As X-Vision DVR adopts high compression algorithm, it maximizes storage capability and creates less network distruption.
It can create high quality and noise reduced image, which never lose original quality or degrade over time comparing with
the analog recorders of the past.
X-Vision DVR also allows multiple users to access local DVR through any network connection for instant live viewing and
remote search.
X-Vision
4
1.2 Features
Max. 32-Ch camera inputs
Display speed (in PAL type) at max. 400fps / Recording speed at max. 400fps
Provides Mpeg4 and Mjpeg compression algorithm
High resolution at 720 x 576 (in PAL type)
Max. 16-Ch audio recording (Optional)
Various alert modes upon various events
Pan/Tilt/Zoom control on both server and client side
32 level of security access
Digital watermark support
Dynamic IP support
Multiple and simultaneous remote connections
Allows access from Windows CE installed PDA through mobile internet
High performance, durable rackmount case
X-Vision
5
1.3 Im
p
ortant Notes
Before Operating PCDVR Server Program
1) Recycle Bin Setup
Check on the box “Do not move files to the Recycle Bin. Remove files immediately when deleted.” in the property of
Recycle Bin.
2) Display Setup
- Set resolution at 1024x768 and High Color 16bit.
- Set “System Standby”, “Turn off monitor” and “Turn off hard disk” at “Never” in Display Properties\Power
Management Properties\Power Schemes.
3) Rebooting Setup
We highly recommend you to set automatic daily rebooting in idle time for most stable system operation.
4) Operating System
Windows 2000 or Windows XP
5) DirectX
DirectX Verison 8.1 or above
X-Vision
6
Chapter 2
X-VisionDVRUnit
X-Vision
7
2.1 Unpacking X-Vision DVR Unit
Remove X-Vision DVR Unit from the package.
Make sure that the following contents are included in the package before beginning the installation procedure.
Included contents are ;
1. Mouse
2. Keyboard
3. X-Vision PCDVR Software CD-Rom
4. X-Vision DVR Unit
5. Manual
6. Power Cord
2.2 Front View of X-Vision DVR
3
1 2
1. Power LED : Green light turns on when switching on.
2. HDD LED : Red light turns on when hard disk runs
3. Power switch
X-Vision
8

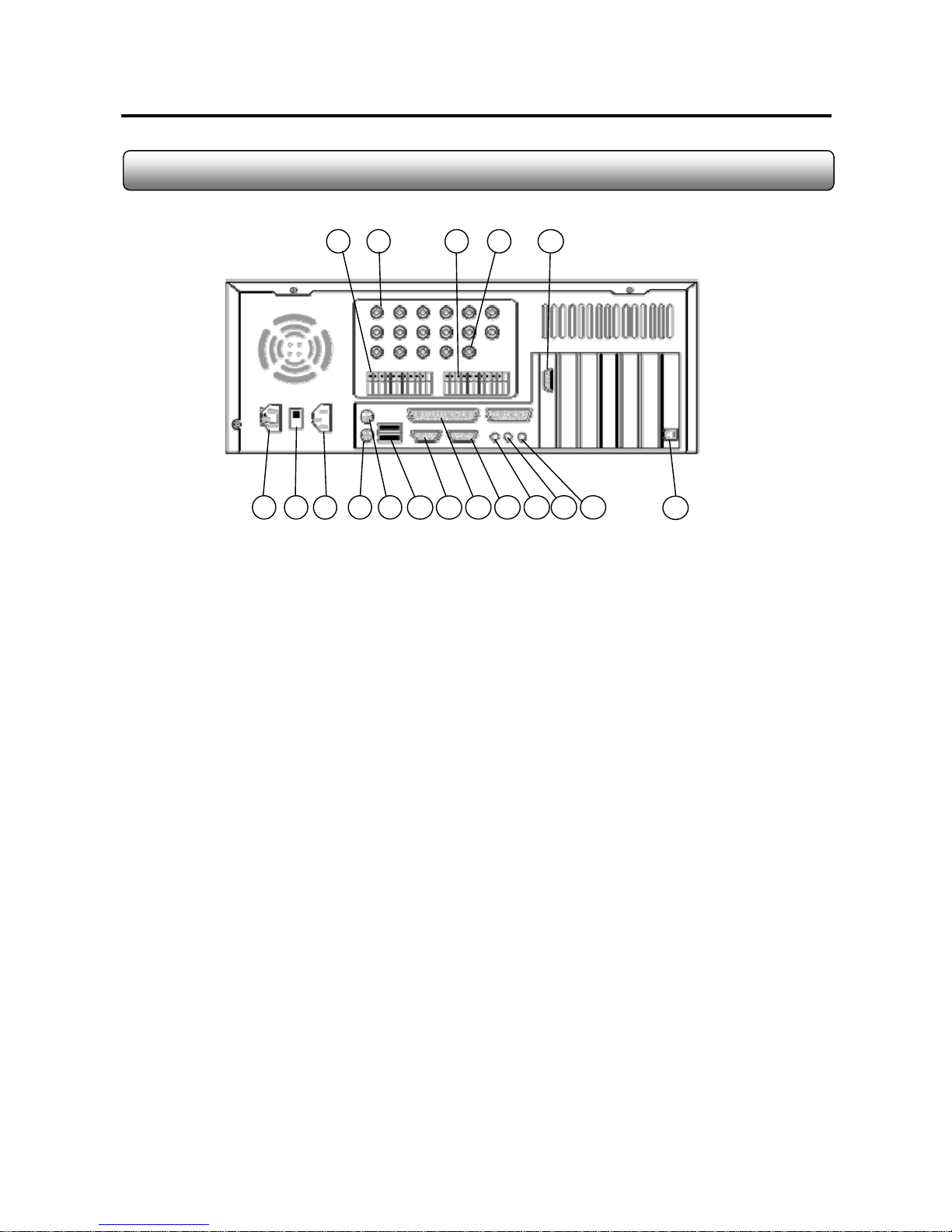

2.3 Rear View of X-Vision DVR
18
17
8 9 10 11 12 13 1615145 67
1 2 3 4
1. Sensor Input (8 Input Ports) 10. USB Port
2. Camera Input (Ch1 ~ Ch16) 11. COM1 Connector
(For PTZ device)
3. Alarm Output (5 Output Ports) 12. Print Connector
4. TV Out Port 13. COM2 Connector
5. AC Power Socket (Power In) 14. Line-out Connector
6. AC Power VAC Switch
(DIP Switch for 110/240 VAC) 15. Line-in Connector
7. AC Power Socket (Power Out) 16. Mic Connector
8. PS2 Socket (Keyboard) 17. Monitor Connector
9. PS2 Socket (Mouse) 18 Lan Connection Port
X-Vision
9
2.4 Connecting Sensor And Alarm
[ Sensor Input Terminal ]
1. Connection
Connect one signal lineto COM port and connect
Another signal line to the desired sensor number.
2. Operation
- Normal : 1-8 Terminal & COM Port Open
- Sensor Detection : 1-8 Terminal & COM Port
Close
3. At normal close mode, it works reversely.
[ Alarm Output Terminal ]
1. Connection
Connect both power lines to DO terminal
2. Operation
- Normal : DO Terminal Open
- Control Output : DO Terminal Close
3 D/O Voltage
.DC 30V, 1A or below
.DC 110V, 0.3A or below
.AC 125V, 500mAor below
X-Vision
10
2.5 Connecting Pan/Tilt
COM Port (RS232C)
RS422/485 Converter
